第02讲 - 设计流程 - 设计策略

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87116.JPG

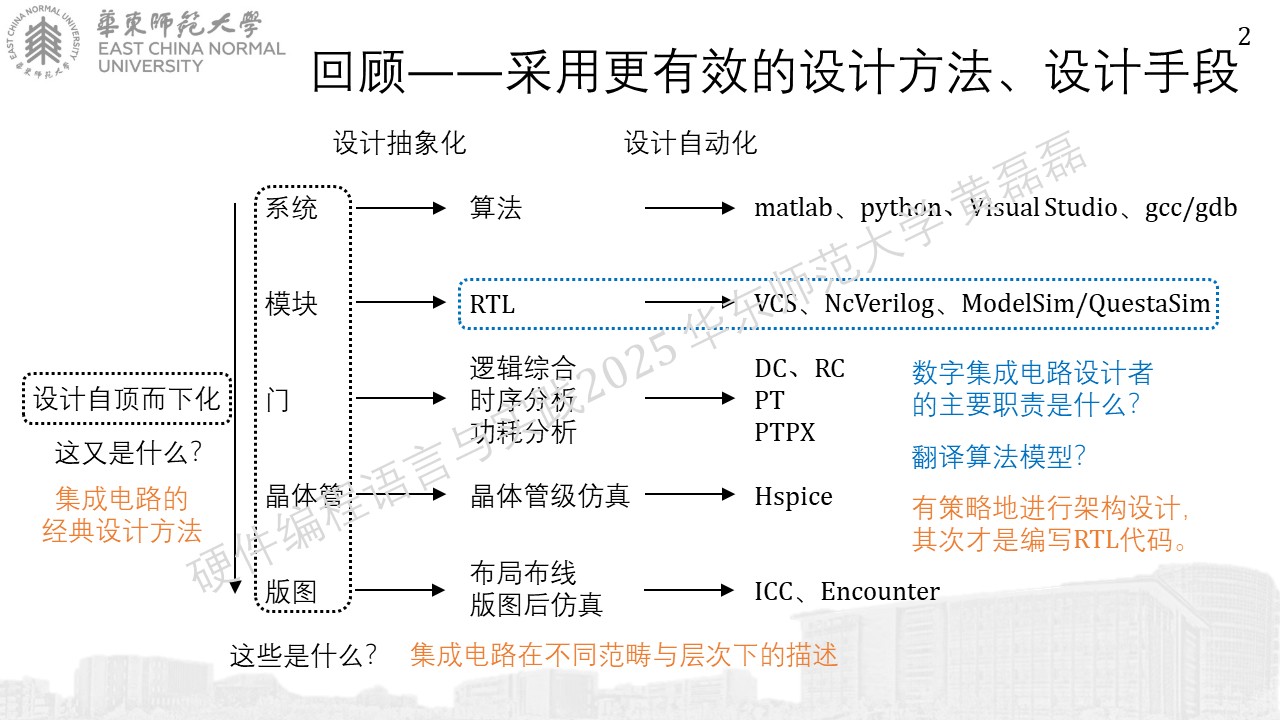

引子

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87215.JPG

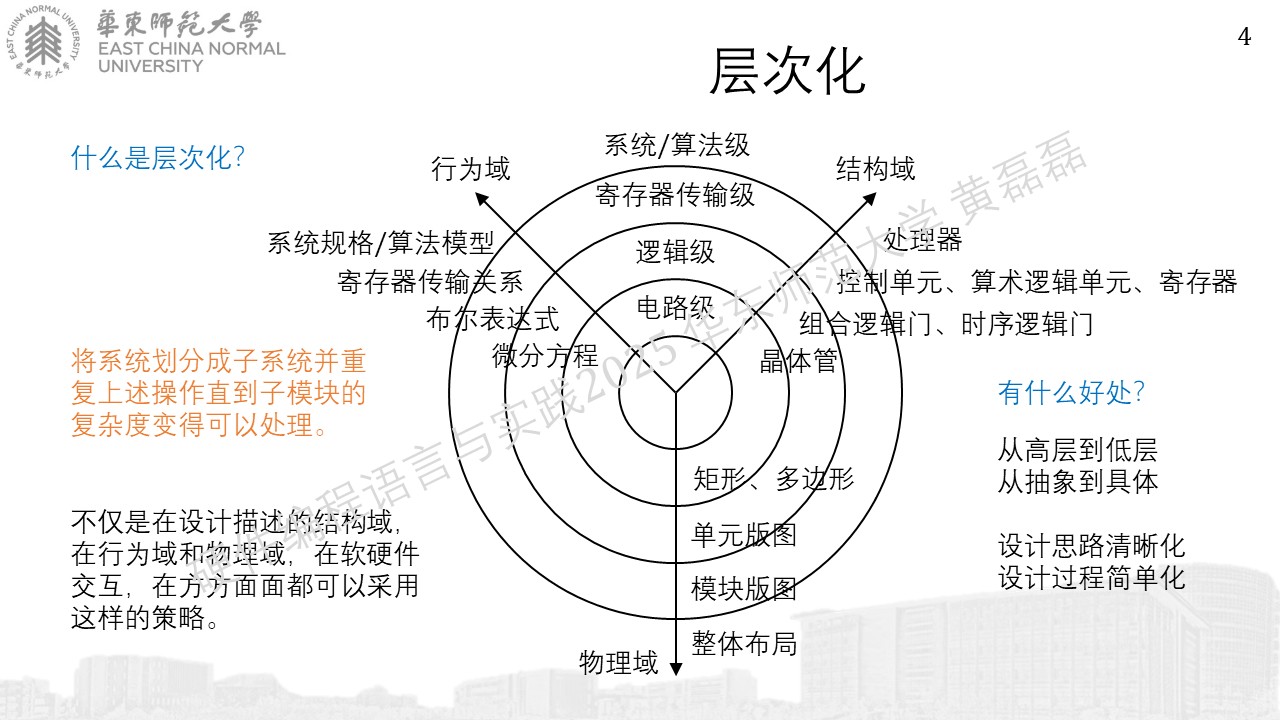

层次化

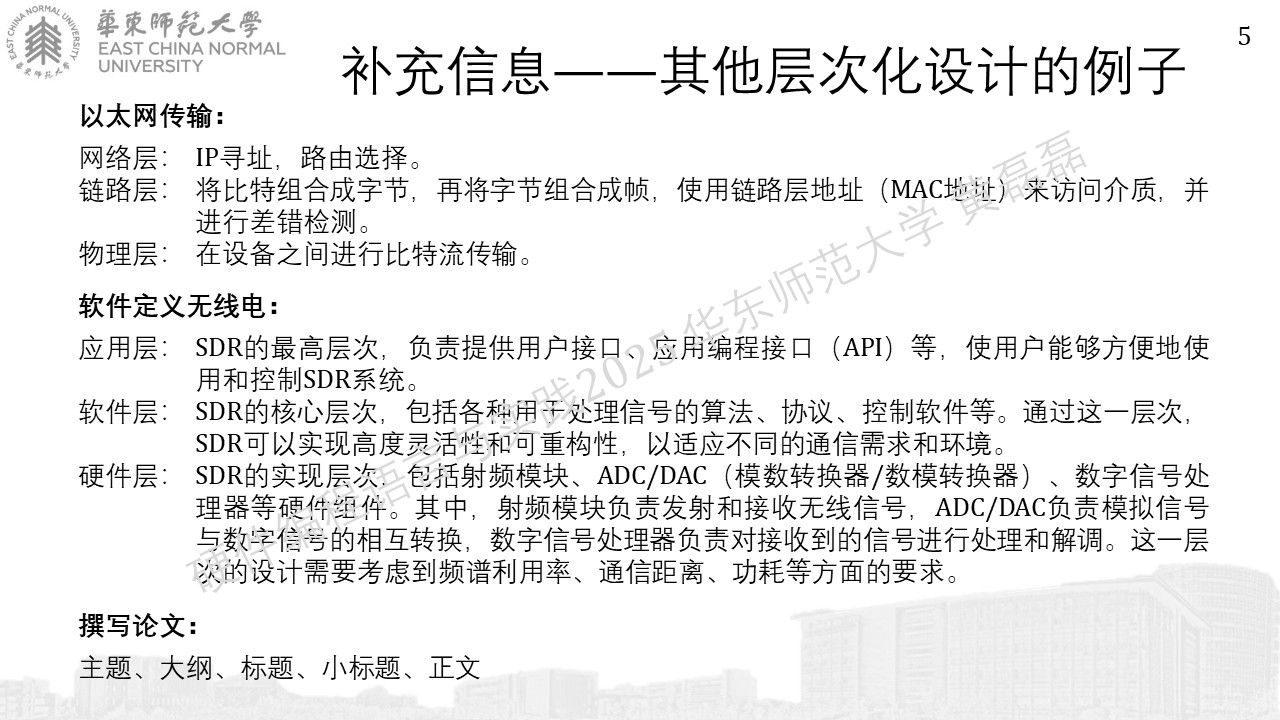

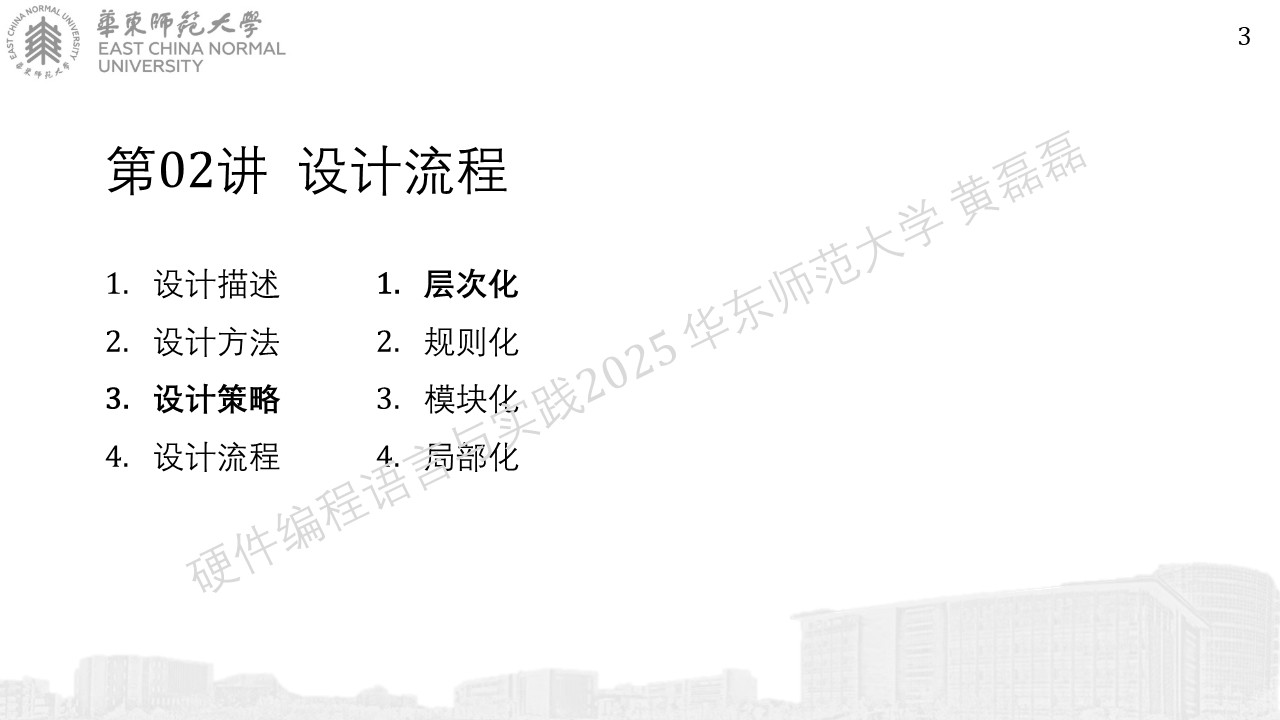

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87314.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87414.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%8757.JPG

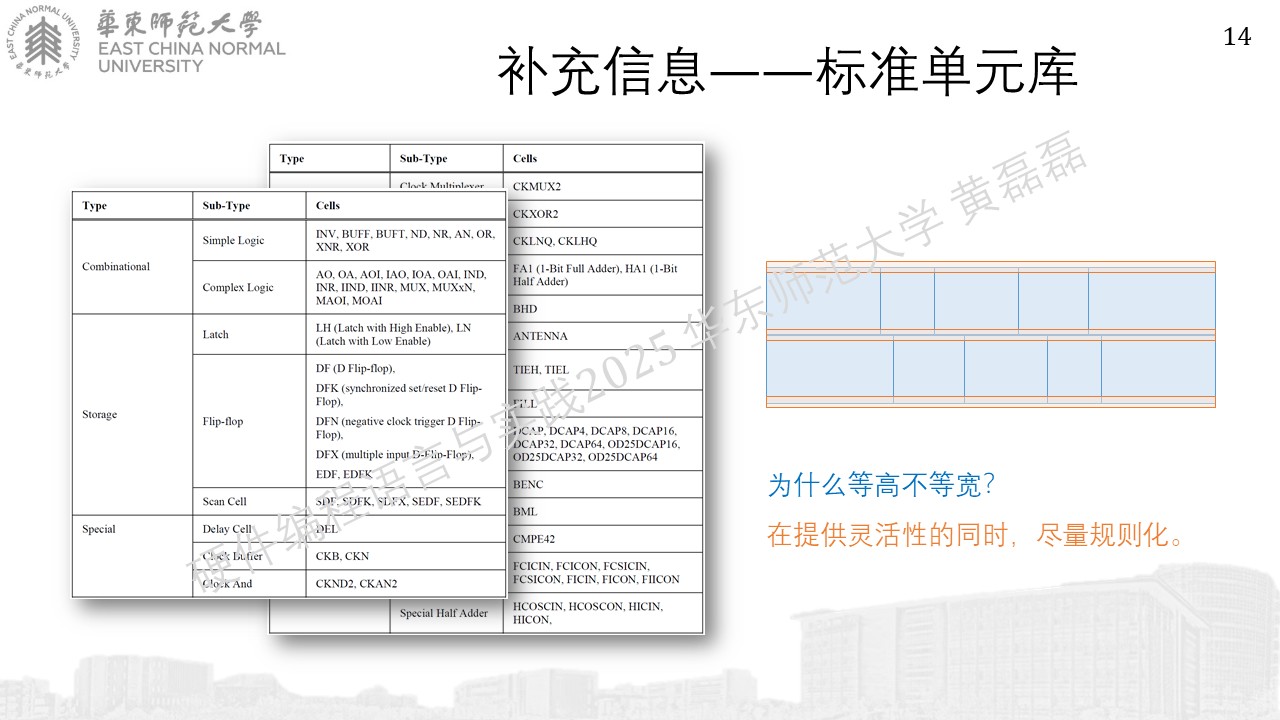

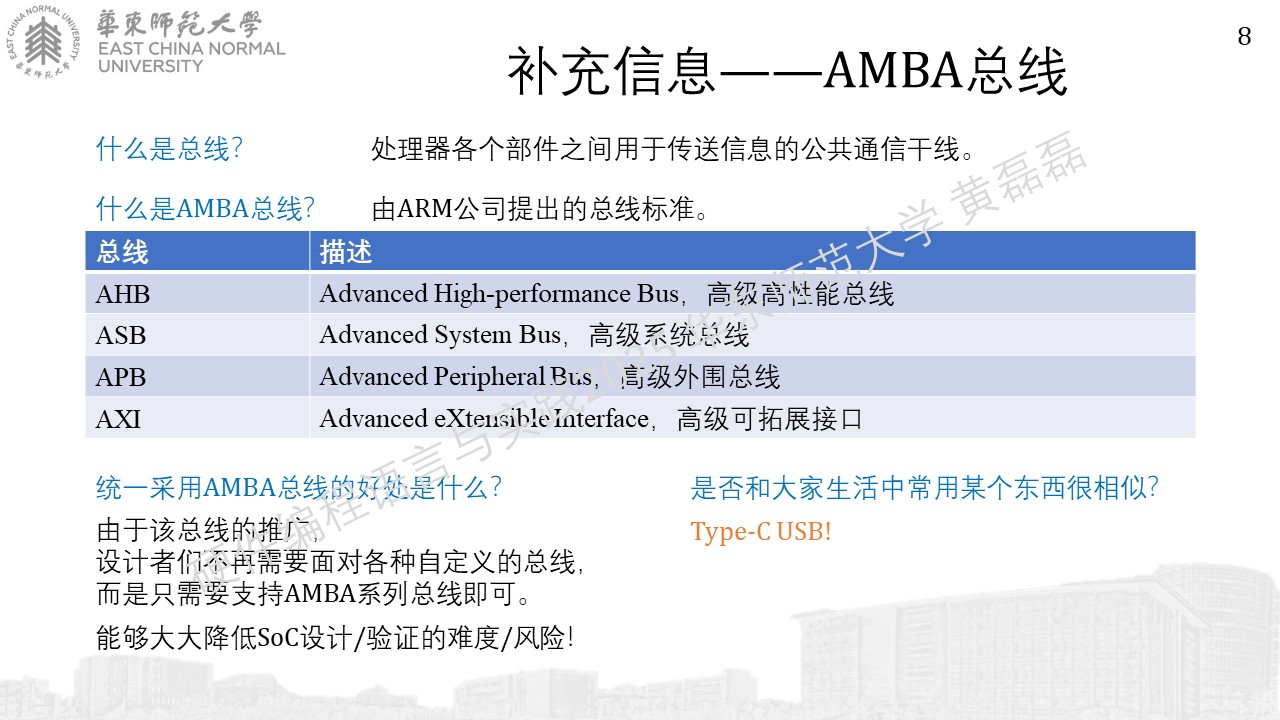

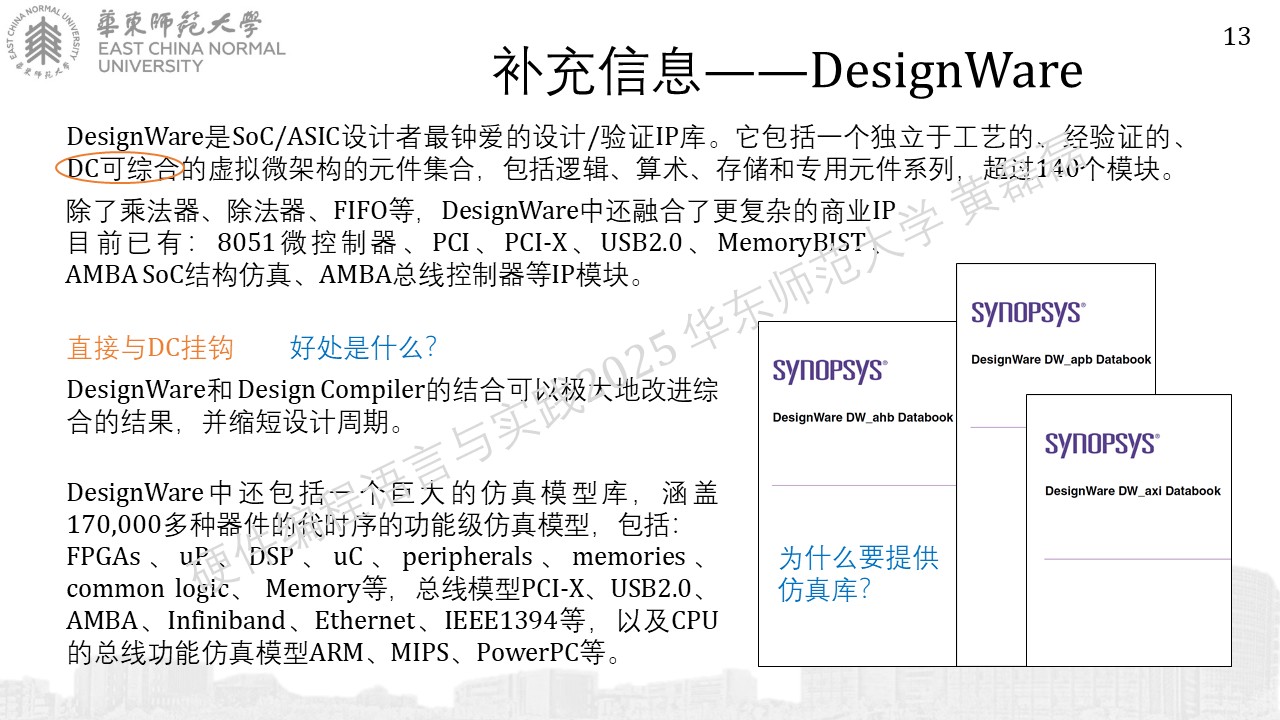

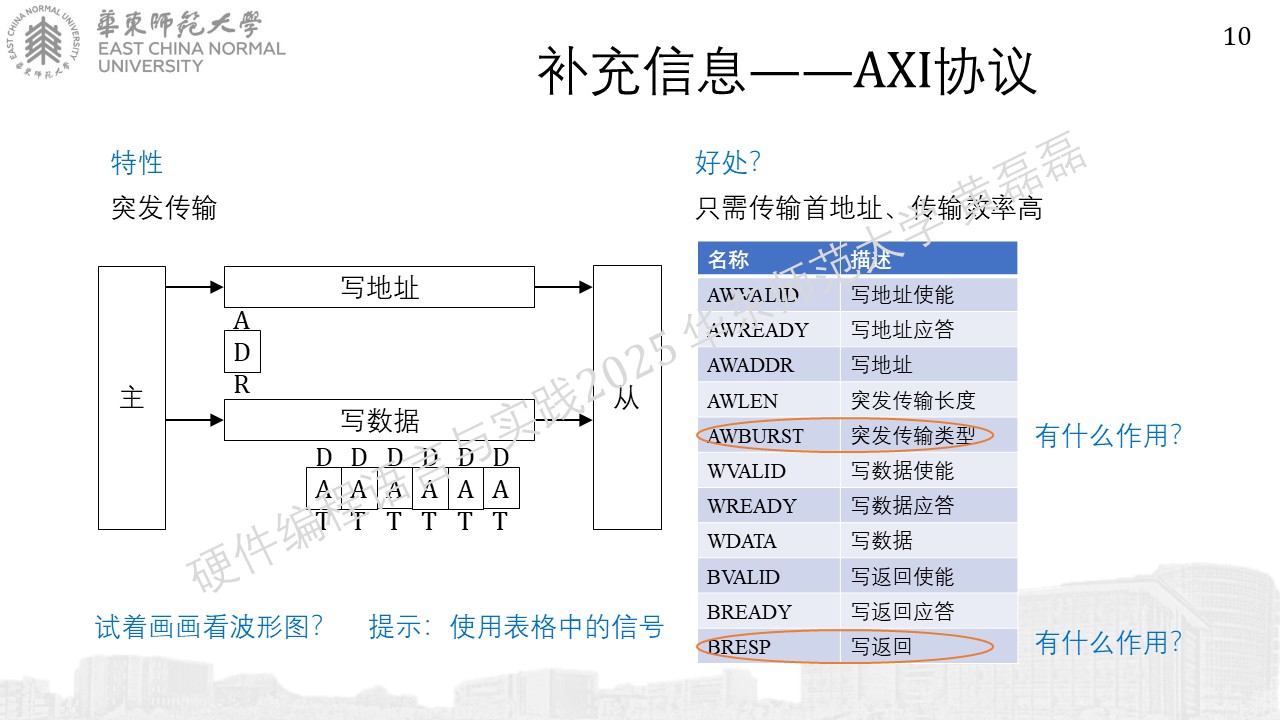

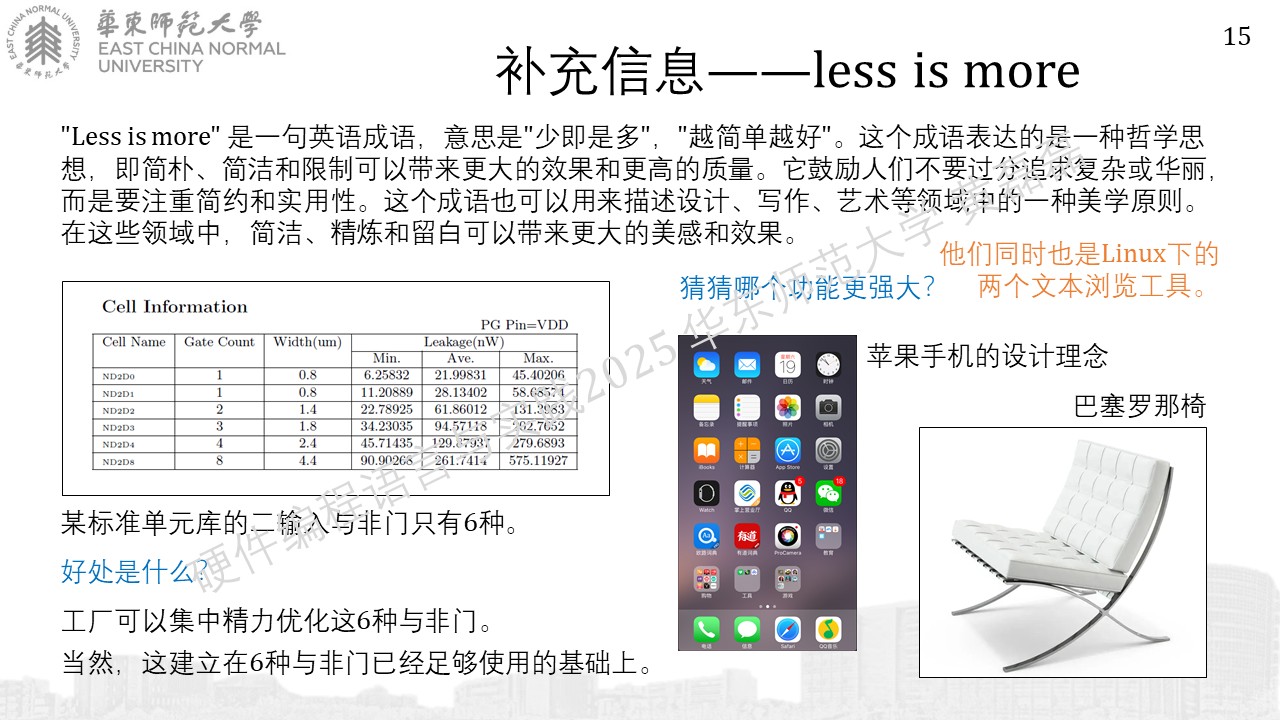

规则化

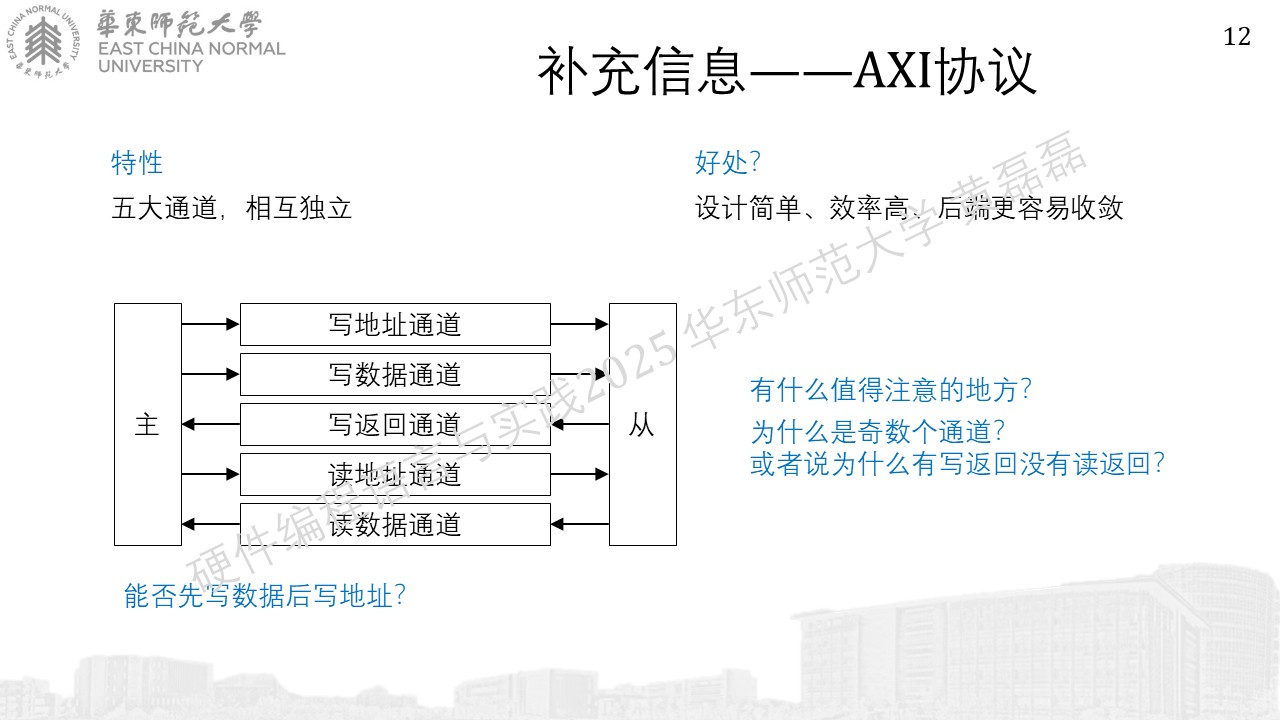

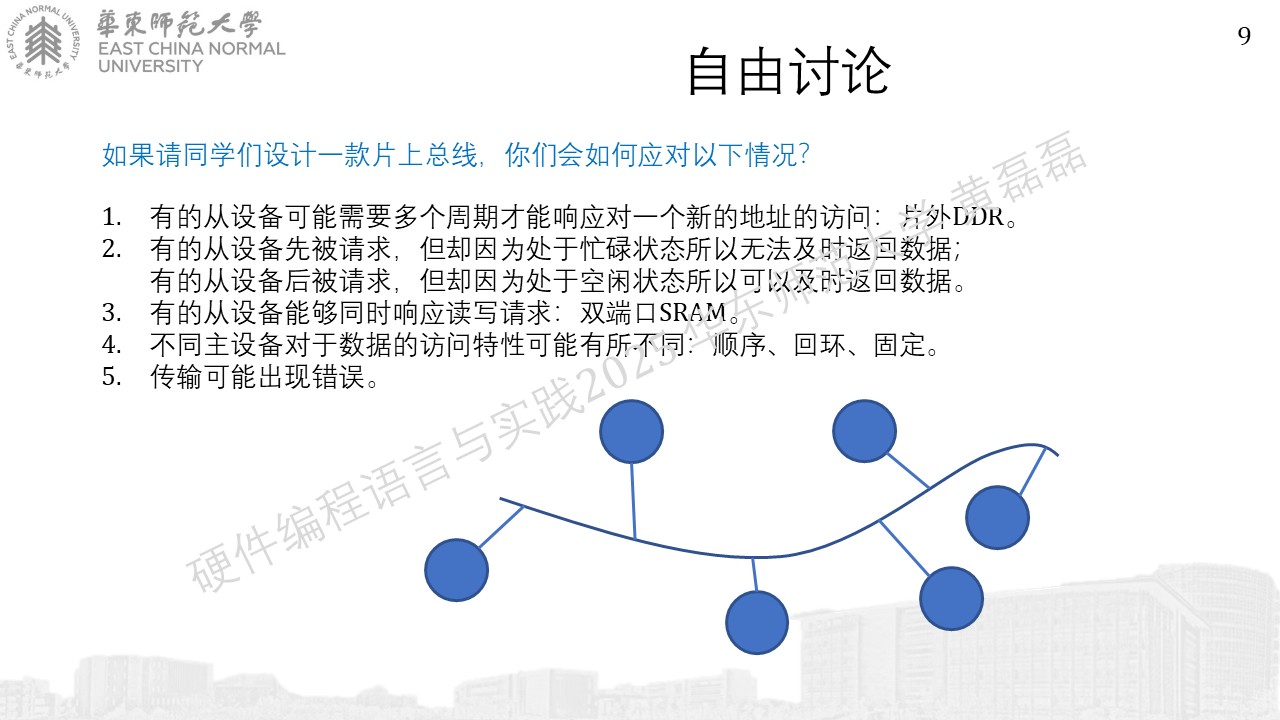

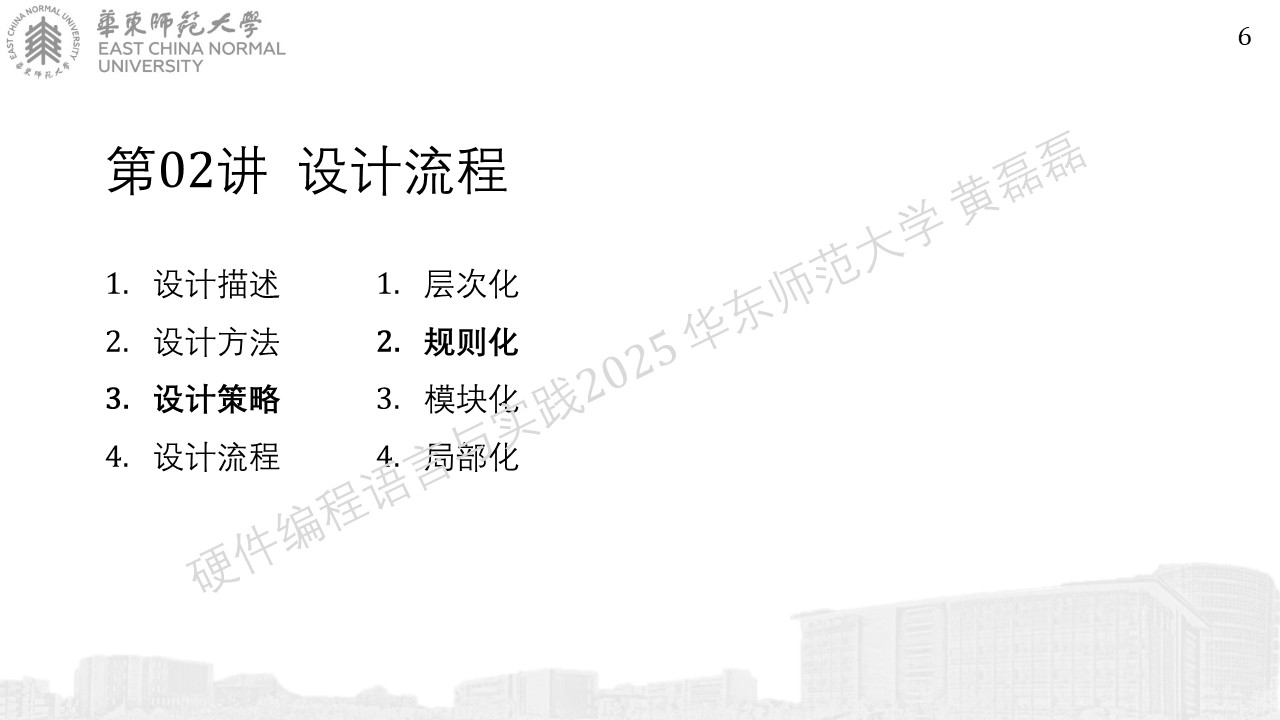

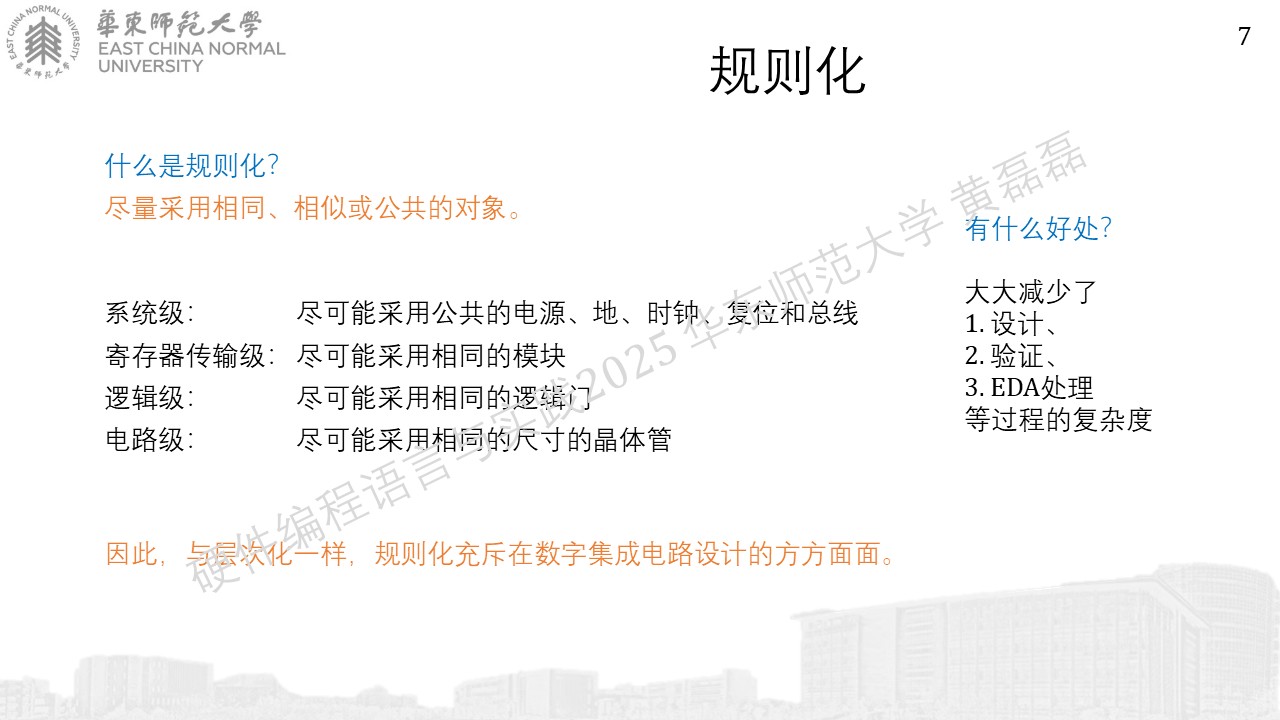

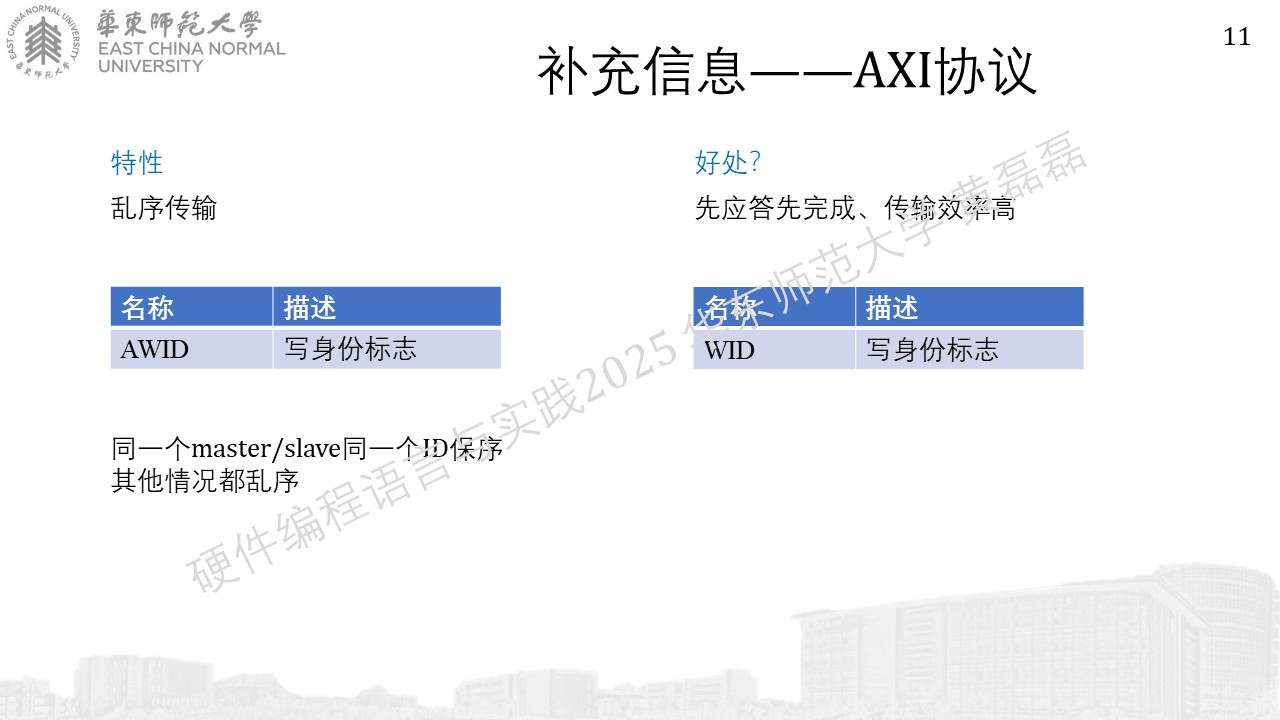

../../_images/%E5%B9%BB%E7%81%AF%E7%89%8765.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%8774.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%8784.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%8794.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87104.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87117.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87124.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87134.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87144.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87154.JPG

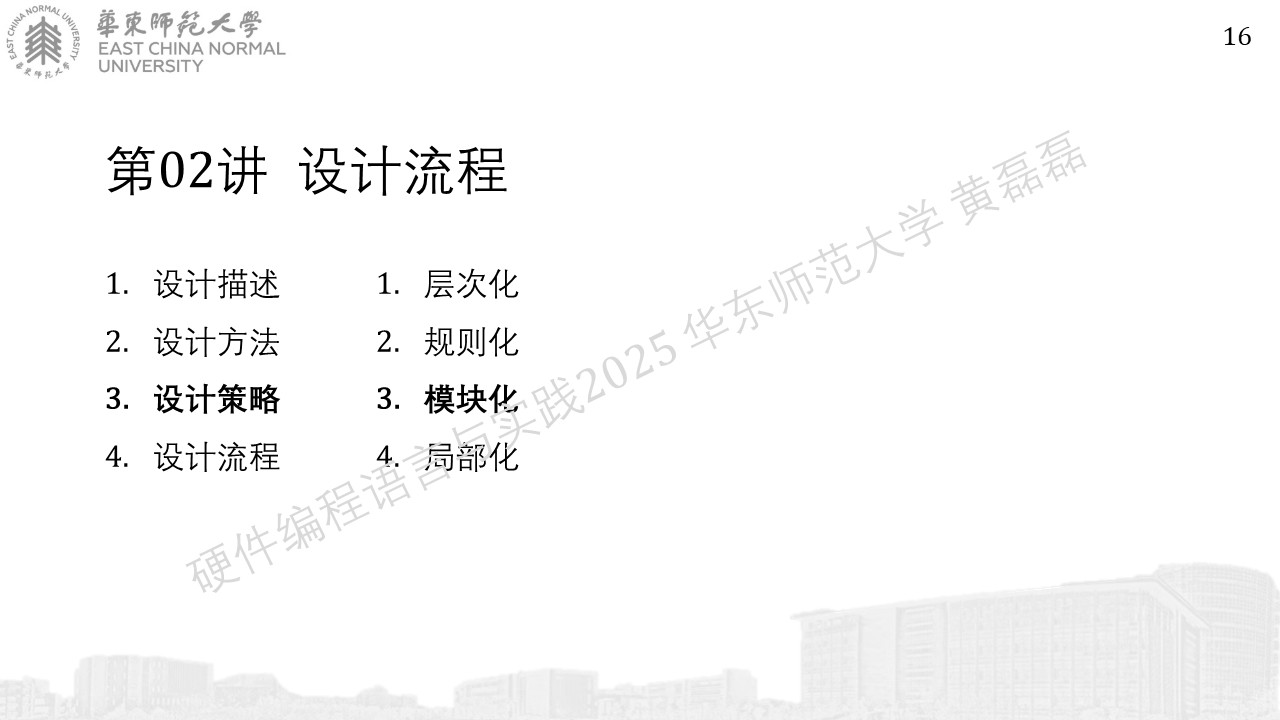

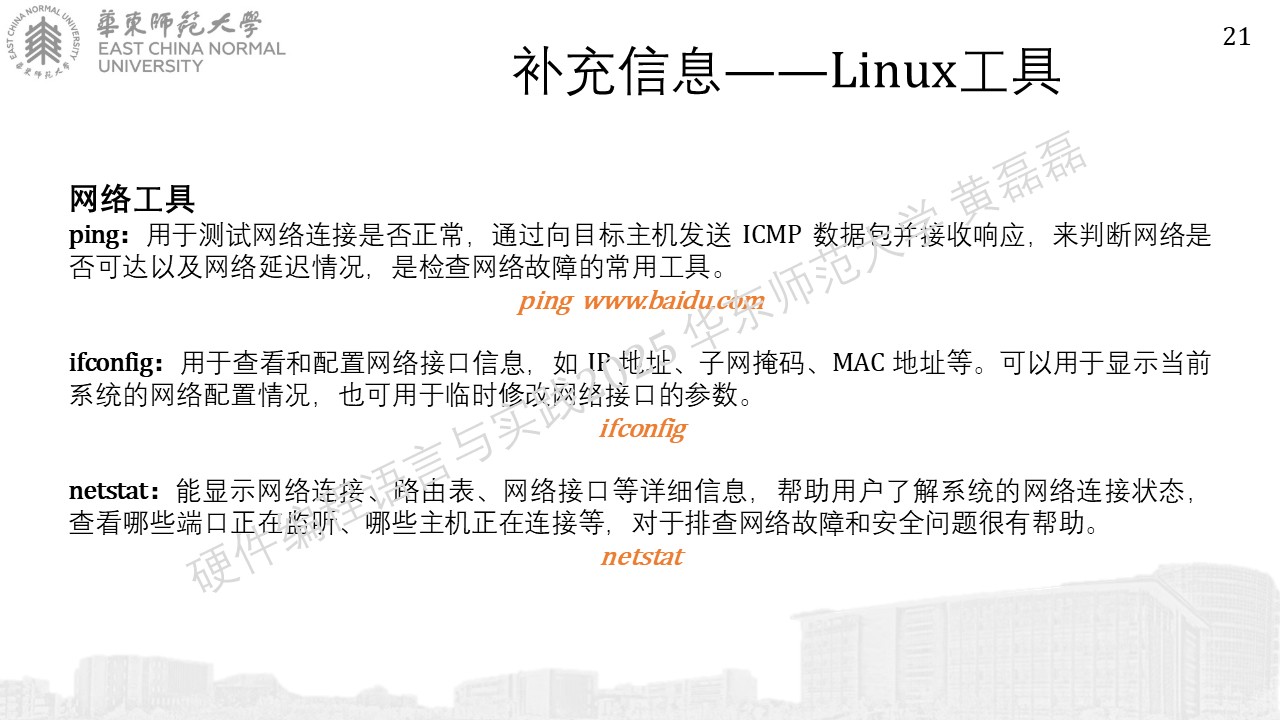

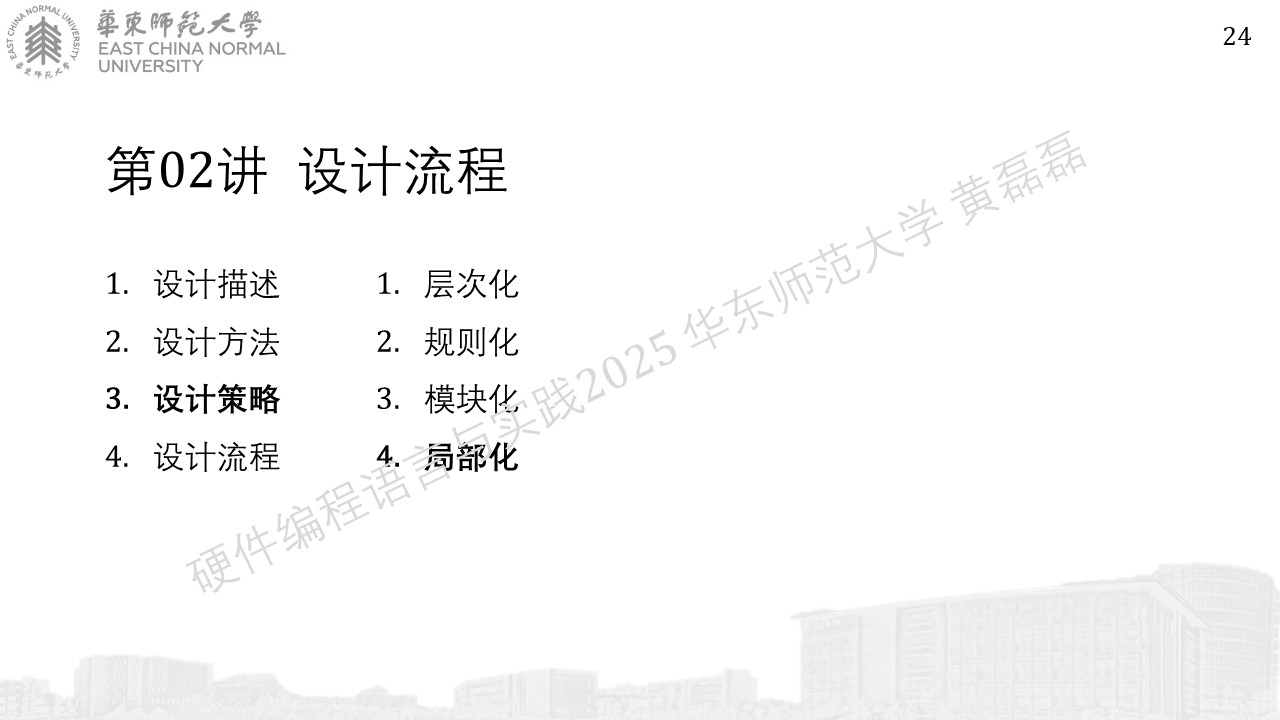

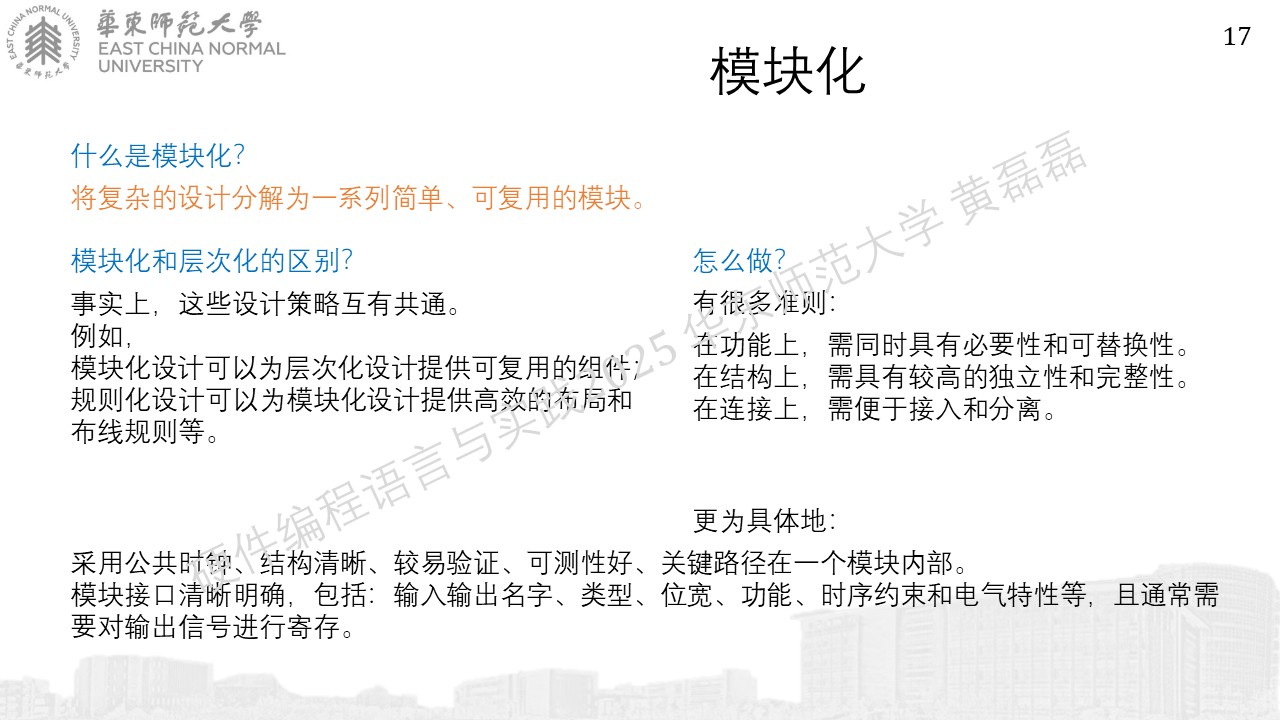

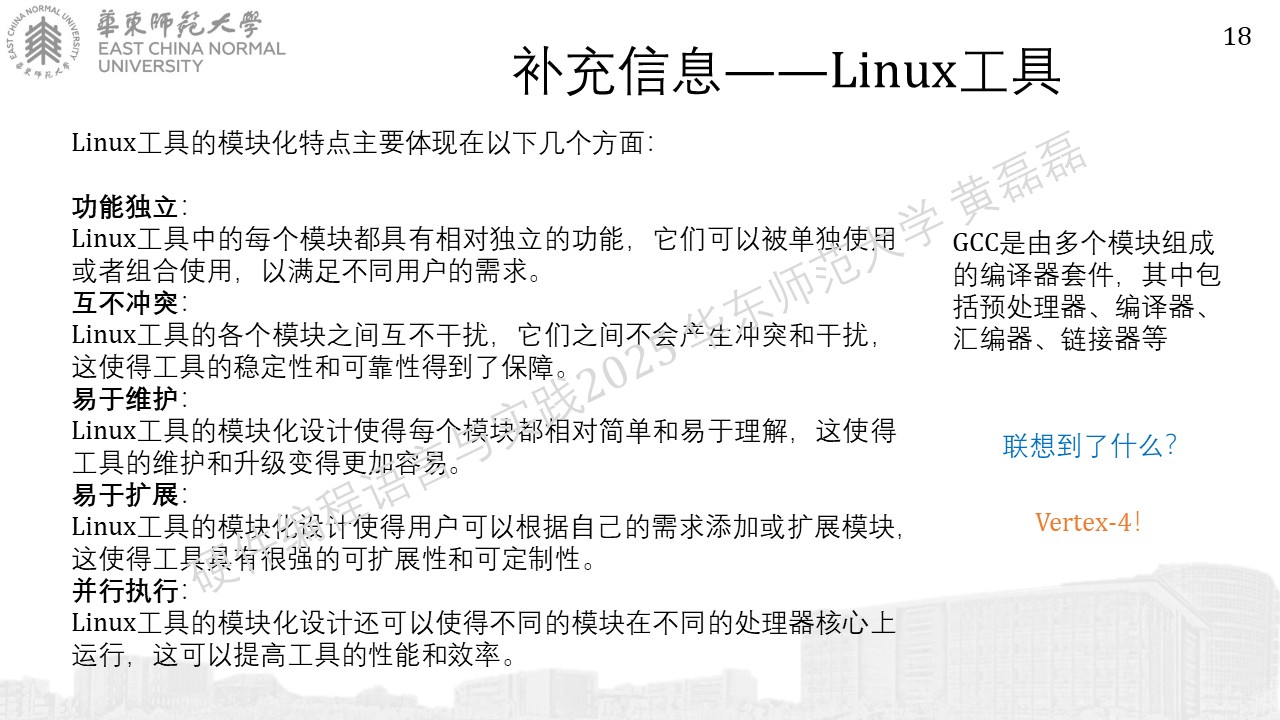

模块化

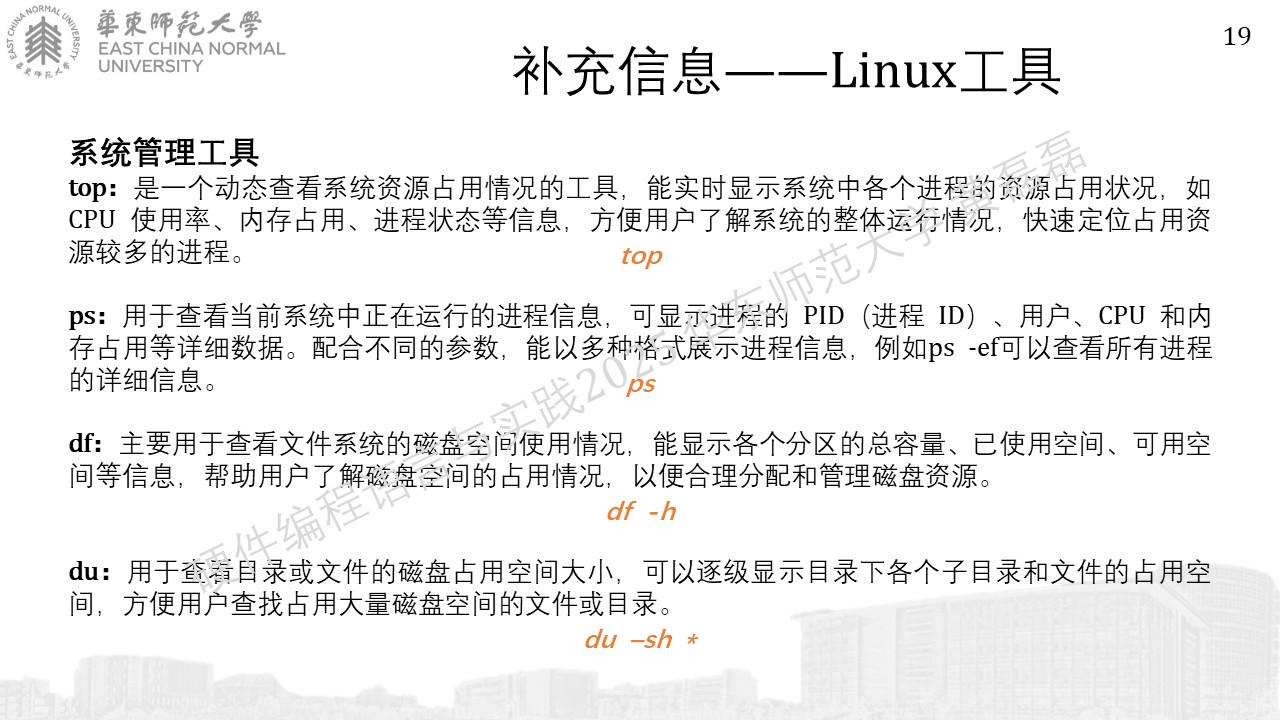

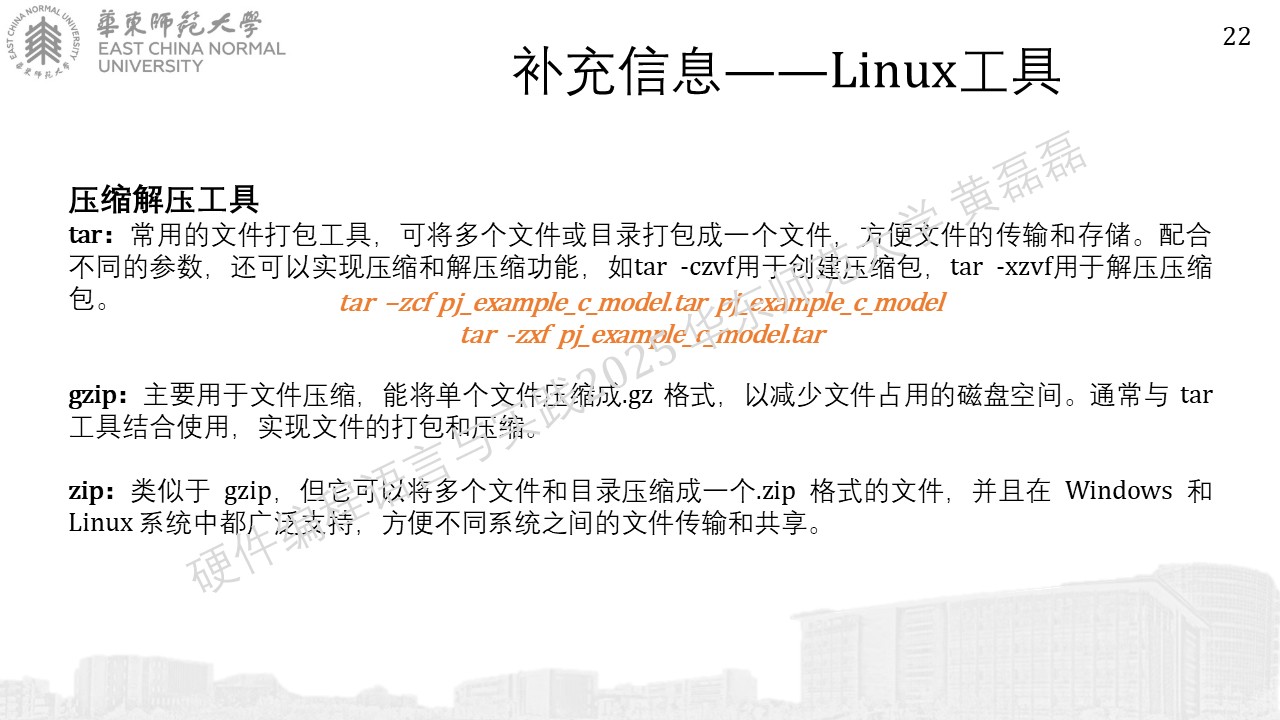

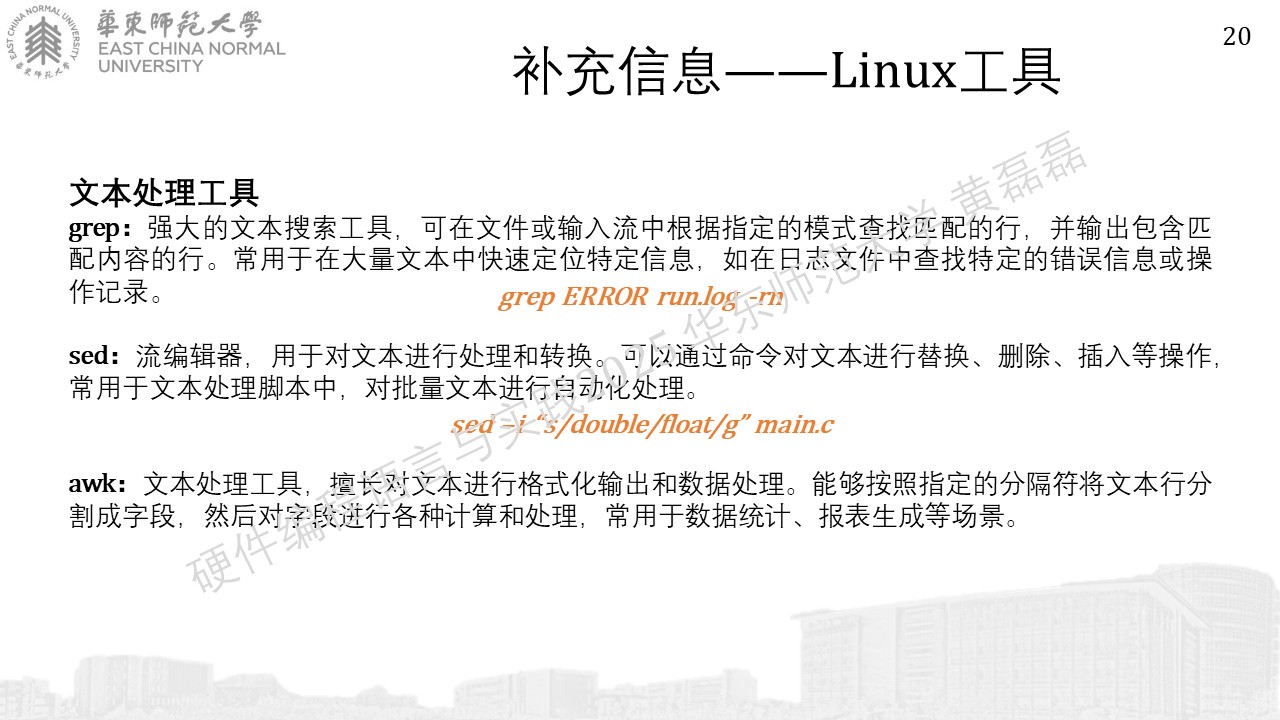

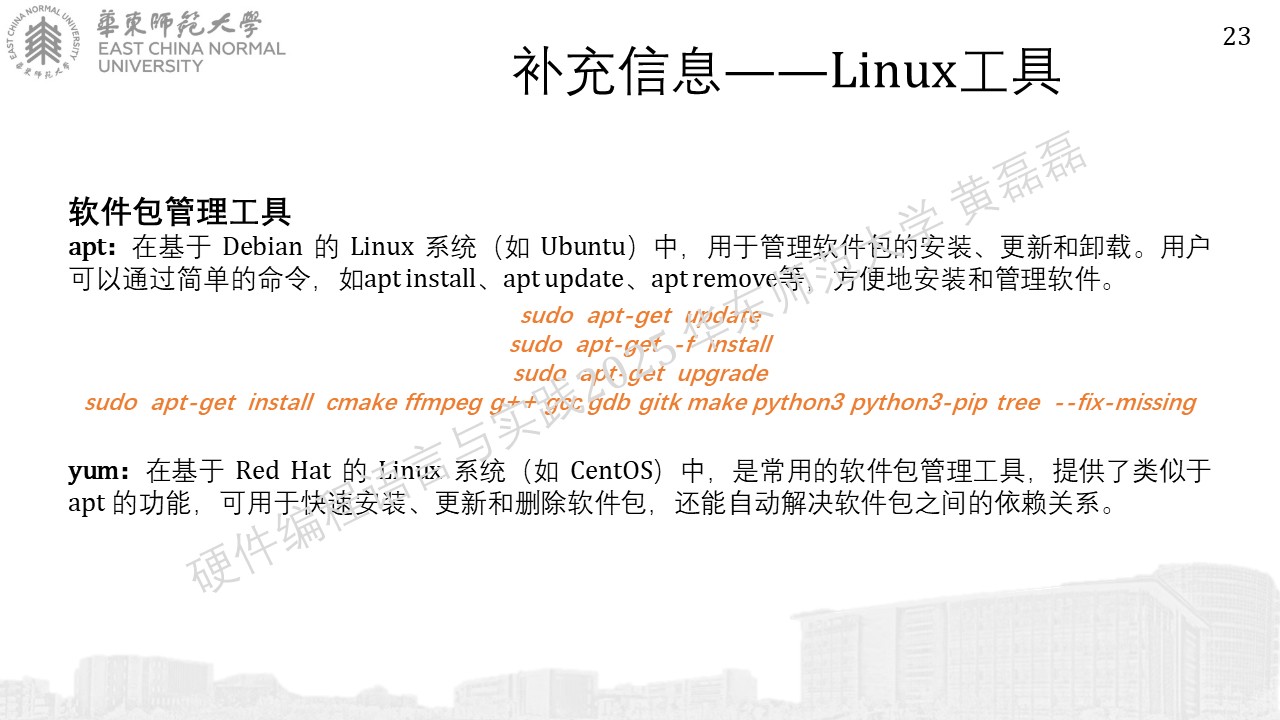

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87164.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87174.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87184.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87193.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87202.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87216.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87222.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87232.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87242.JPG

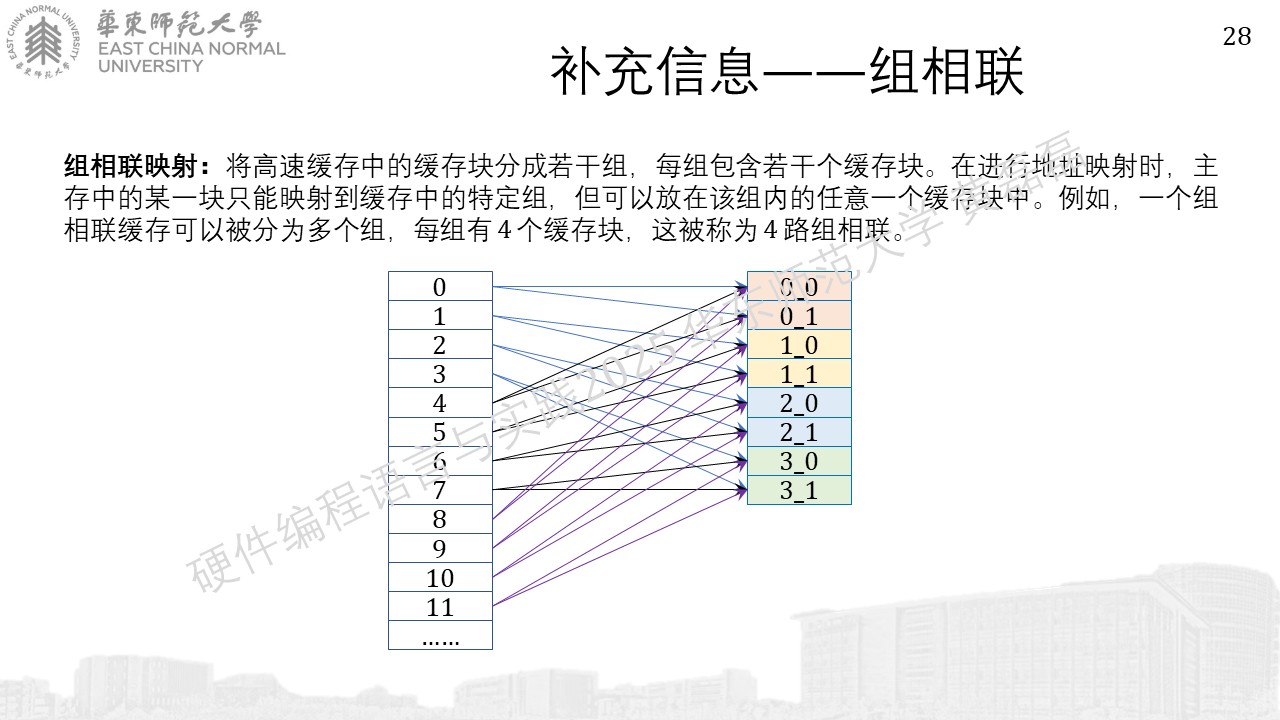

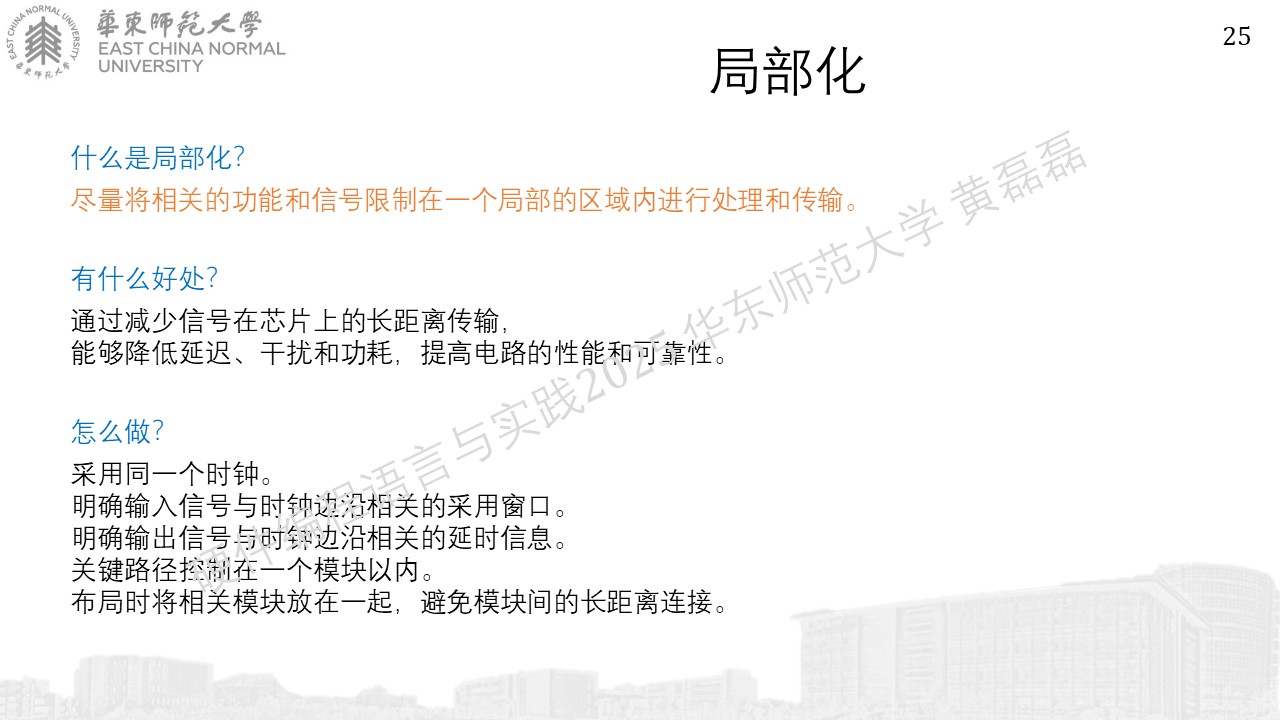

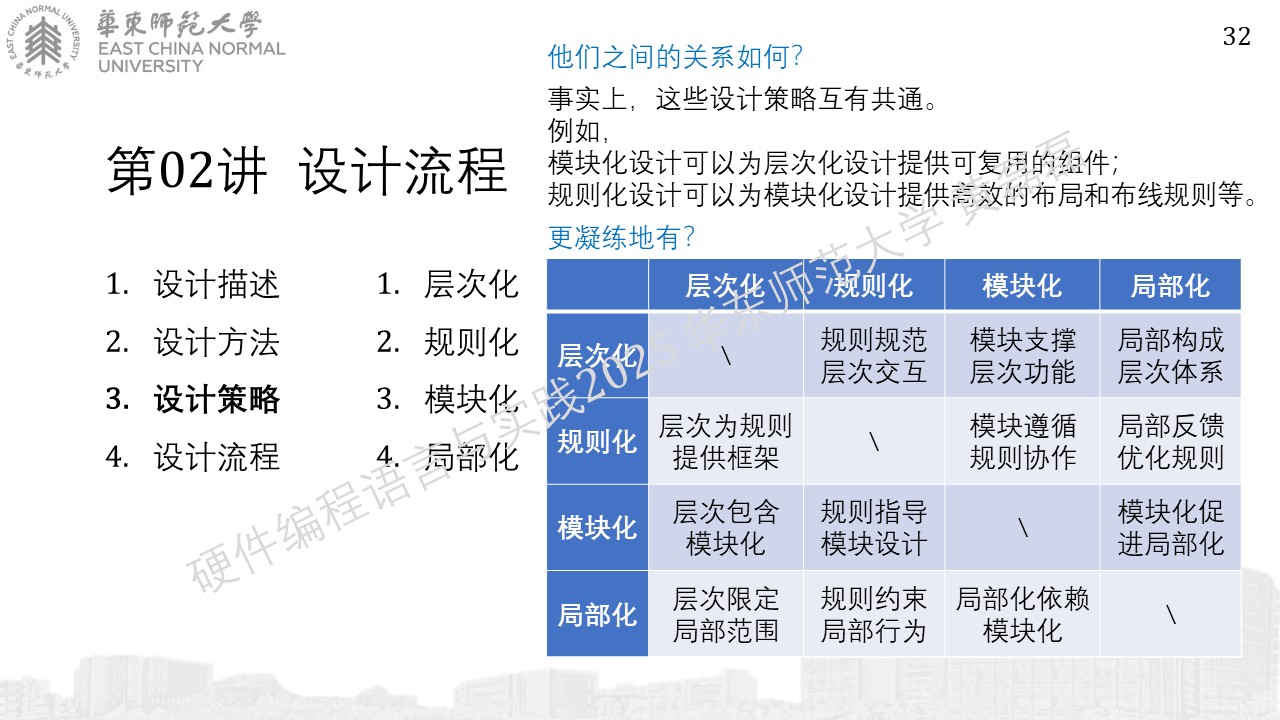

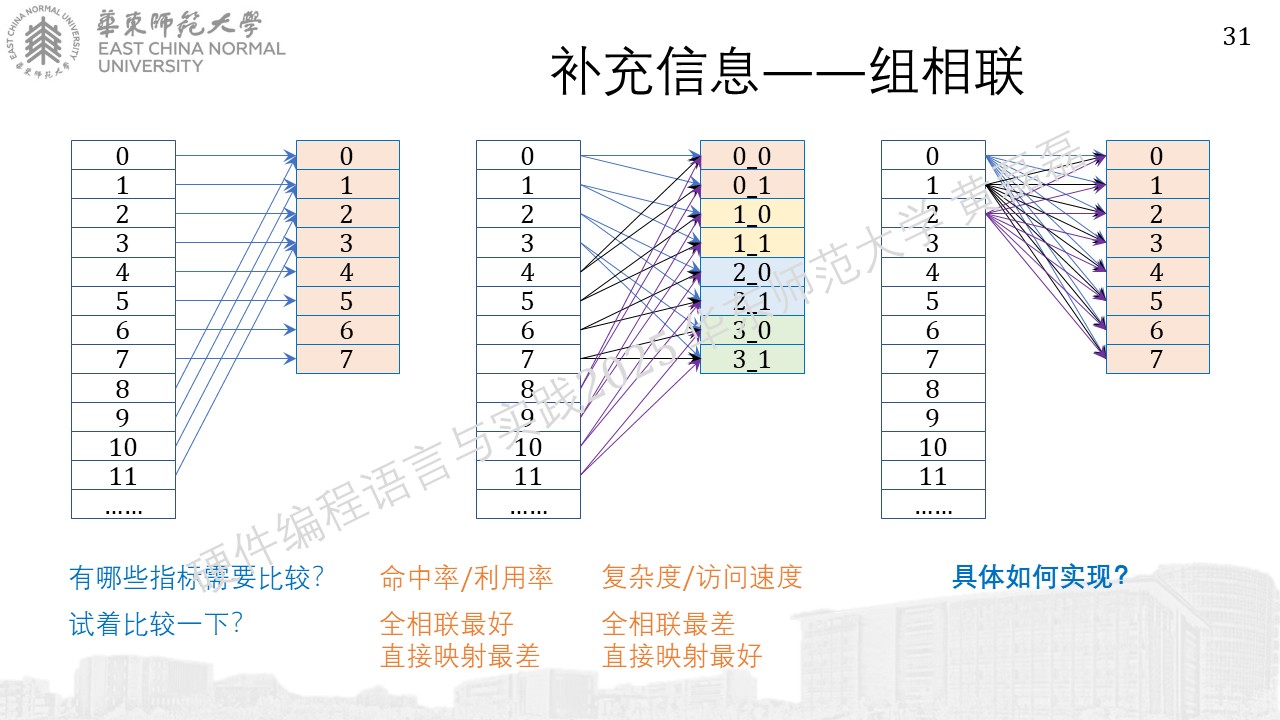

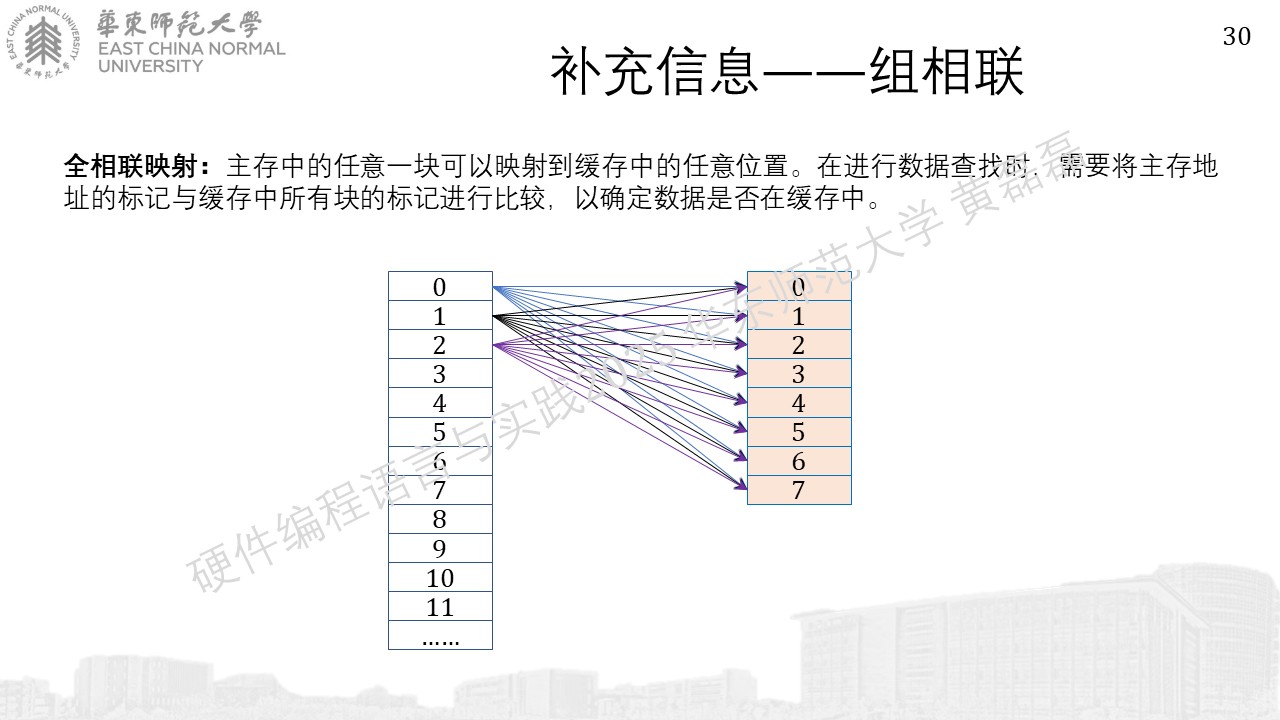

局部化

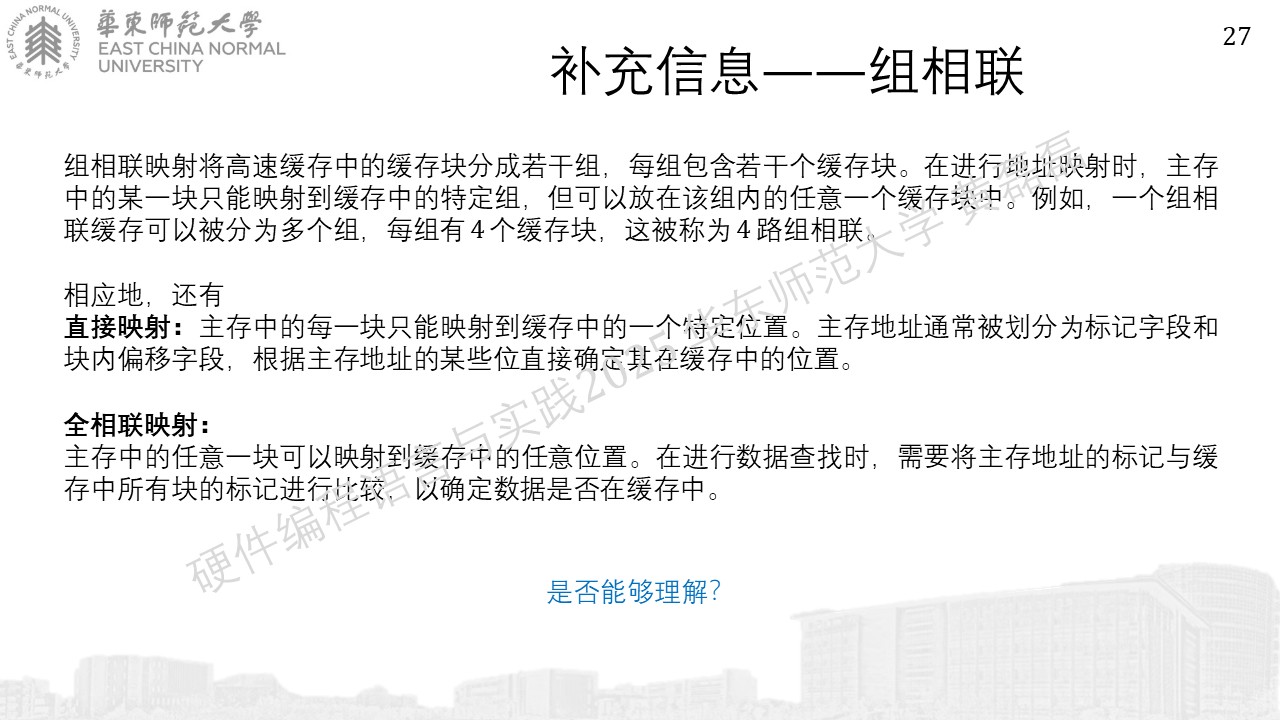

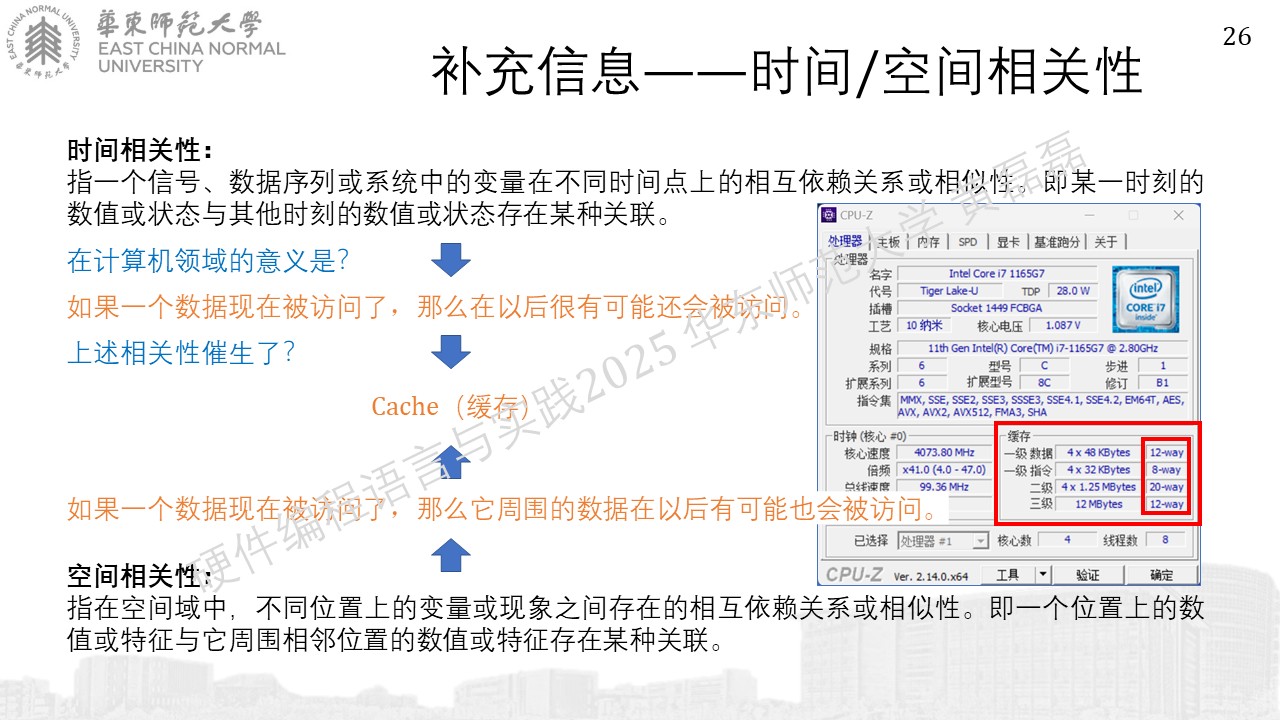

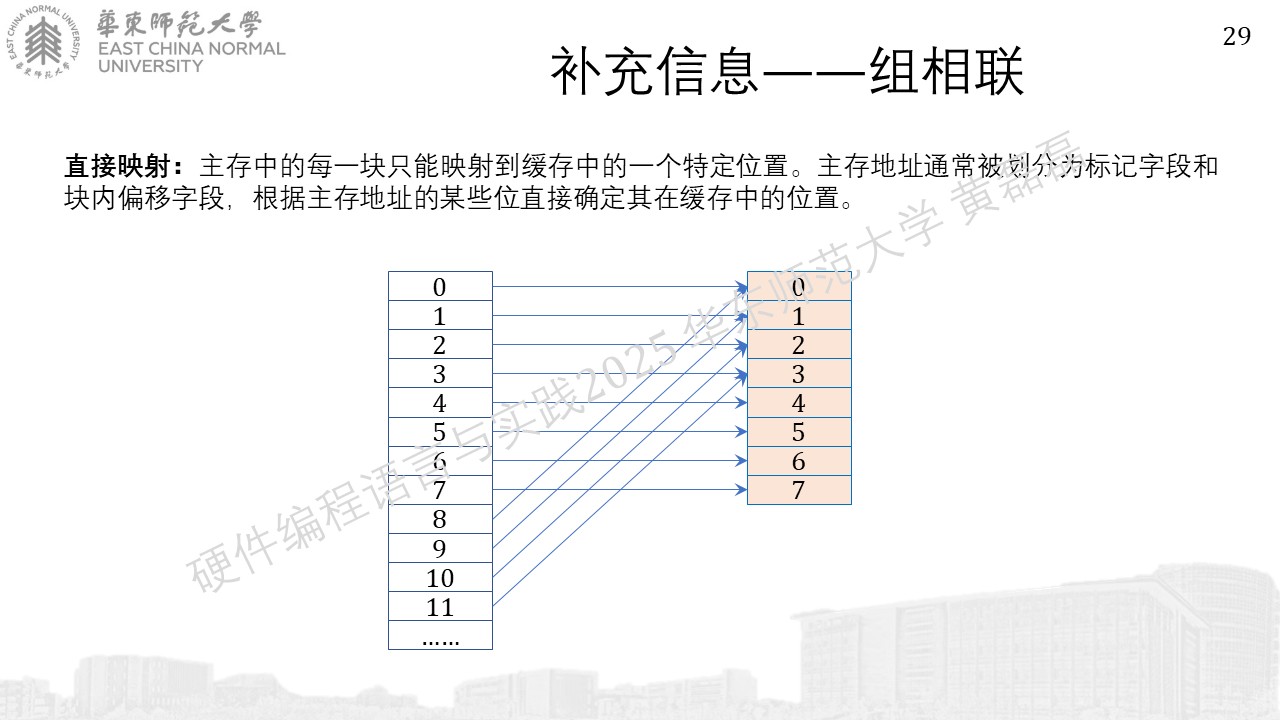

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87252.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87262.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87272.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87282.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87291.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87301.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87315.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87321.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87331.JPG
