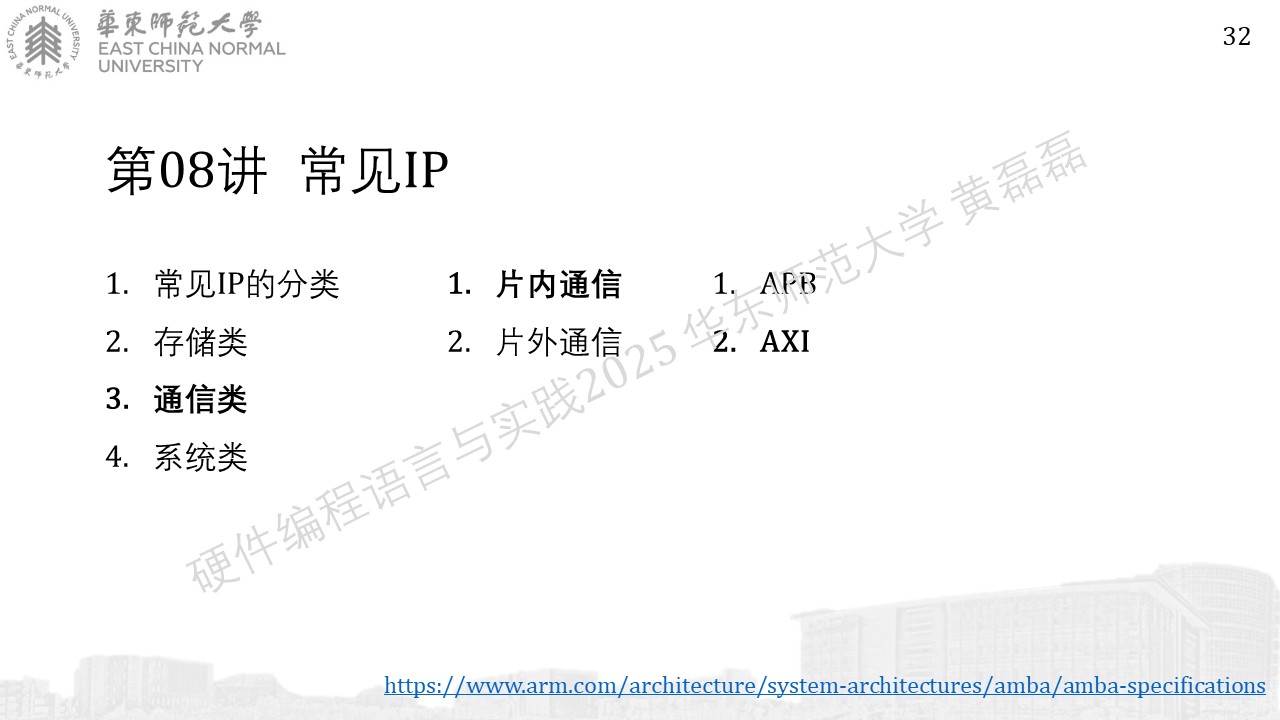

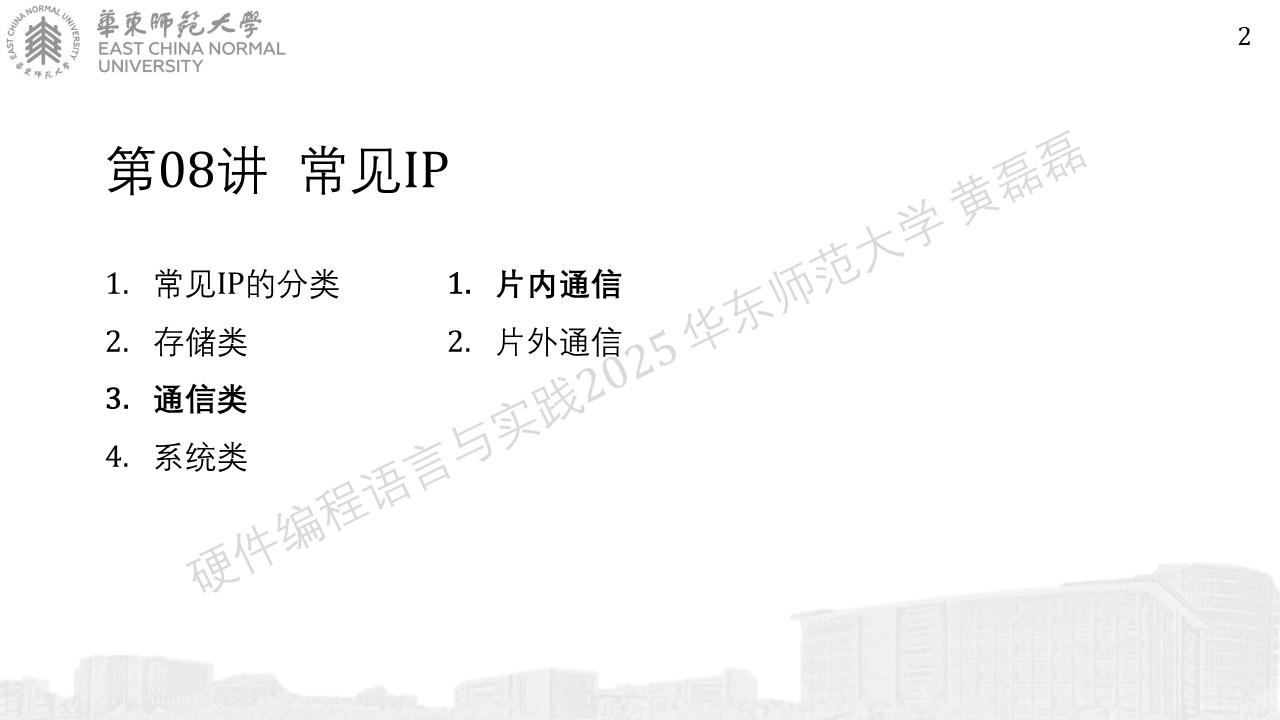

第08讲 - 常见IP - 通信类¶

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87180.JPG

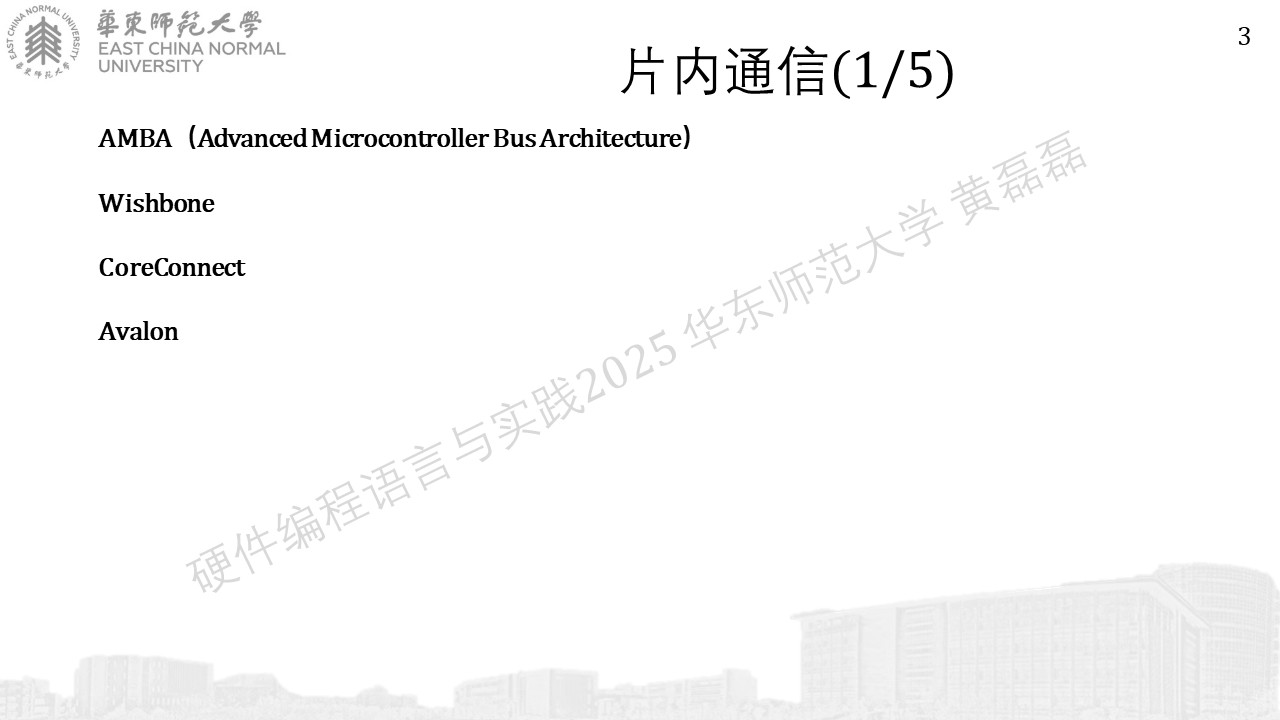

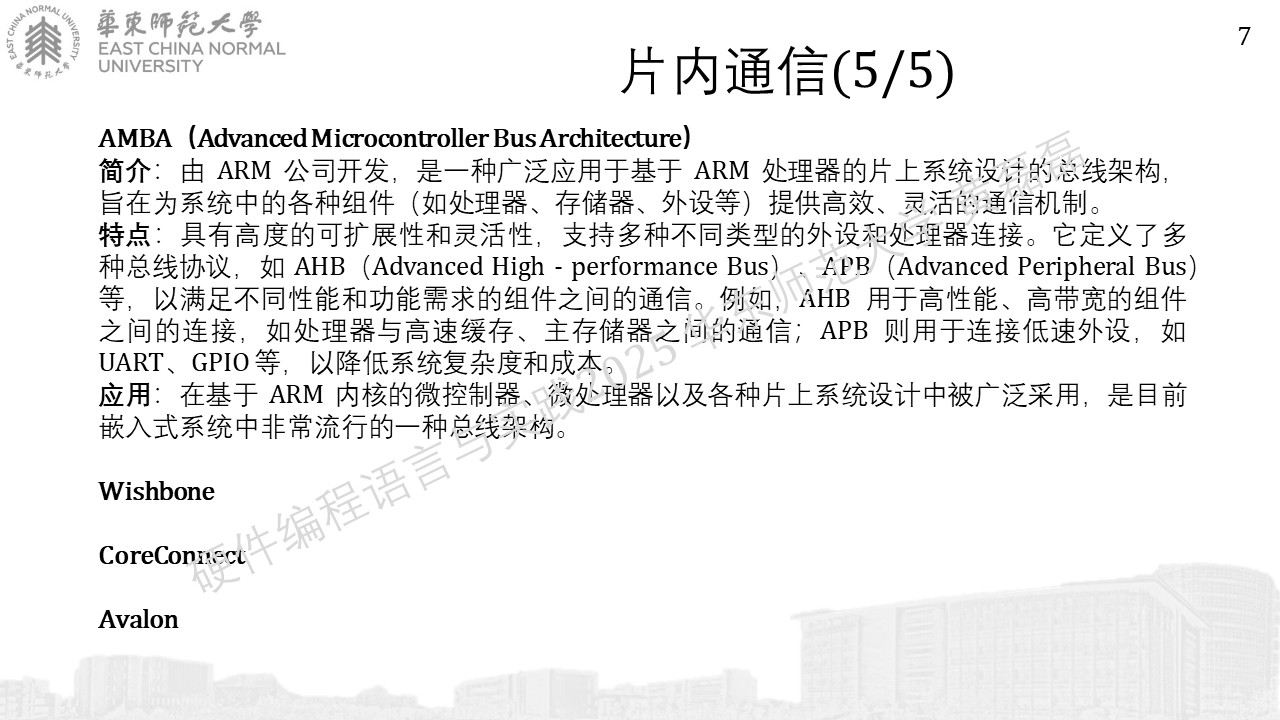

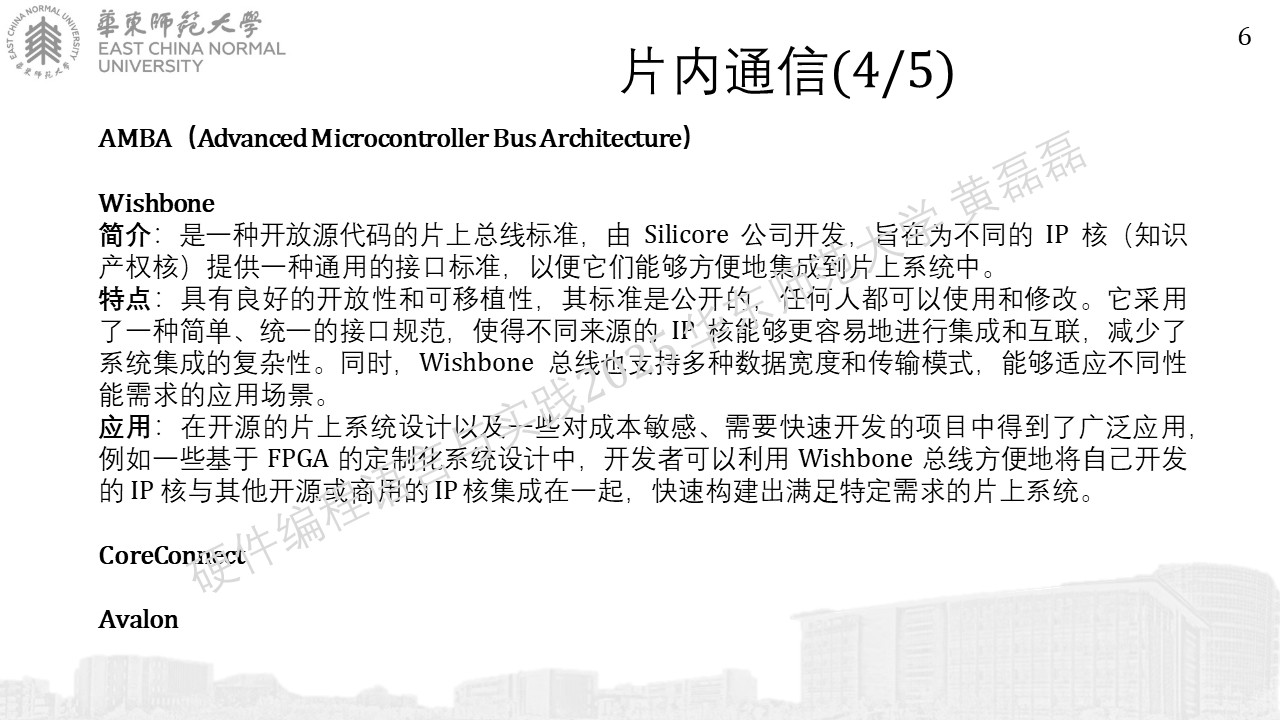

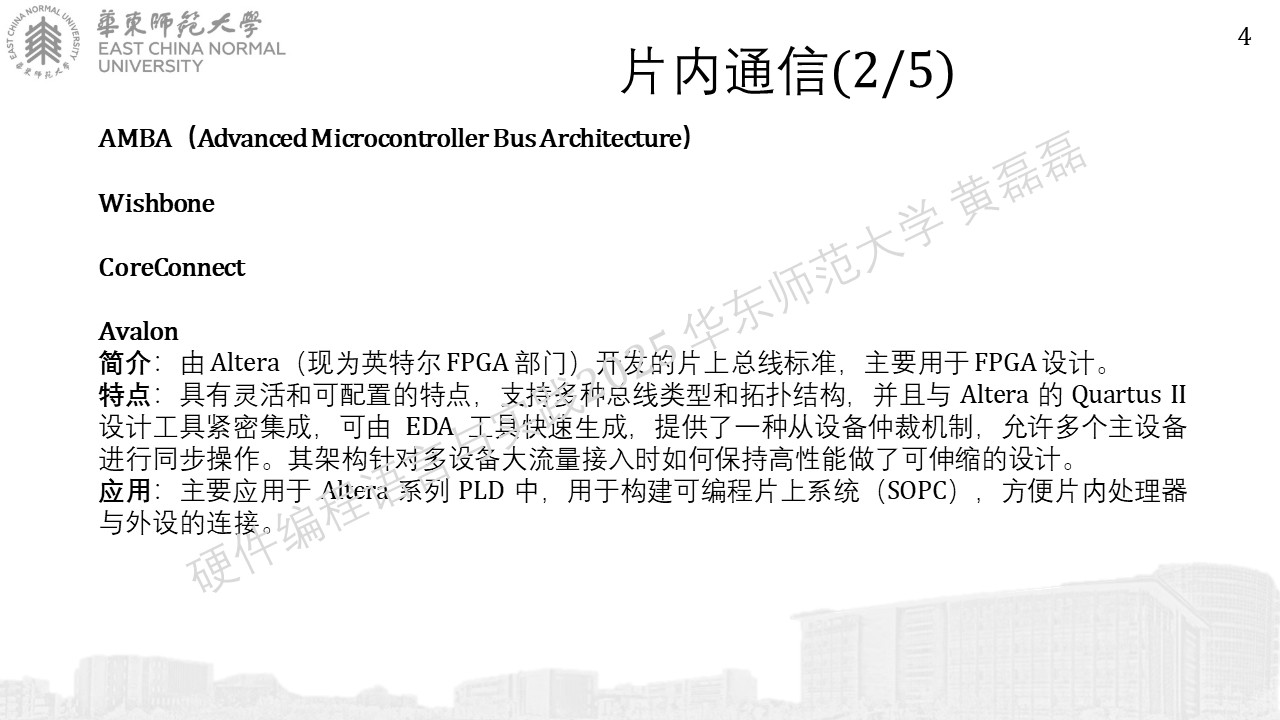

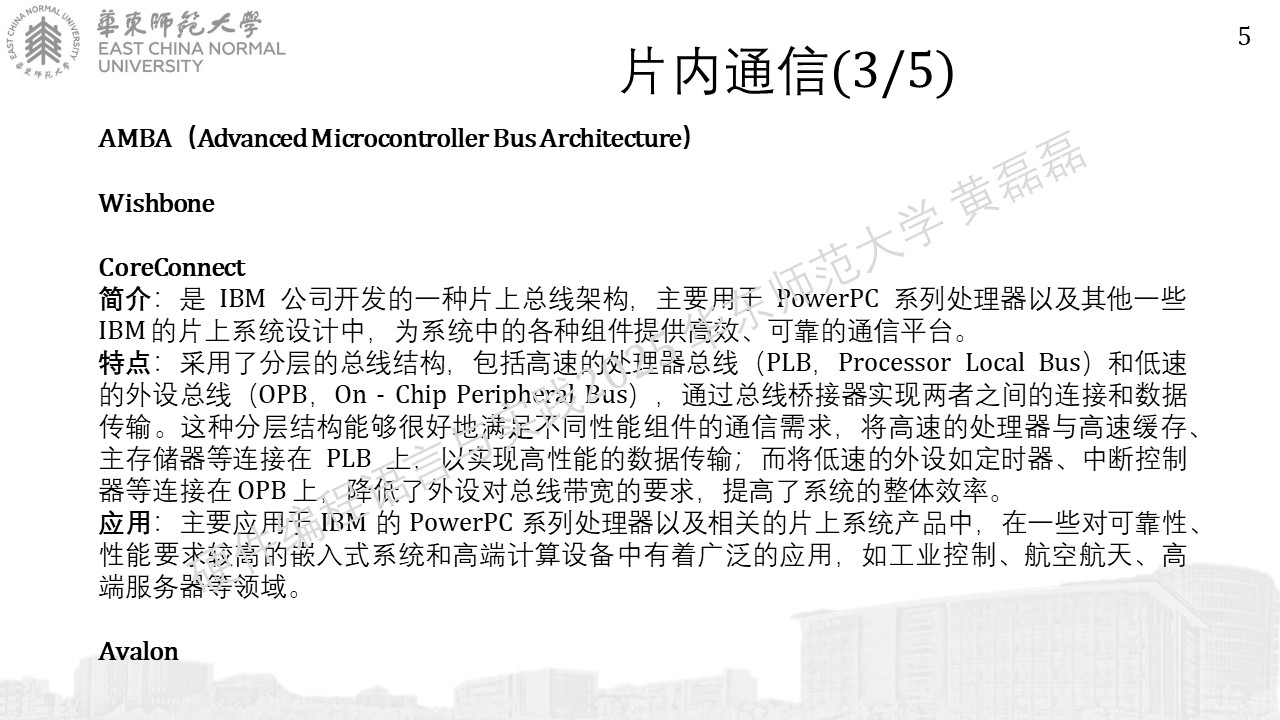

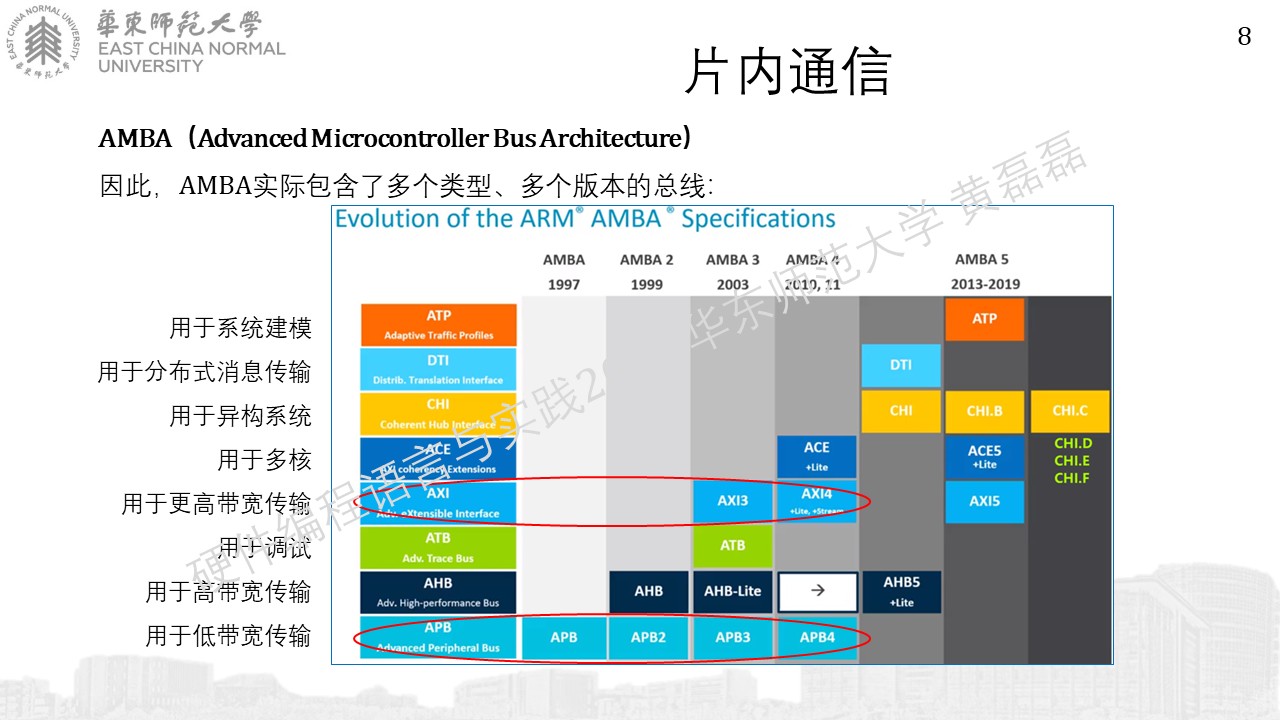

片内通信¶

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87240.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87330.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87428.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87520.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87617.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87717.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87817.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87914.JPG

https://www.arm.com/architecture/system-architectures/amba/amba-specifications

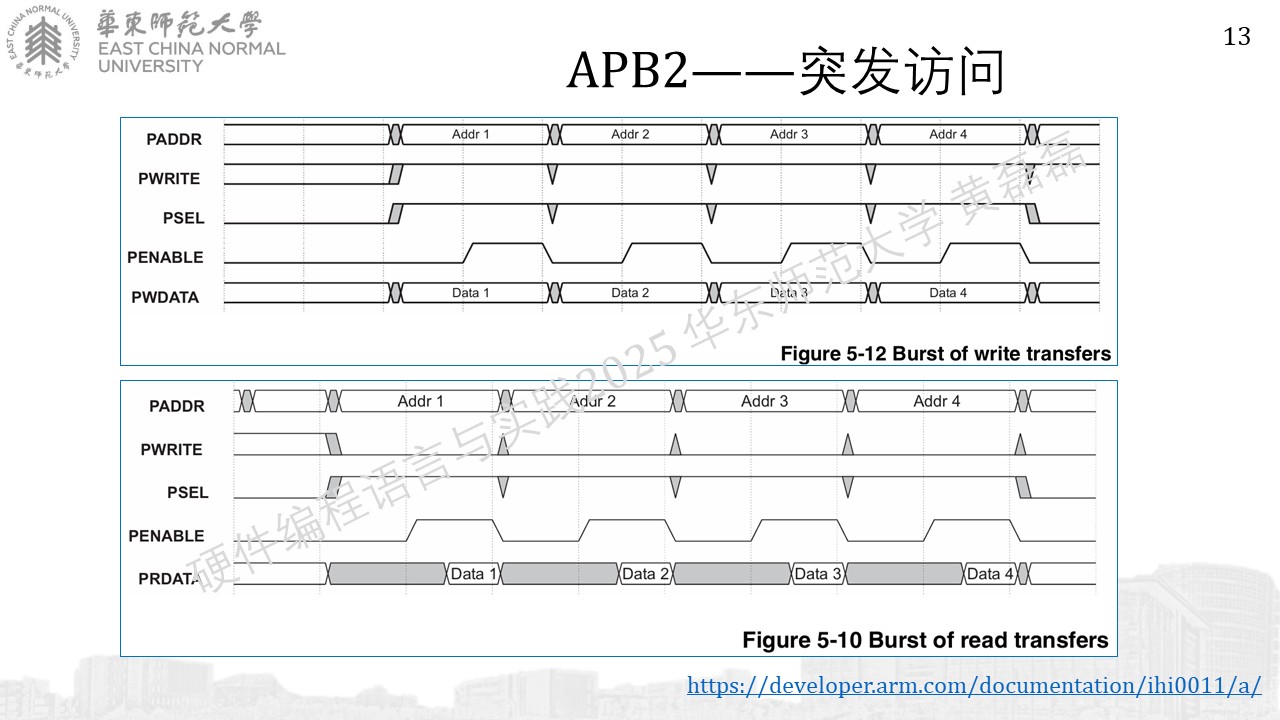

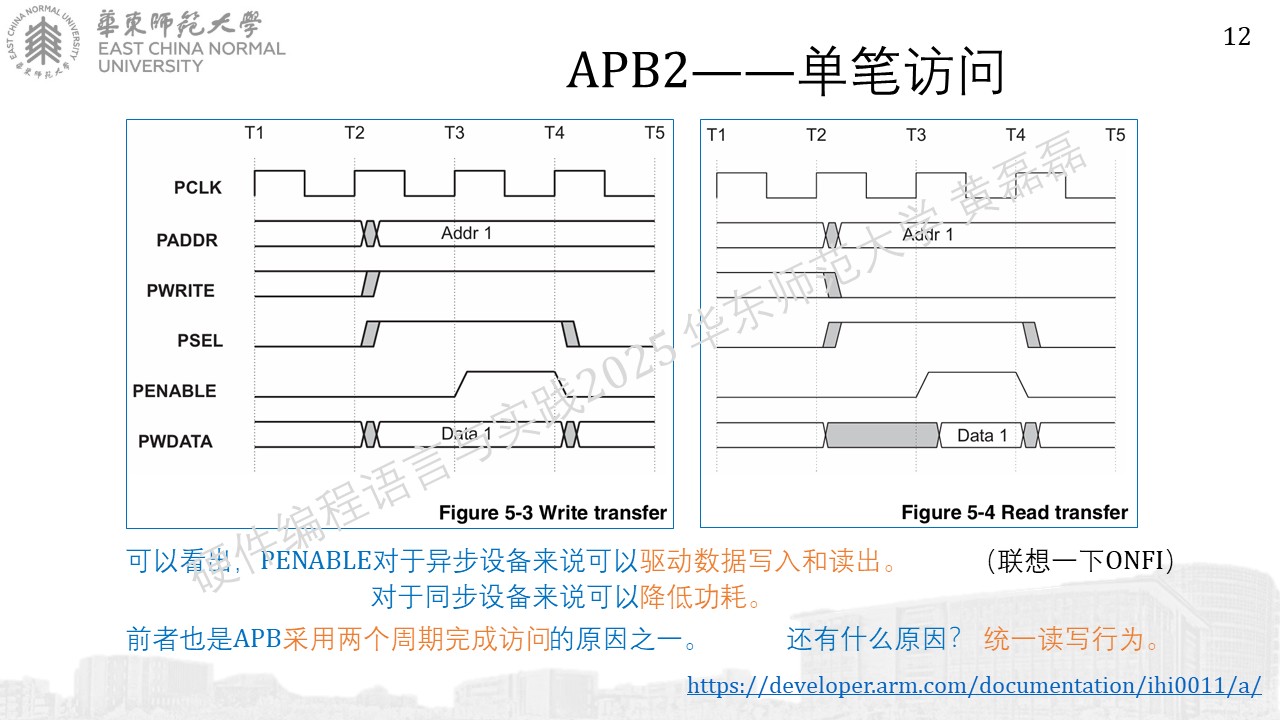

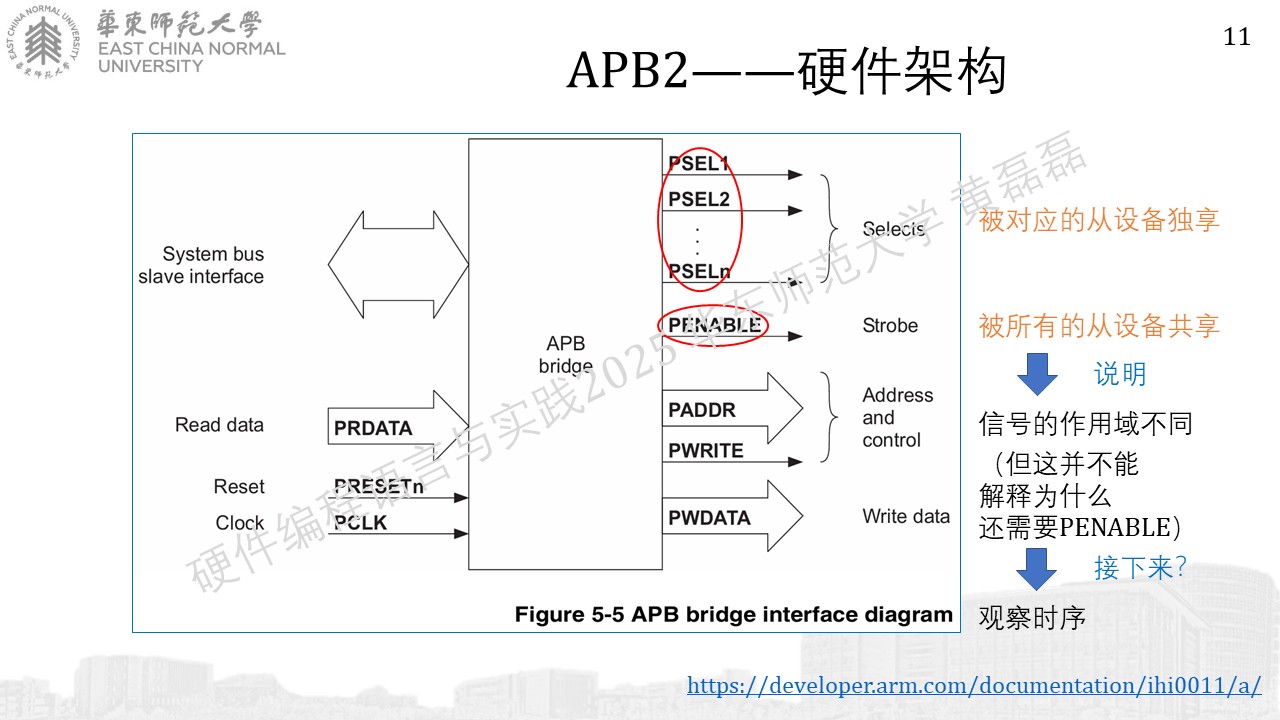

APB2¶

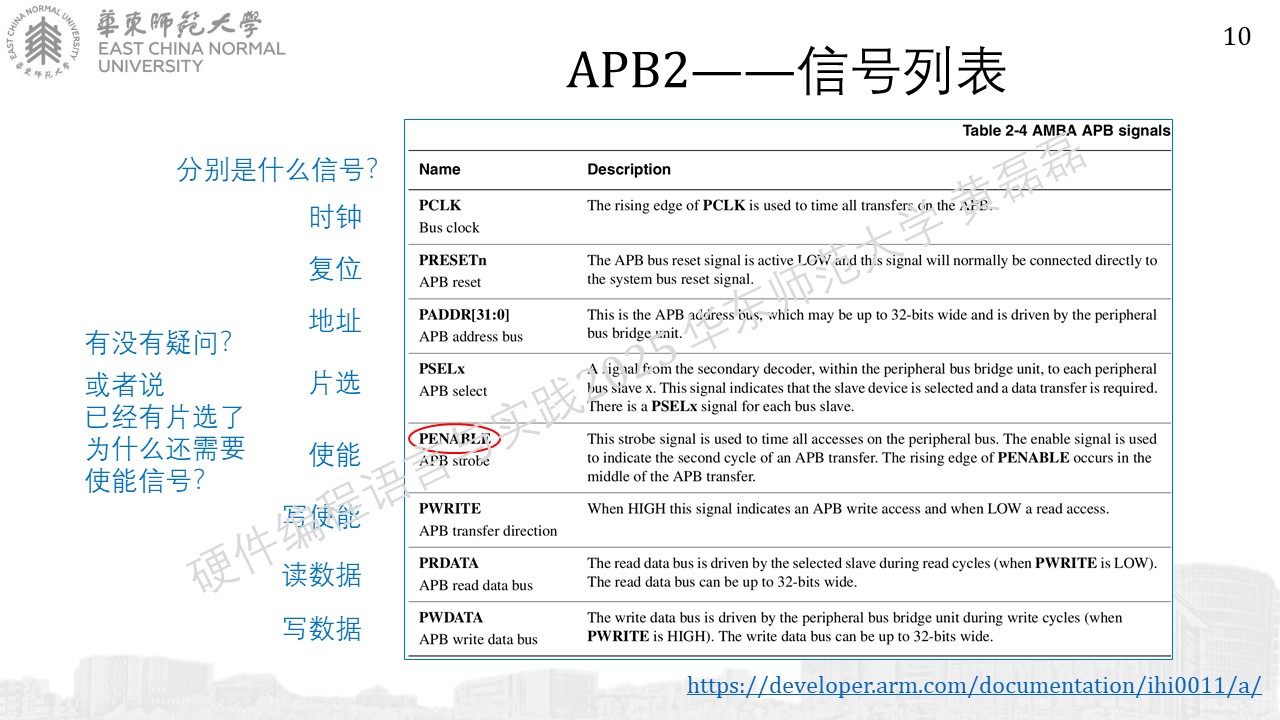

../../_images/%E5%B9%BB%E7%81%AF%E7%89%871013.JPG

https://developer.arm.com/documentation/ihi0011/a/

../../_images/%E5%B9%BB%E7%81%AF%E7%89%871117.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%871215.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%871313.JPG

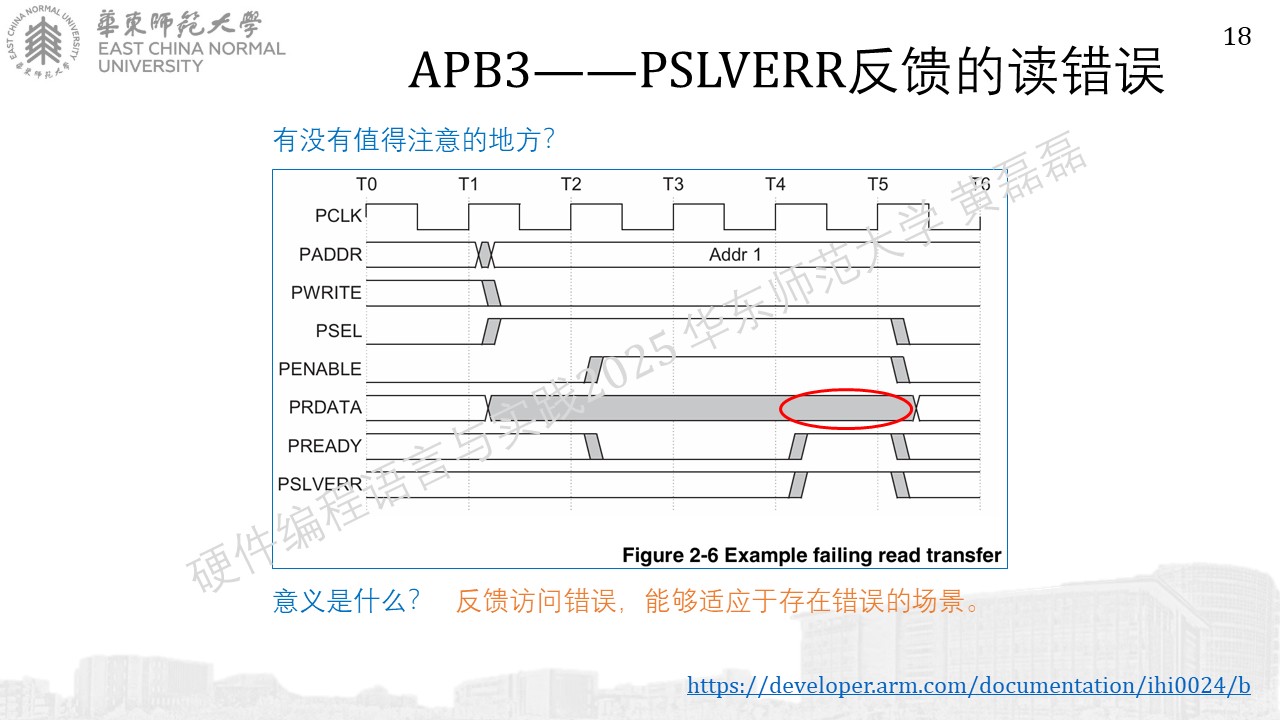

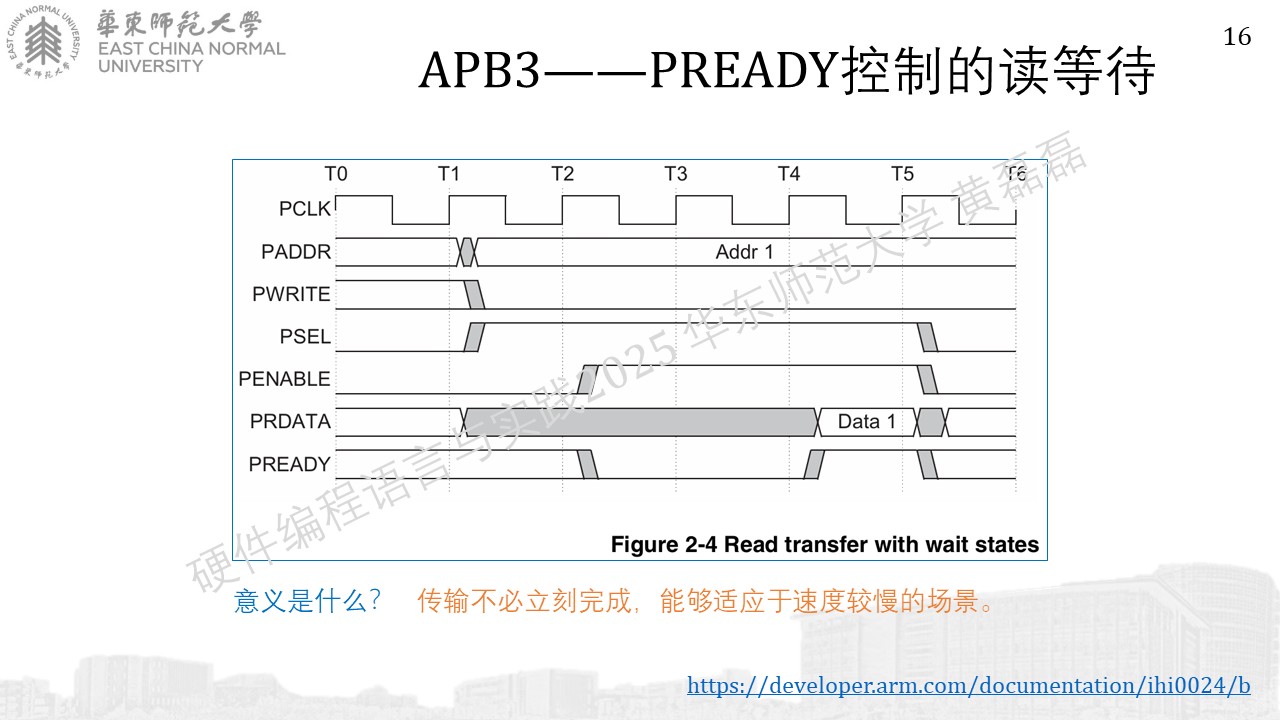

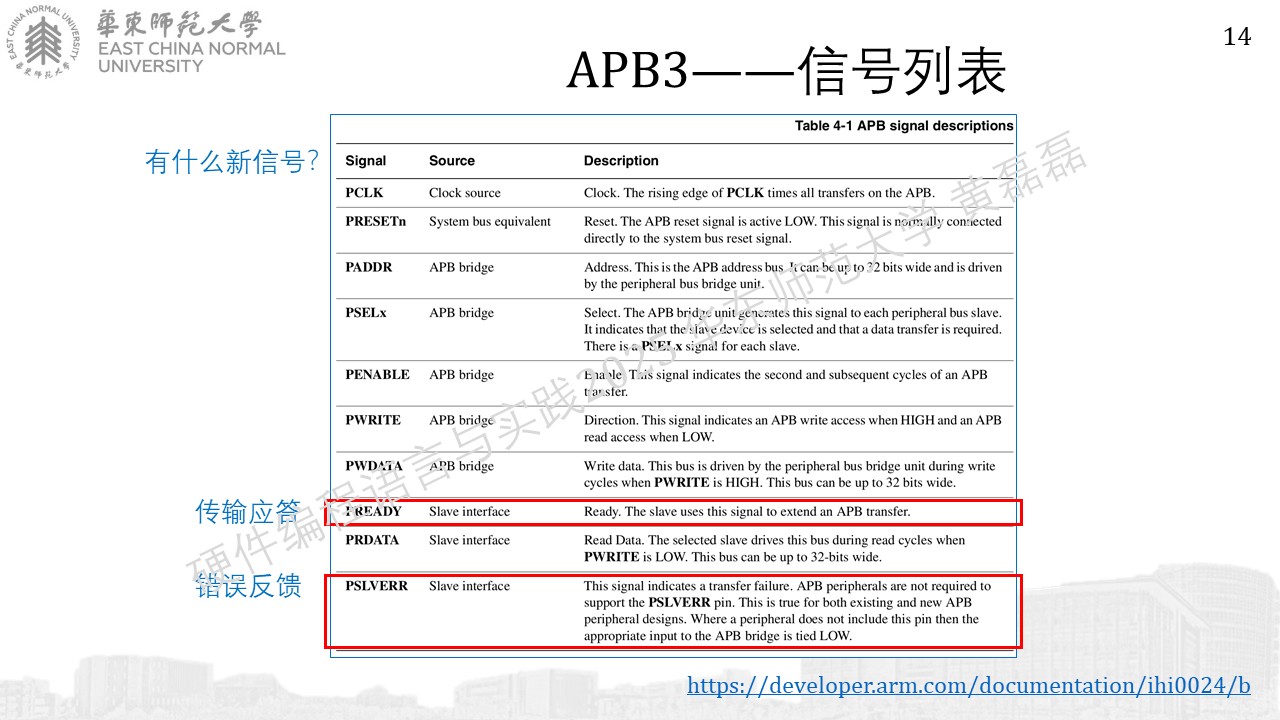

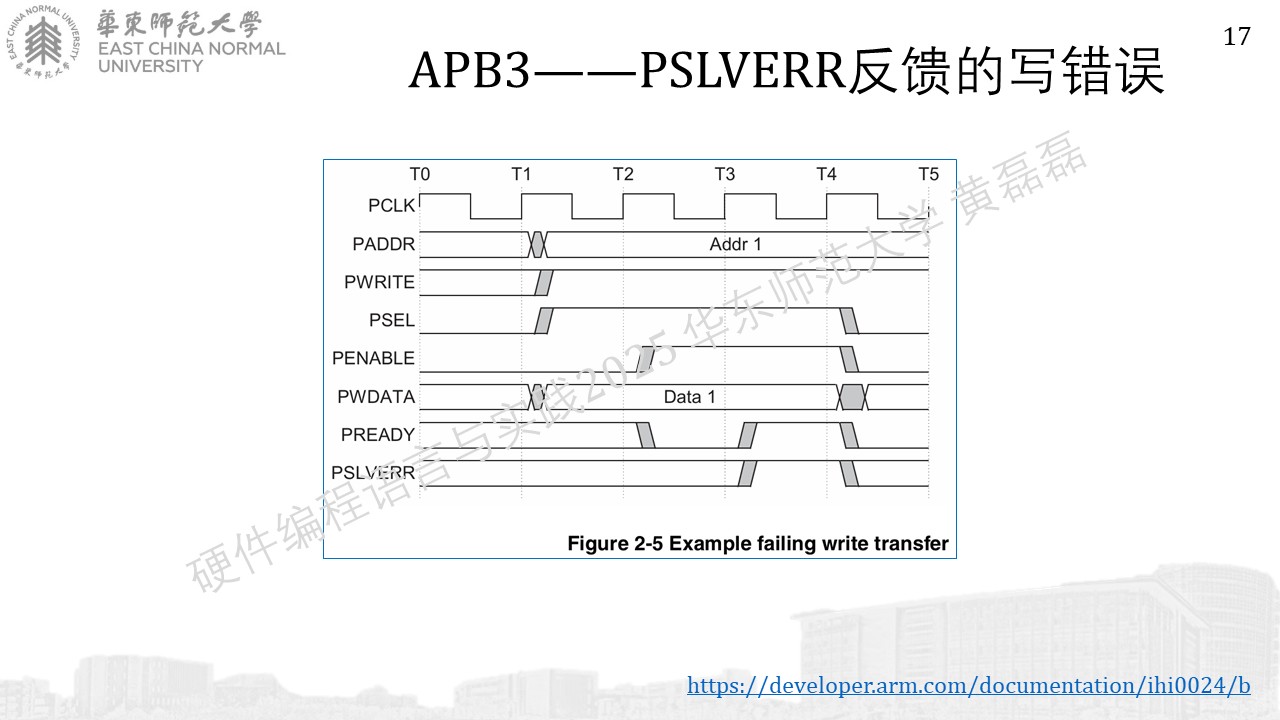

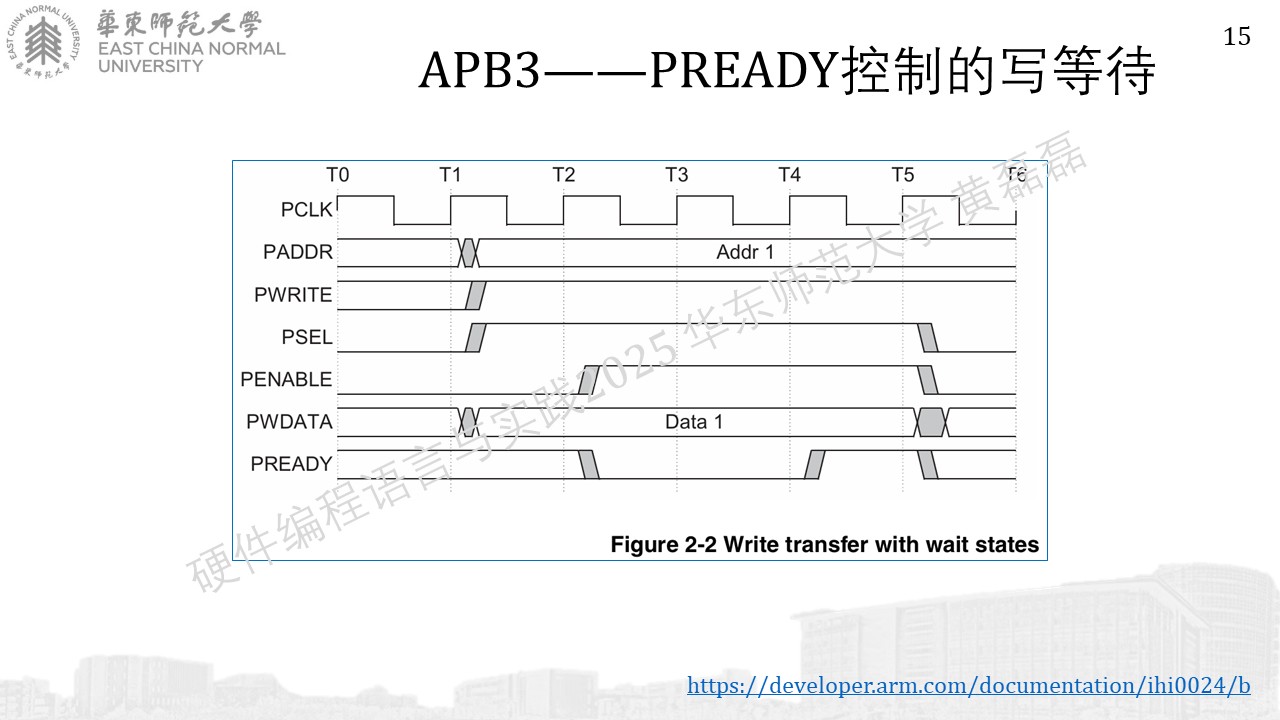

APB3¶

../../_images/%E5%B9%BB%E7%81%AF%E7%89%871412.JPG

https://developer.arm.com/documentation/ihi0024/b

../../_images/%E5%B9%BB%E7%81%AF%E7%89%871512.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%871612.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%871712.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%871812.JPG

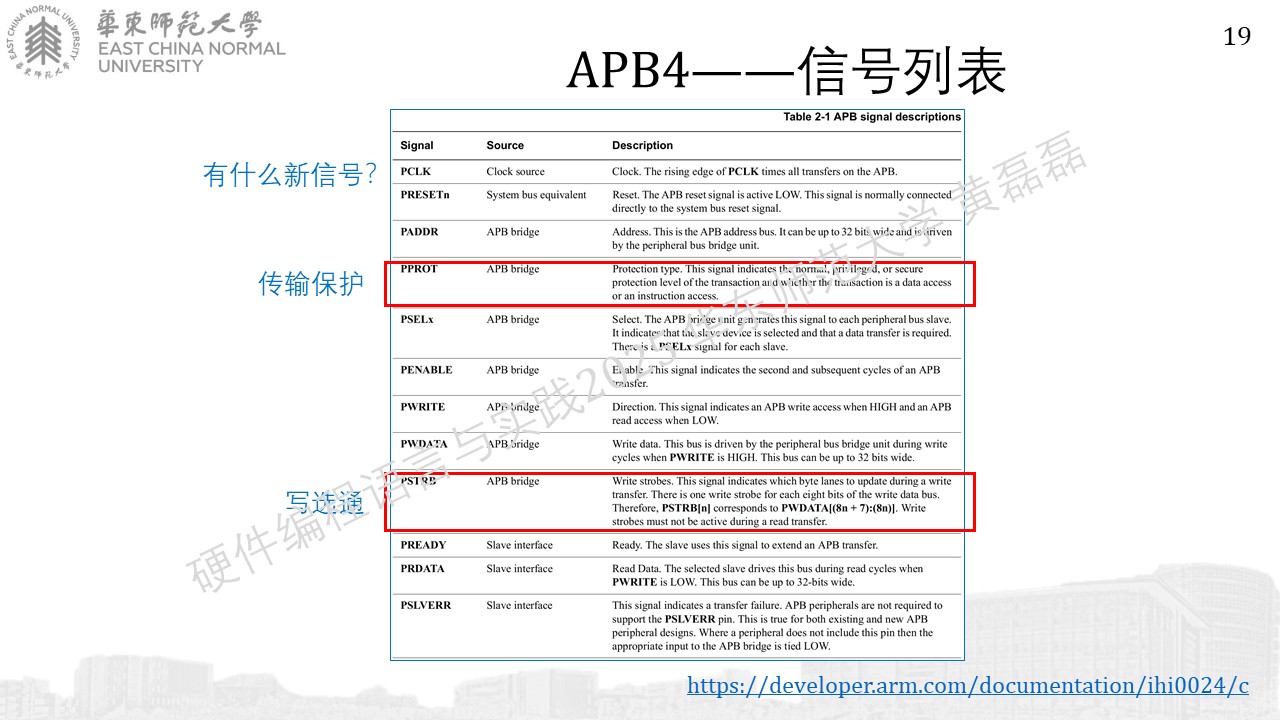

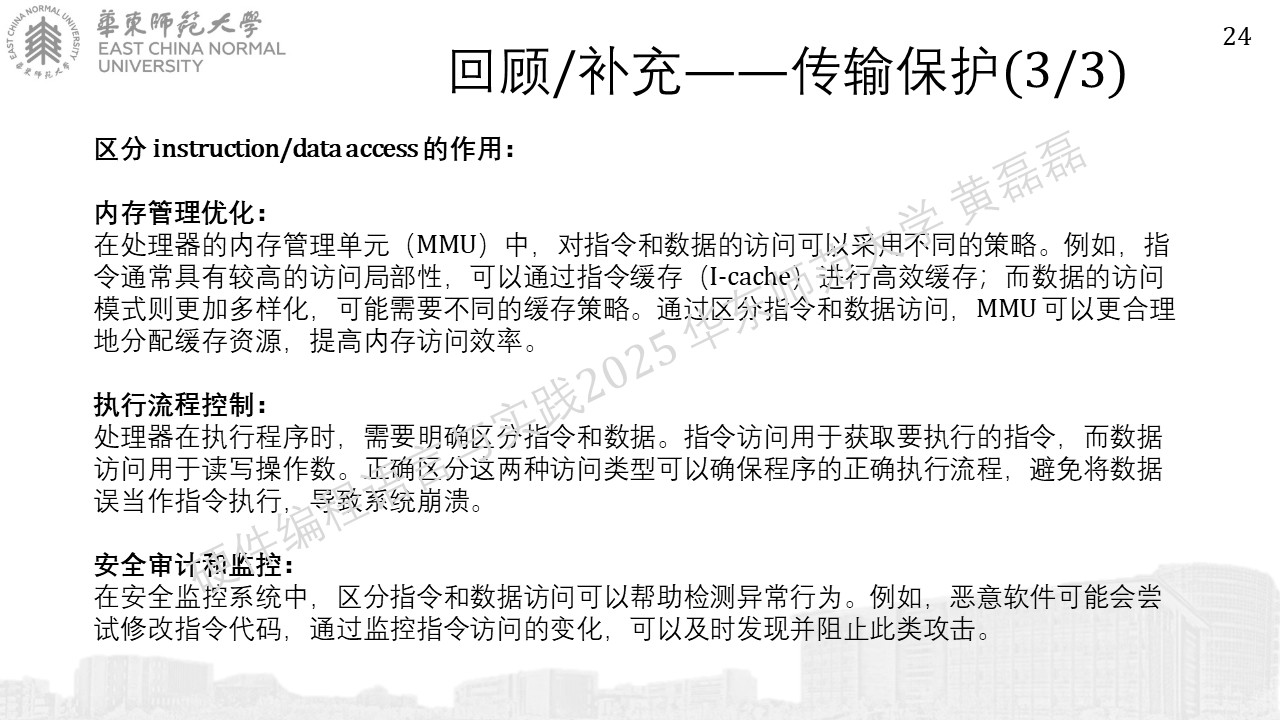

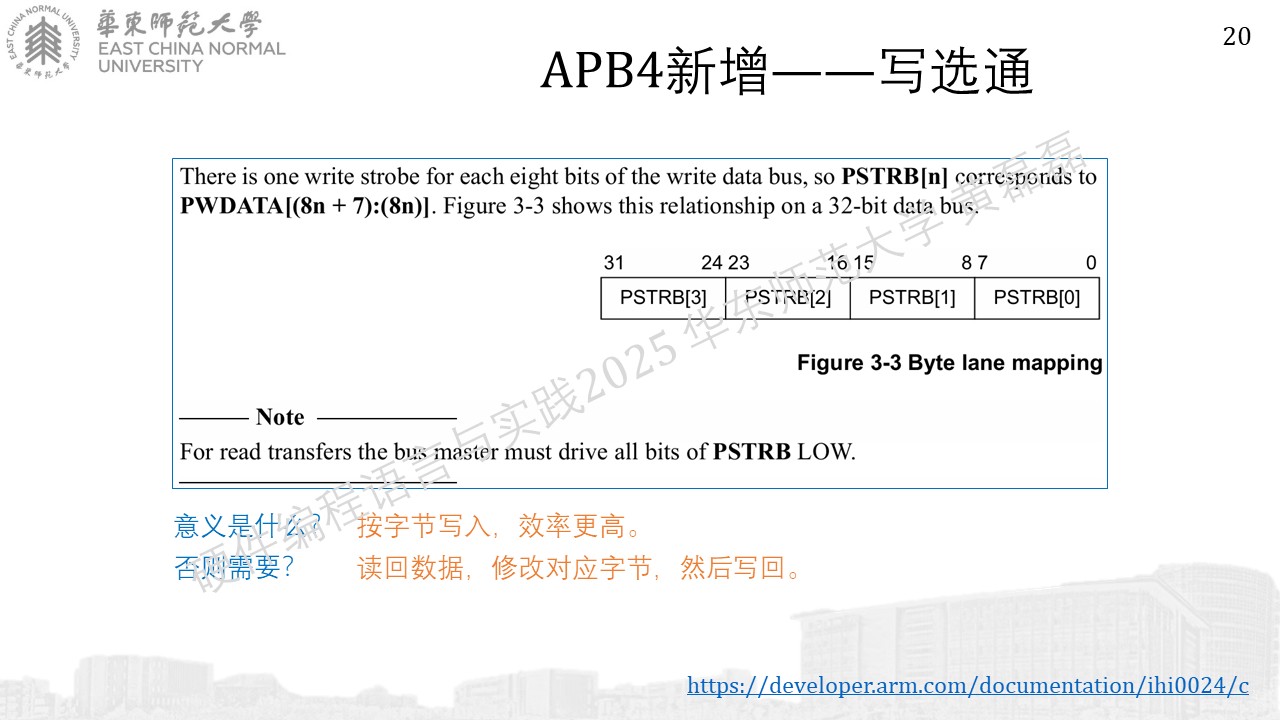

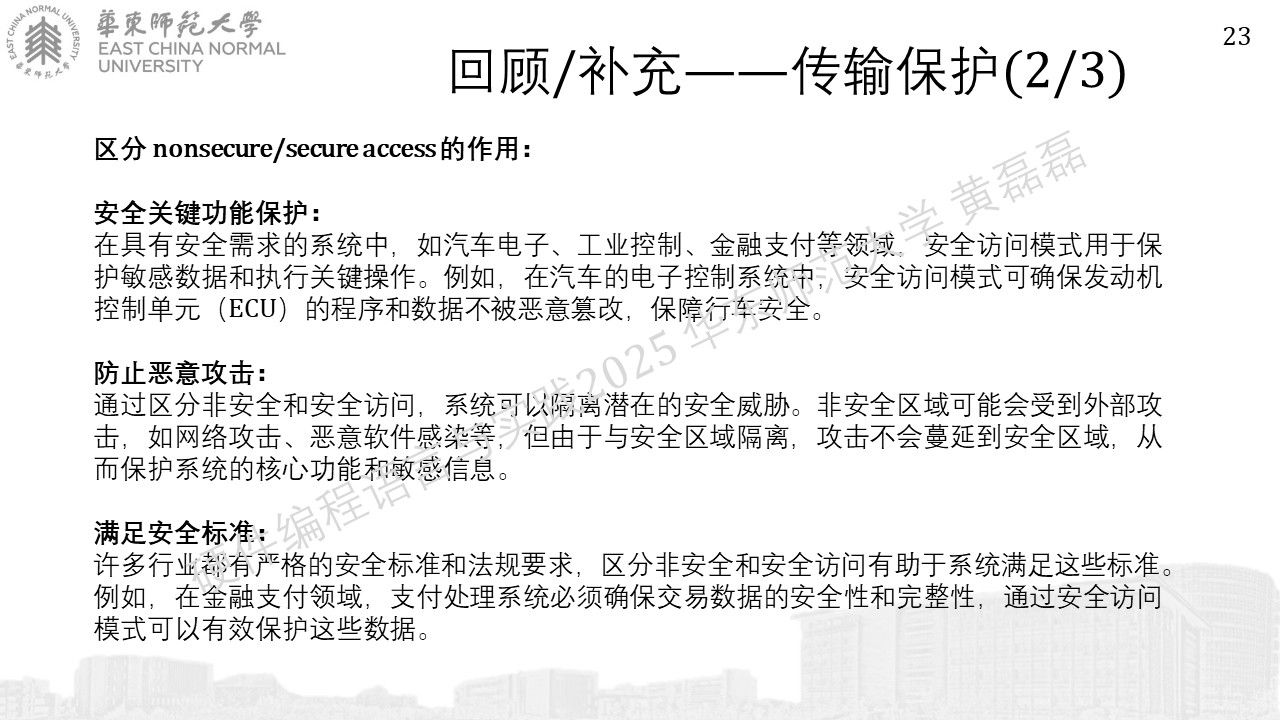

APB4¶

../../_images/%E5%B9%BB%E7%81%AF%E7%89%871911.JPG

https://developer.arm.com/documentation/ihi0024/c

../../_images/%E5%B9%BB%E7%81%AF%E7%89%872010.JPG

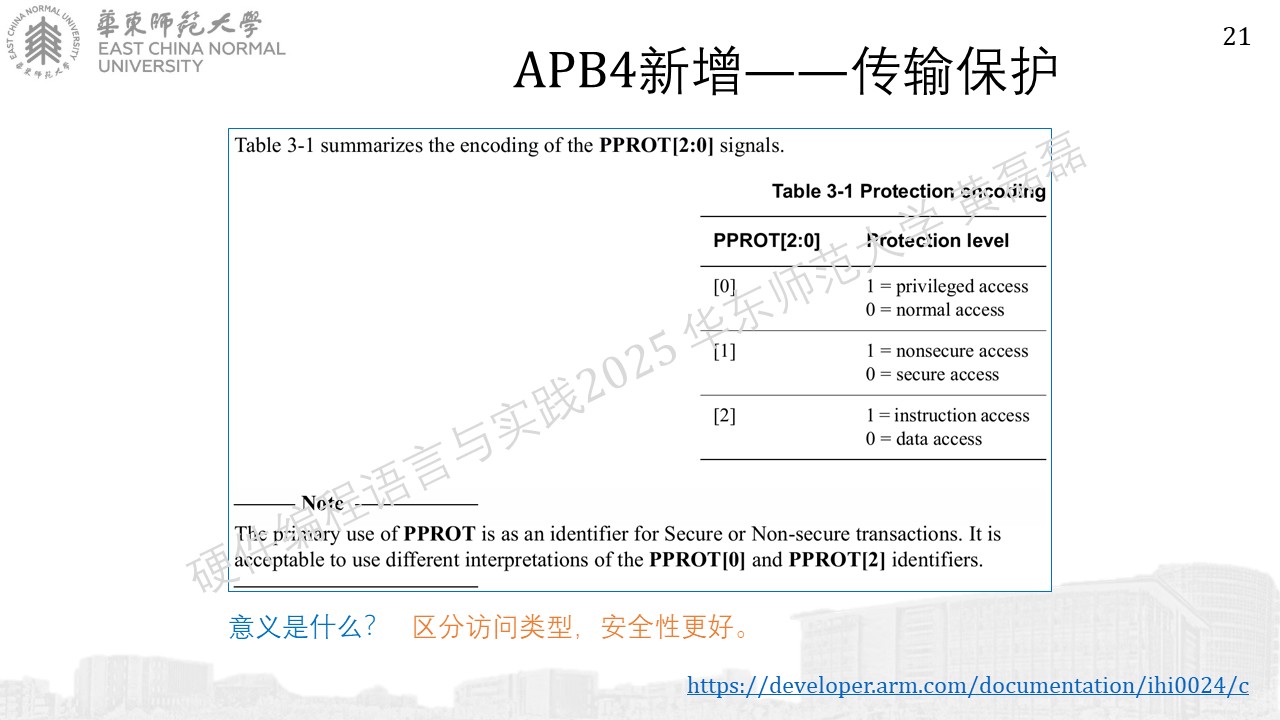

../../_images/%E5%B9%BB%E7%81%AF%E7%89%872116.JPG

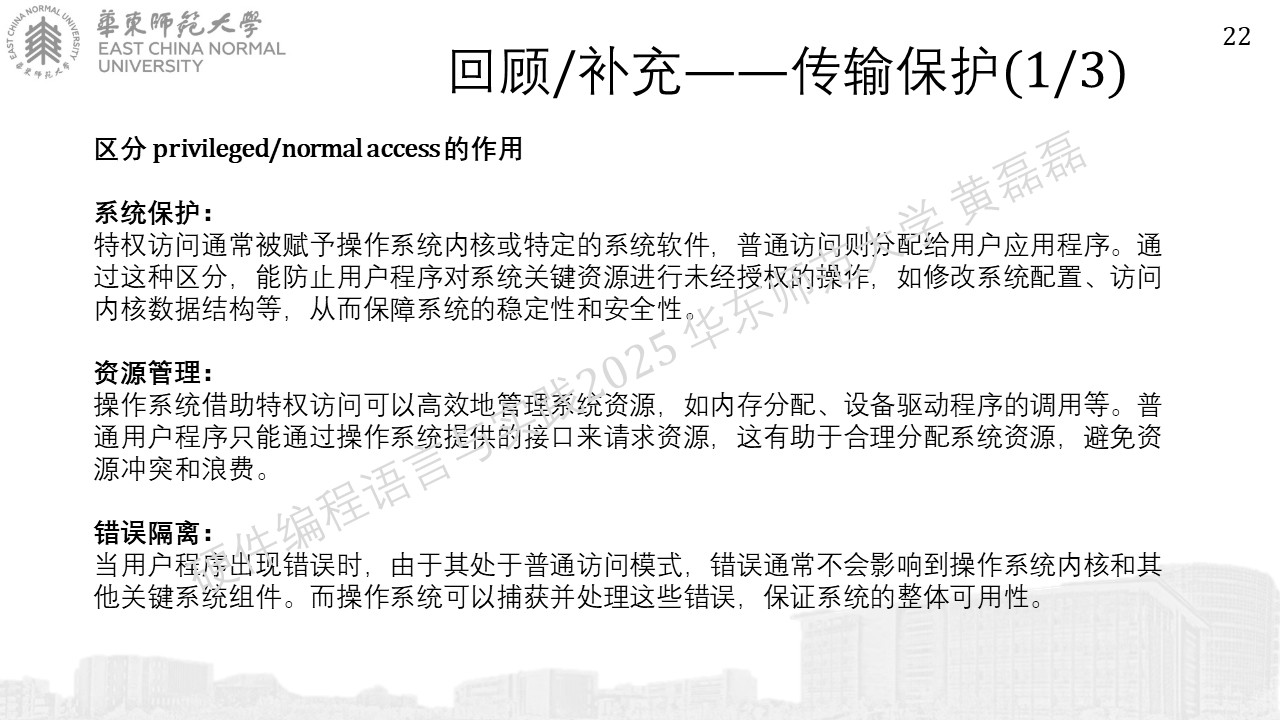

../../_images/%E5%B9%BB%E7%81%AF%E7%89%872212.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%872311.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87248.JPG

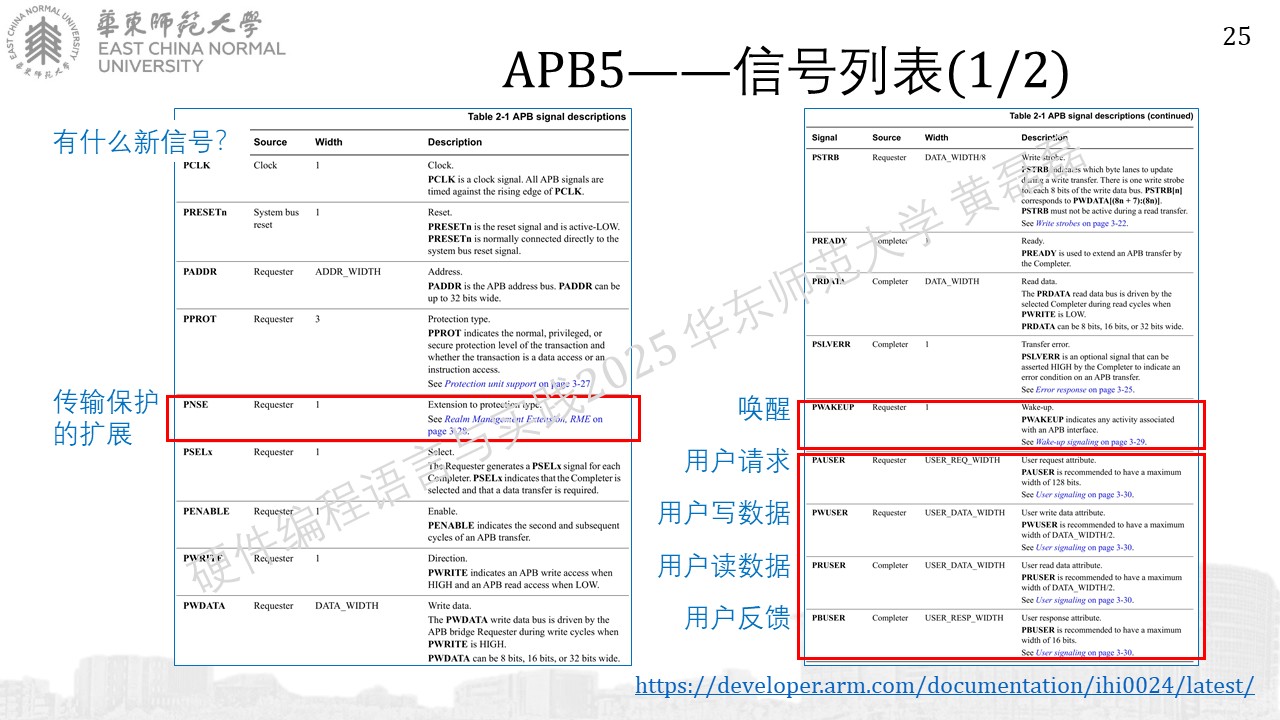

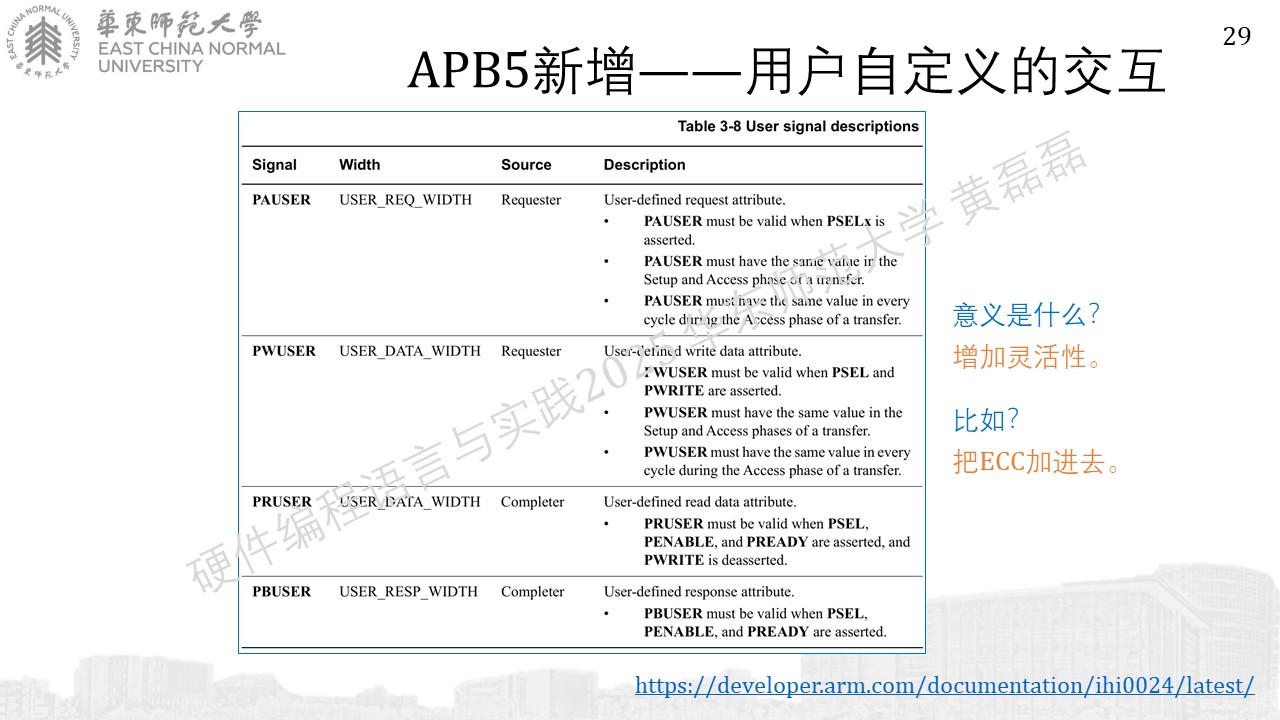

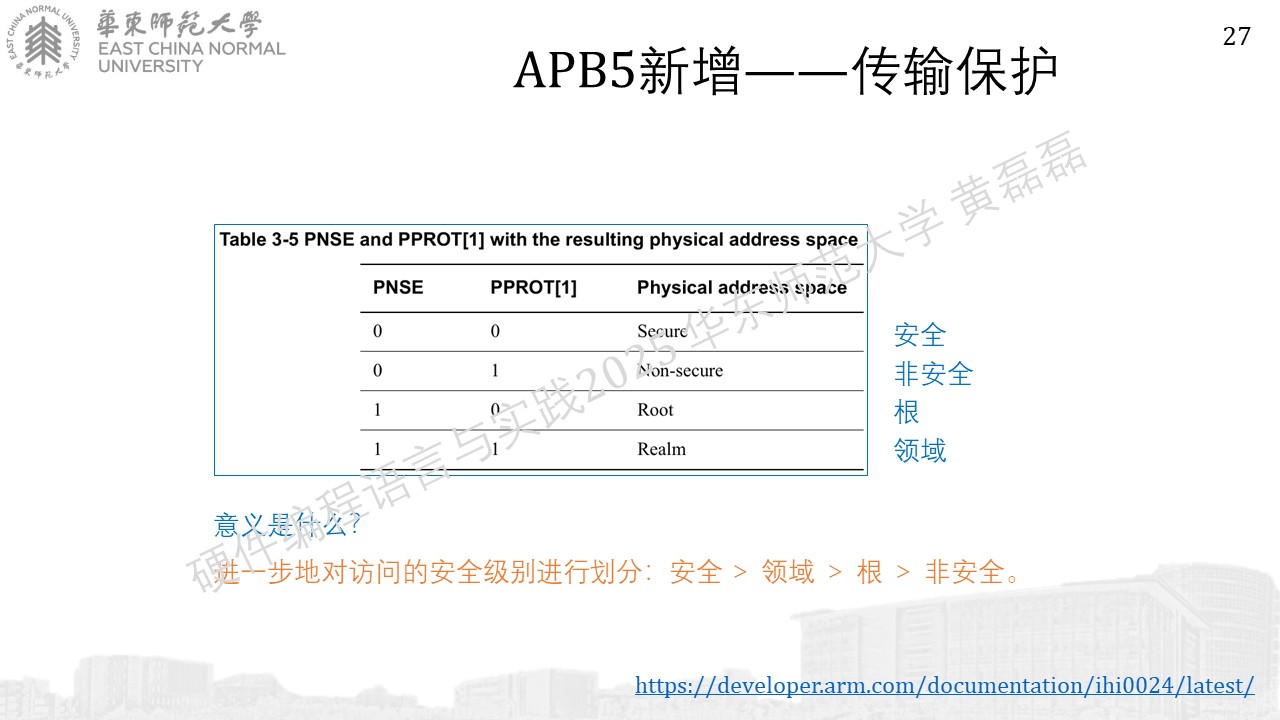

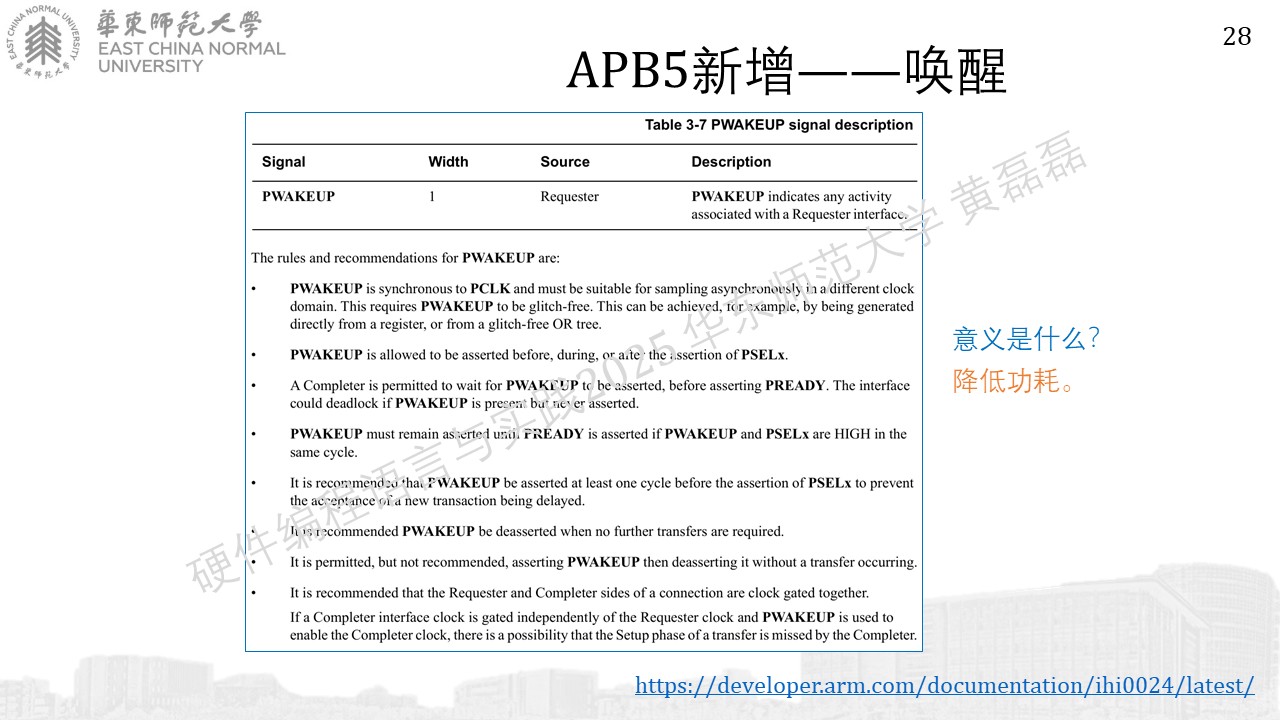

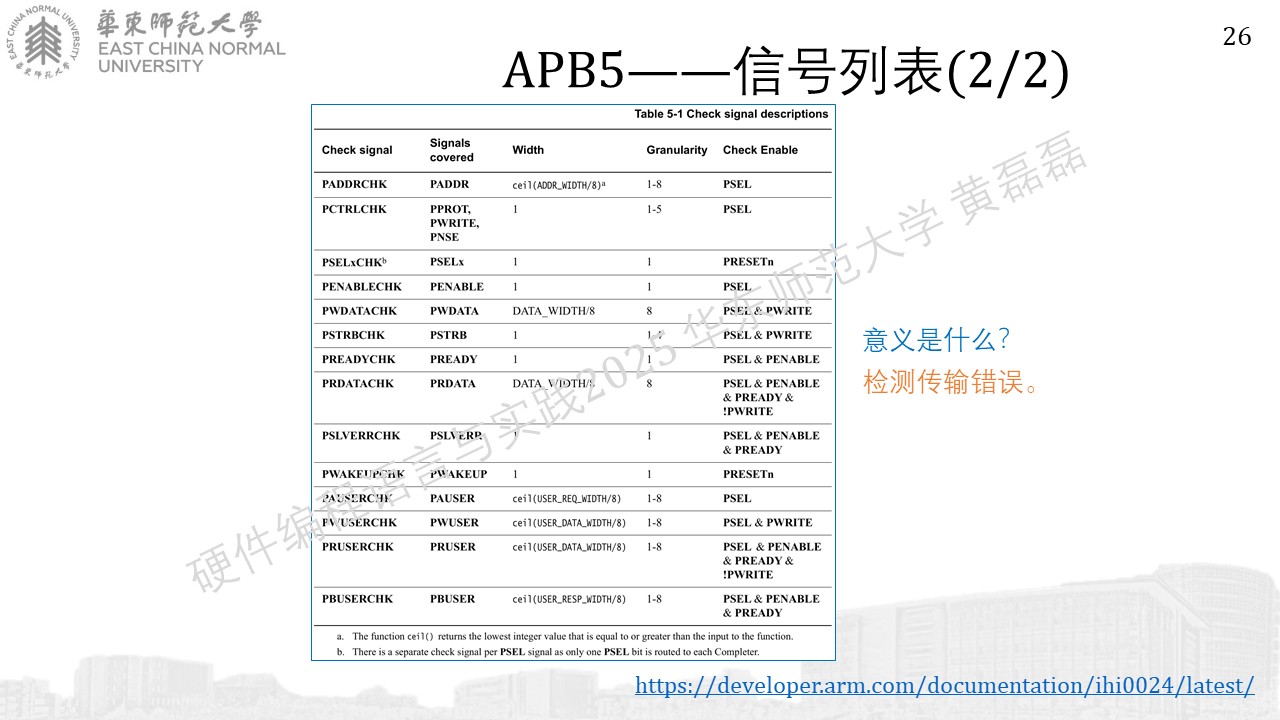

APB5¶

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87257.JPG

https://developer.arm.com/documentation/ihi0024/latest/

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87267.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87277.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87287.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87296.JPG

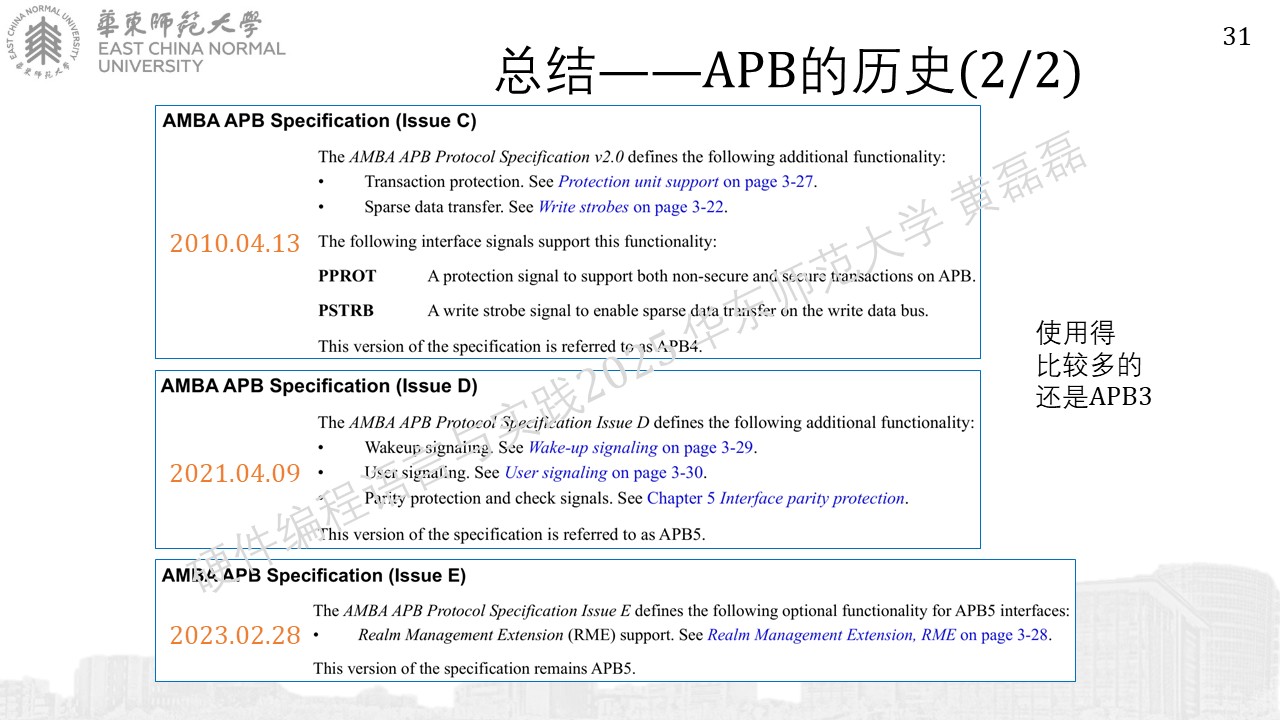

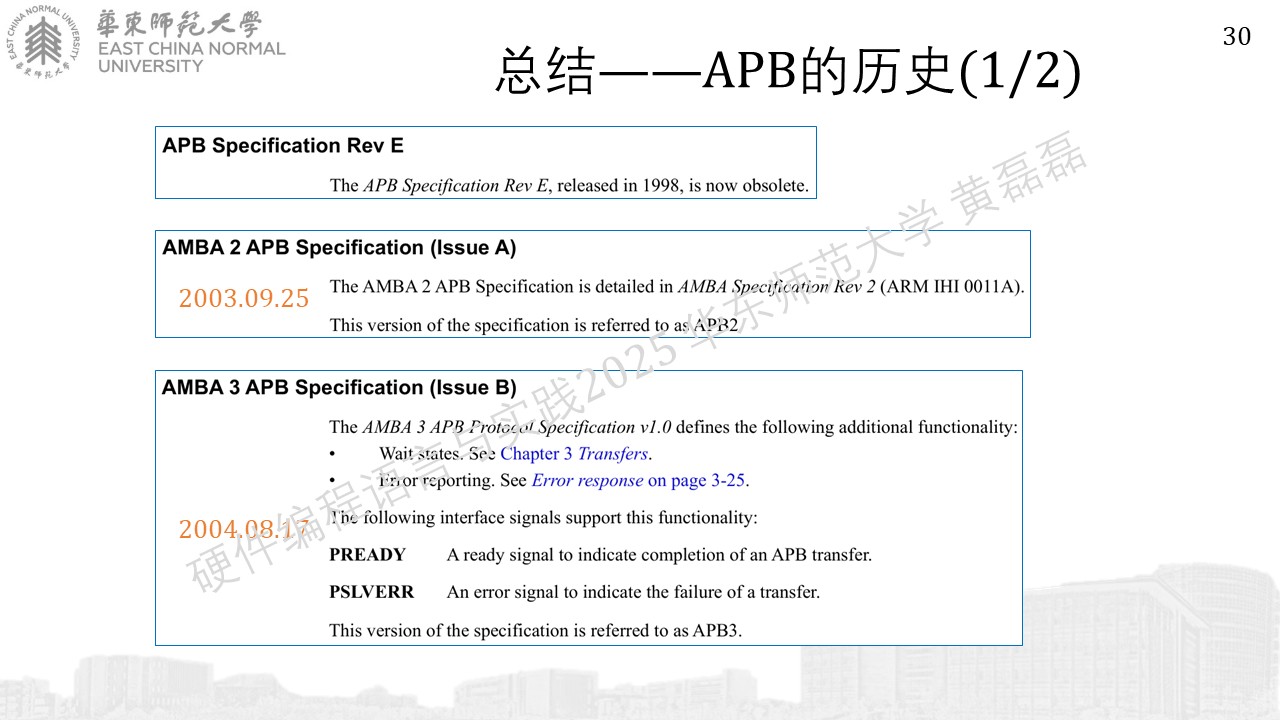

APB的历史¶

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87306.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%873113.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%873211.JPG

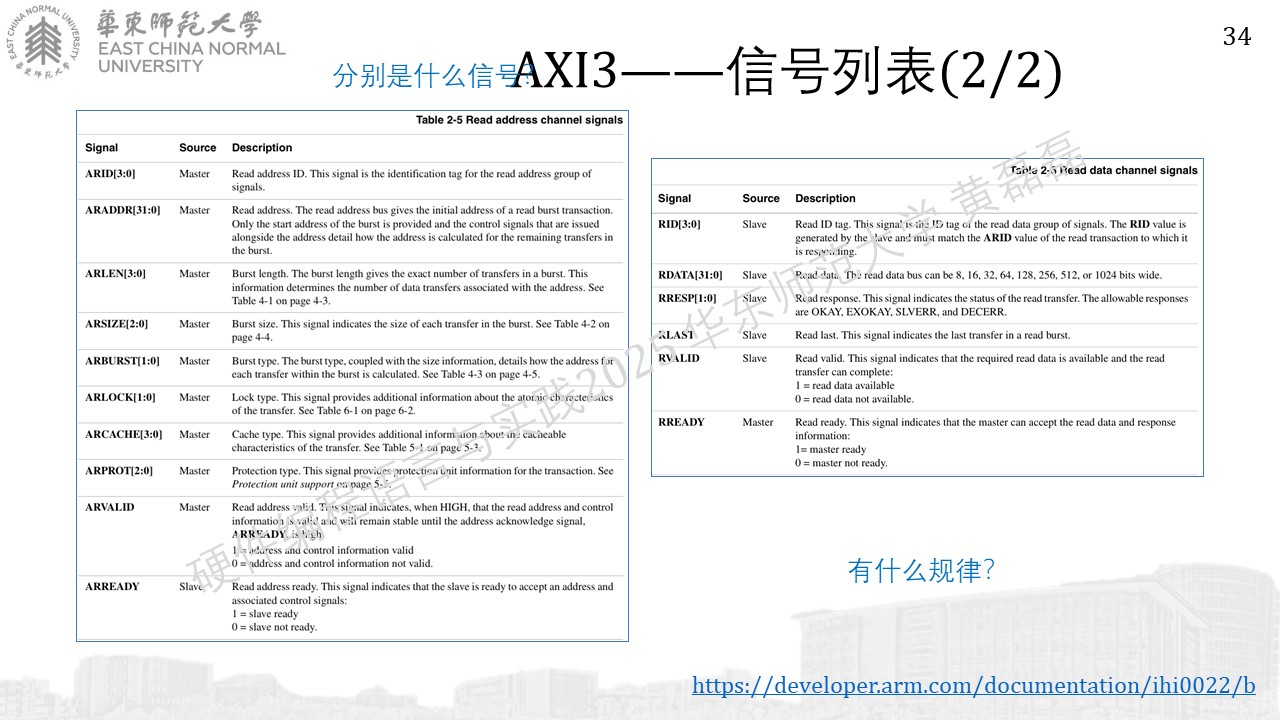

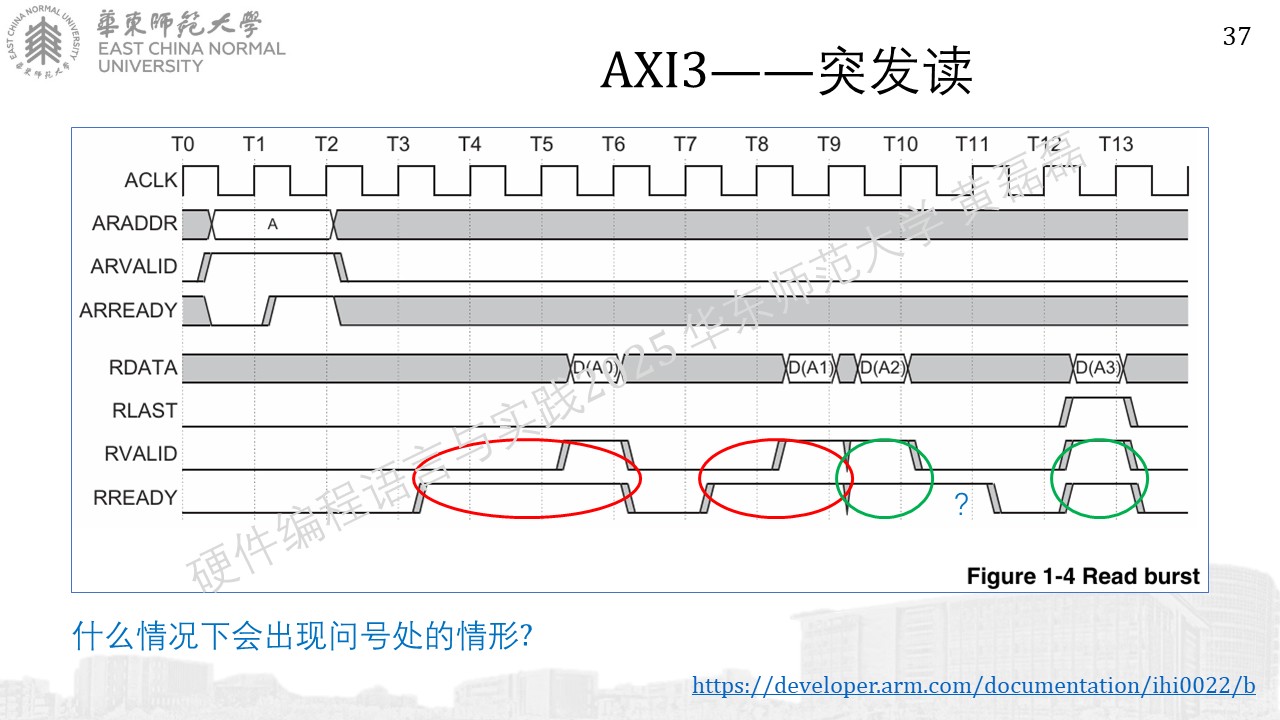

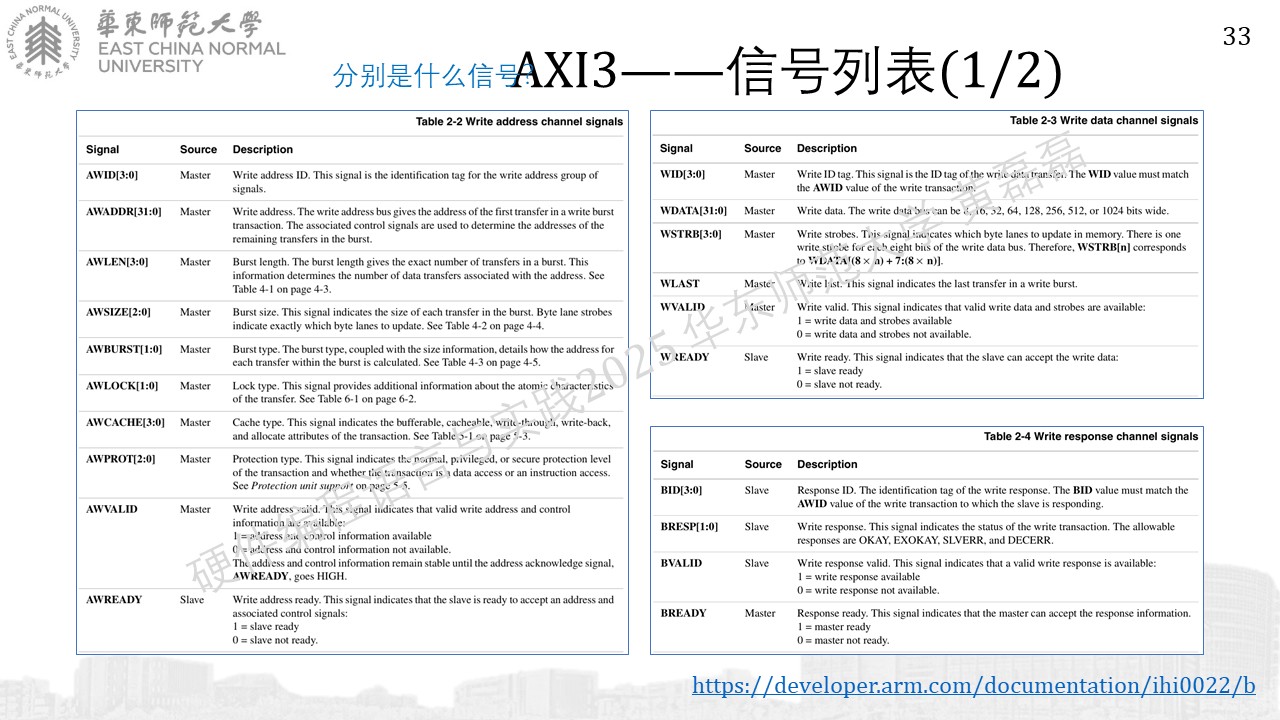

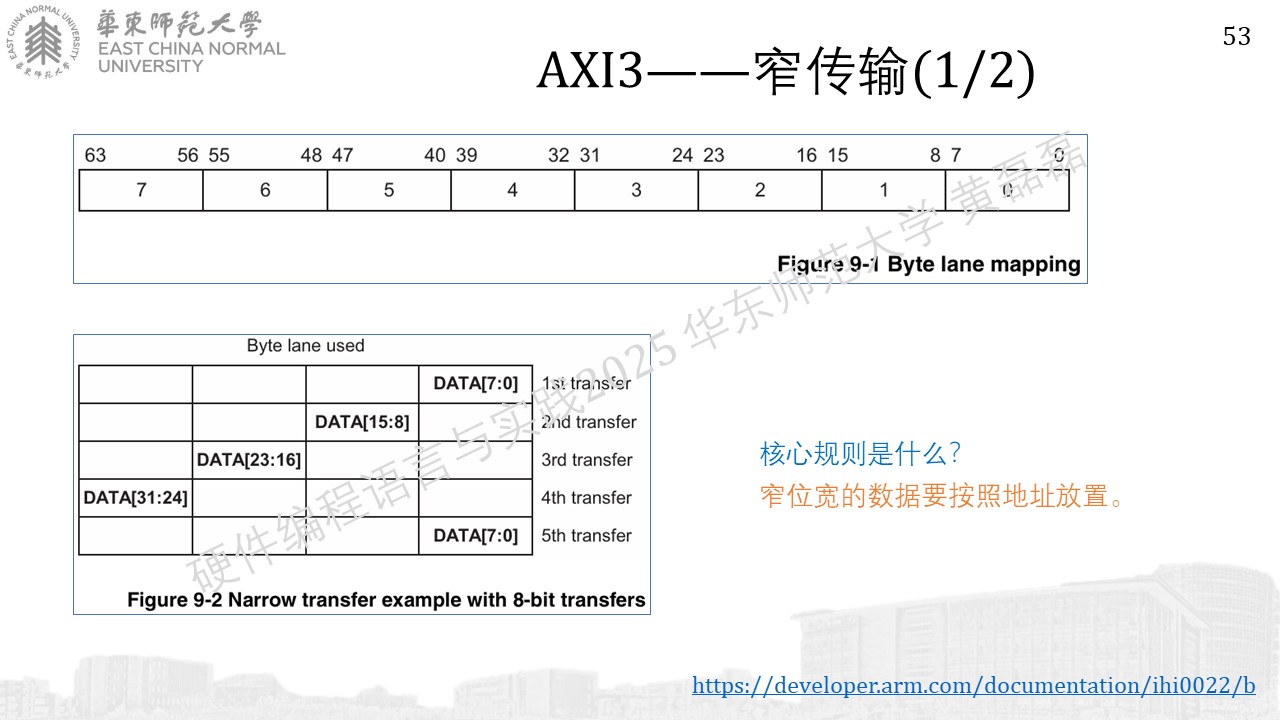

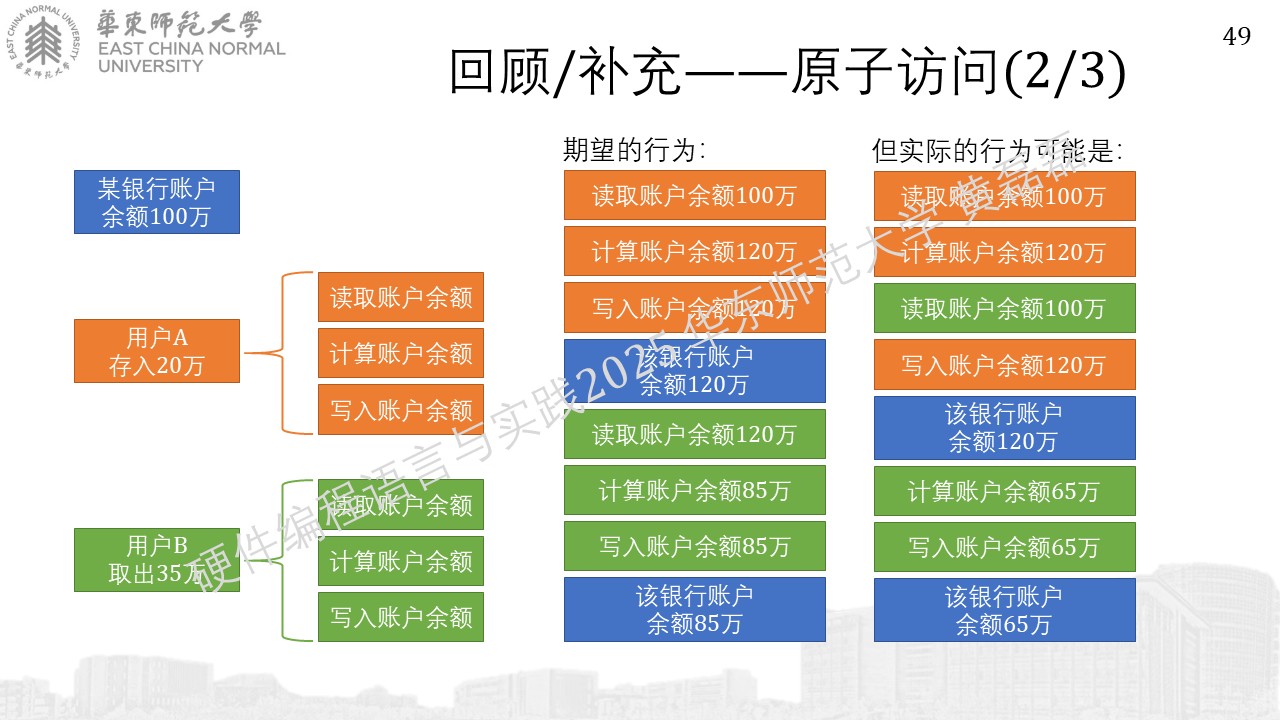

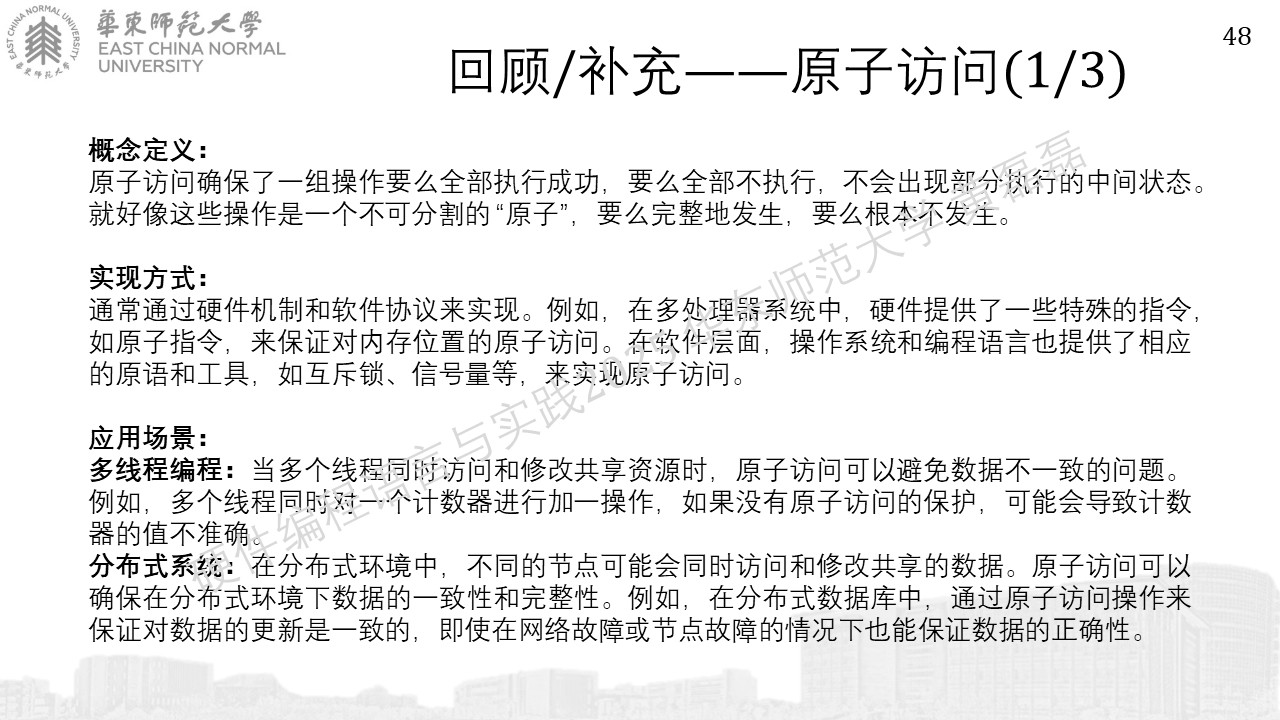

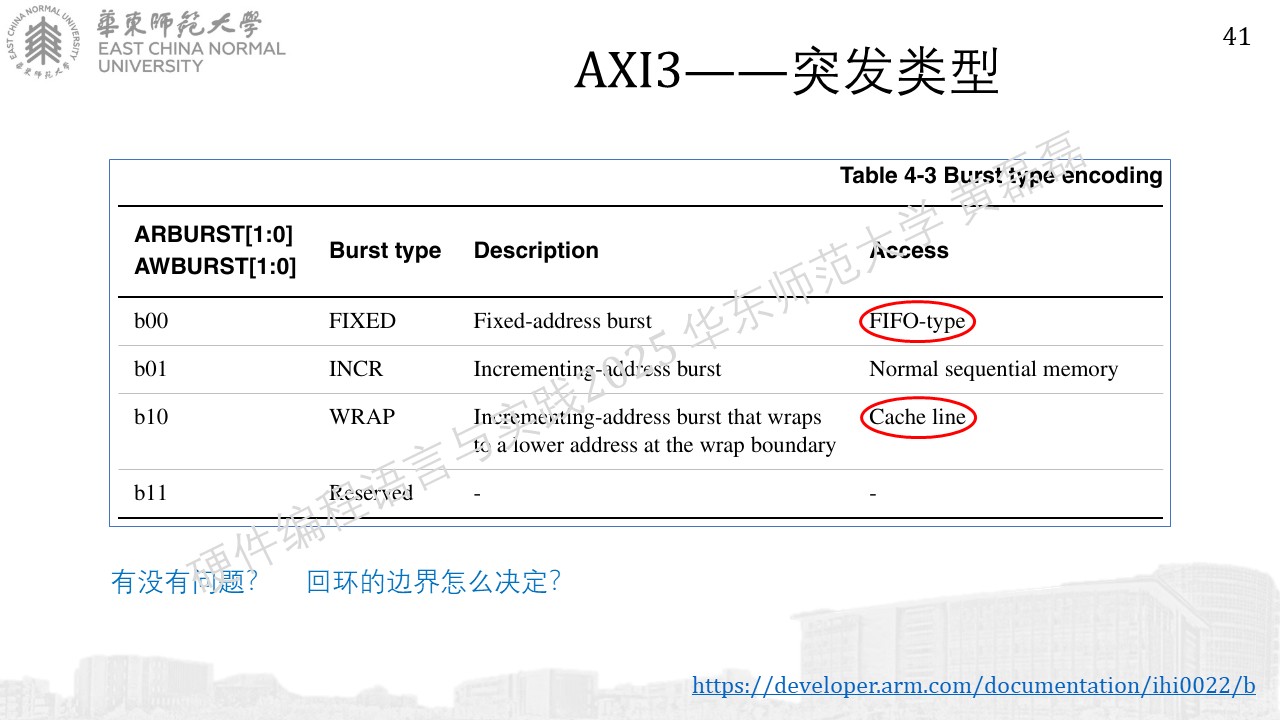

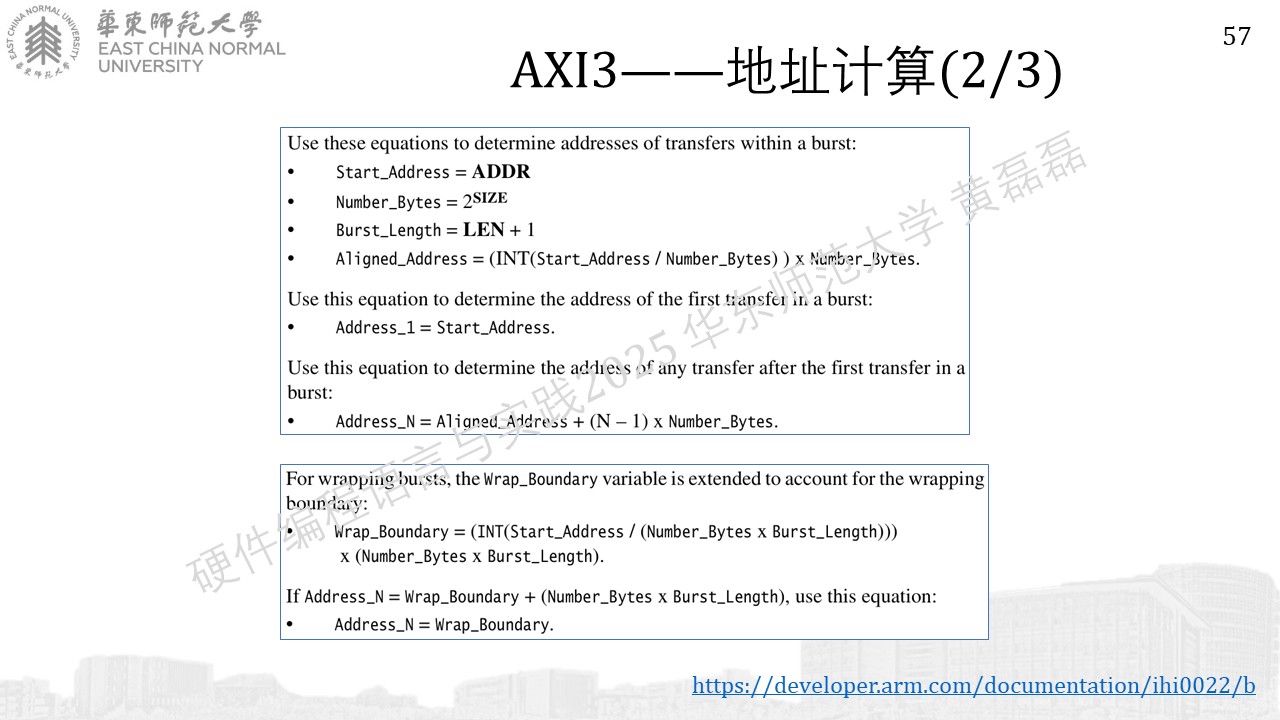

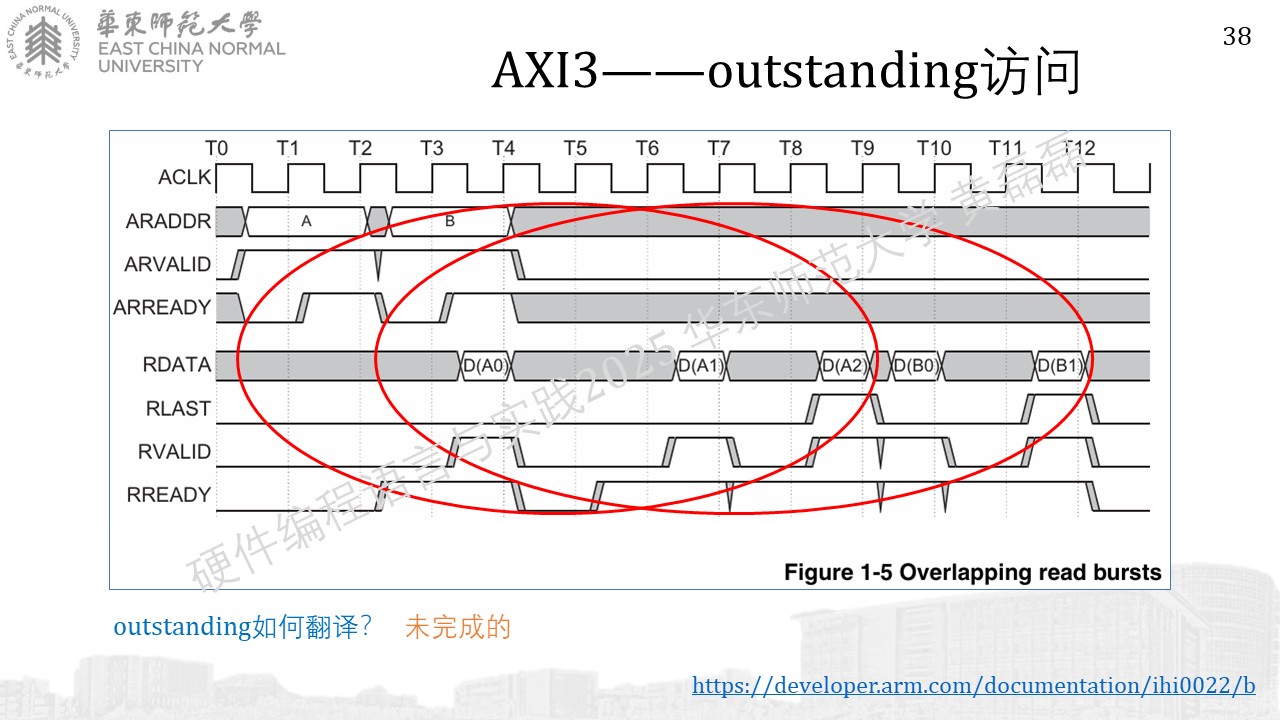

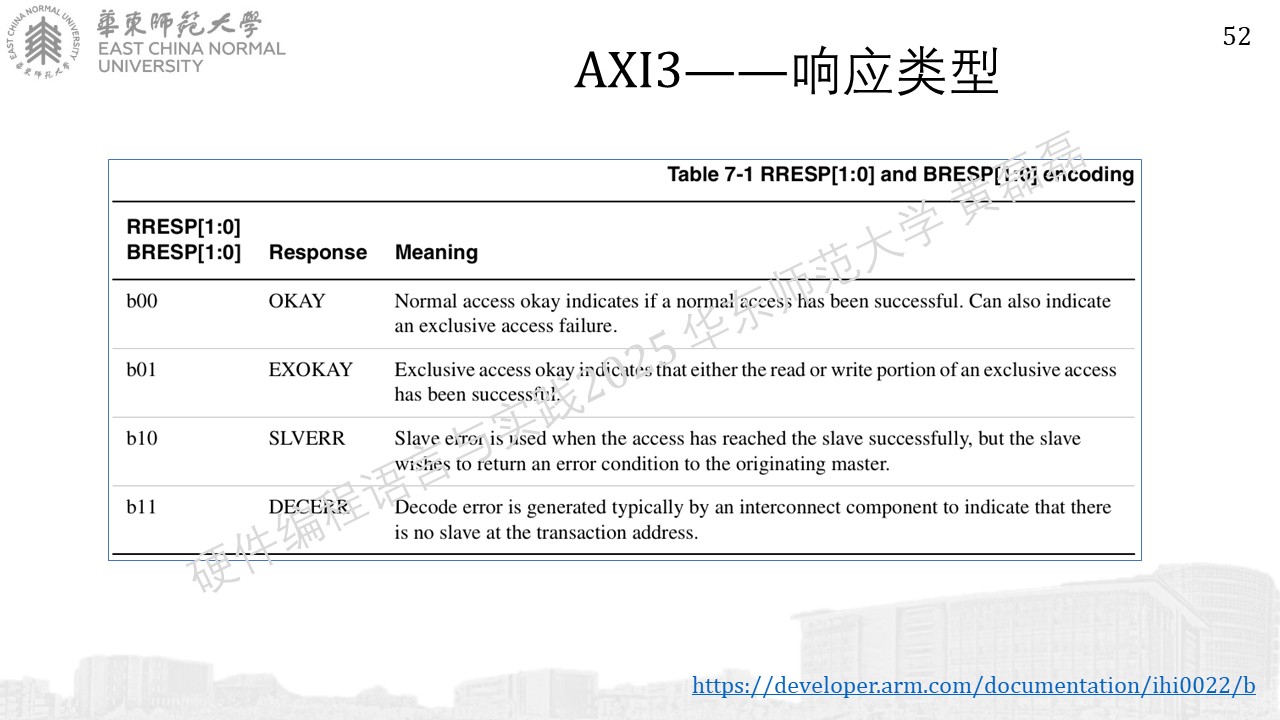

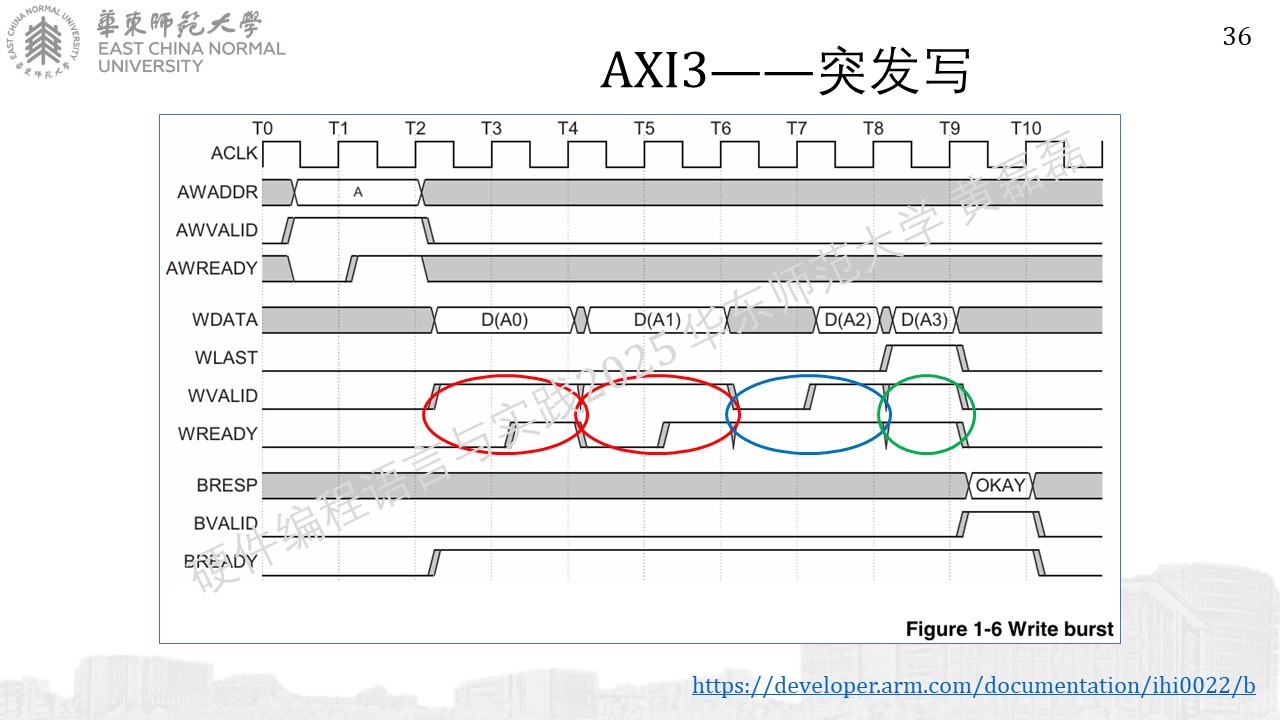

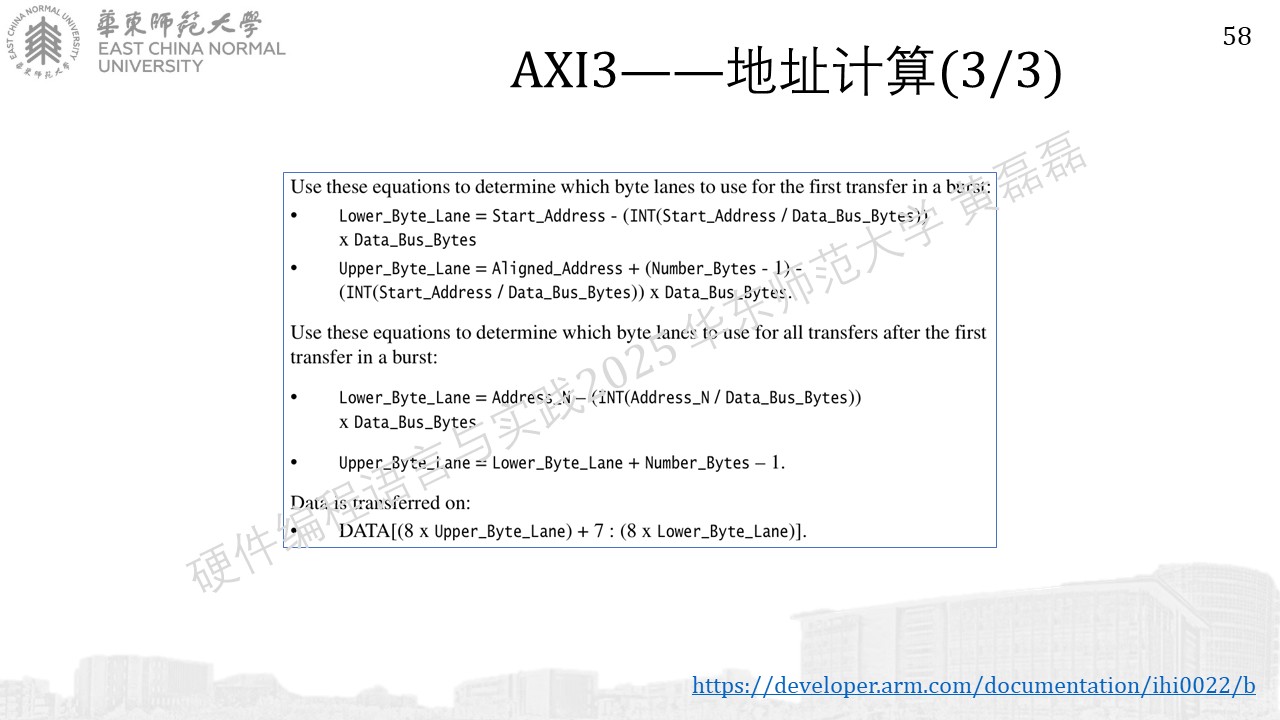

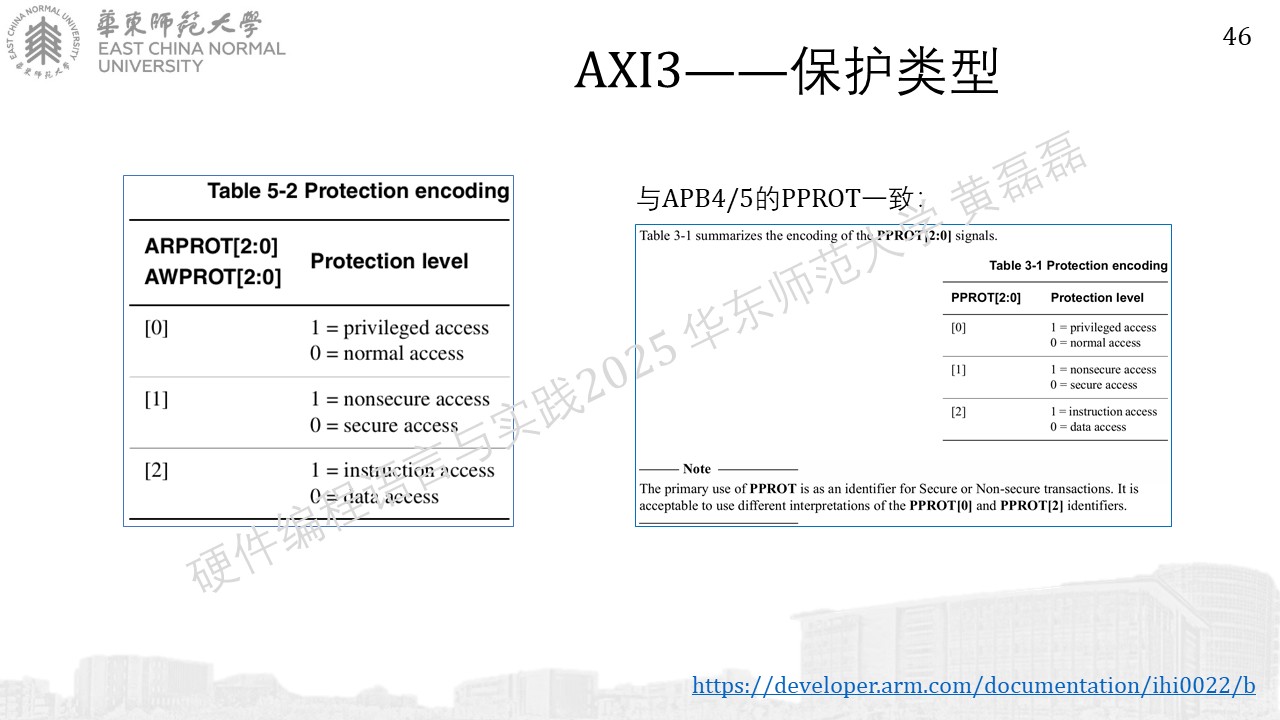

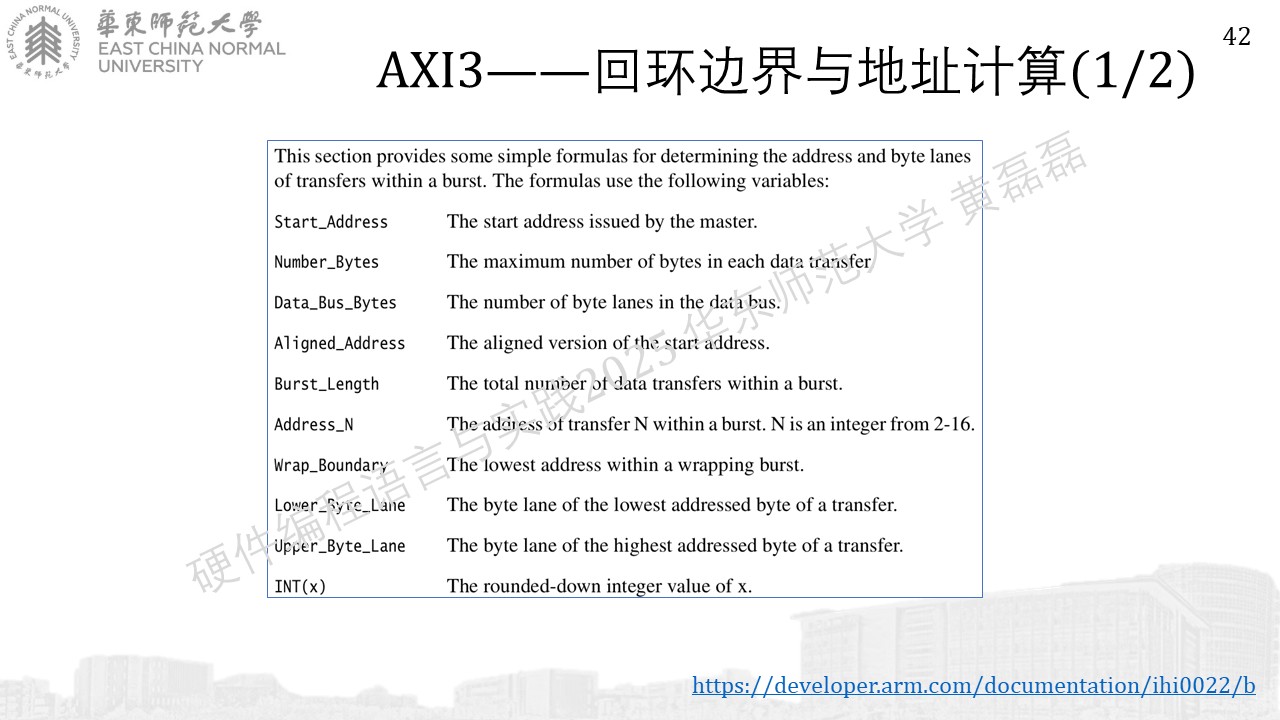

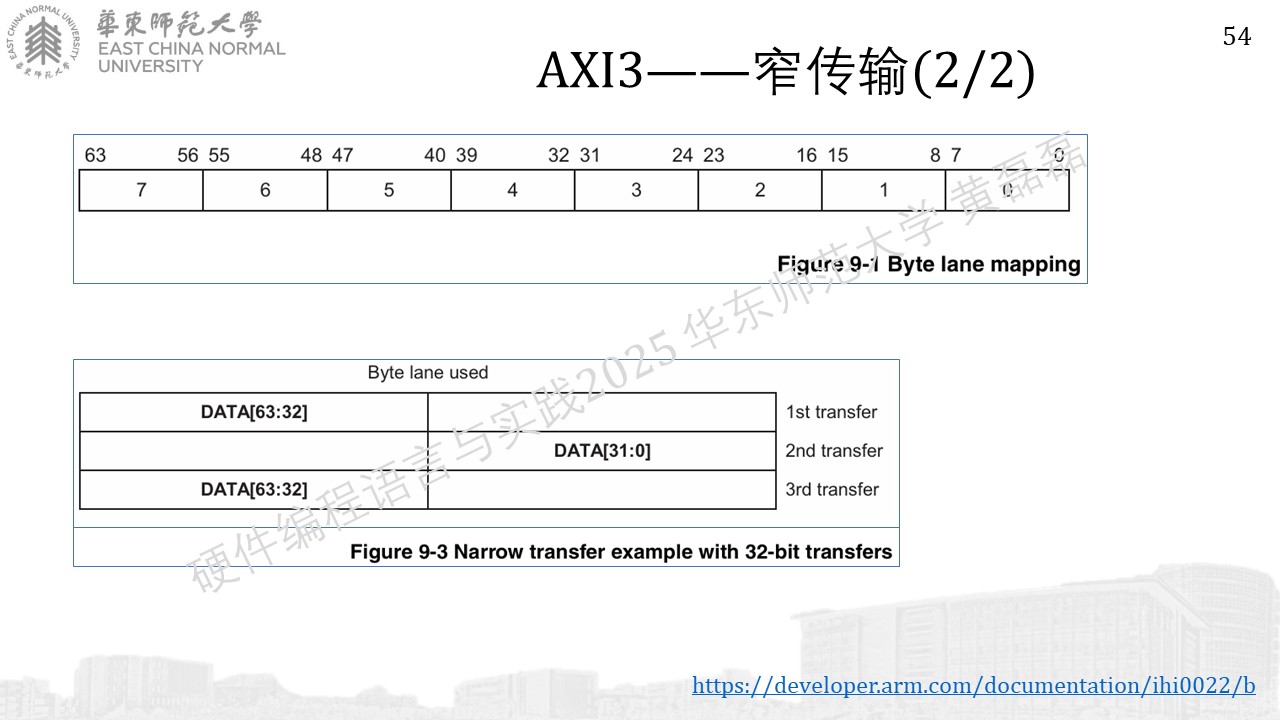

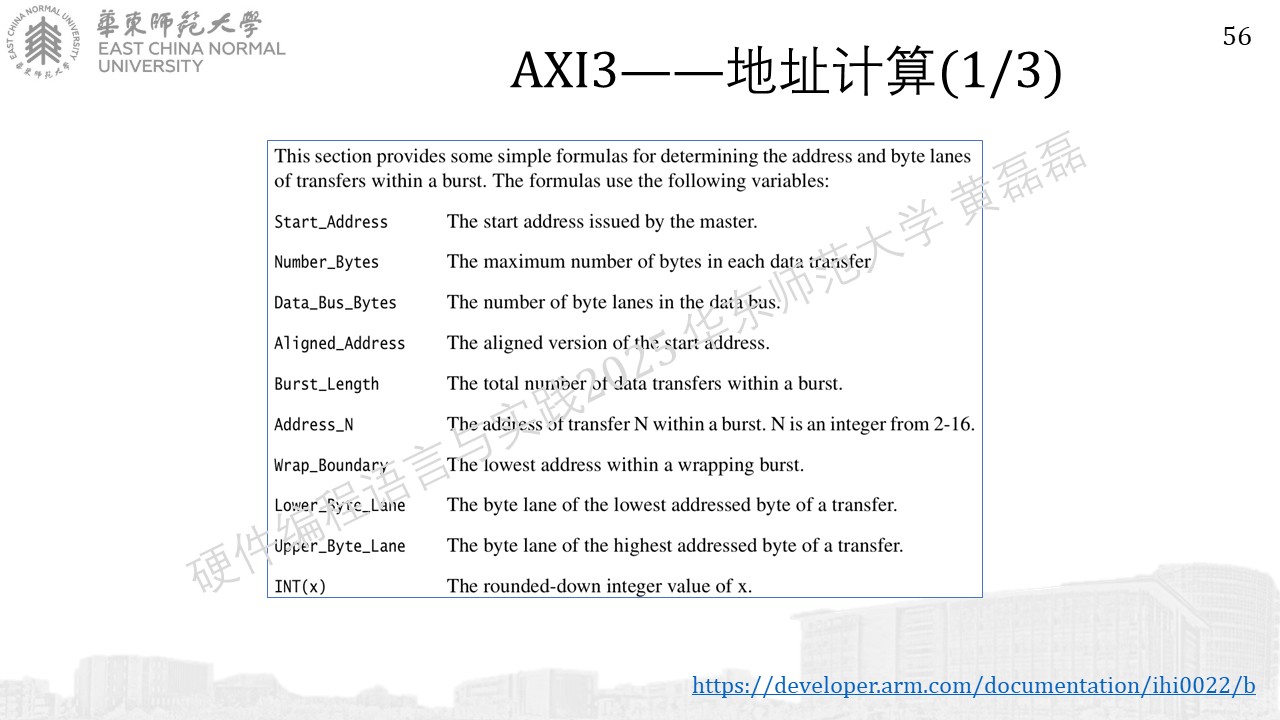

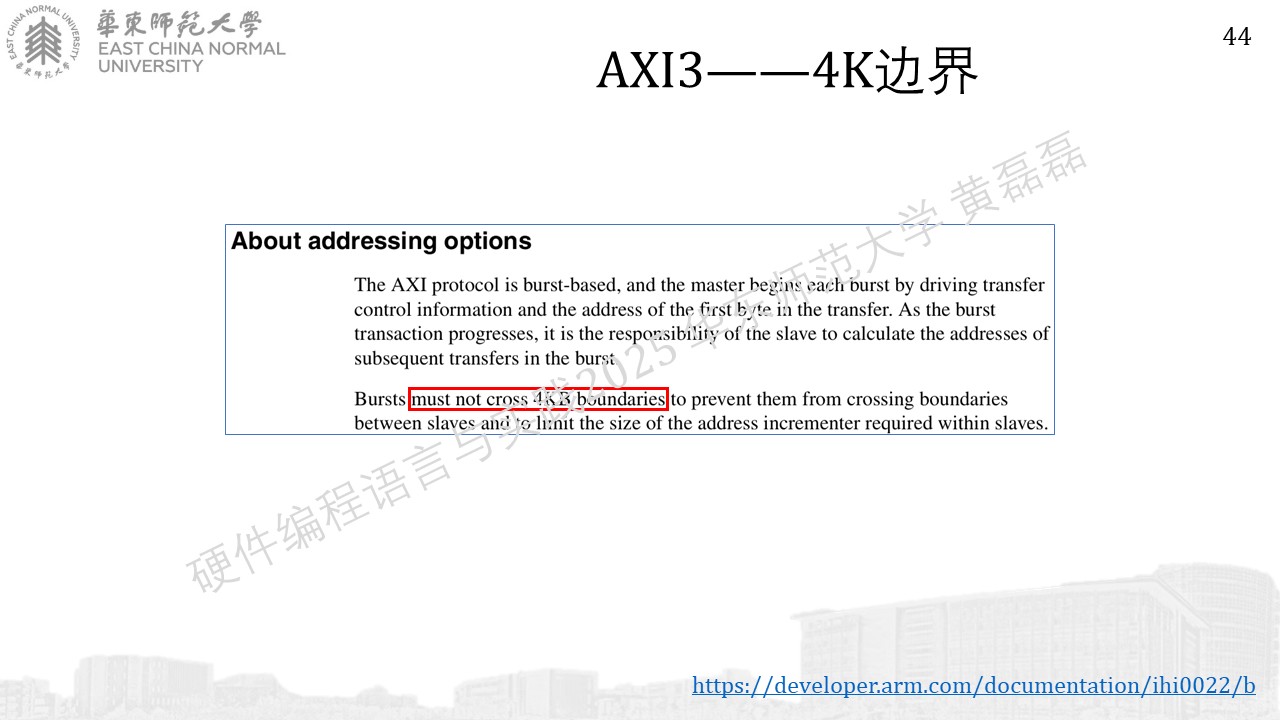

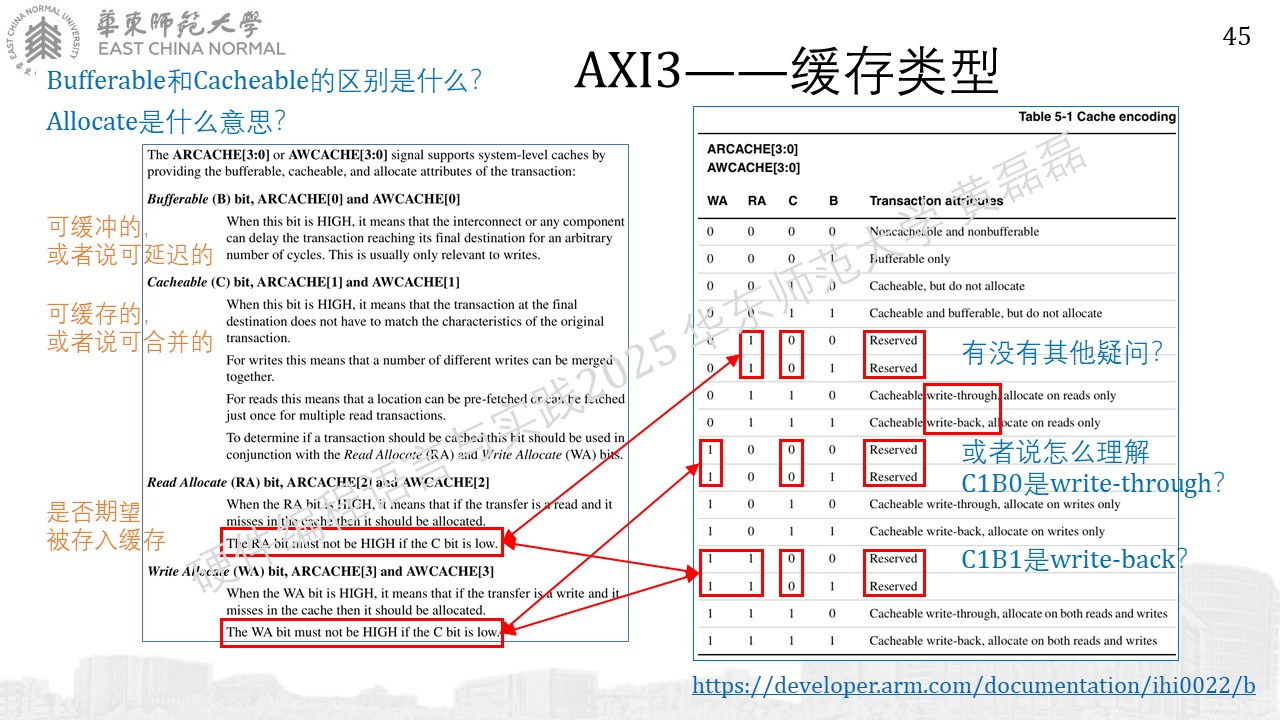

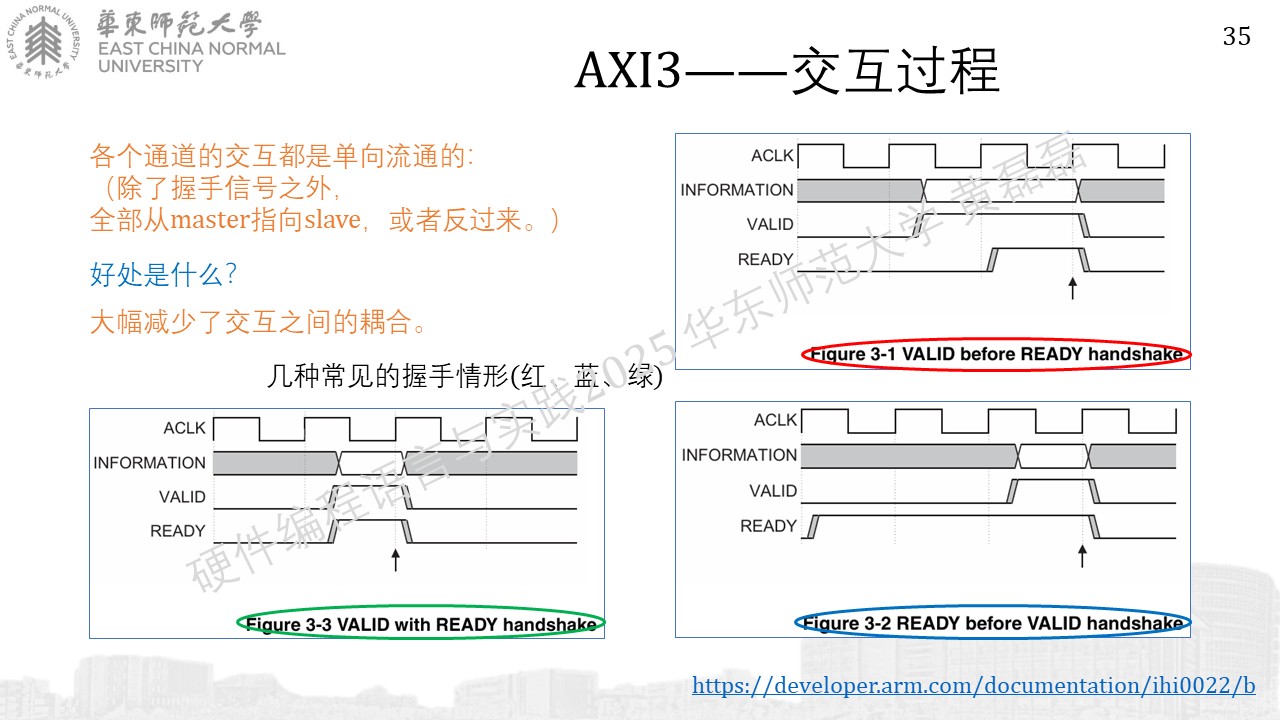

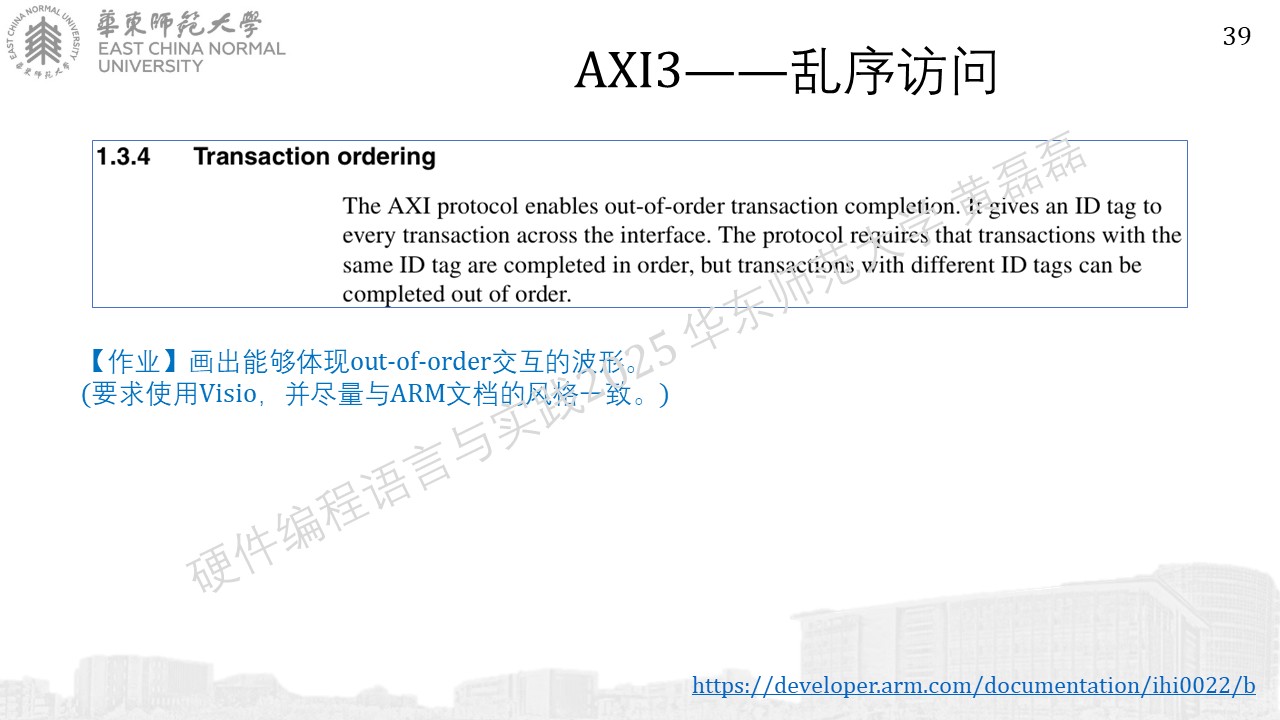

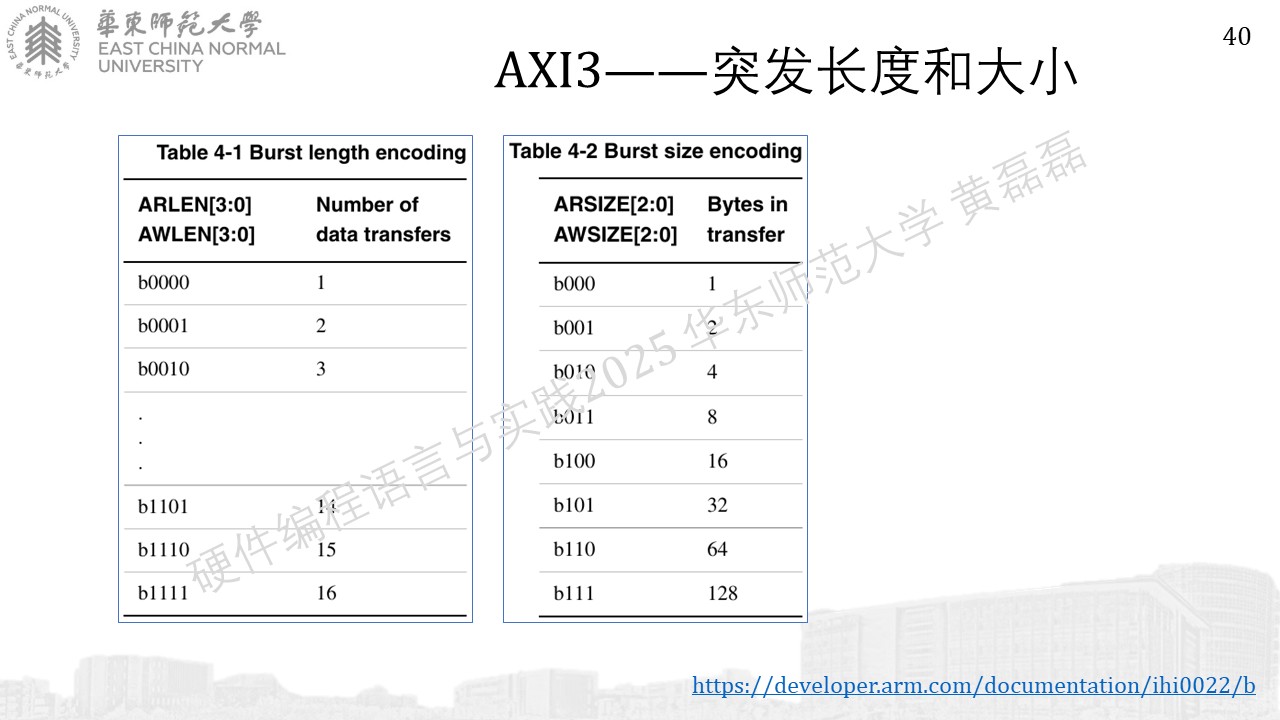

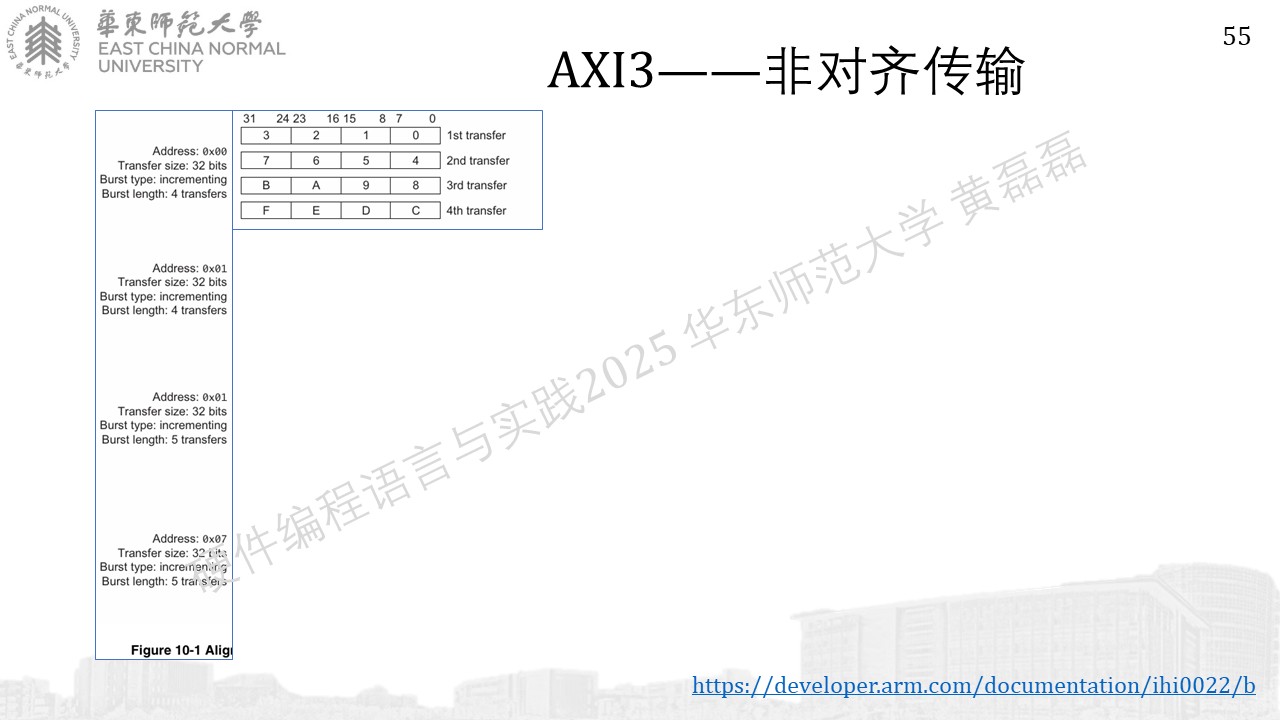

AXI3¶

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87336.JPG

https://developer.arm.com/documentation/ihi0022/b

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87345.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87355.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87365.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87375.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87385.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87395.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87405.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%874113.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87429.JPG

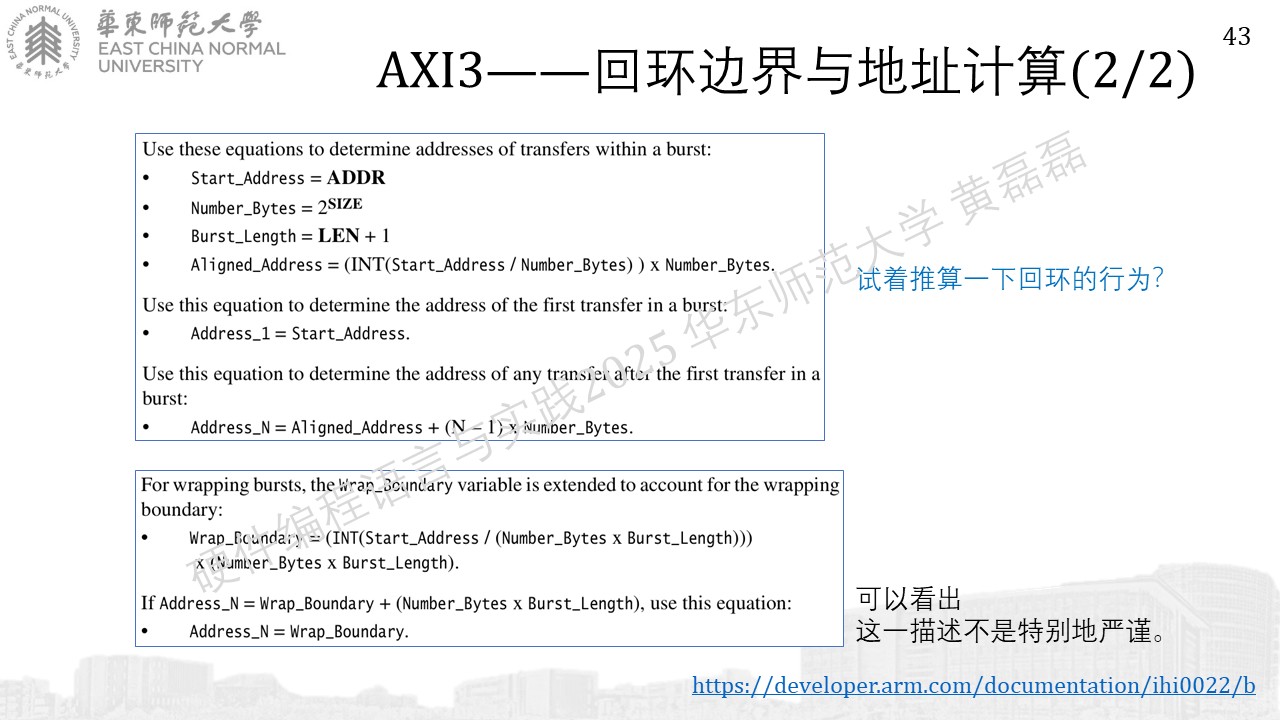

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87435.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87445.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87455.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87465.JPG

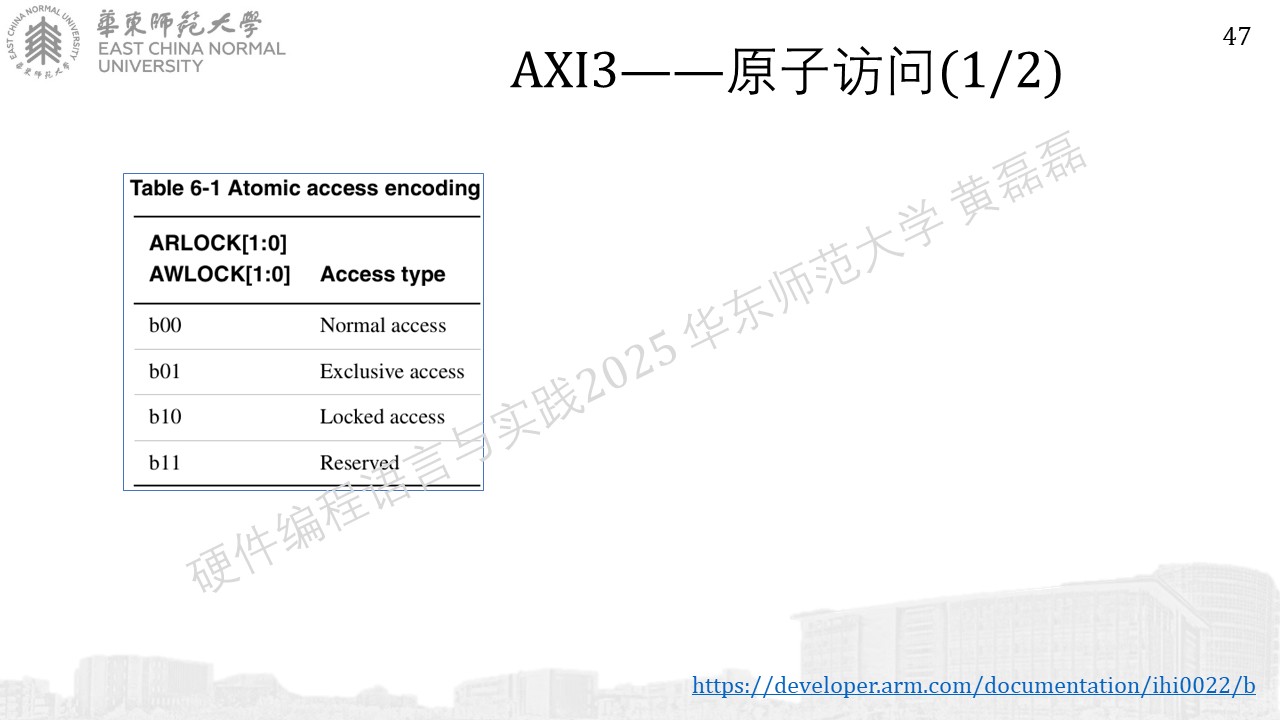

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87475.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87485.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87495.JPG

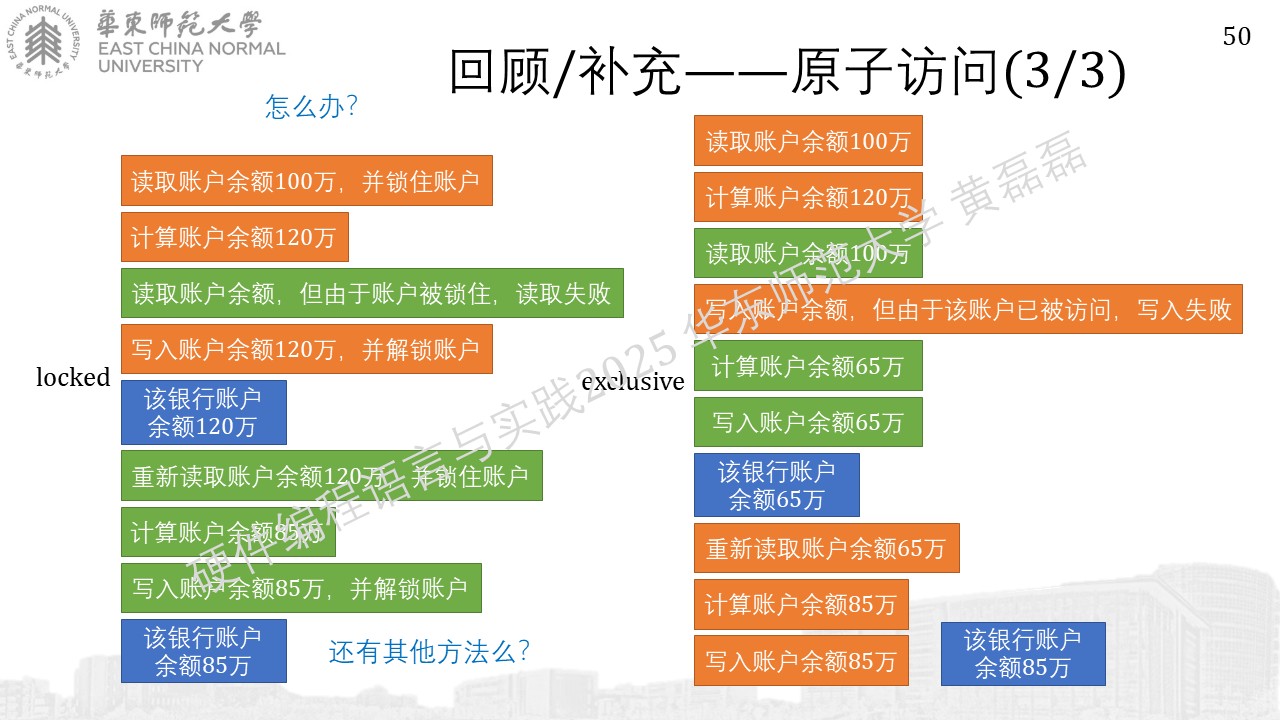

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87504.JPG

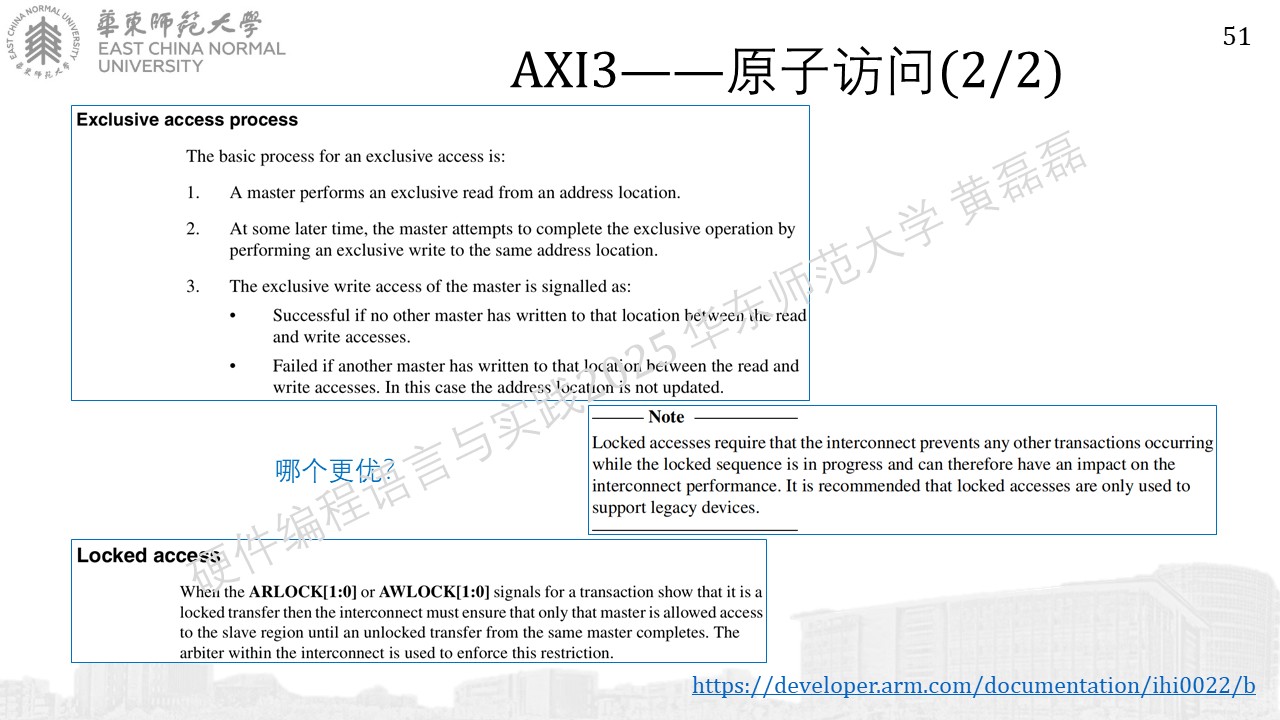

../../_images/%E5%B9%BB%E7%81%AF%E7%89%875110.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87524.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87534.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87544.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87554.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87564.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87574.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87584.JPG

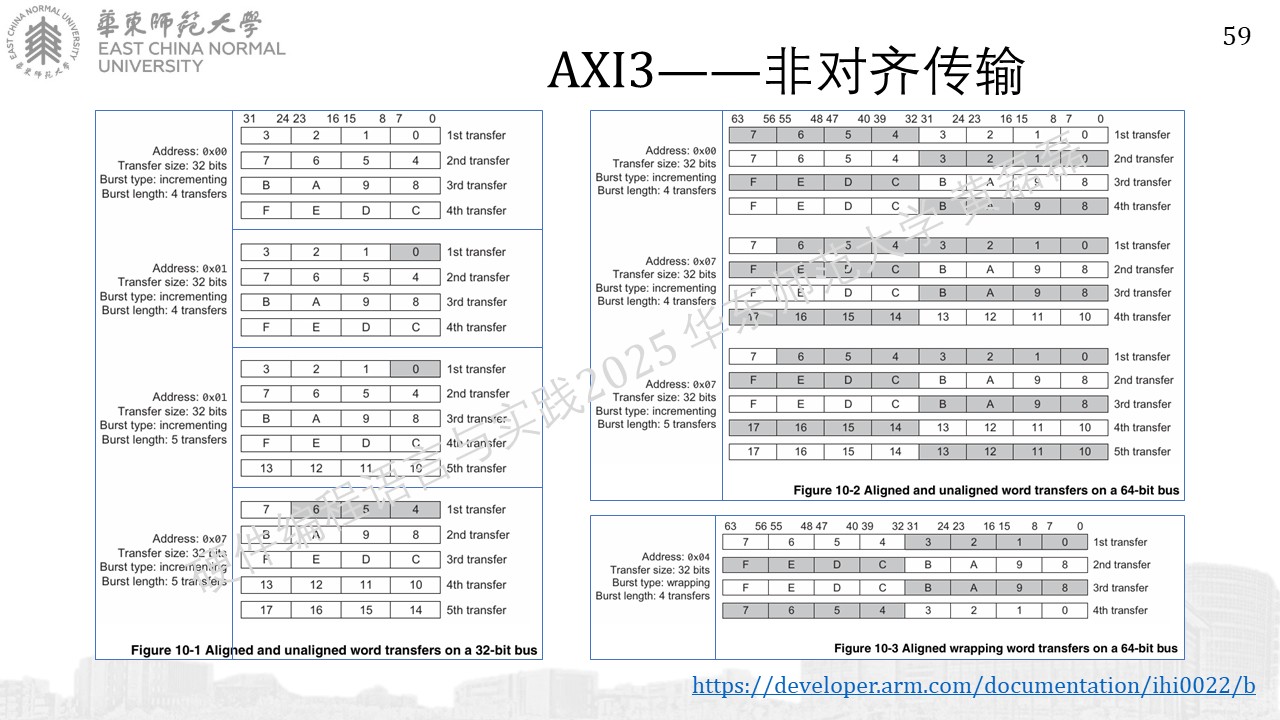

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87594.JPG

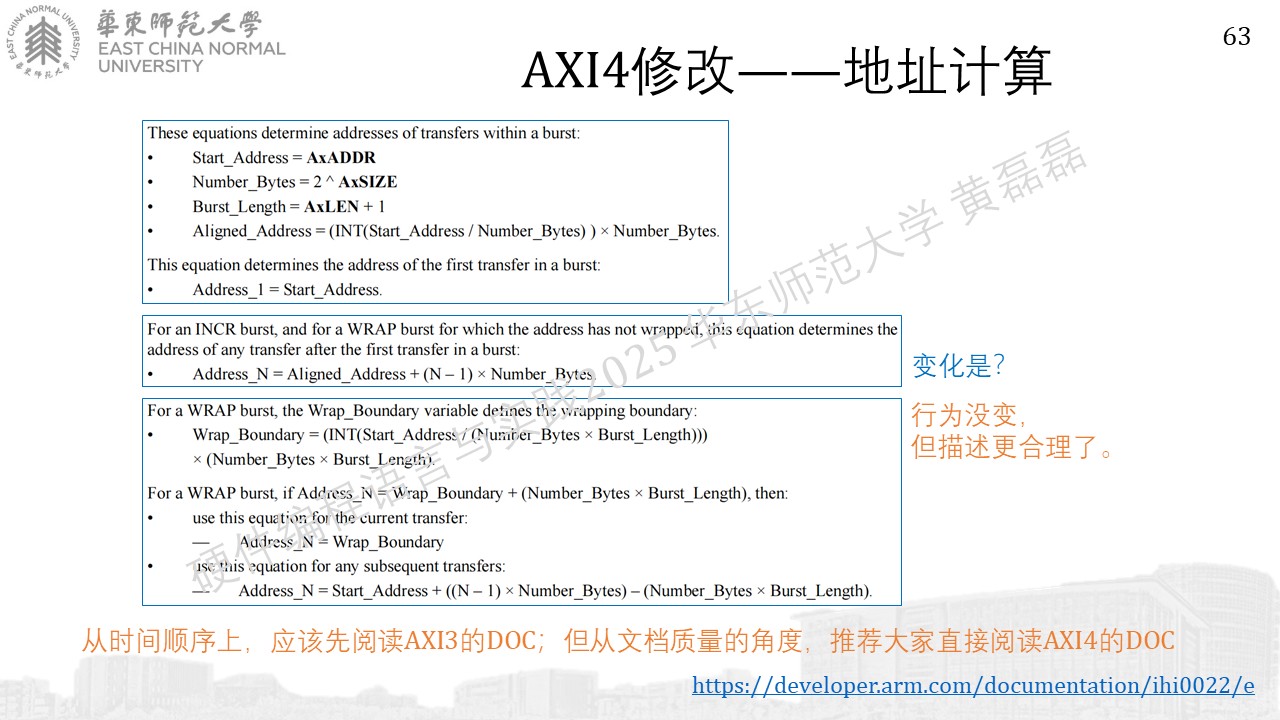

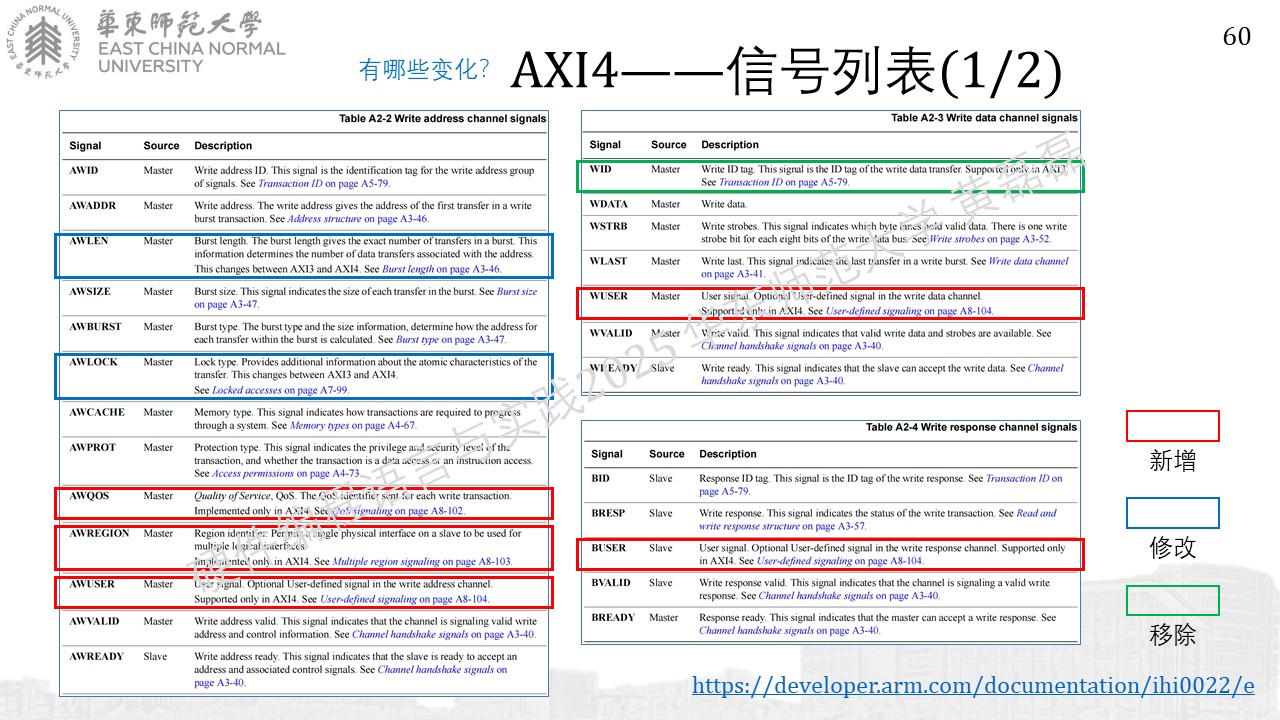

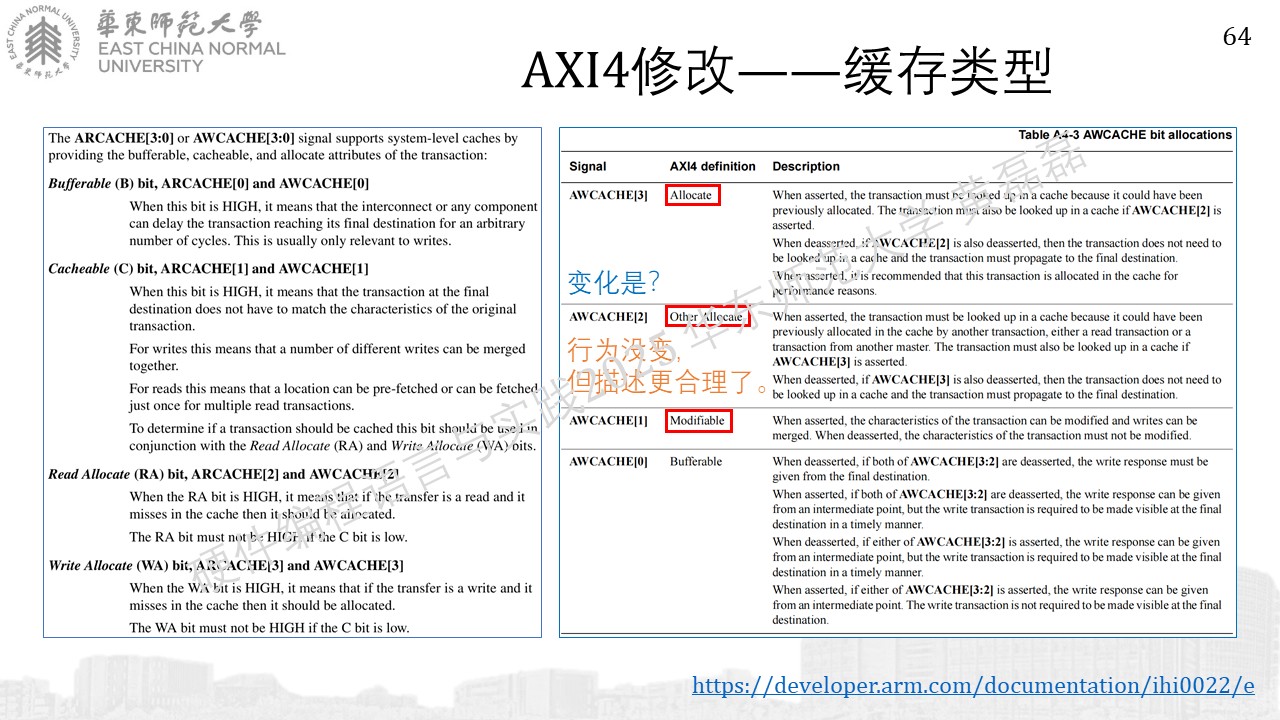

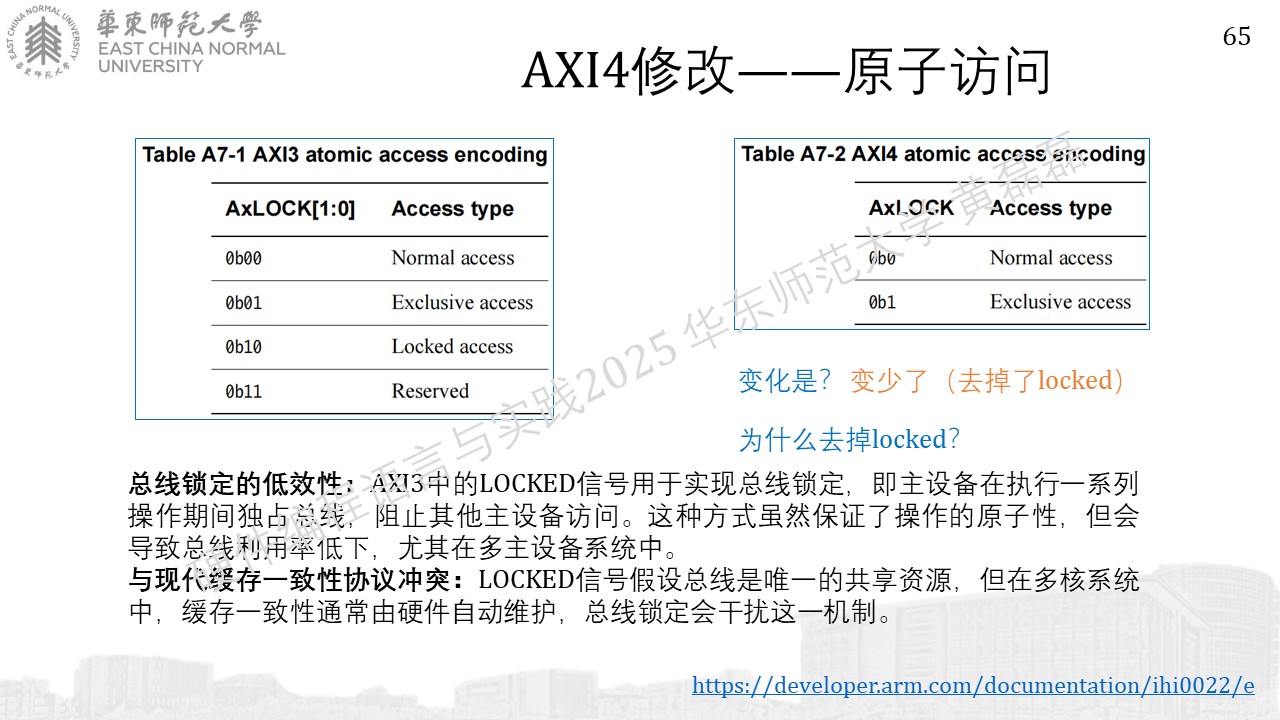

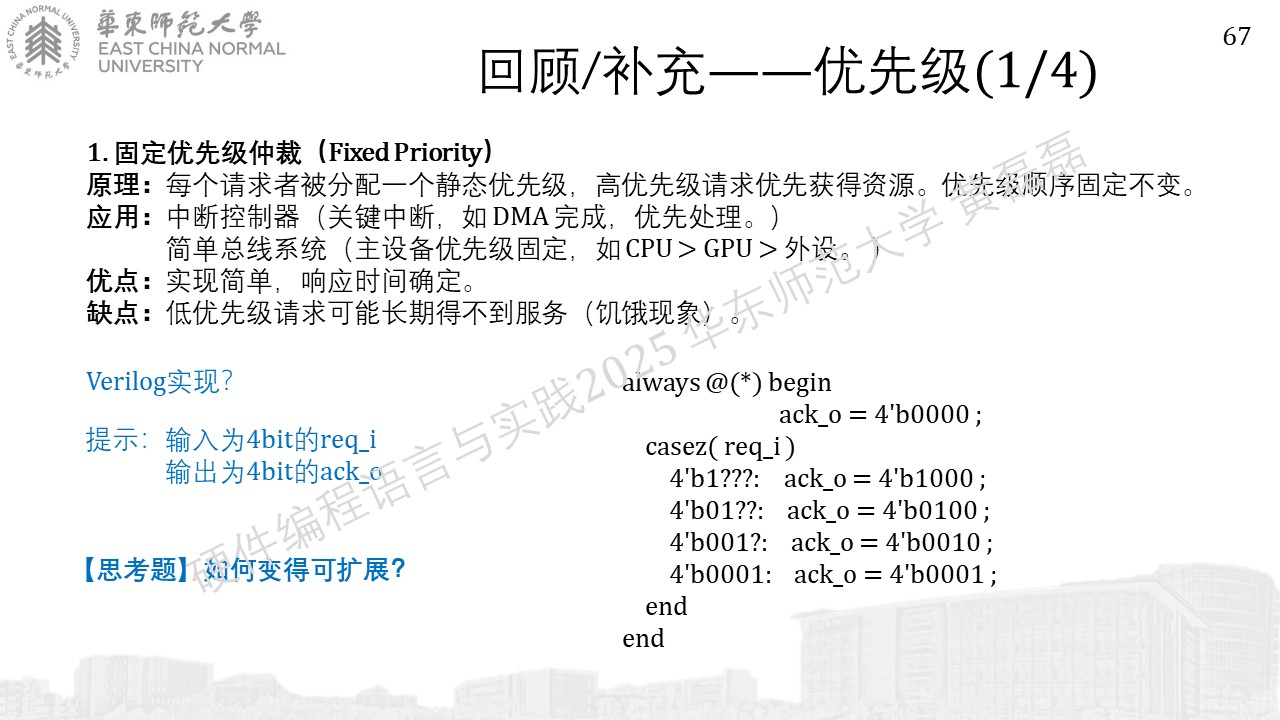

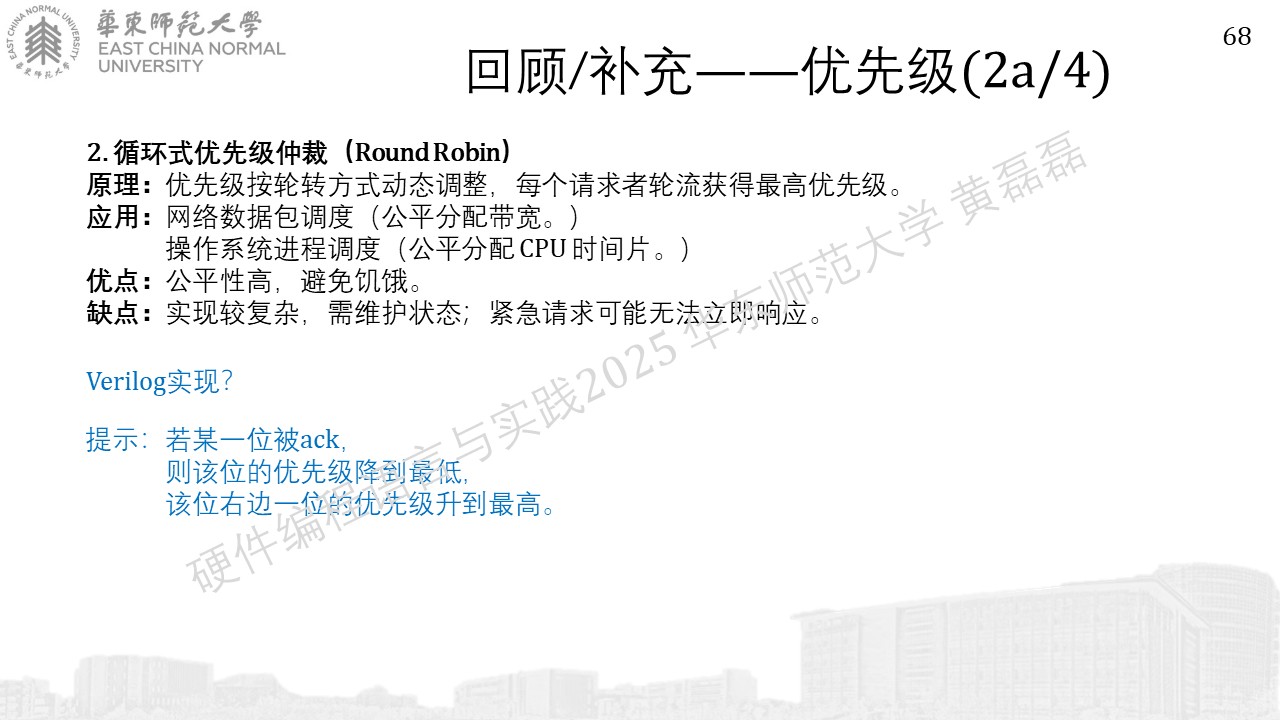

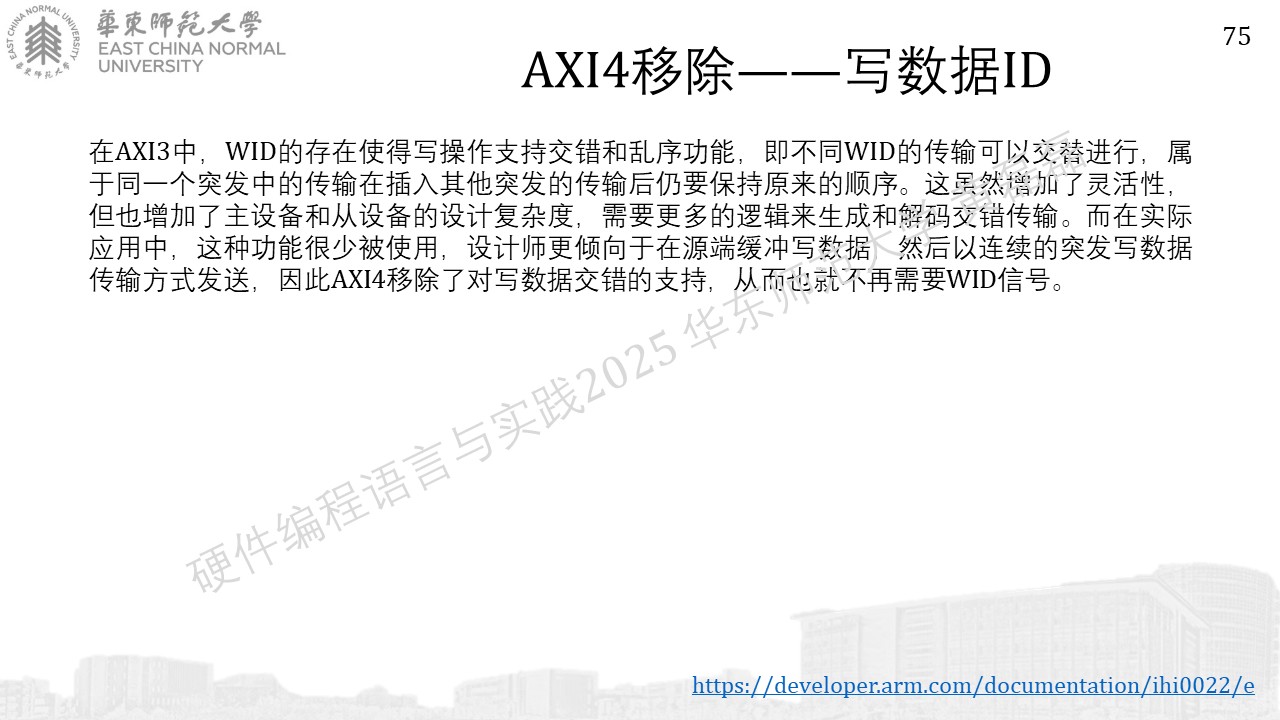

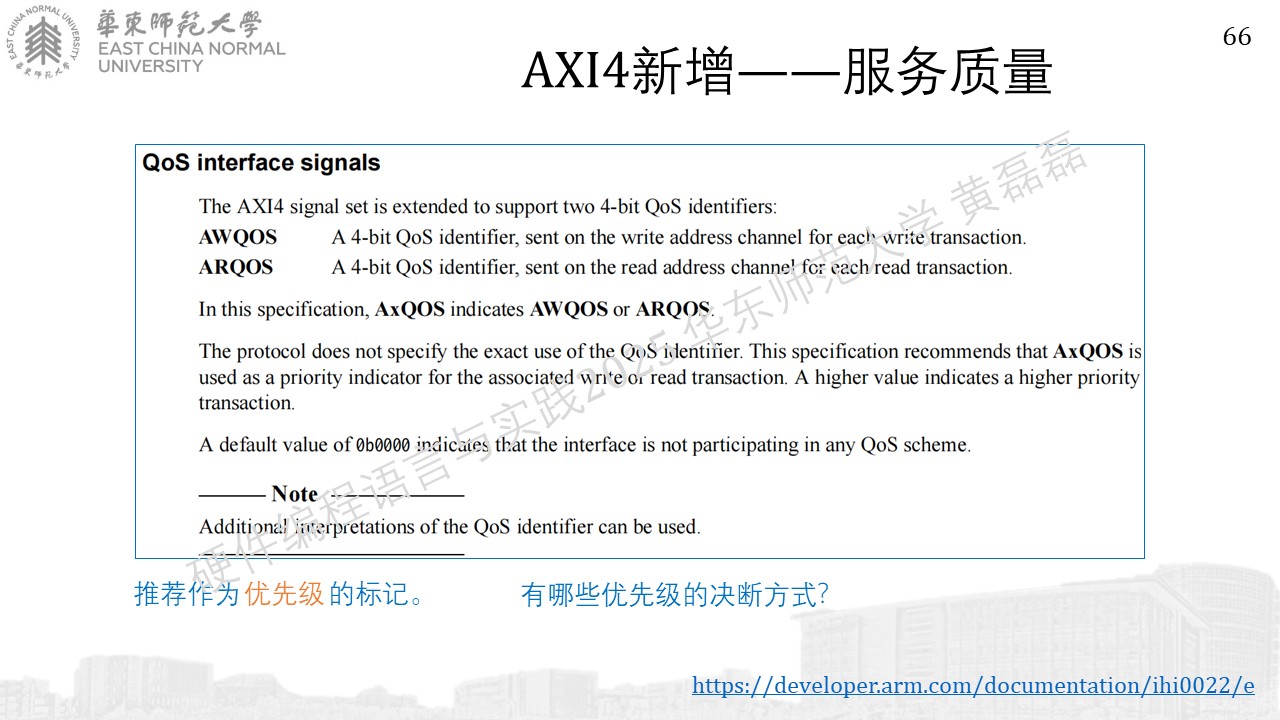

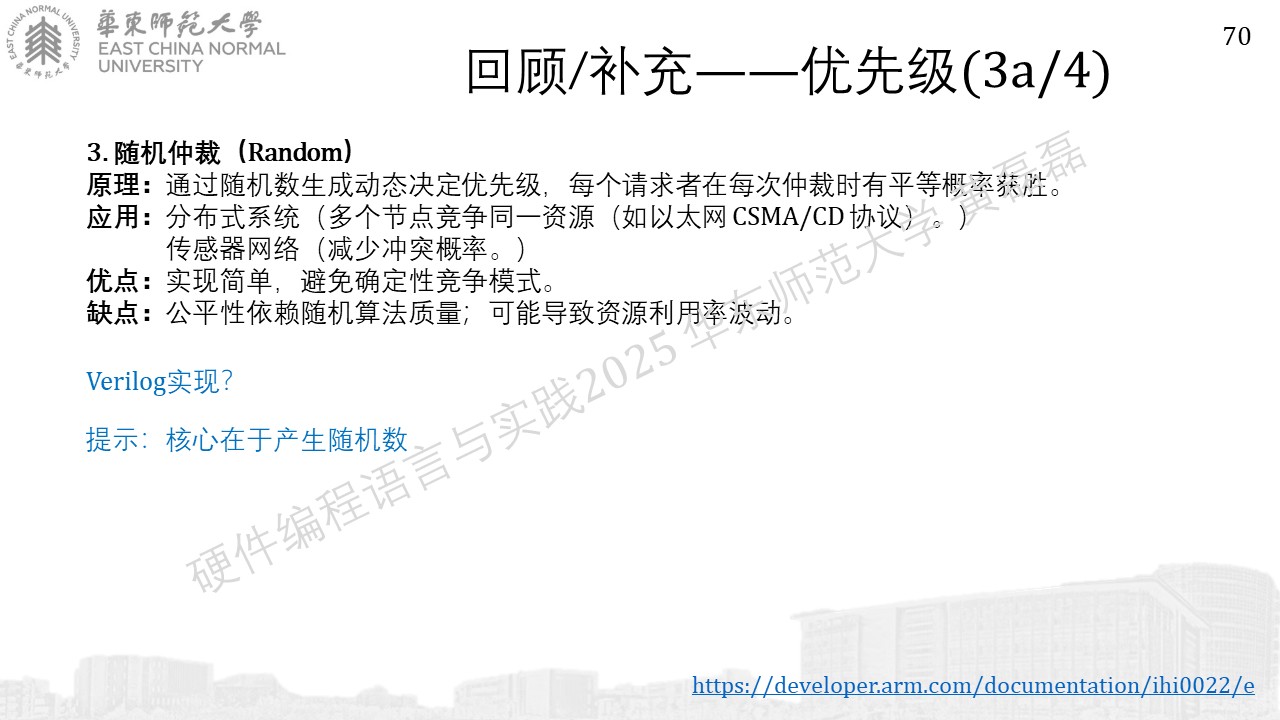

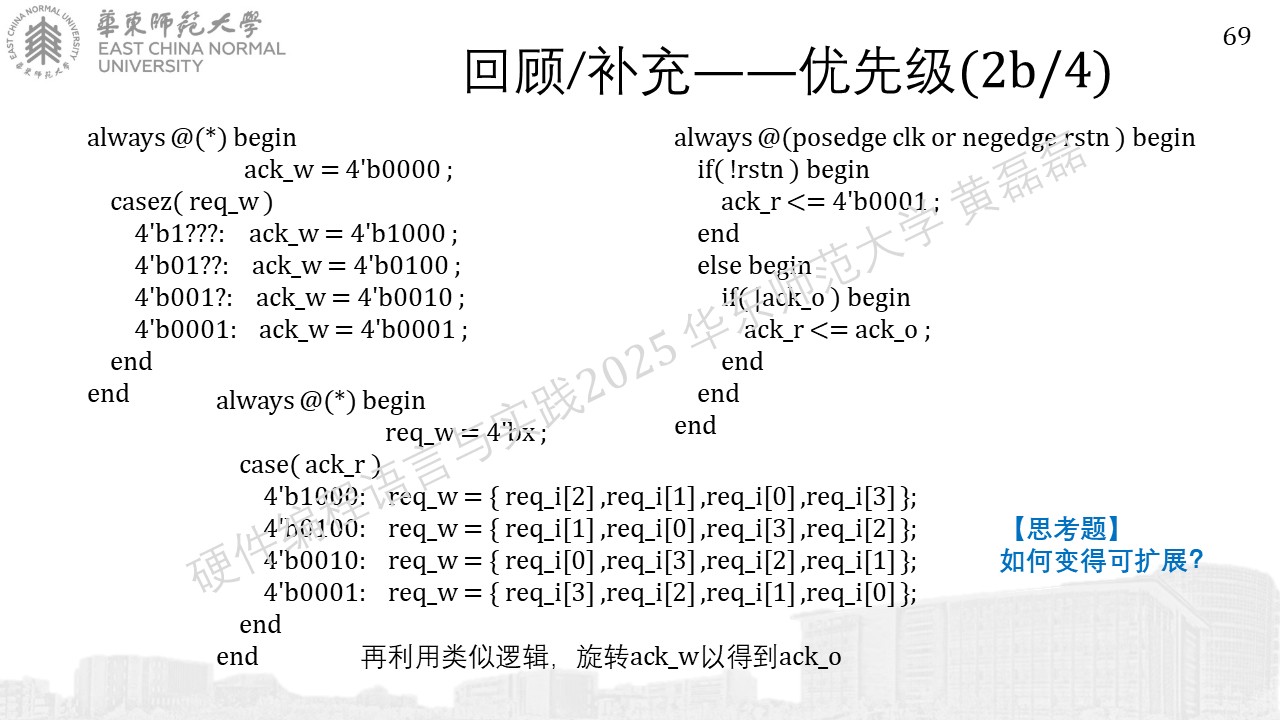

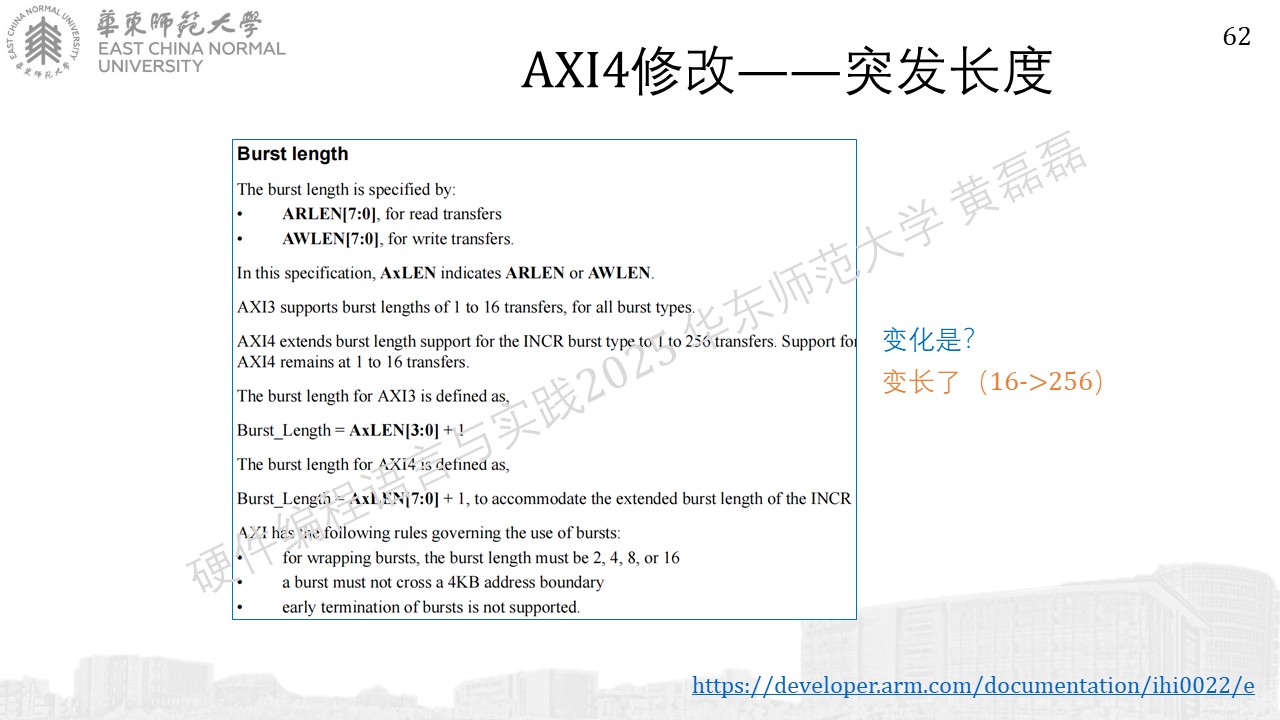

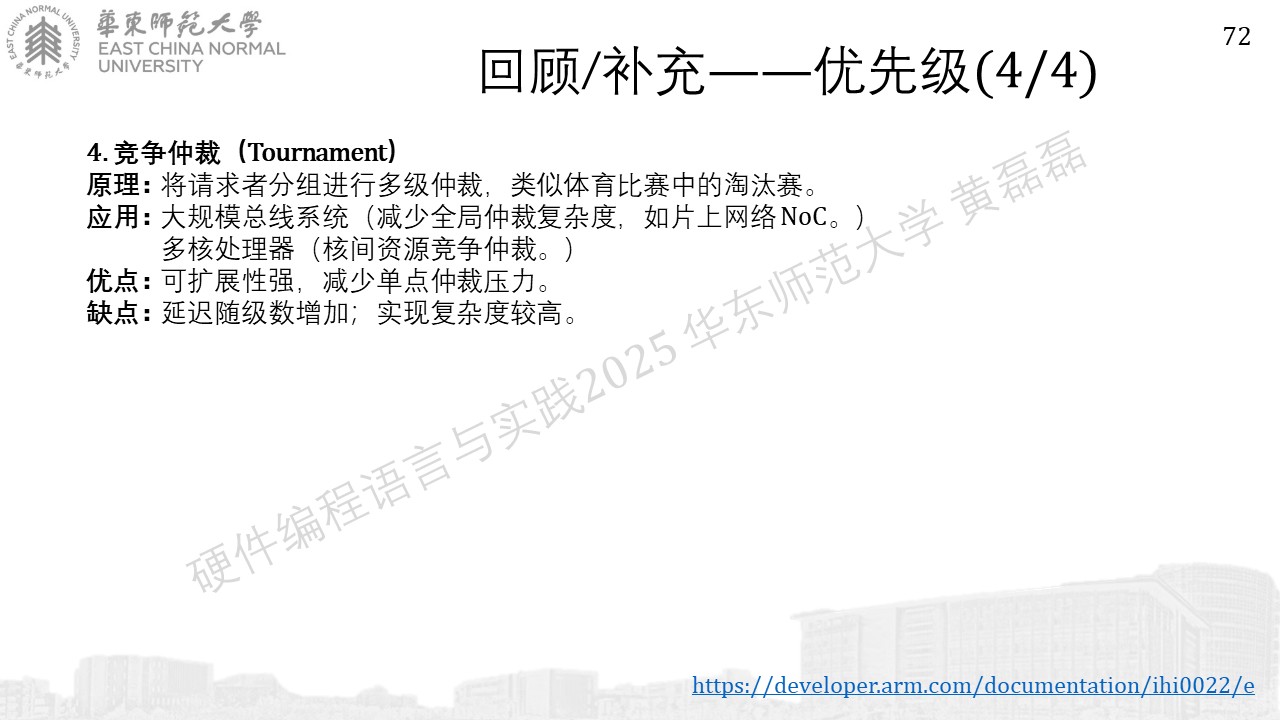

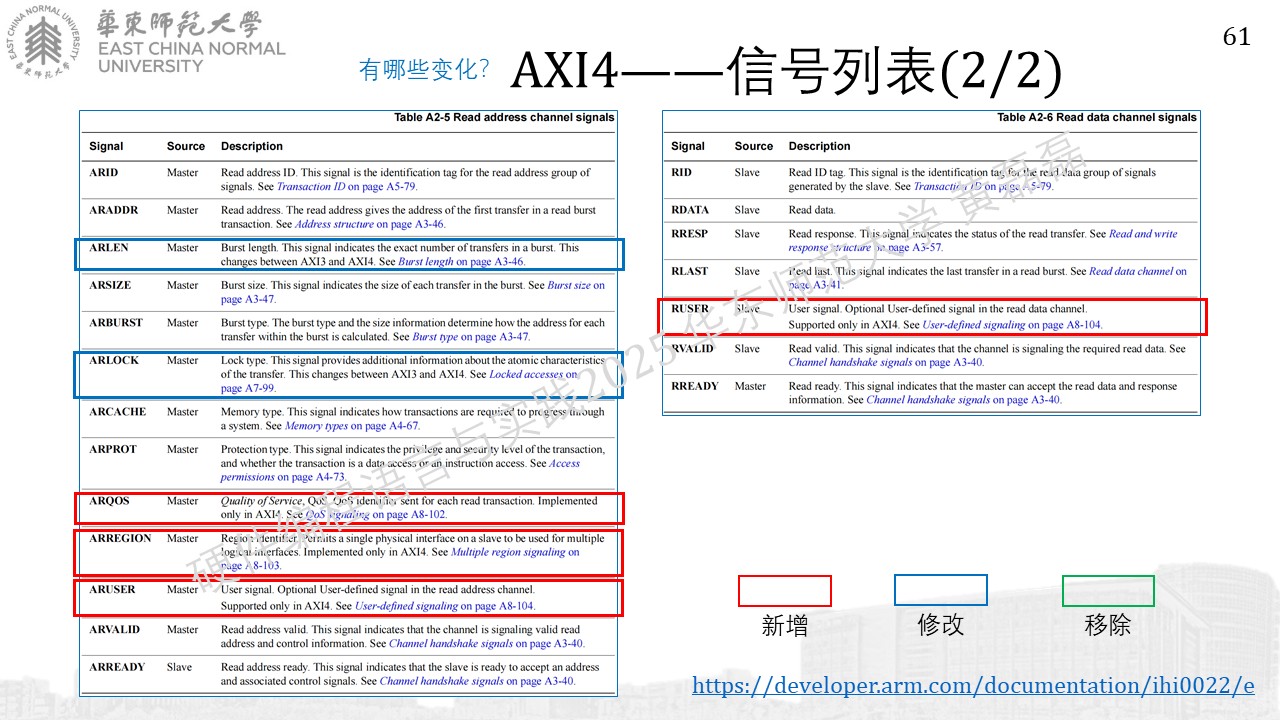

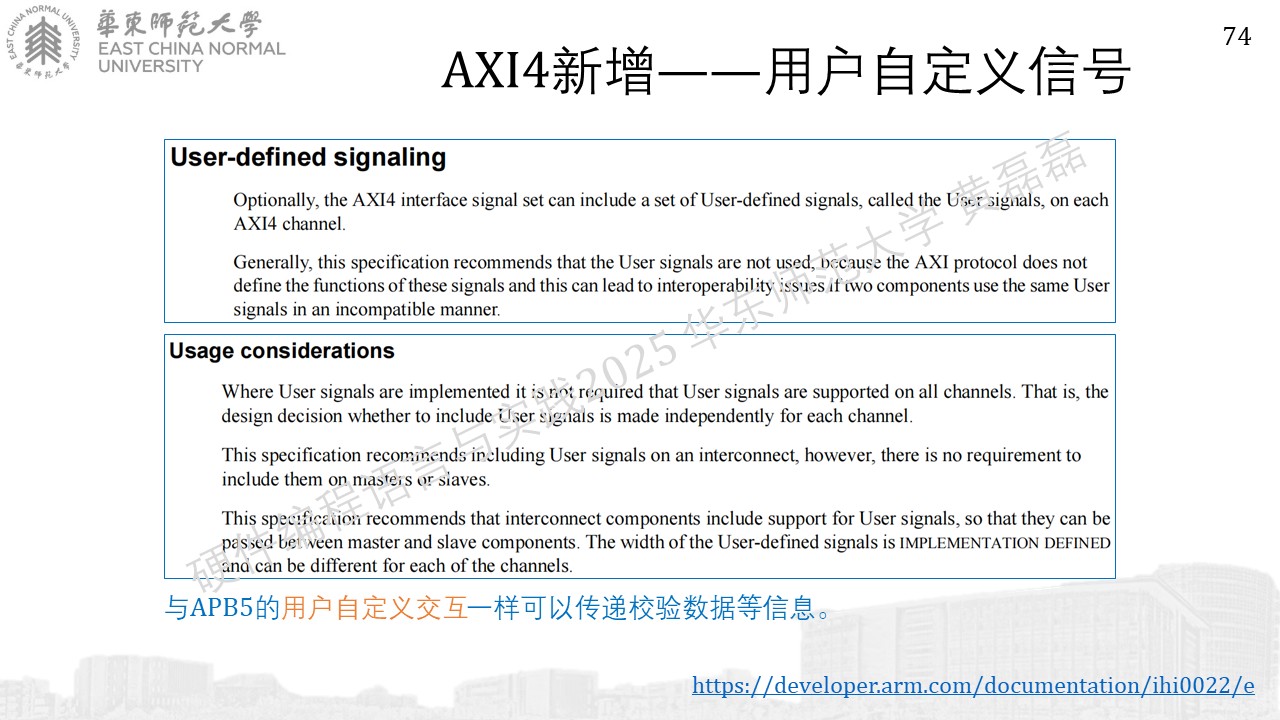

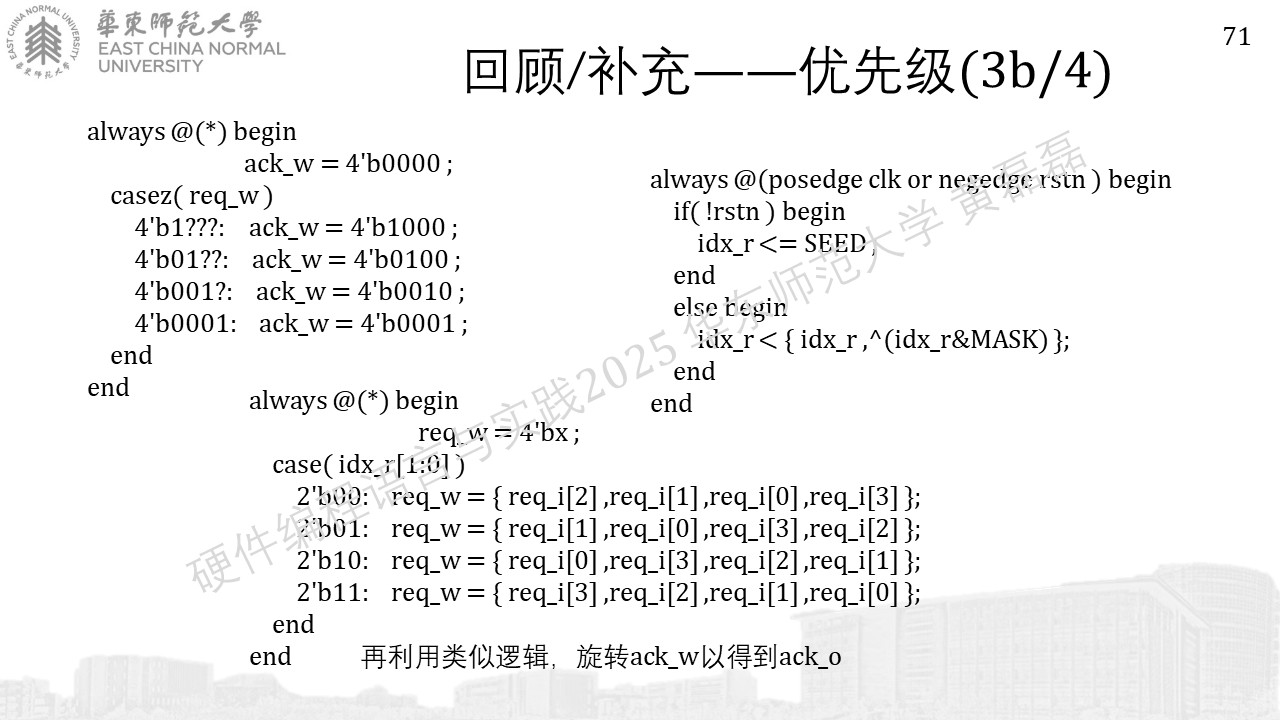

AXI4¶

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87603.JPG

https://developer.arm.com/documentation/ihi0022/e

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87618.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87623.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87633.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87643.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87653.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87663.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87673.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87683.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87692.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87702.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87718.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87723.JPG

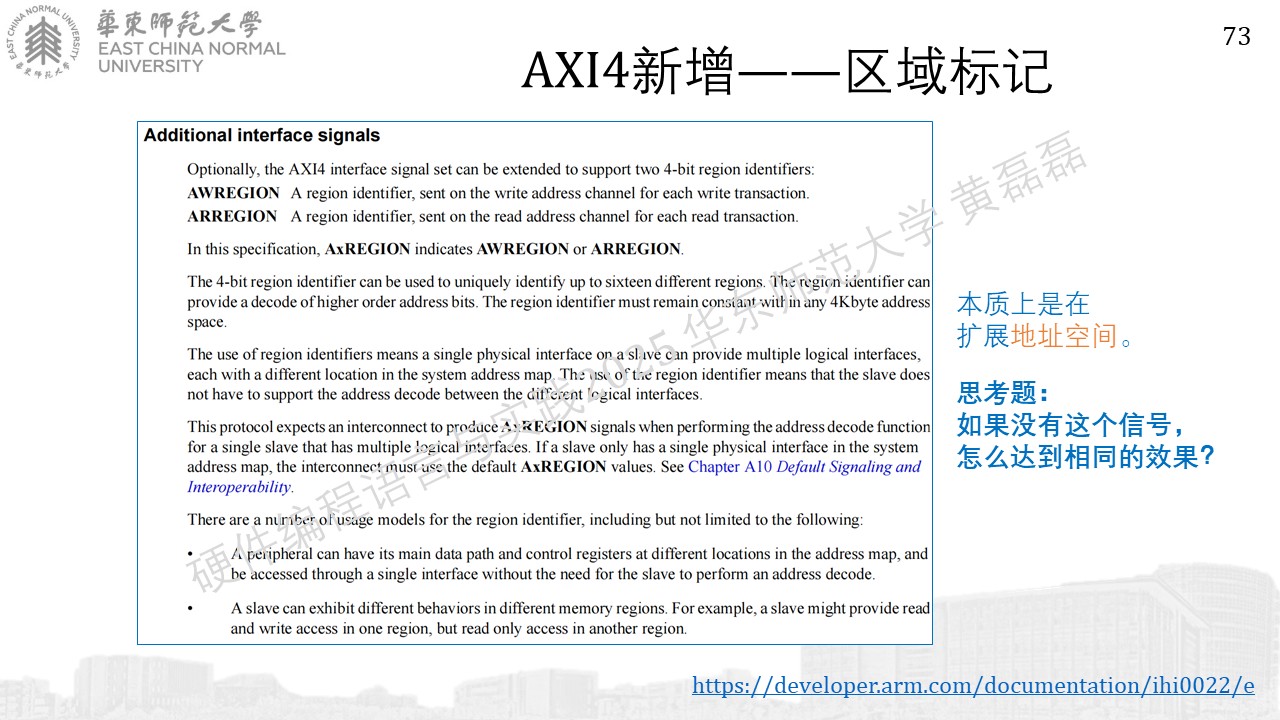

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87733.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87743.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87753.JPG

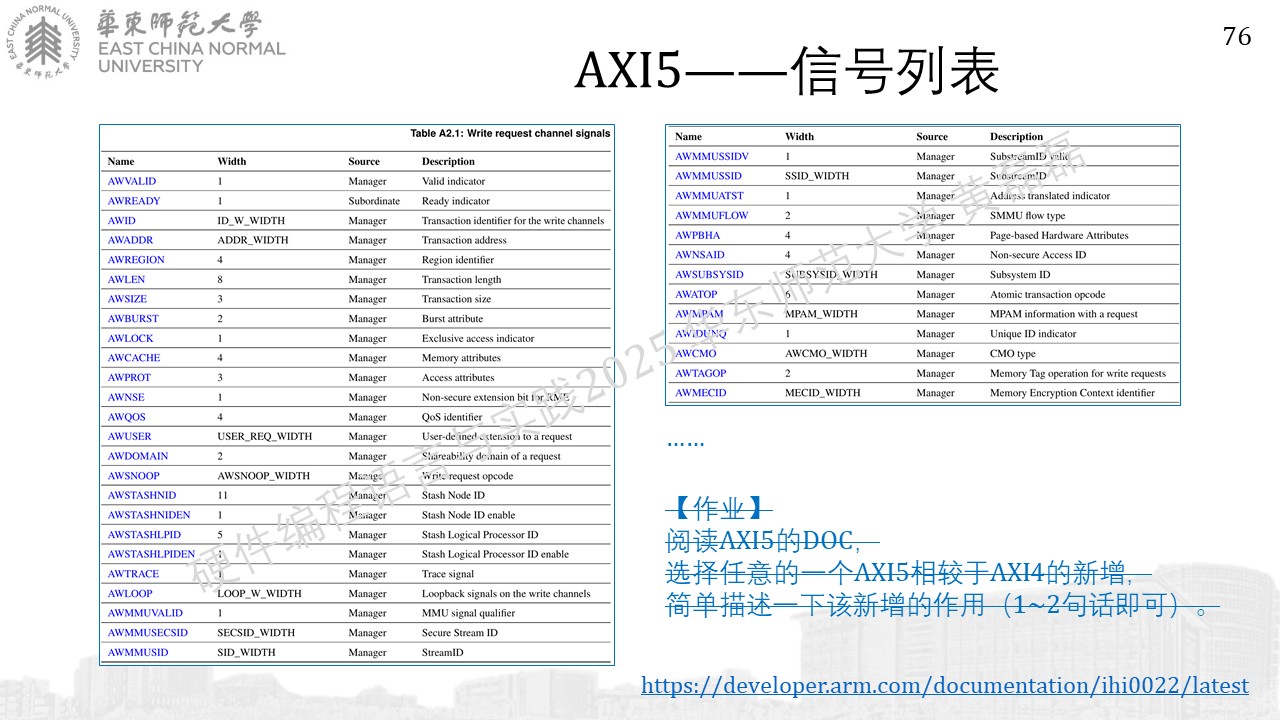

AXI5¶

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87763.JPG

https://developer.arm.com/documentation/ihi0022/latest

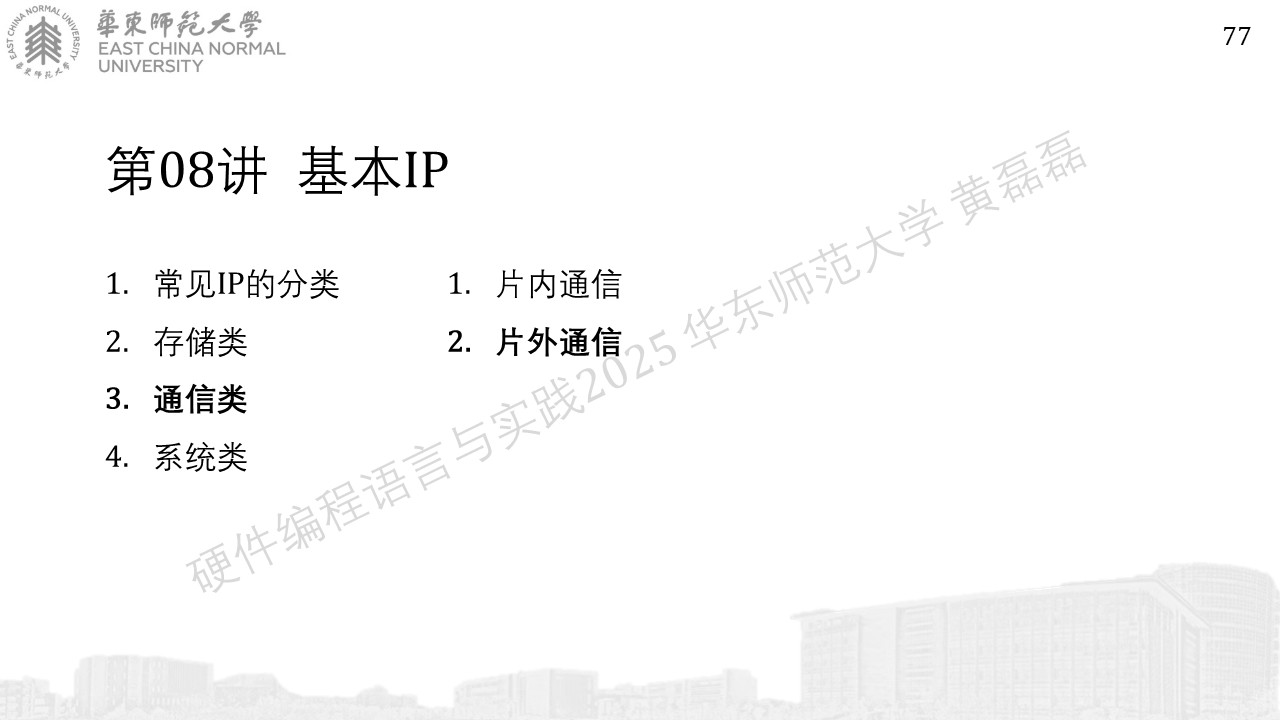

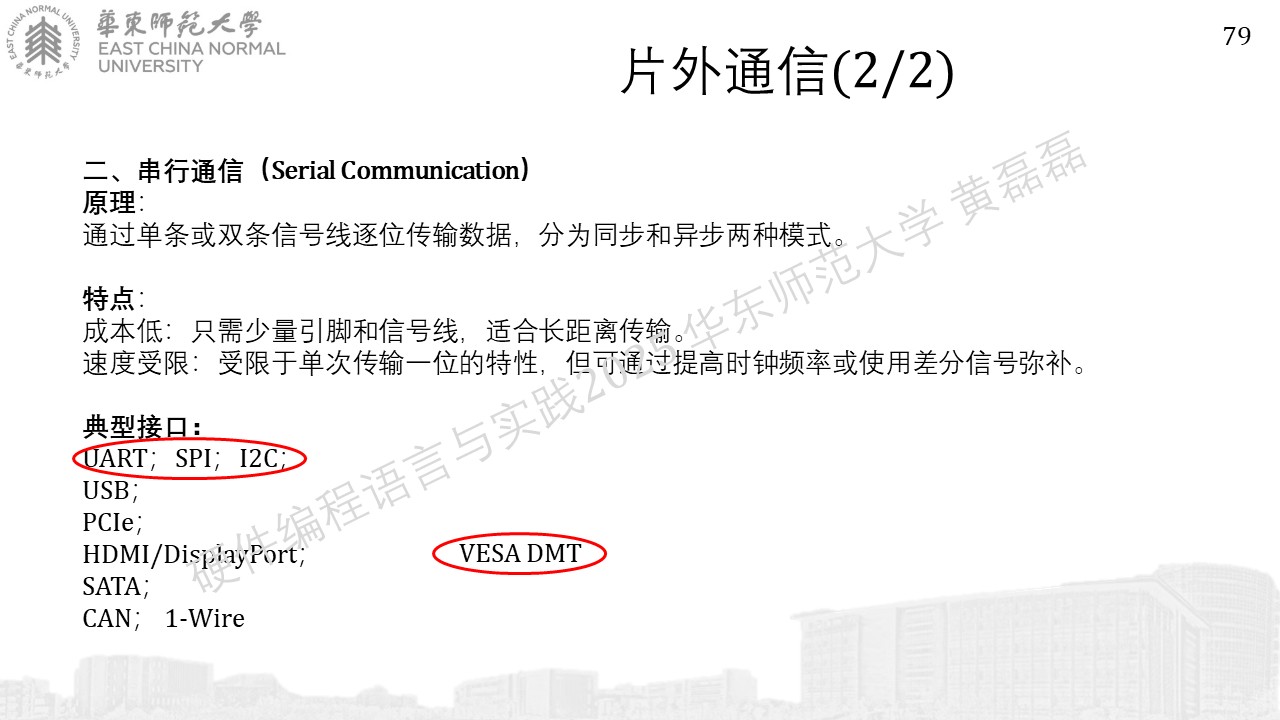

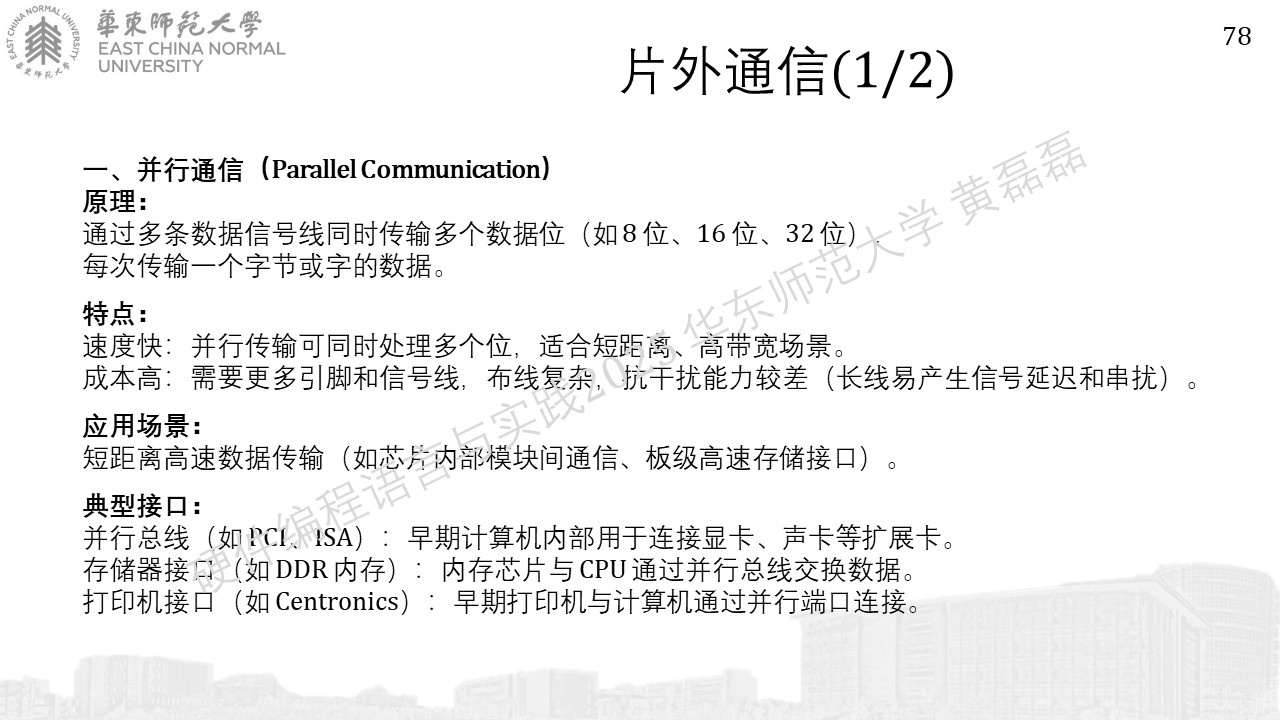

片外通信¶

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87773.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87782.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87792.JPG

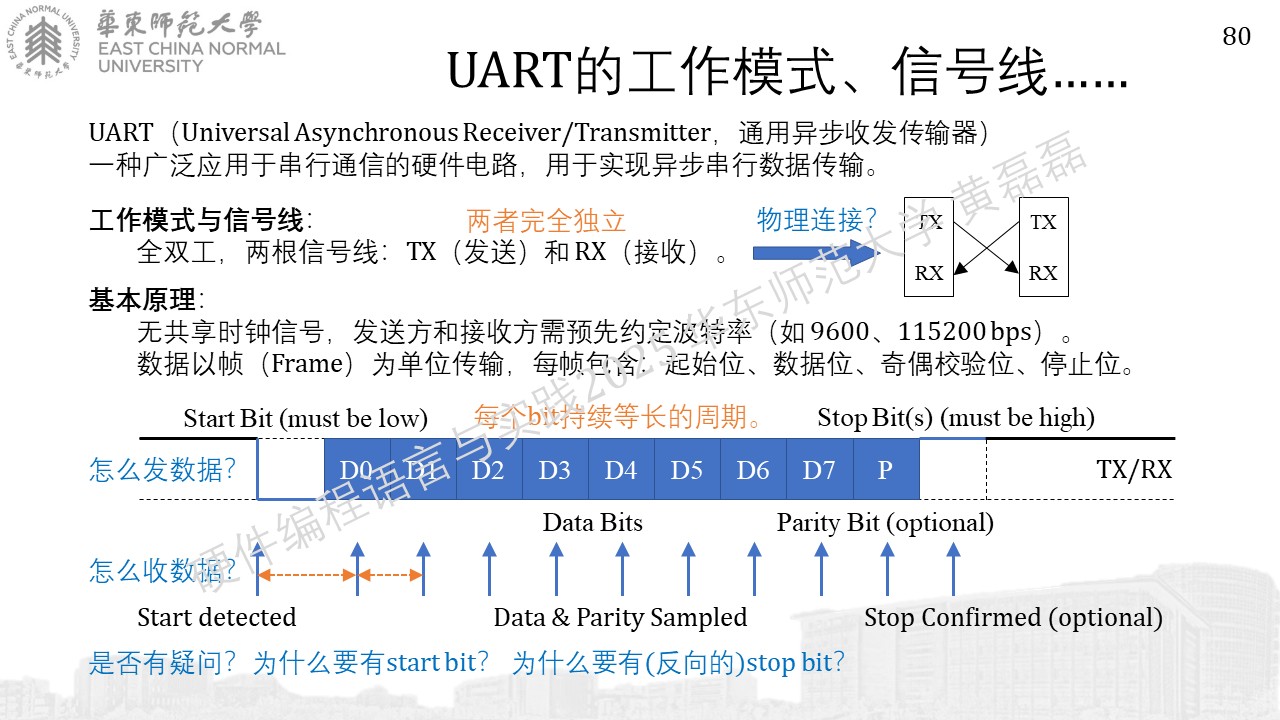

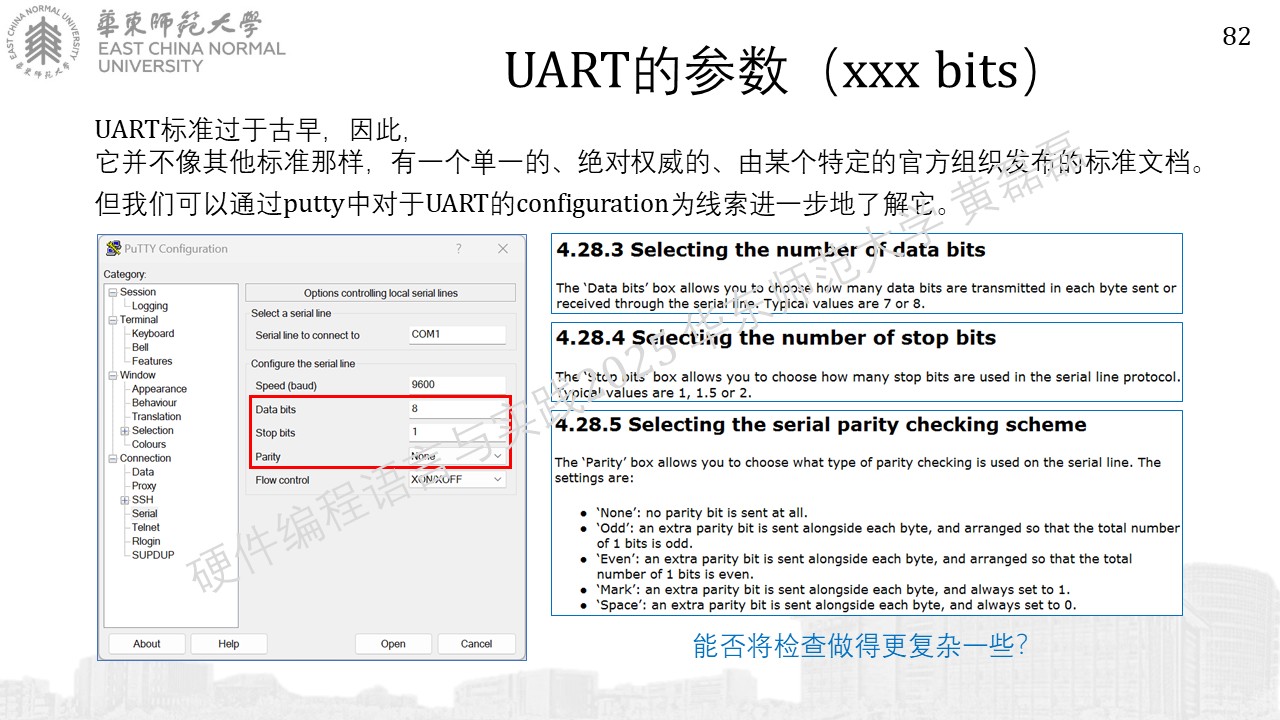

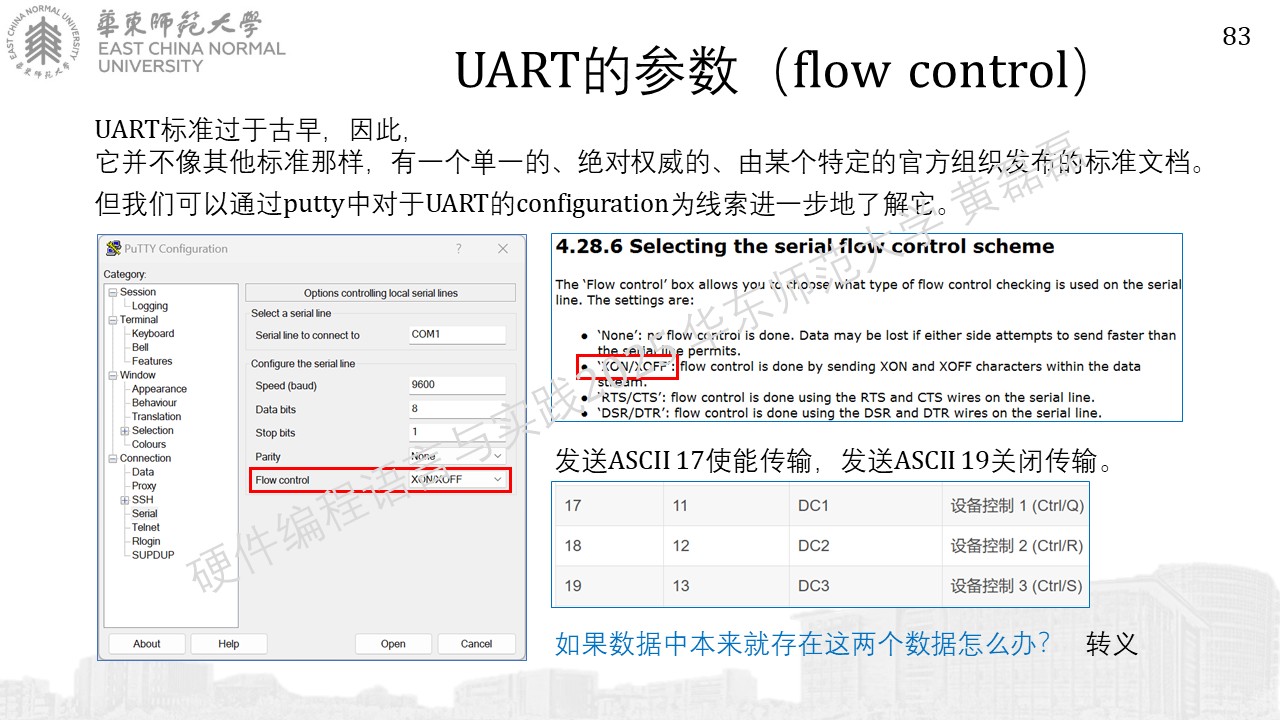

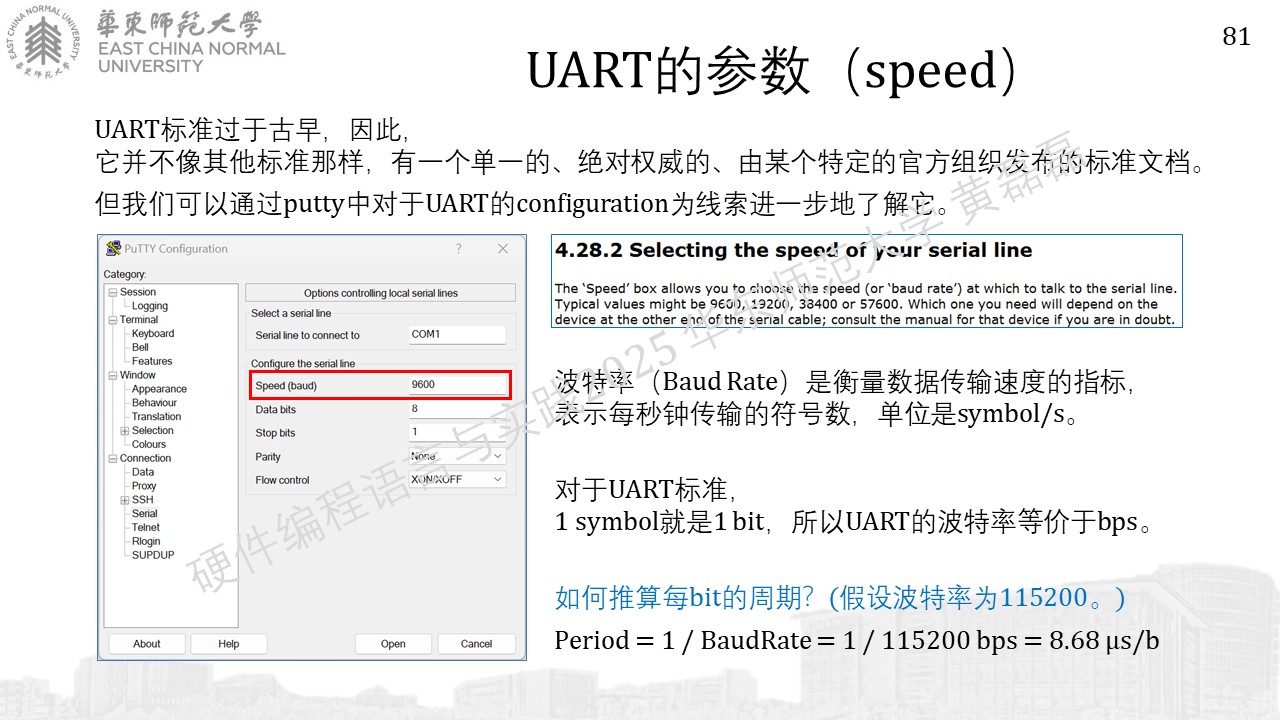

UART¶

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87802.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87818.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87823.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87833.JPG

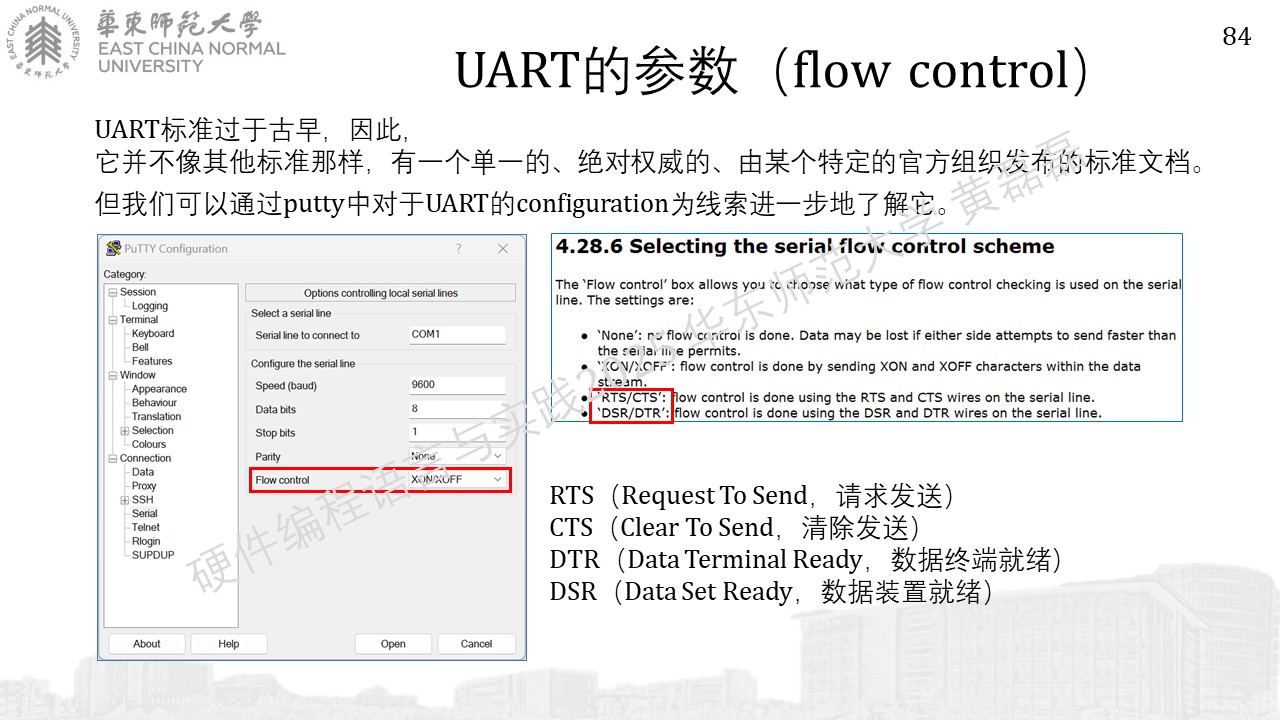

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87843.JPG

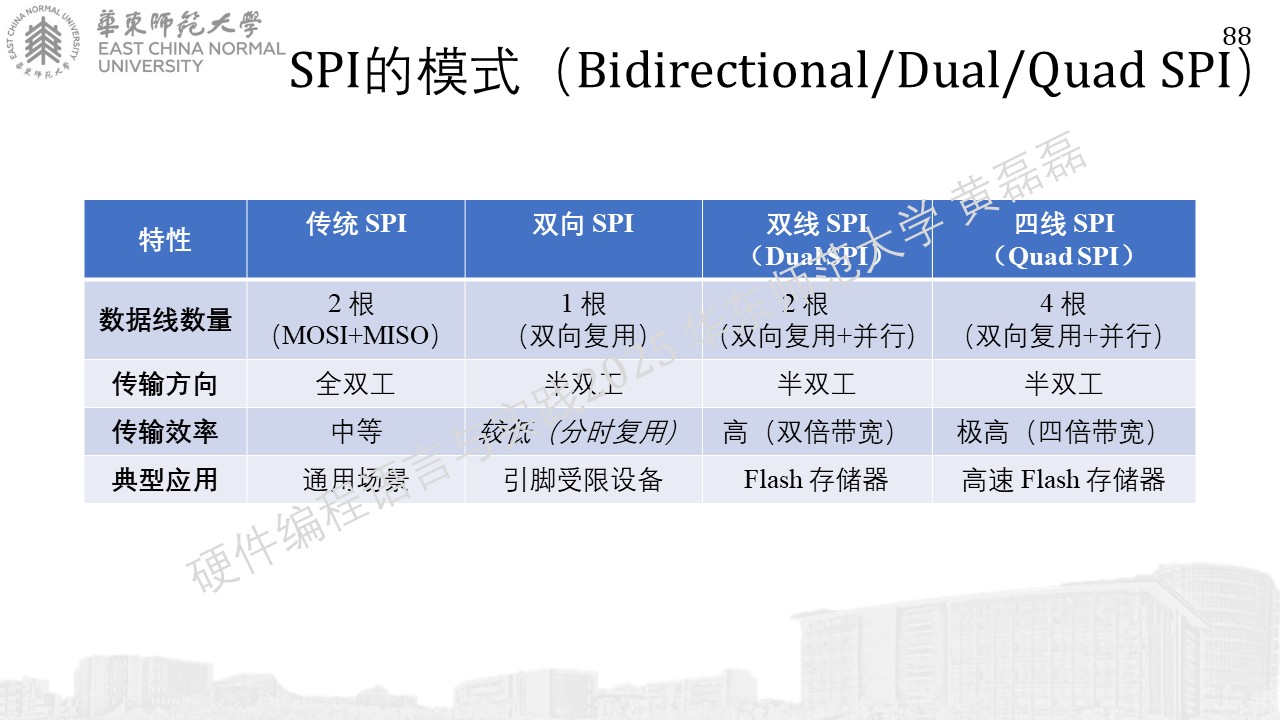

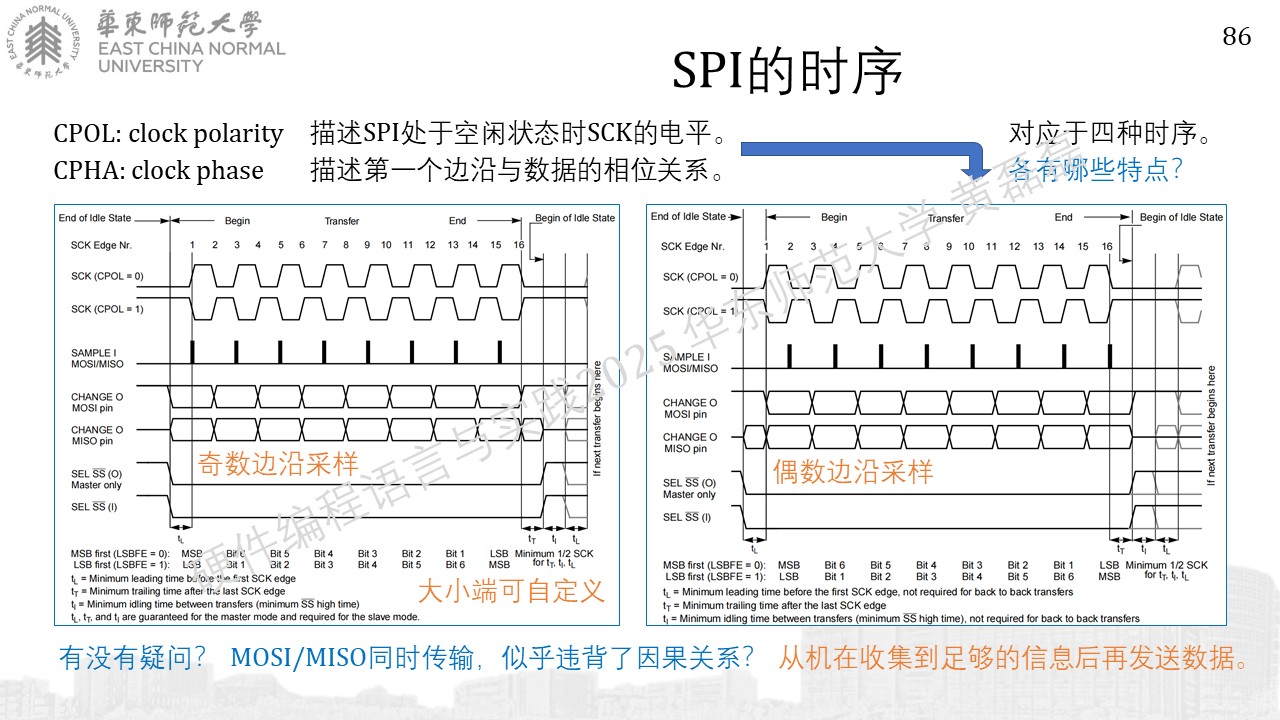

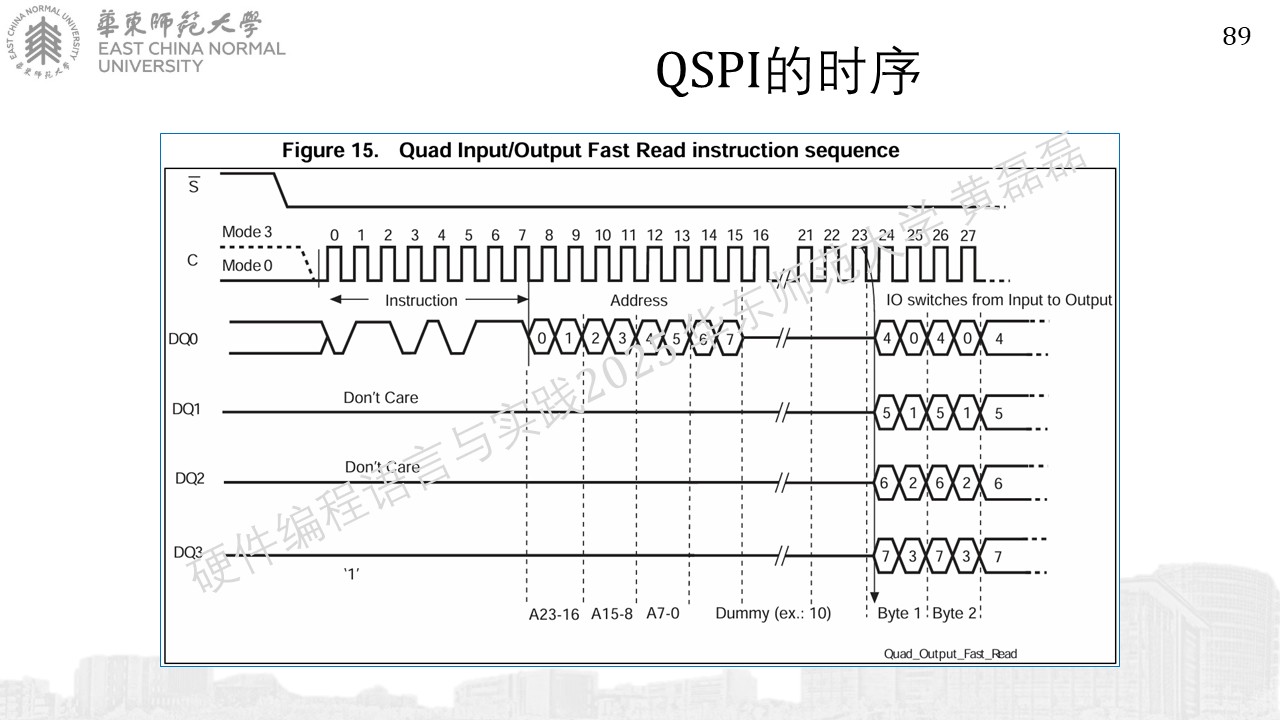

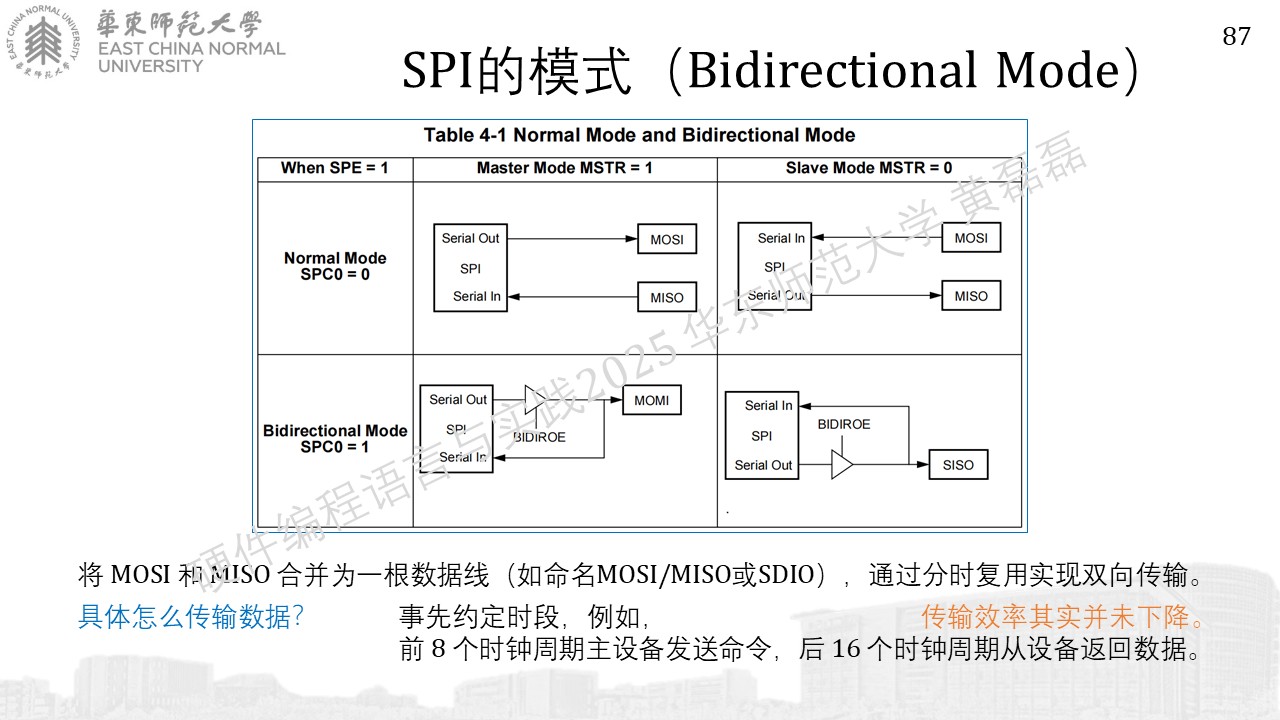

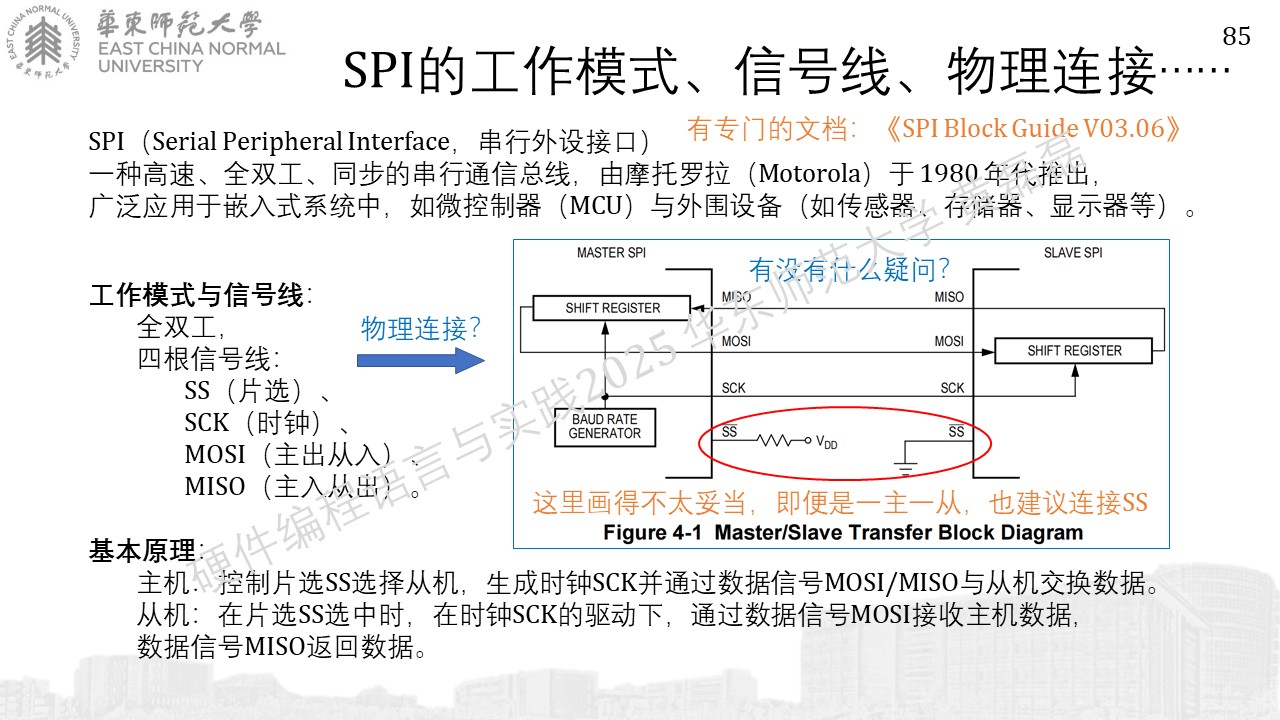

SPI¶

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87853.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87863.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87873.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87881.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87891.JPG

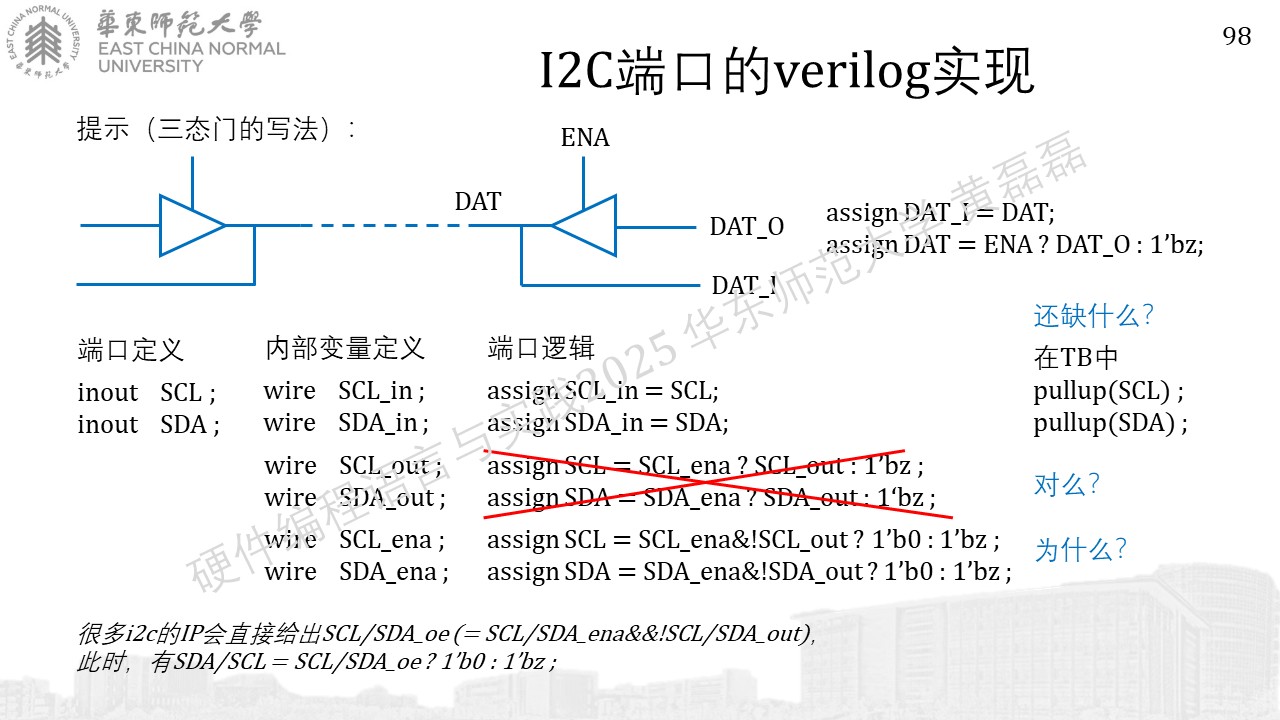

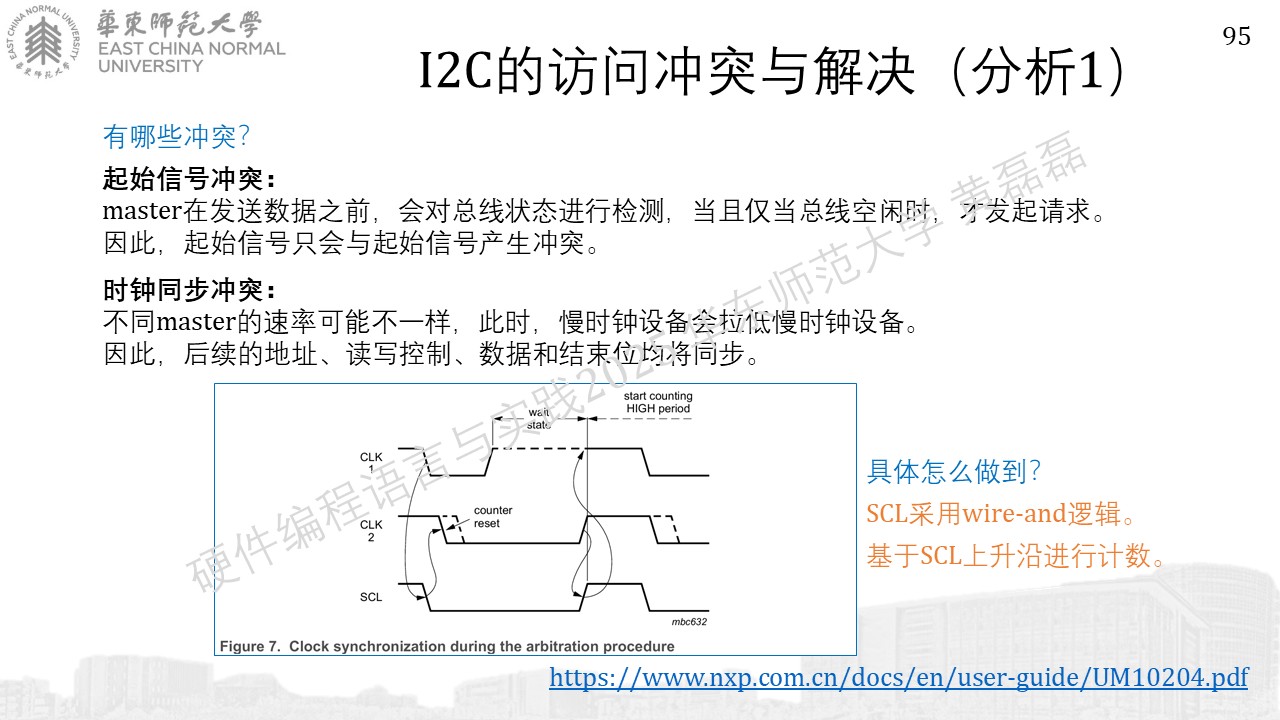

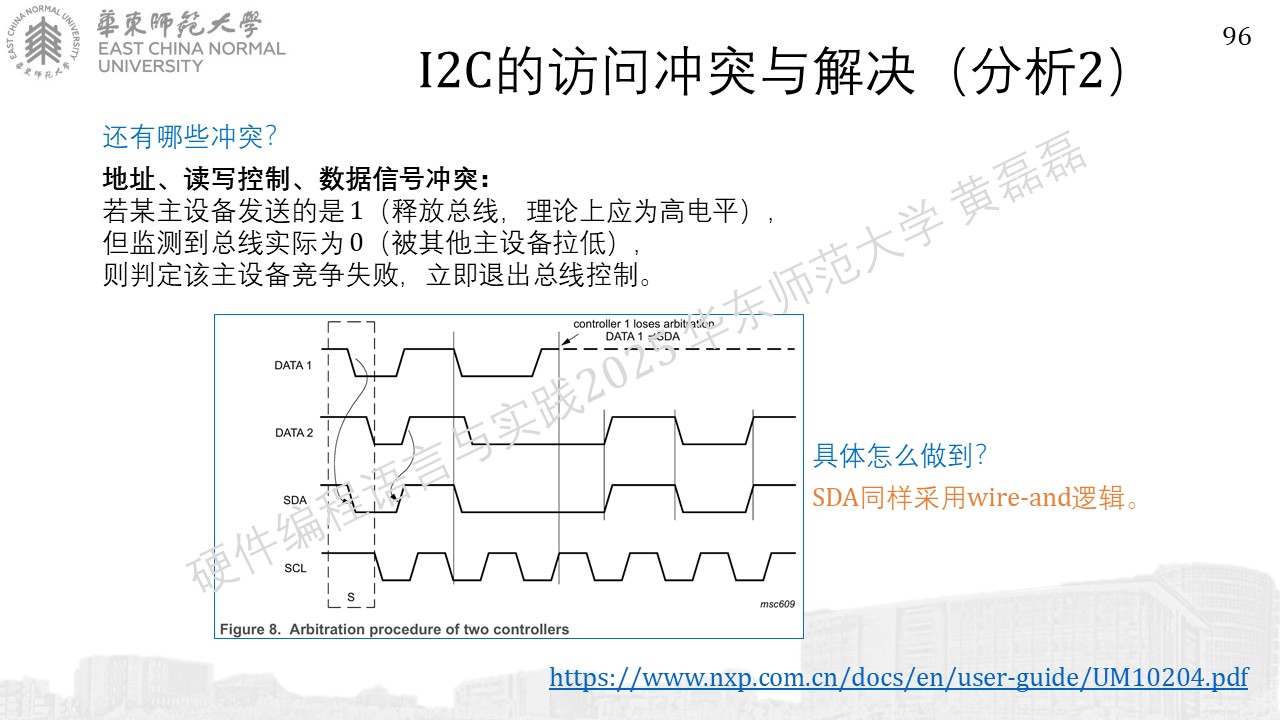

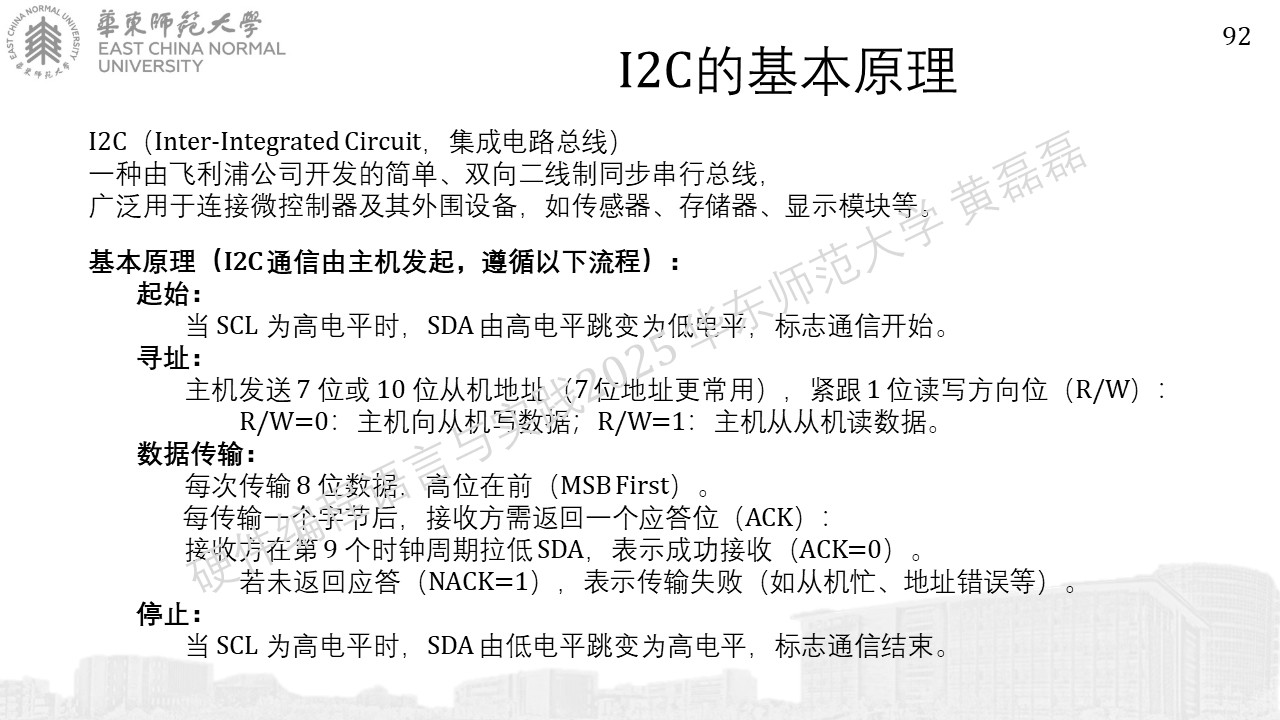

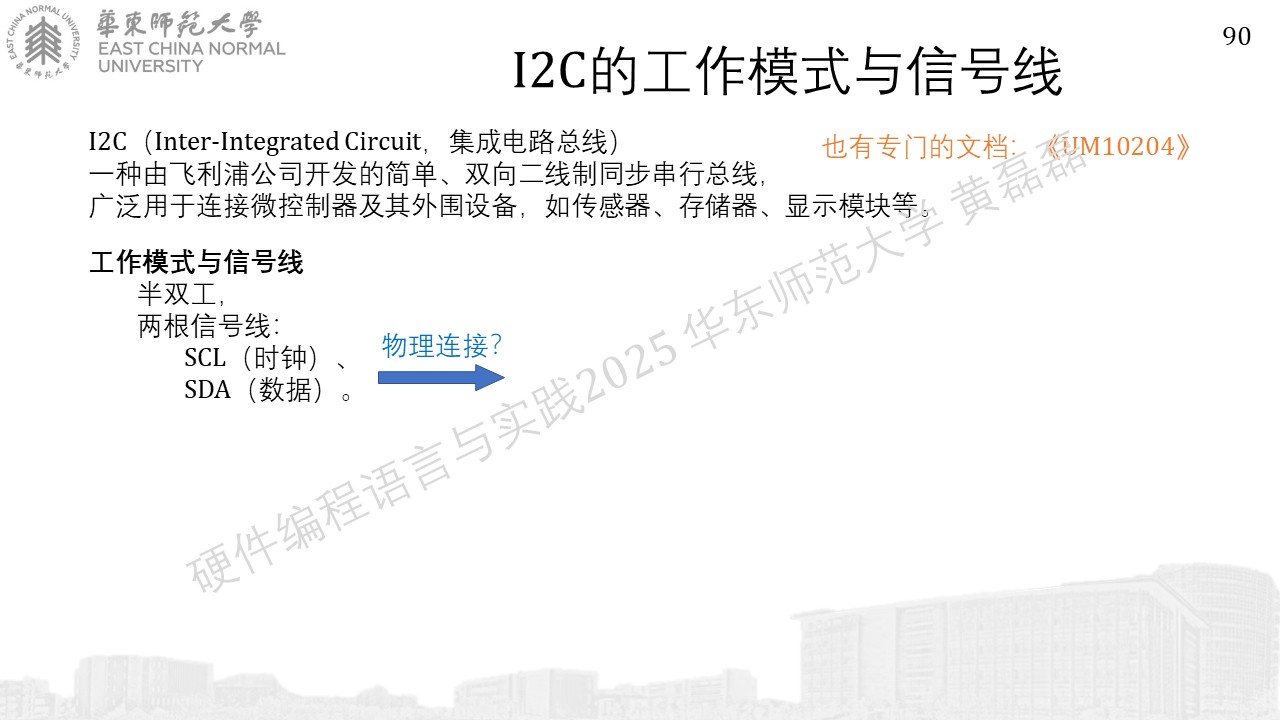

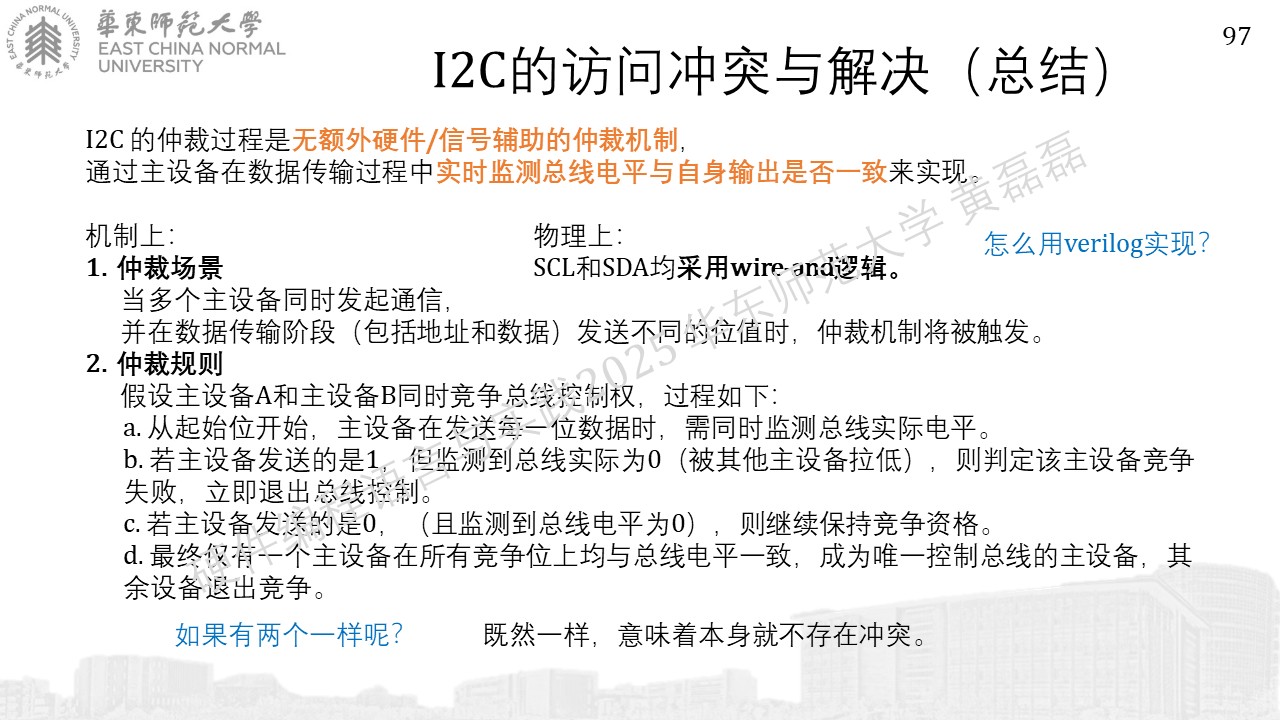

I2C¶

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87901.JPG

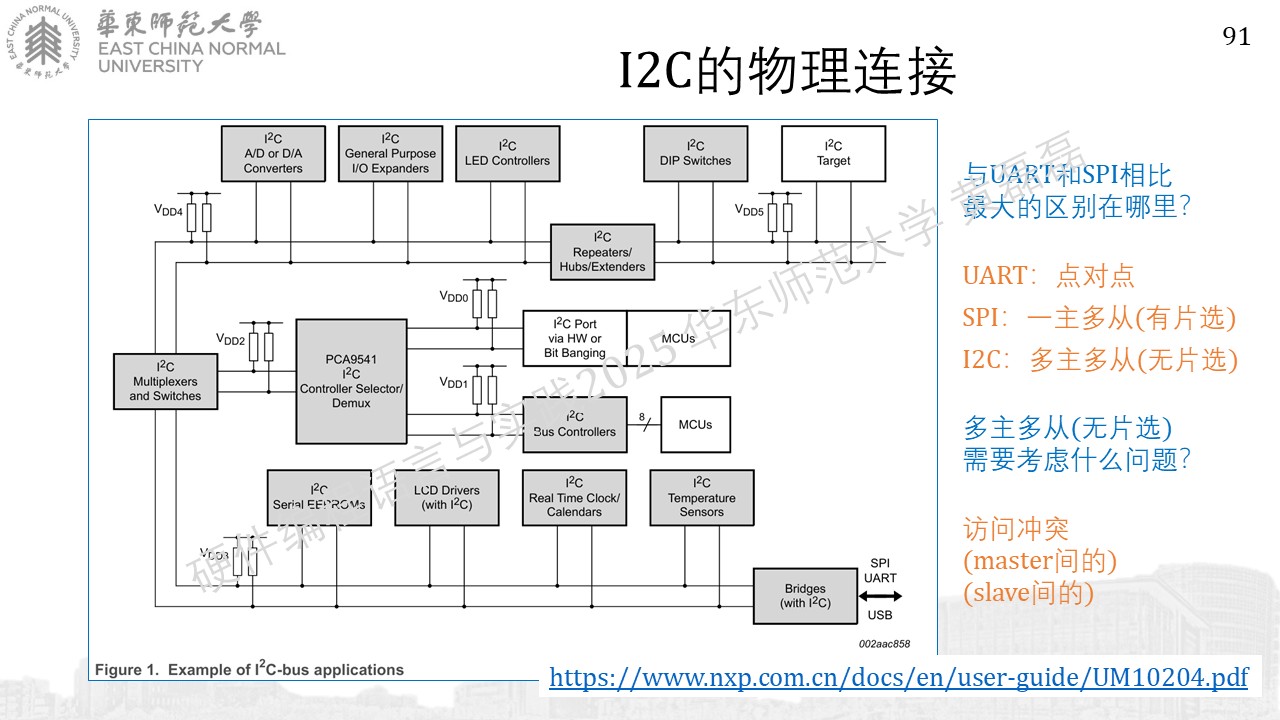

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87915.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87922.JPG

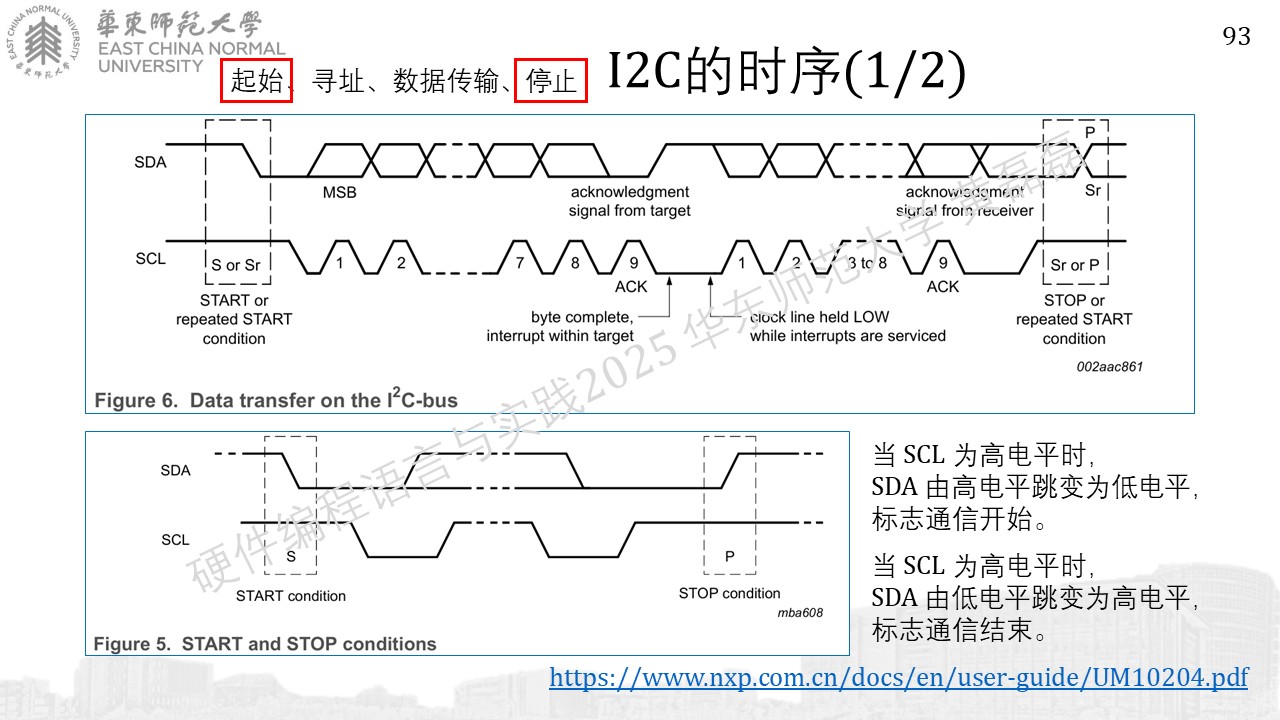

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87931.JPG

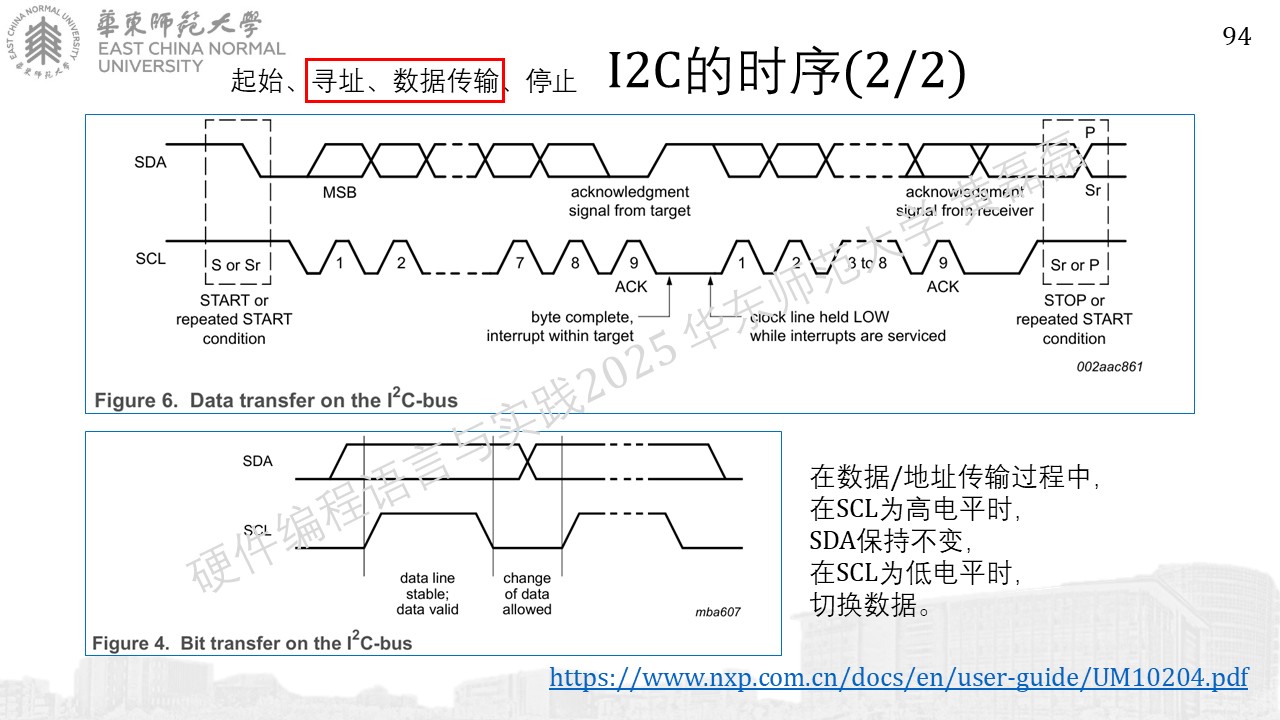

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87941.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87951.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87961.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87971.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87981.JPG

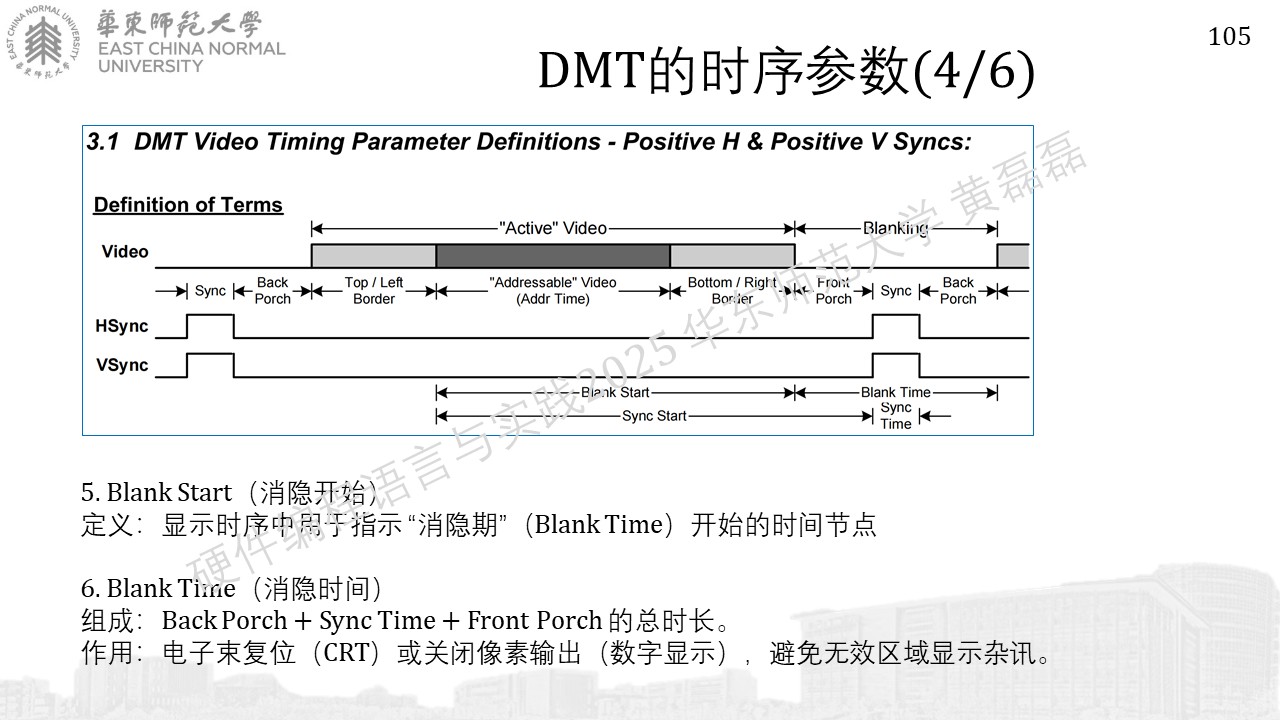

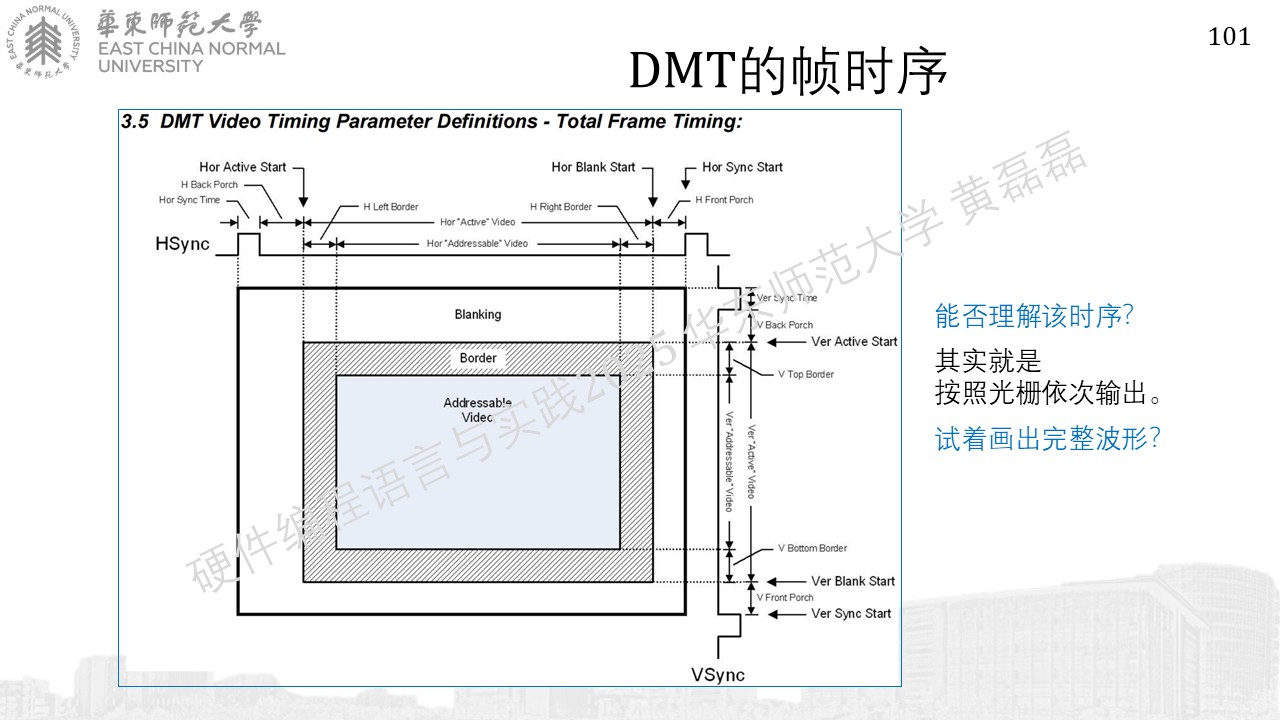

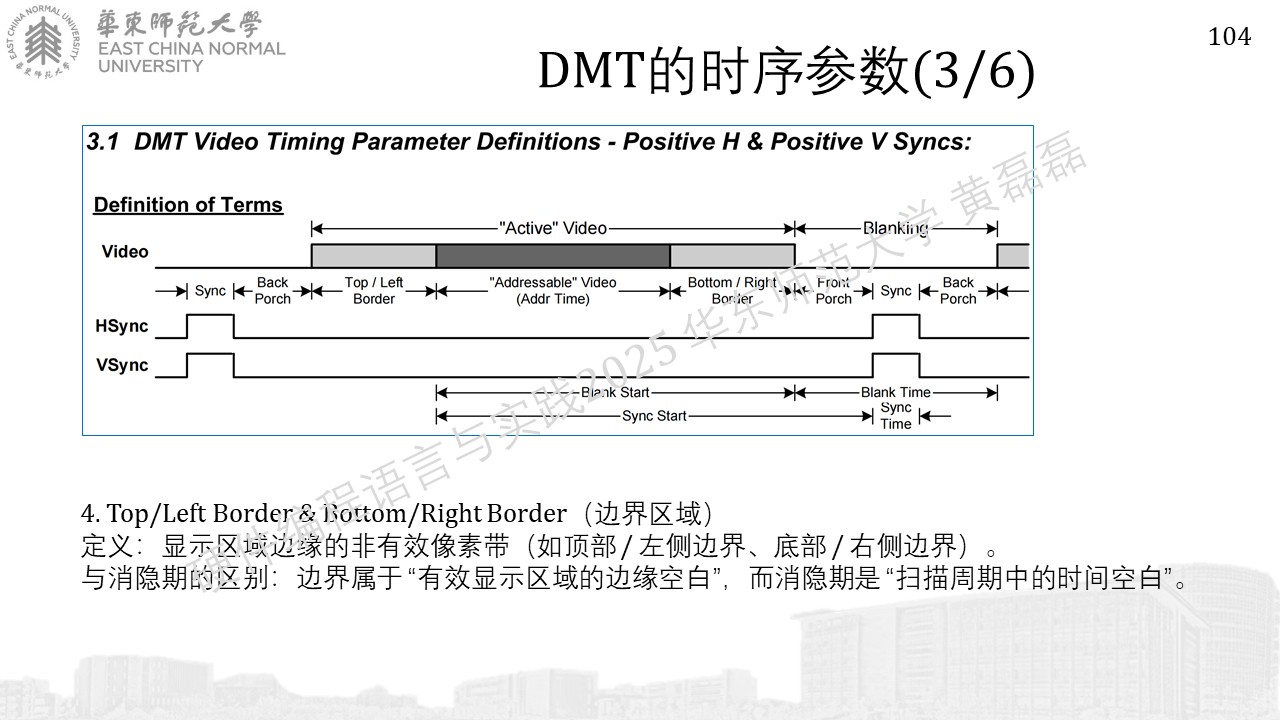

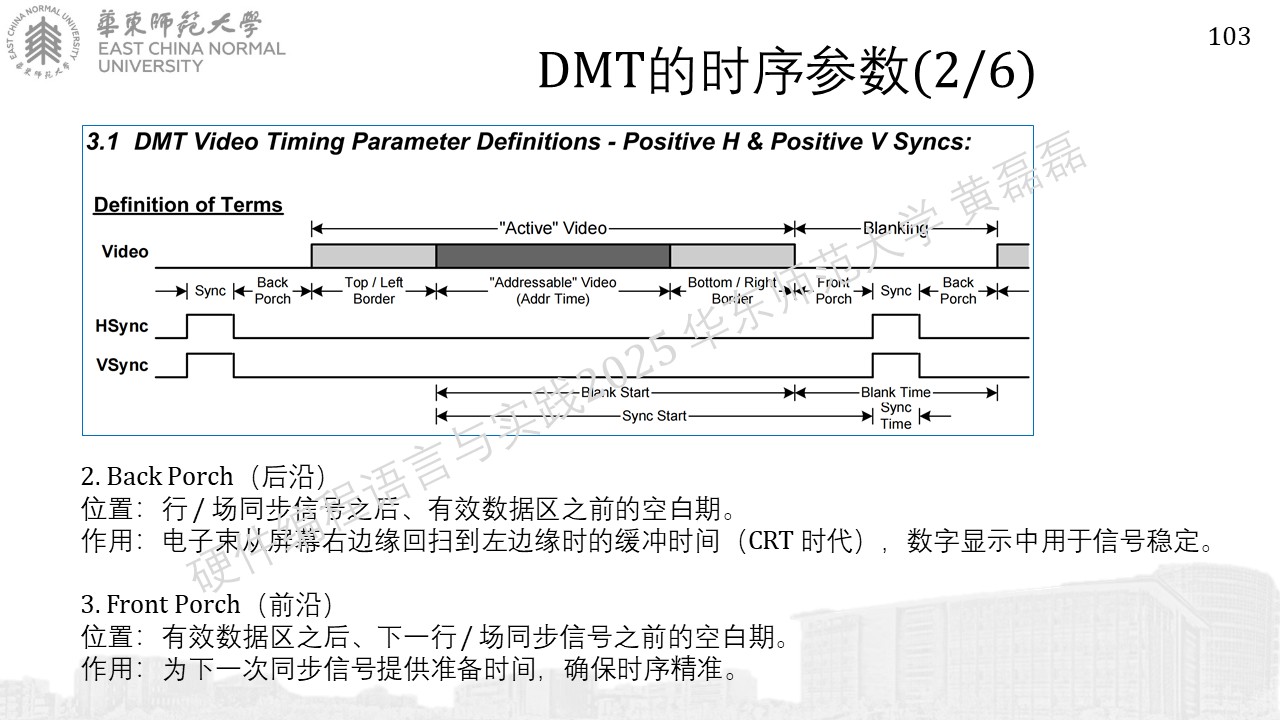

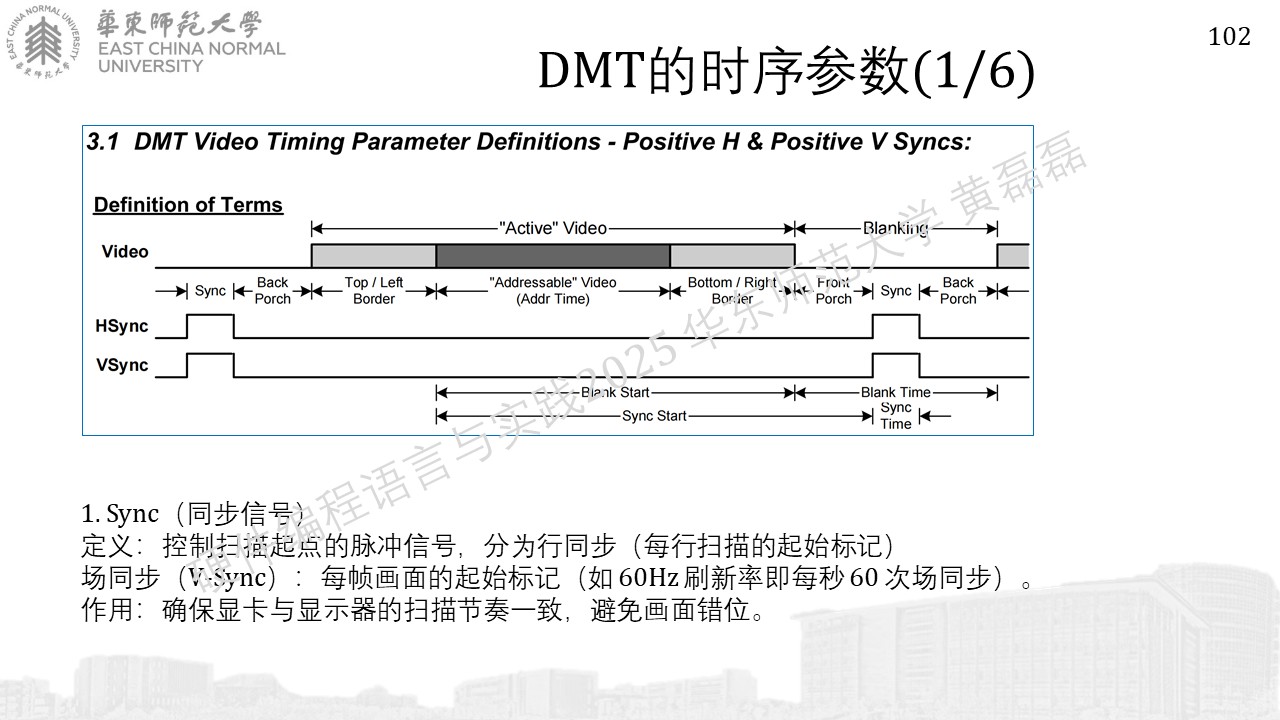

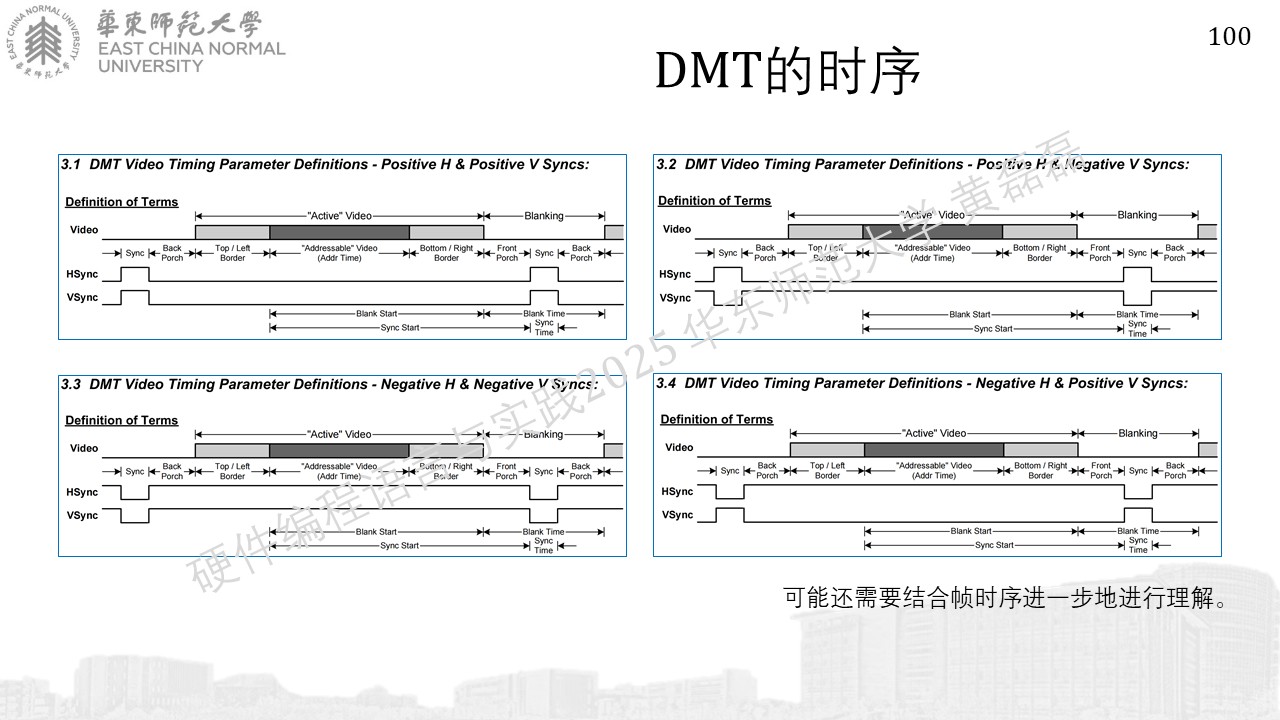

DMT¶

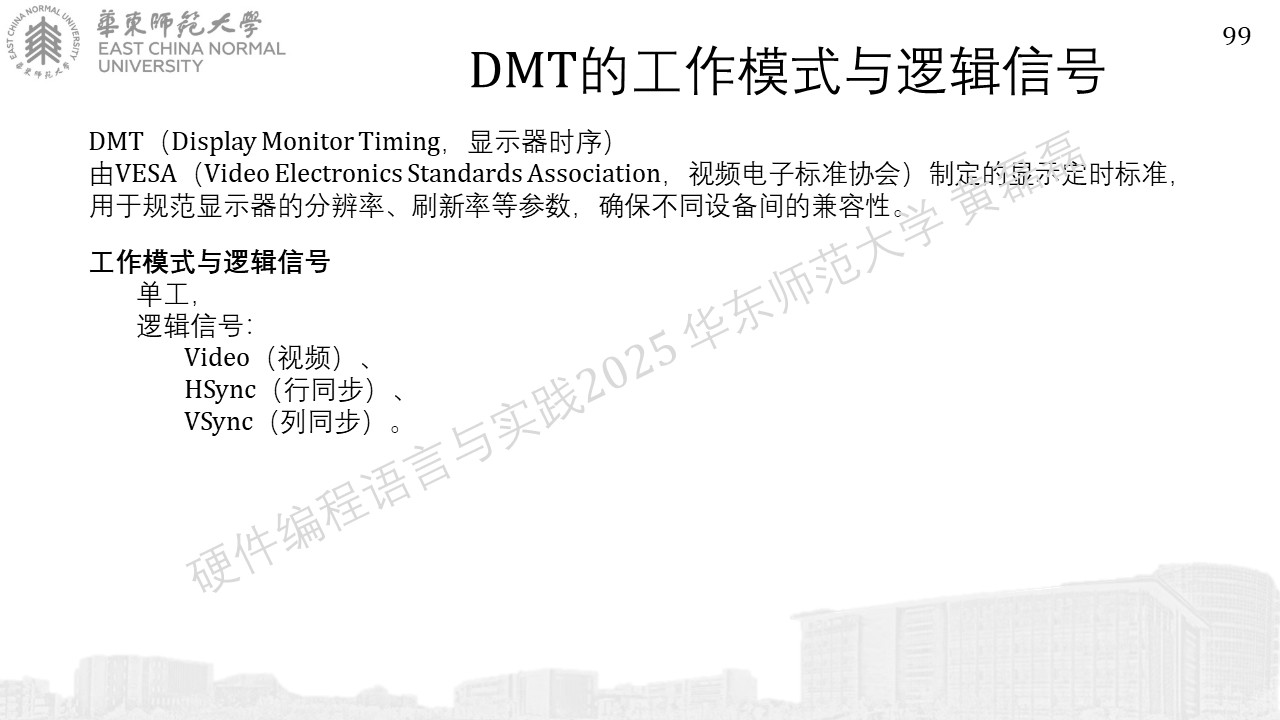

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87991.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87100.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%871014.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%871021.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%871031.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%871041.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%871051.JPG

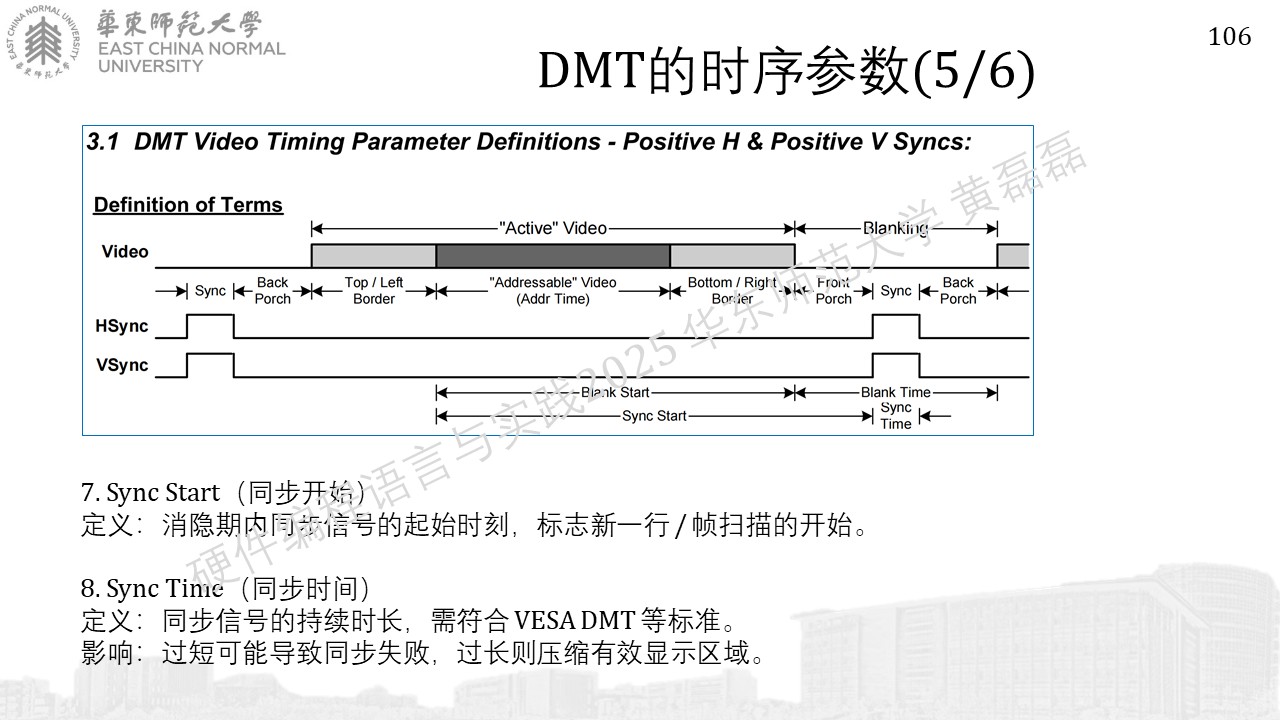

../../_images/%E5%B9%BB%E7%81%AF%E7%89%871061.JPG

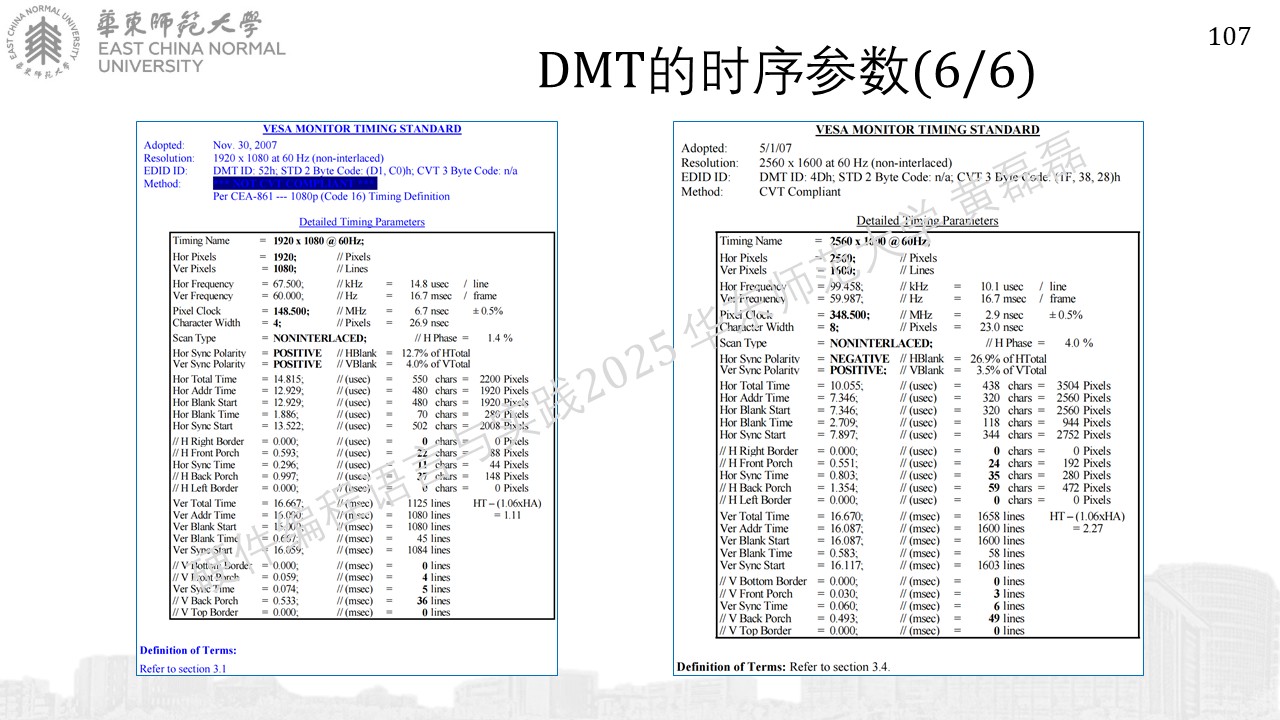

../../_images/%E5%B9%BB%E7%81%AF%E7%89%871071.JPG

../../_images/%E5%B9%BB%E7%81%AF%E7%89%871081.JPG
