第10讲 - 机器学习的基本概念与AI加速器

../../_images/%E5%B9%BB%E7%81%AF%E7%89%871101.JPG

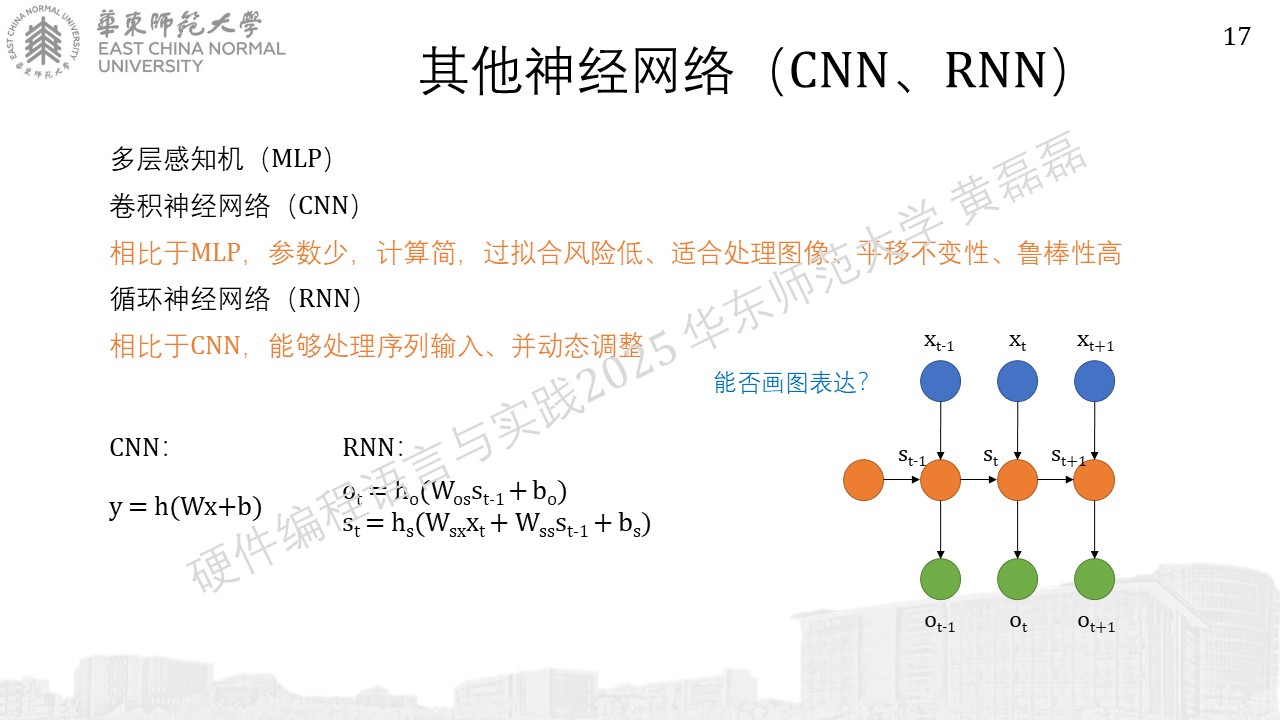

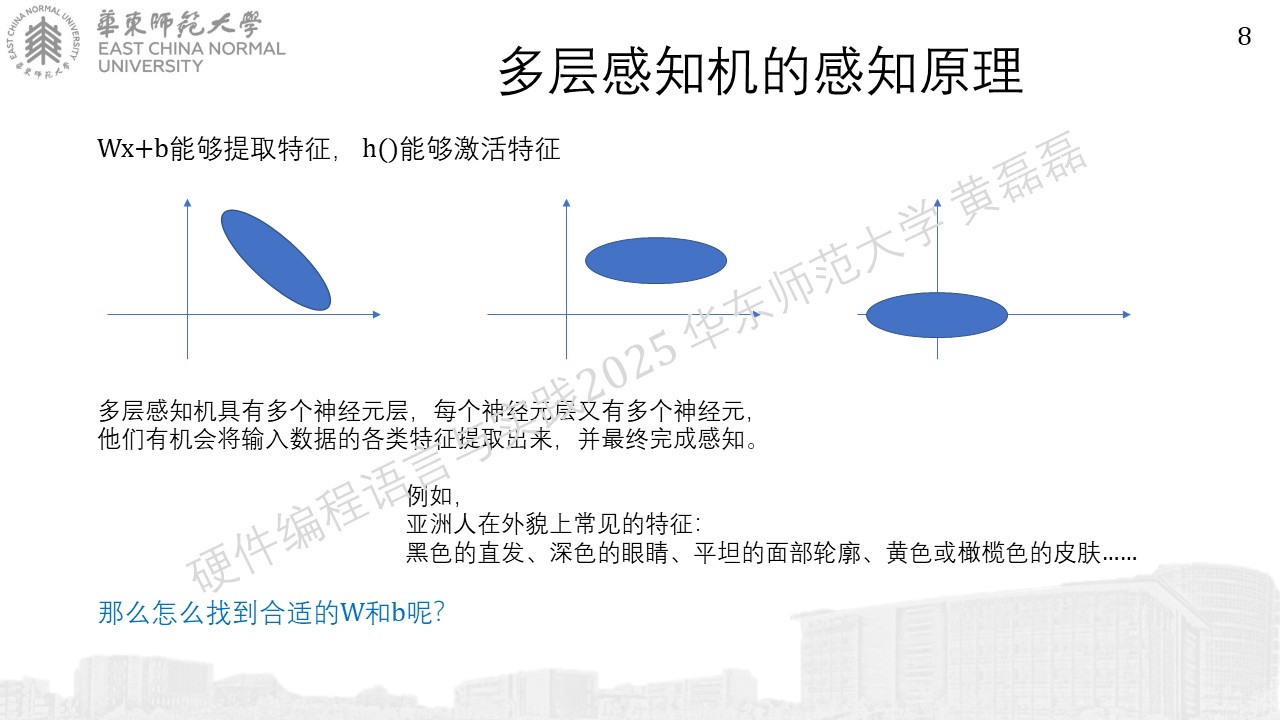

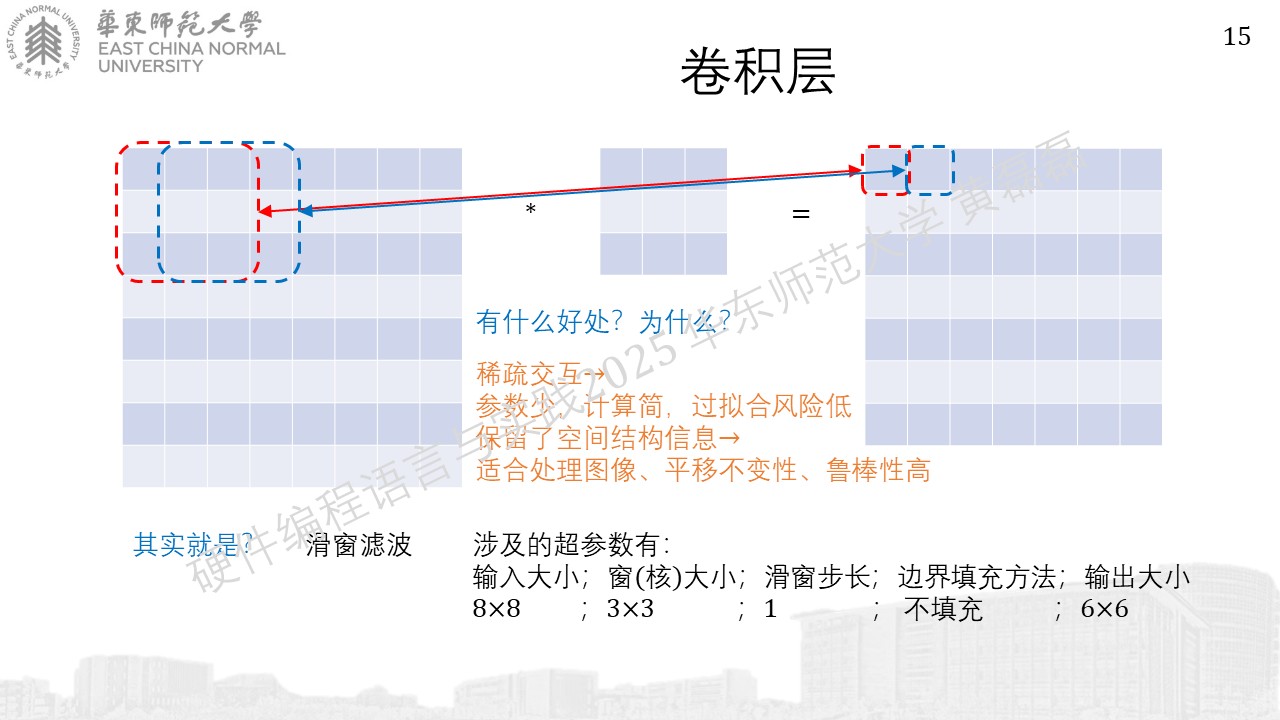

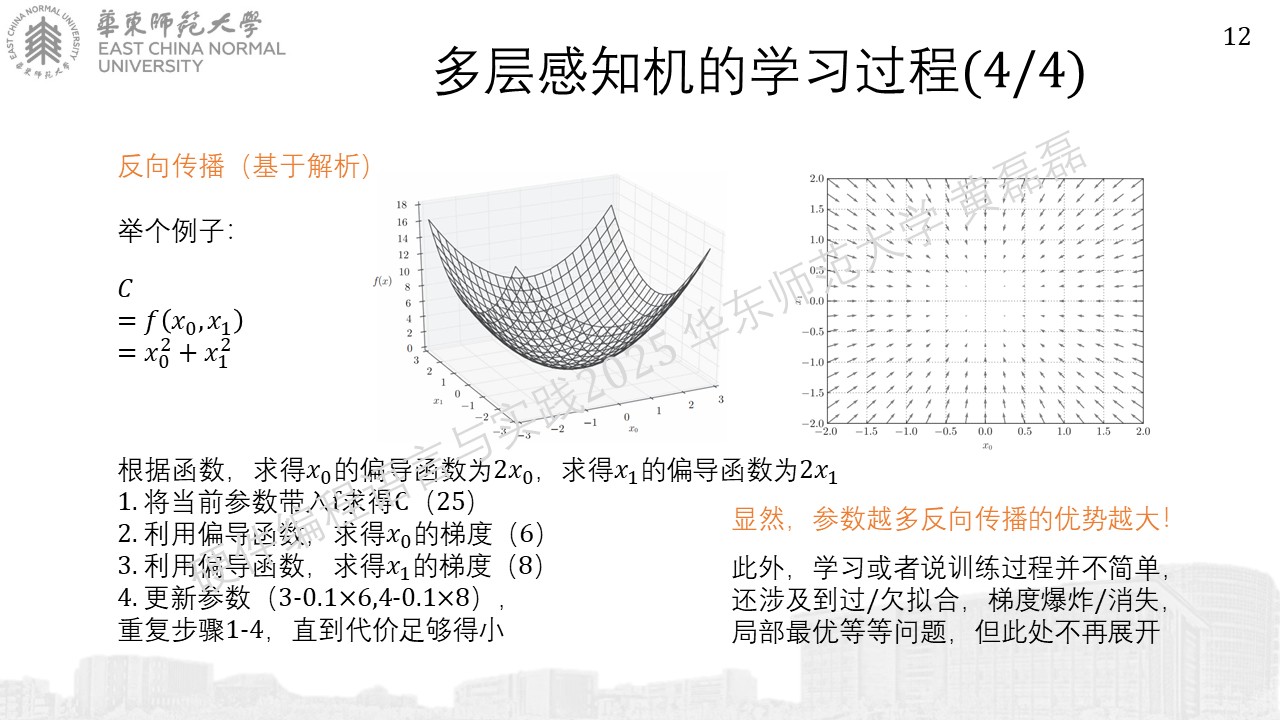

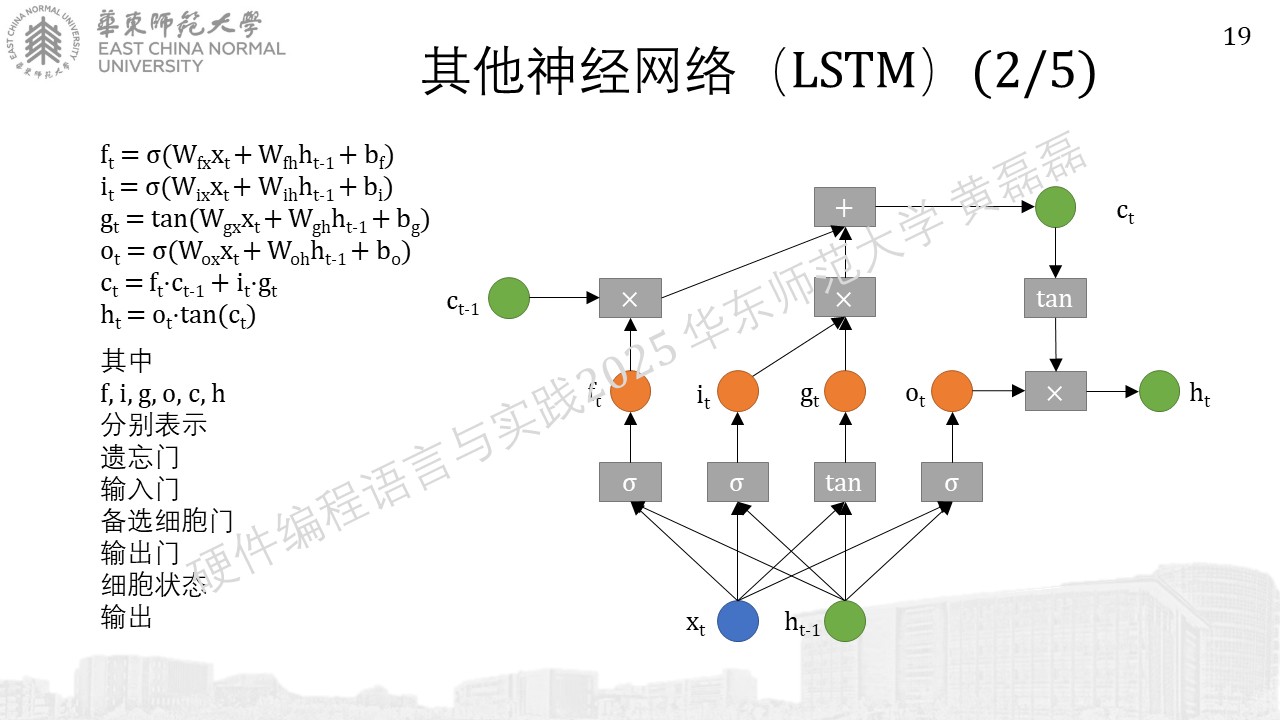

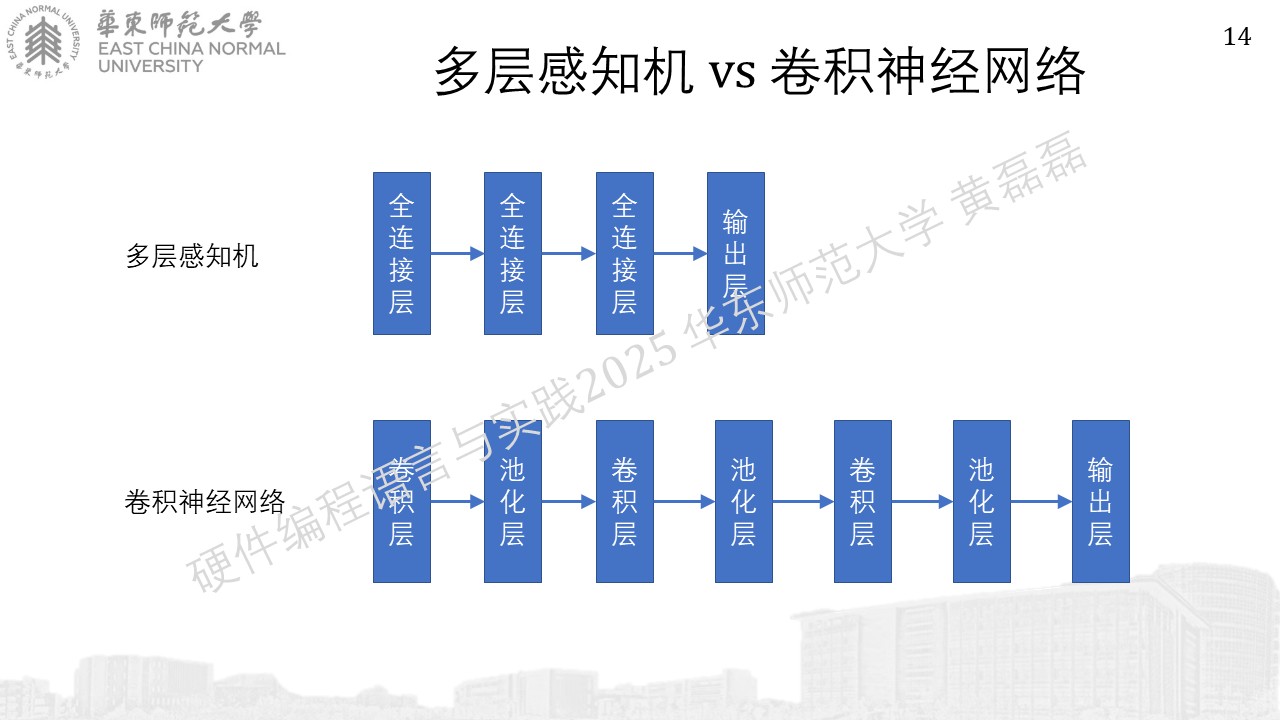

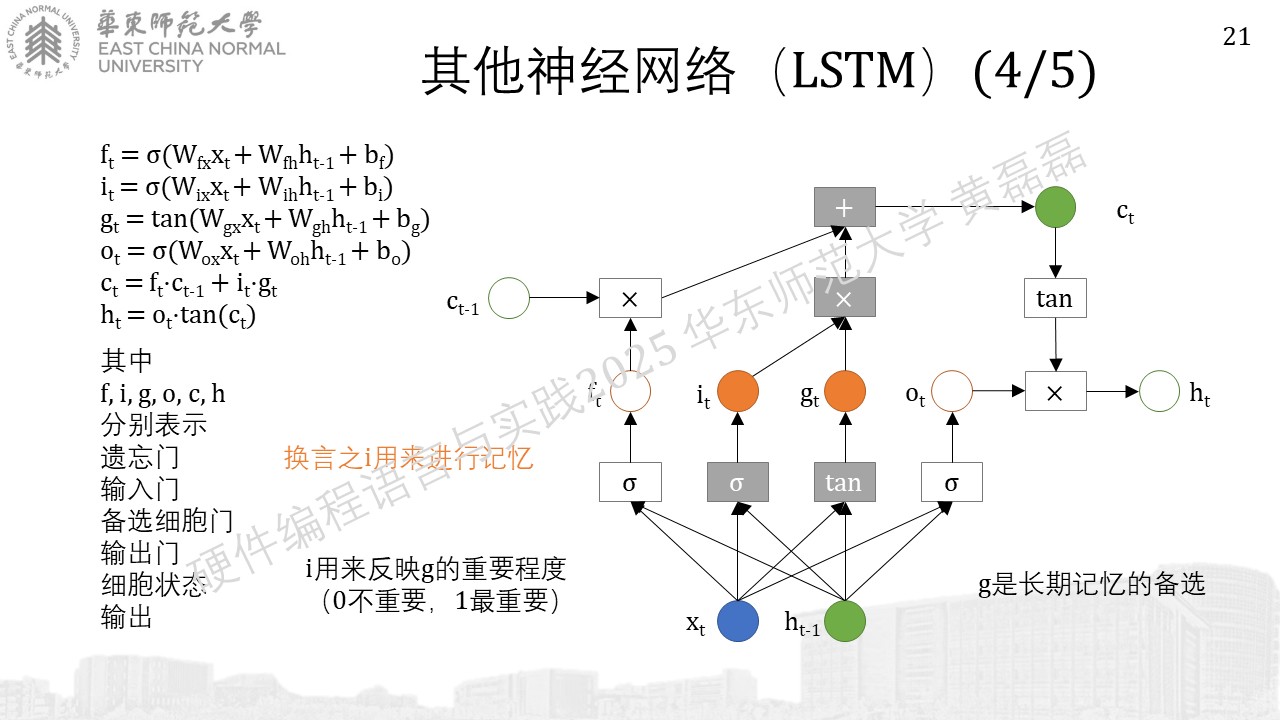

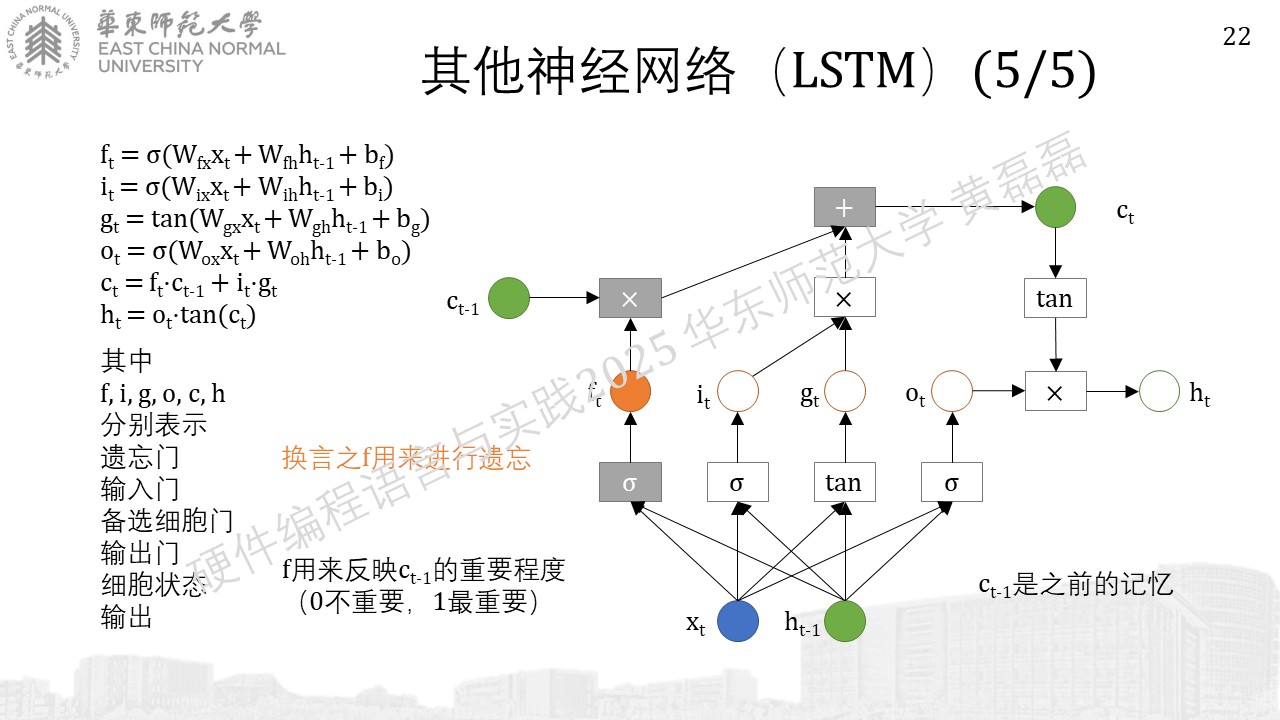

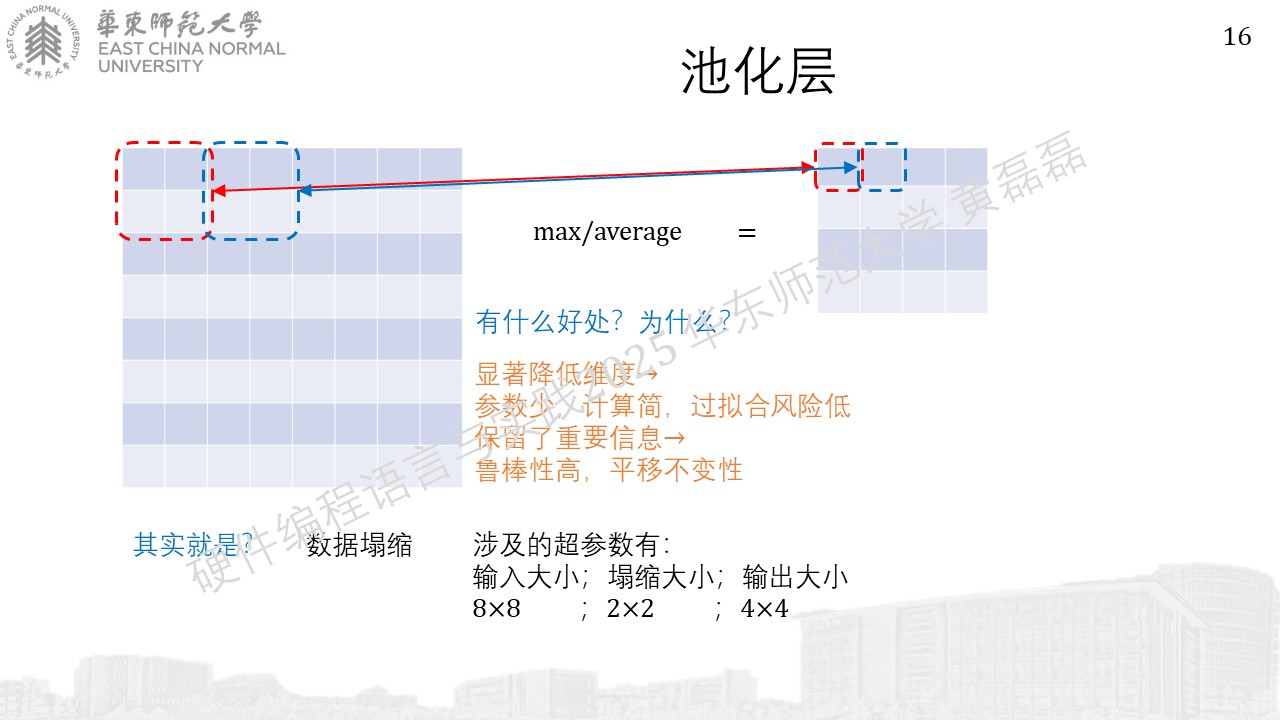

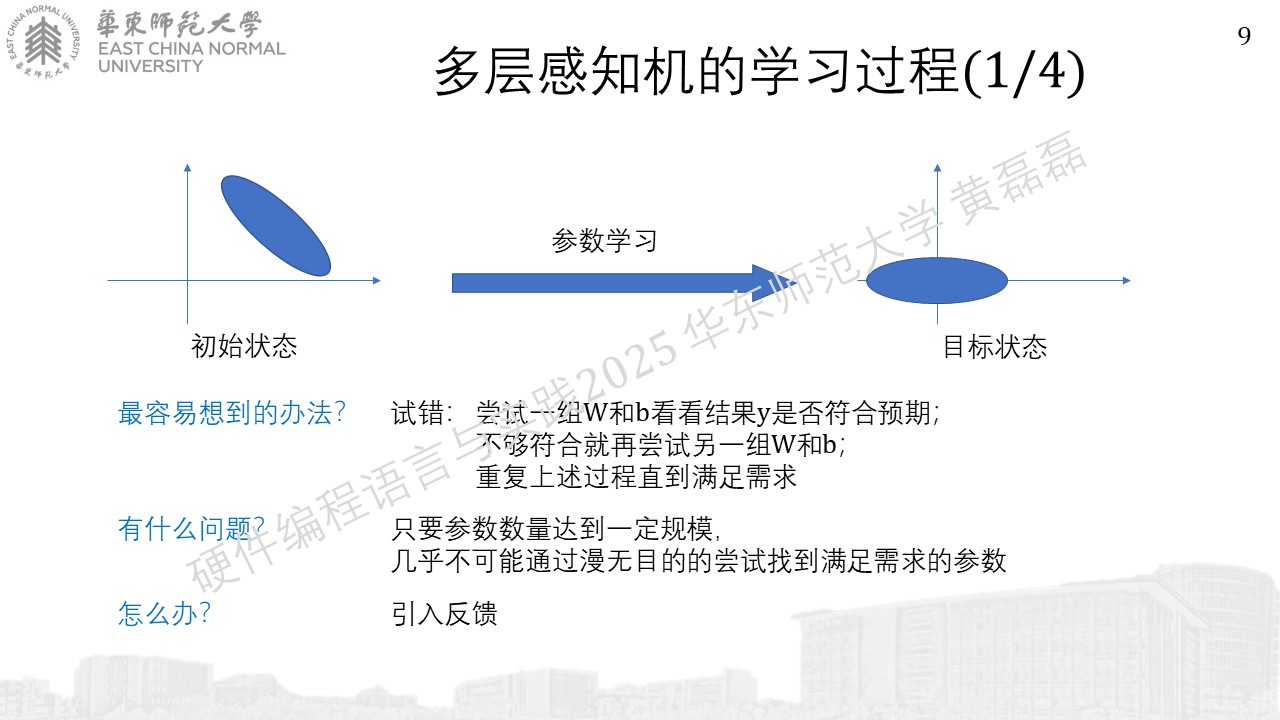

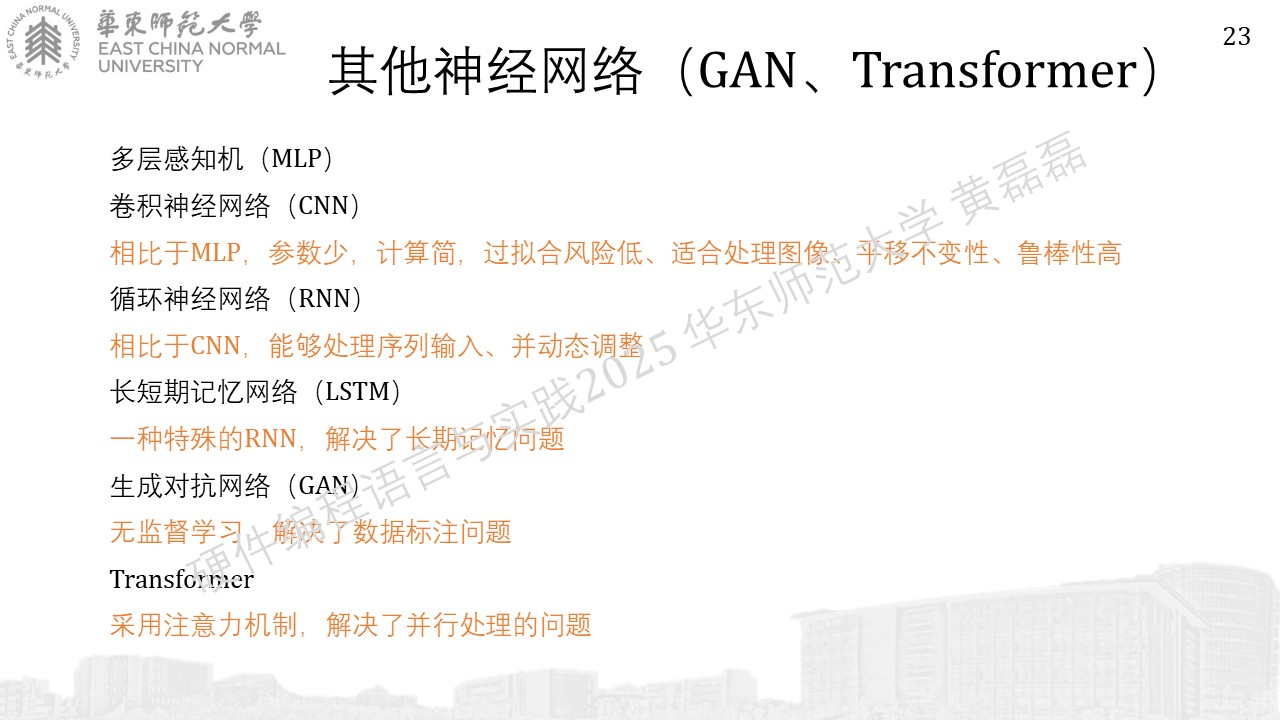

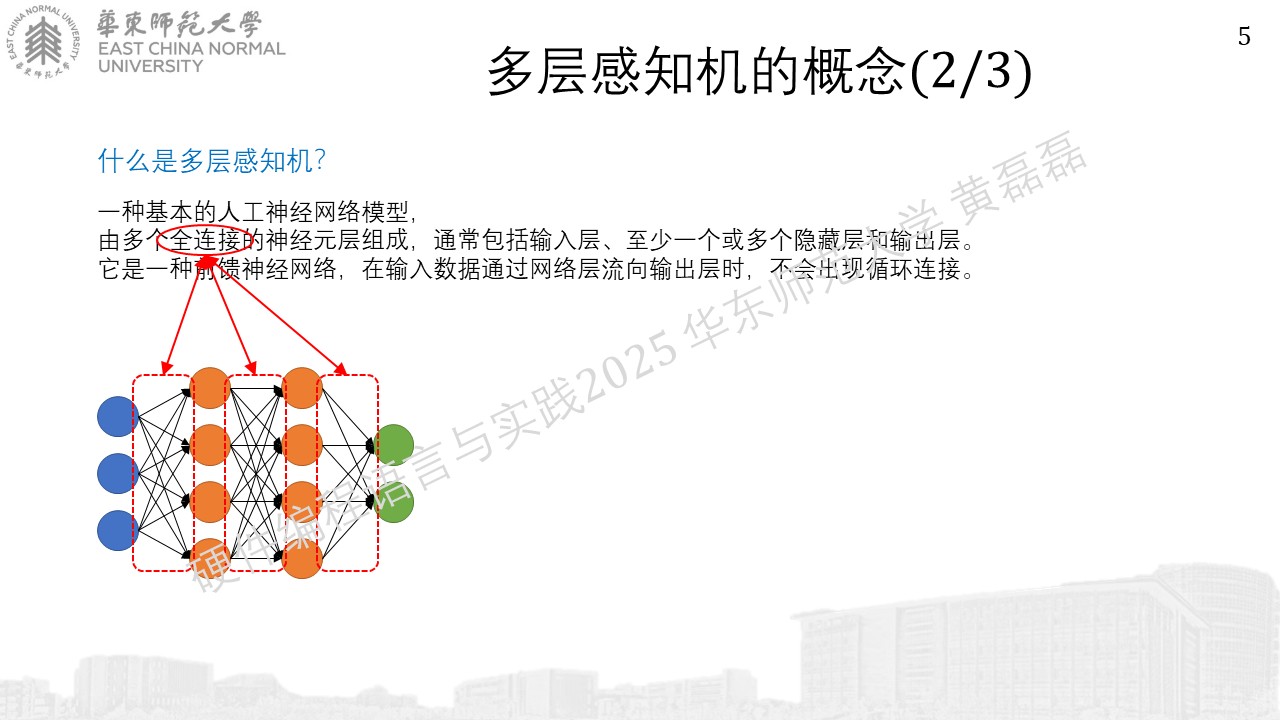

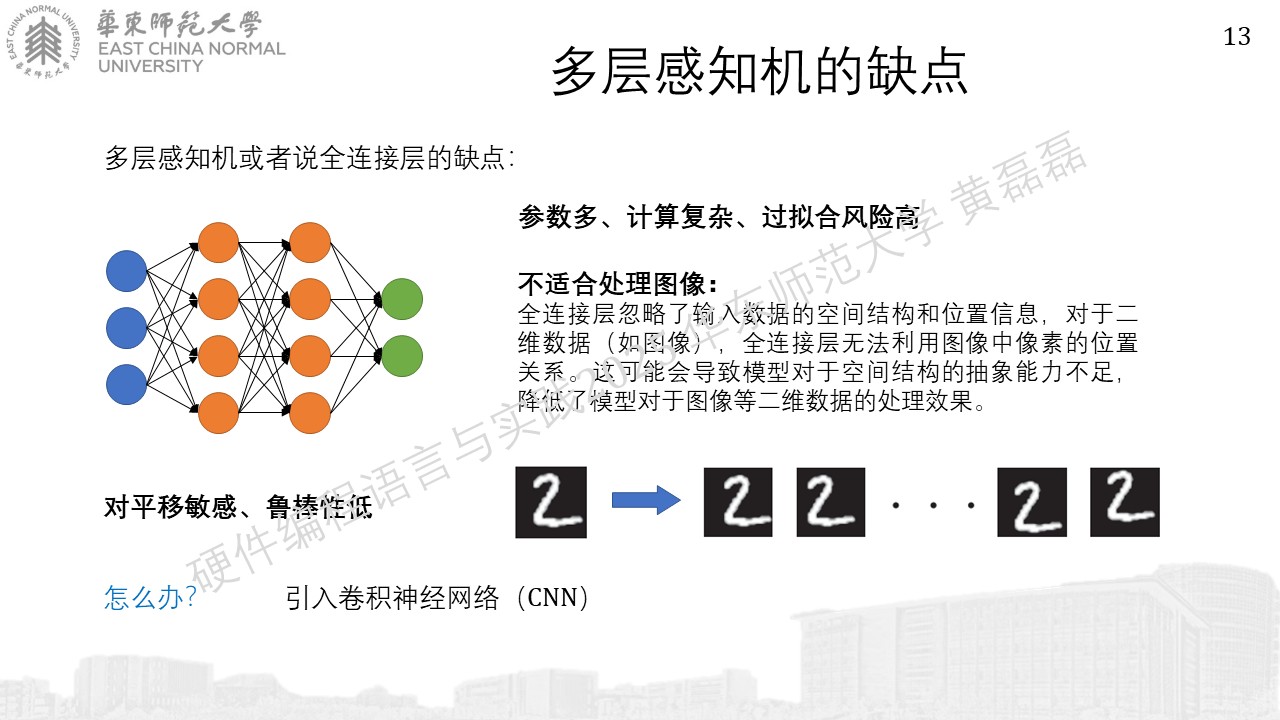

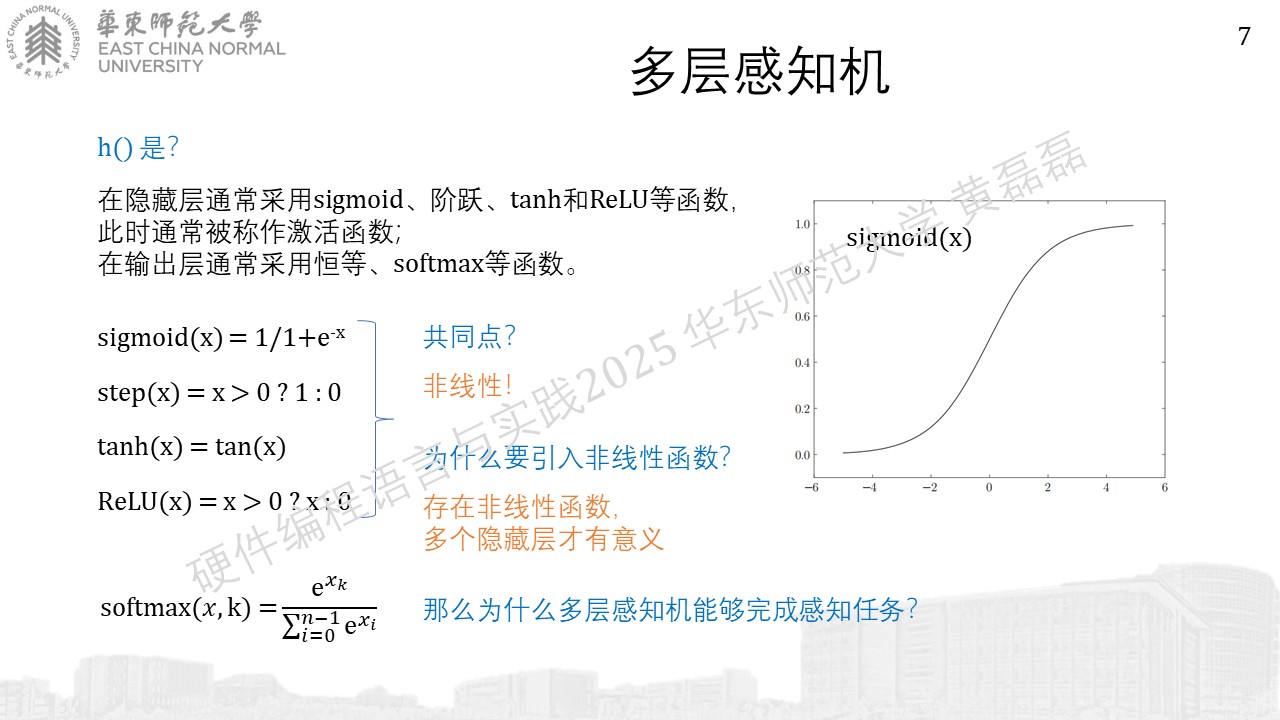

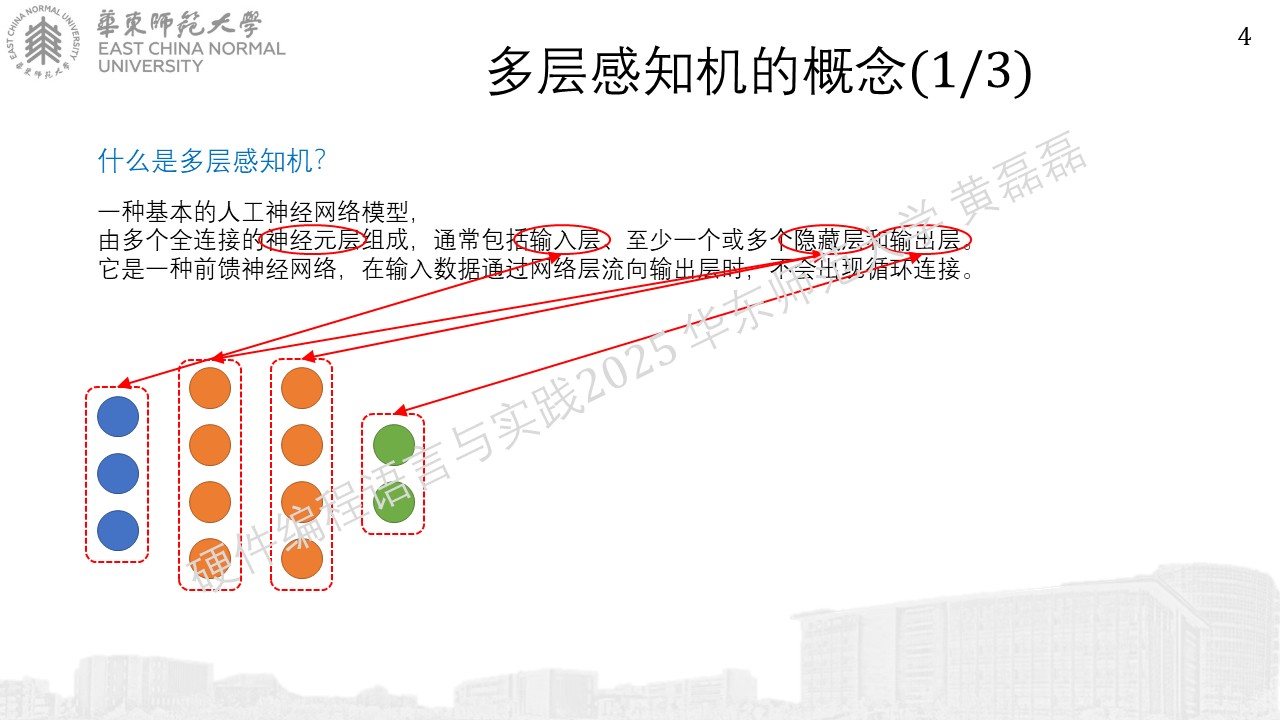

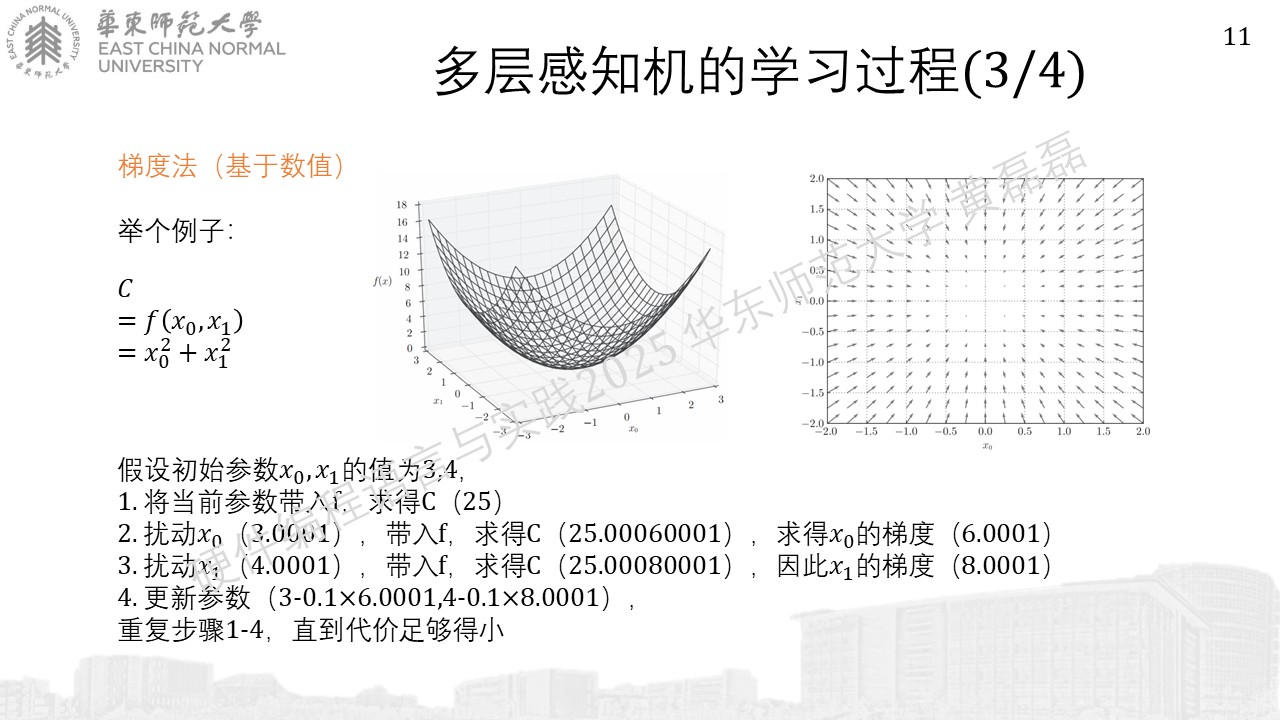

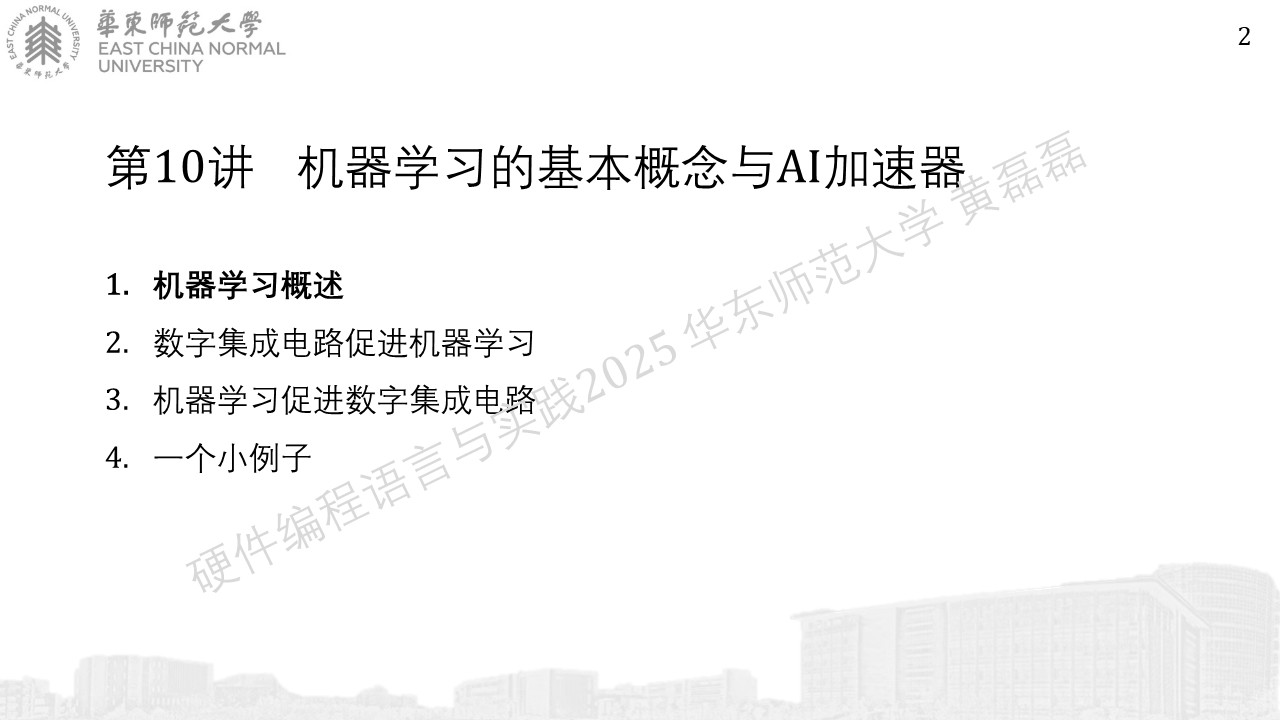

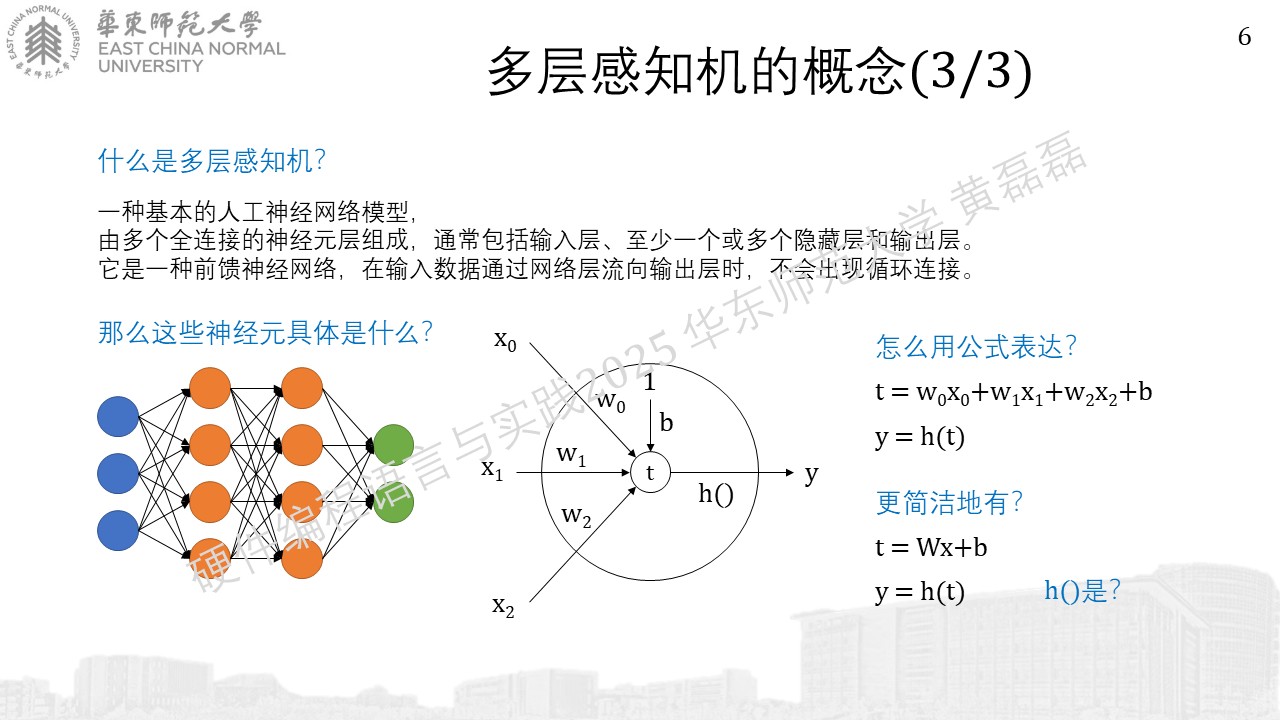

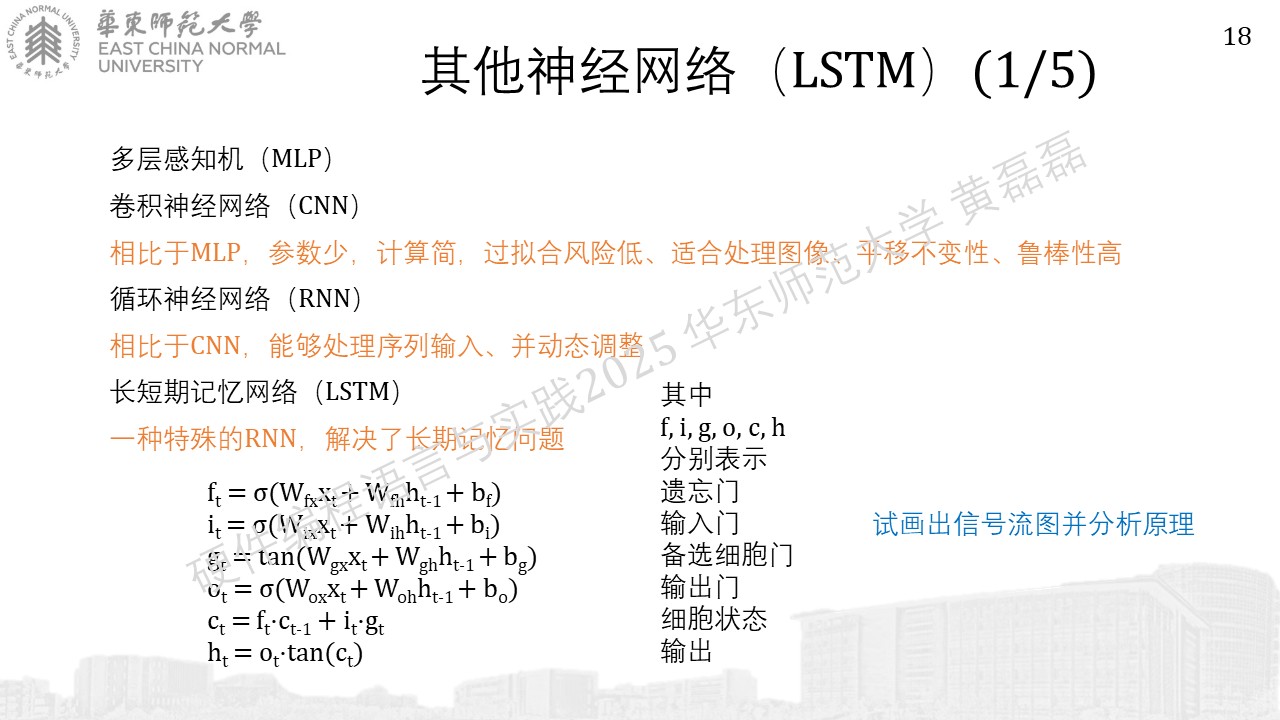

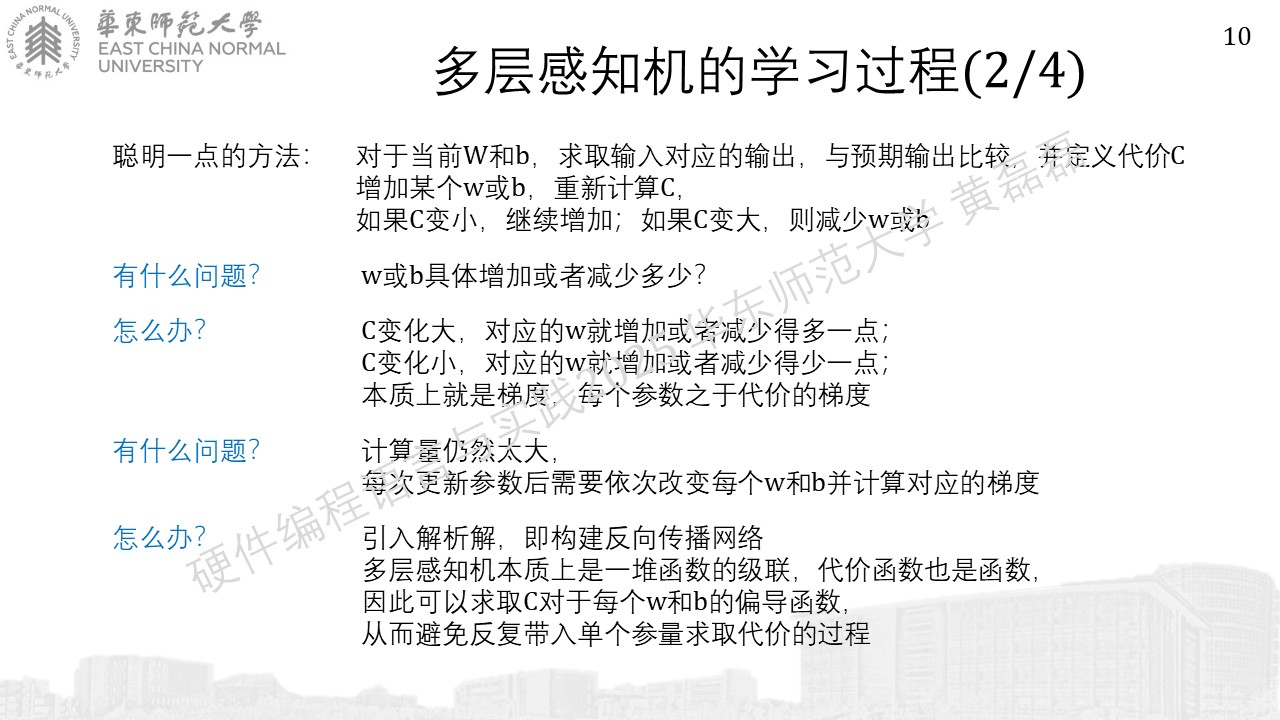

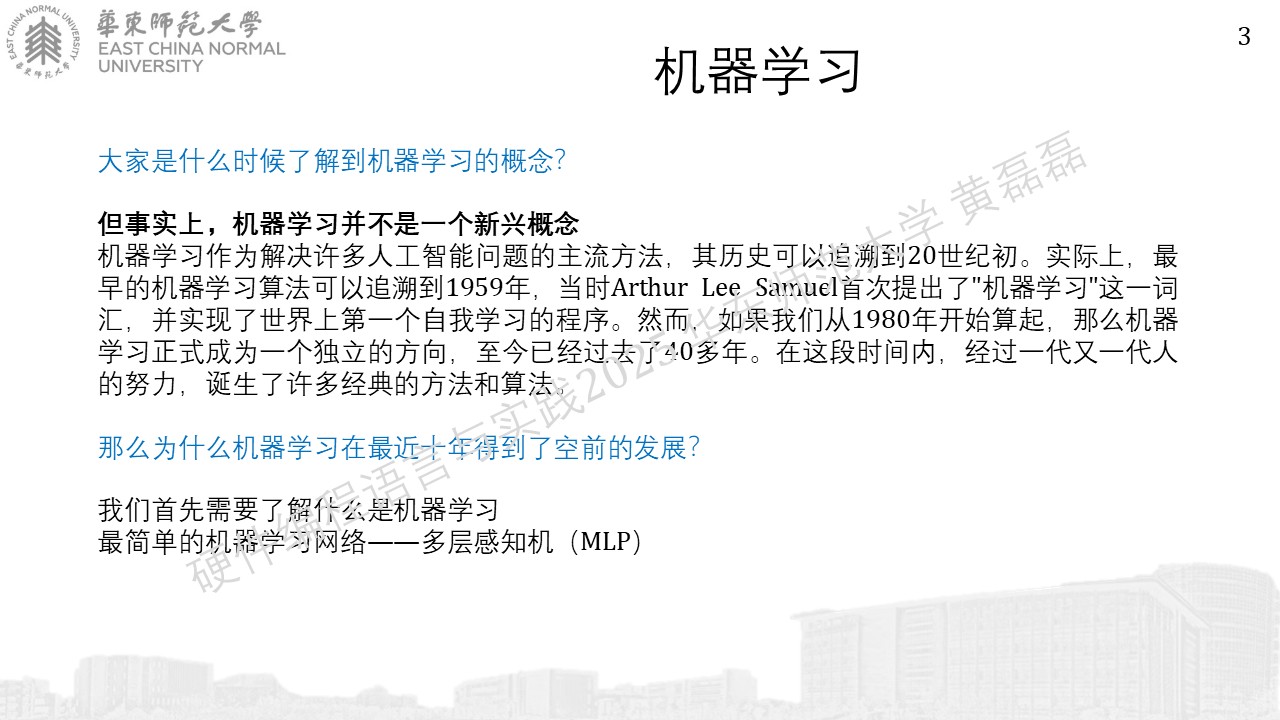

机器学习概述

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87259.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87340.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87436.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87526.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87620.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87720.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87820.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87917.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%871016.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%871119.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%871217.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%871315.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%871414.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%871514.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%871614.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%871714.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%871814.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%871913.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%872012.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%872118.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%872214.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%872313.JPG

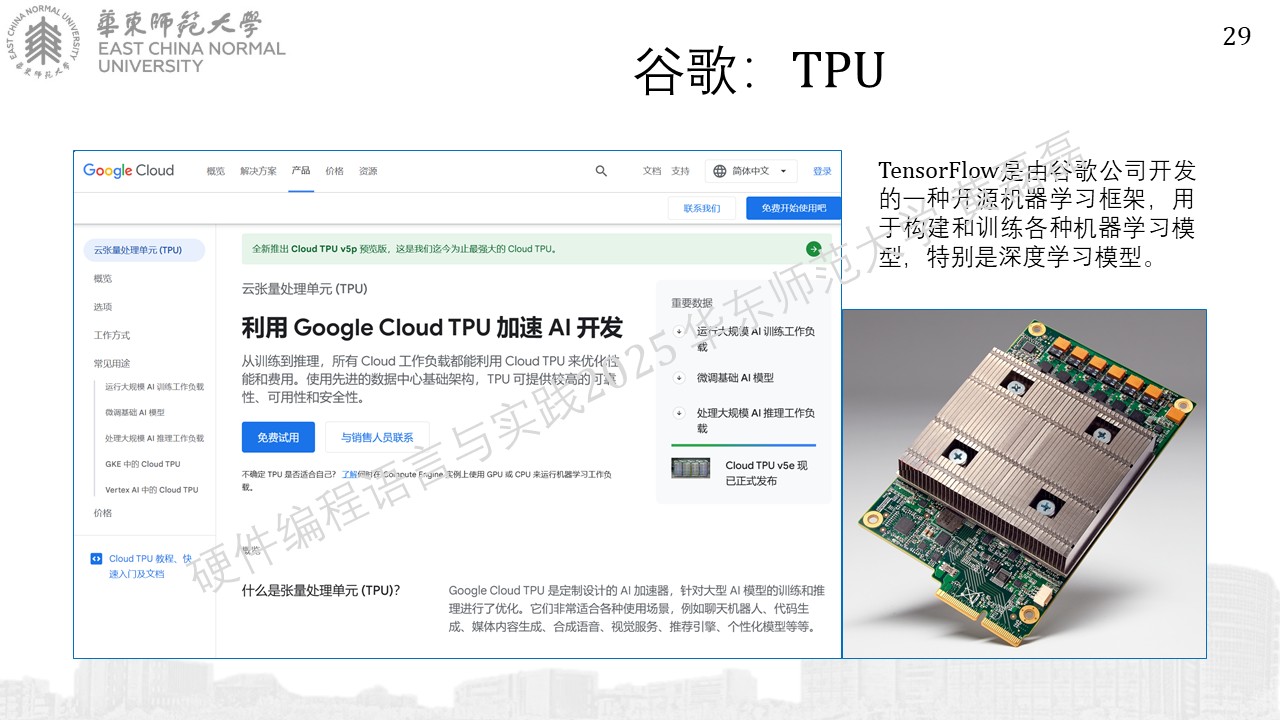

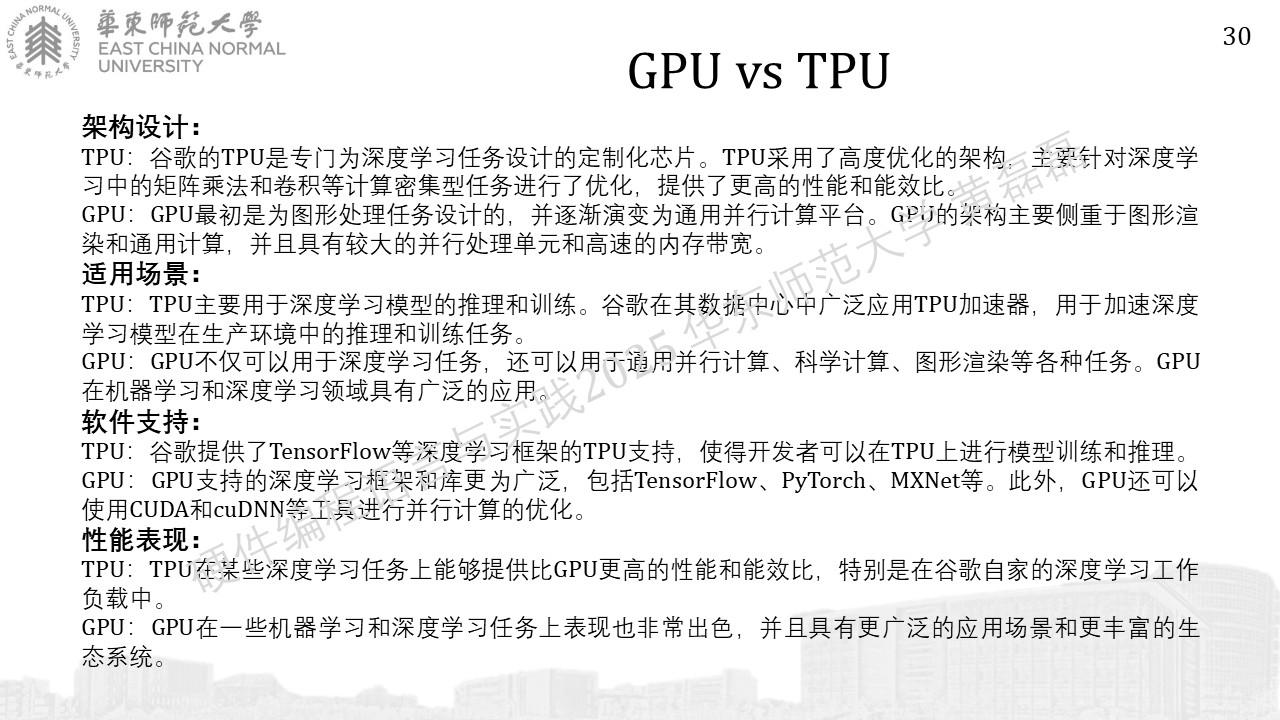

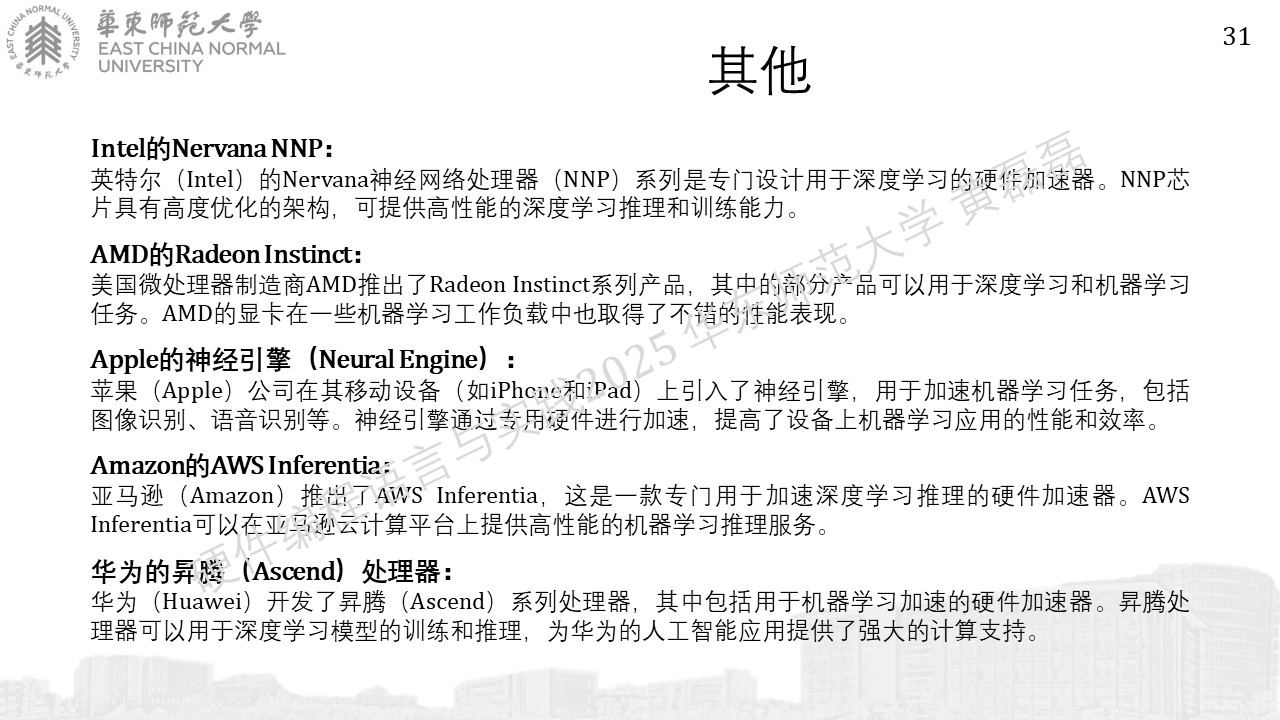

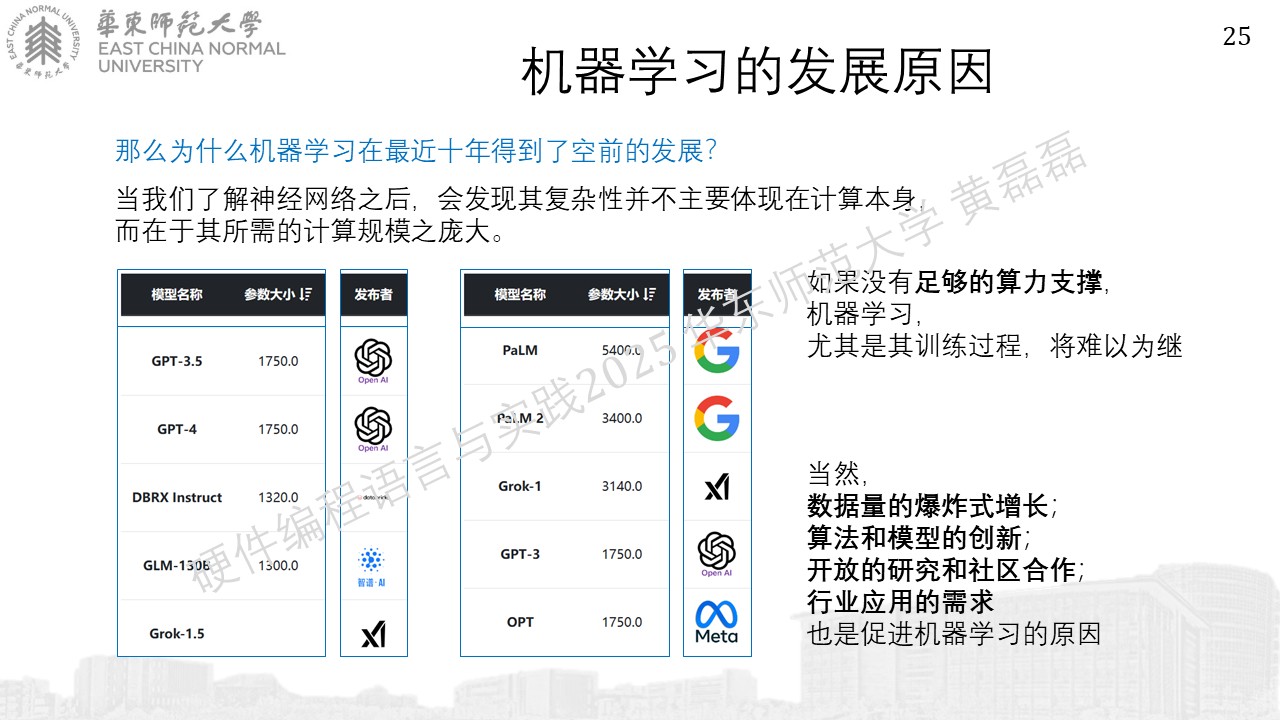

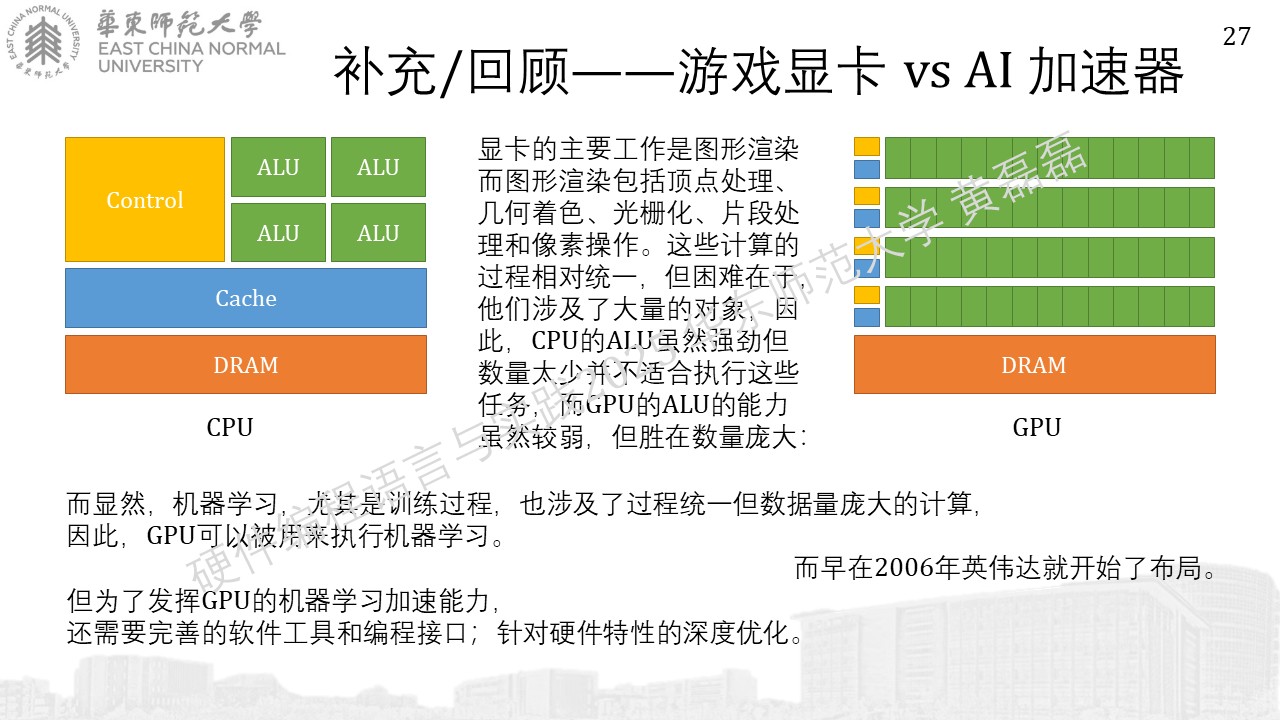

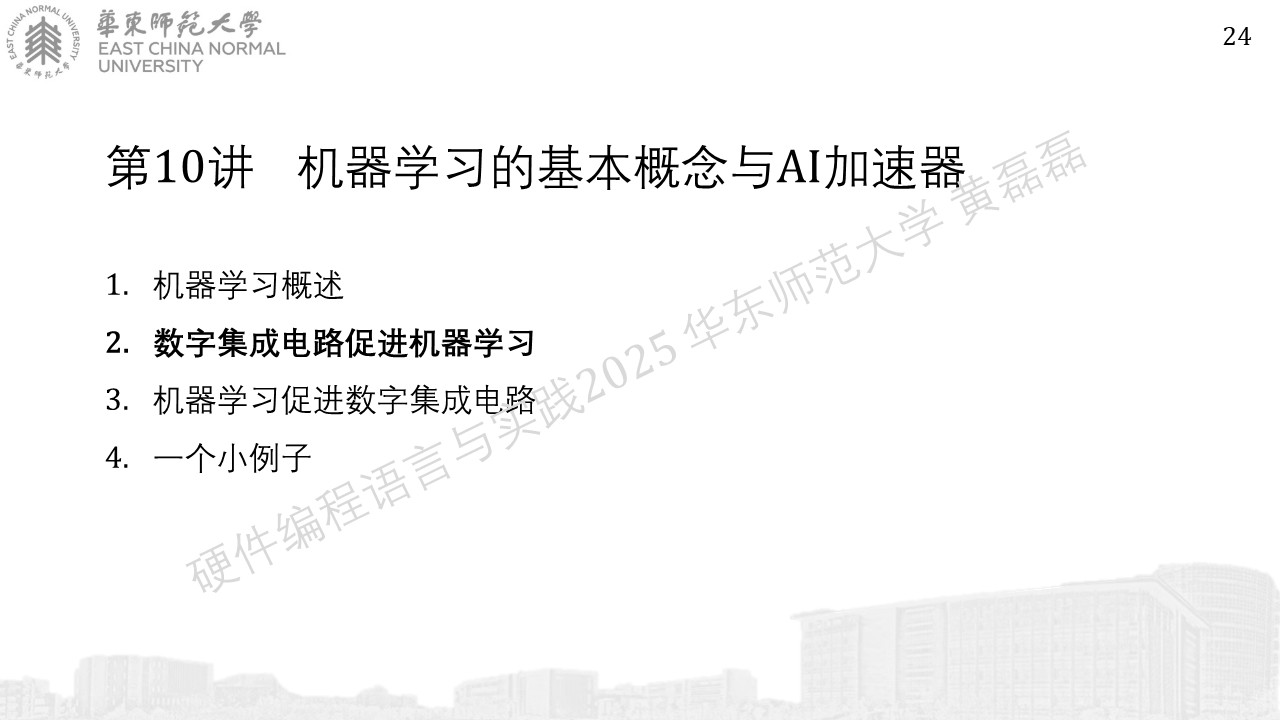

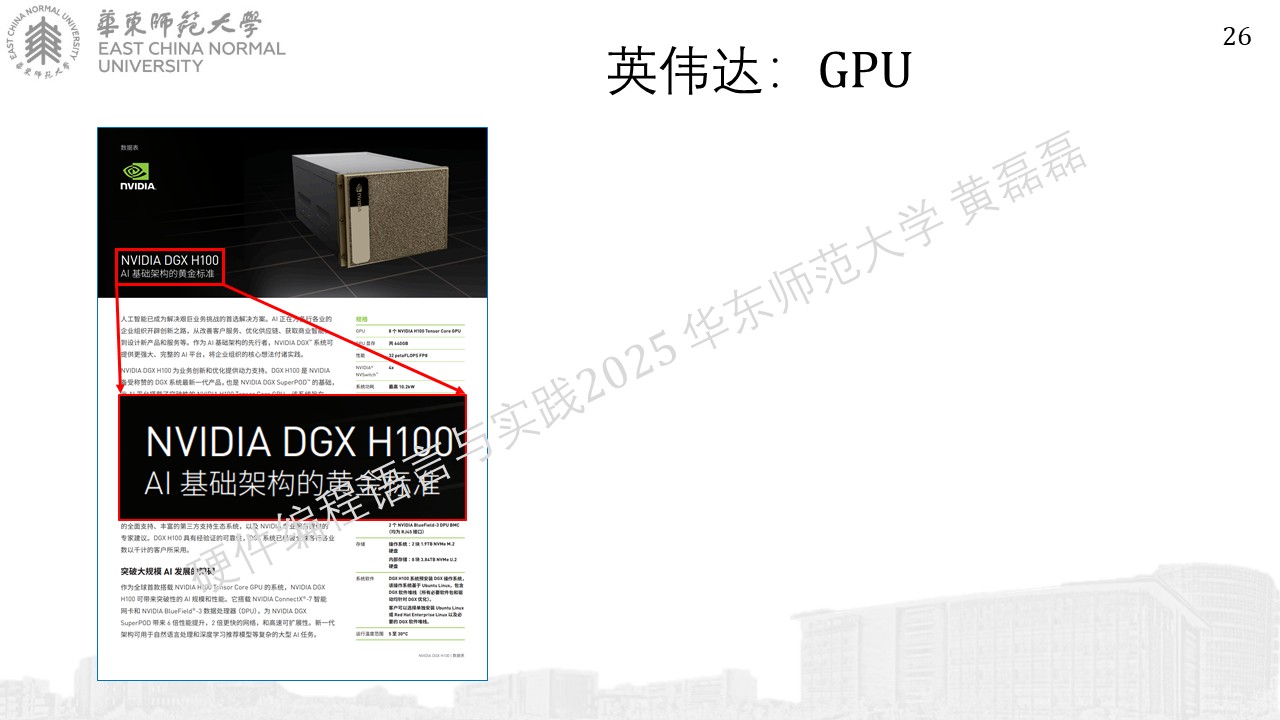

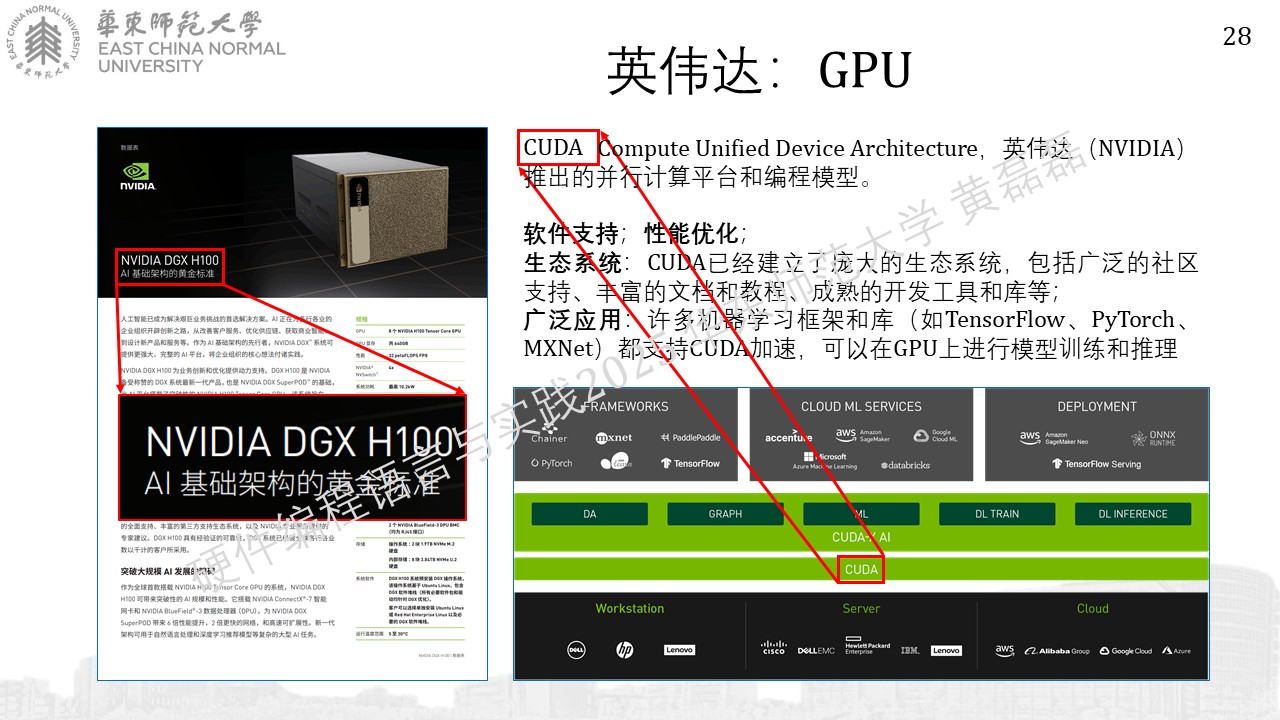

数字集成电路促进机器学习

../../_images/%E5%B9%BB%E7%81%AF%E7%89%872411.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%872510.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87269.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87279.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87289.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87298.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87308.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%873115.JPG

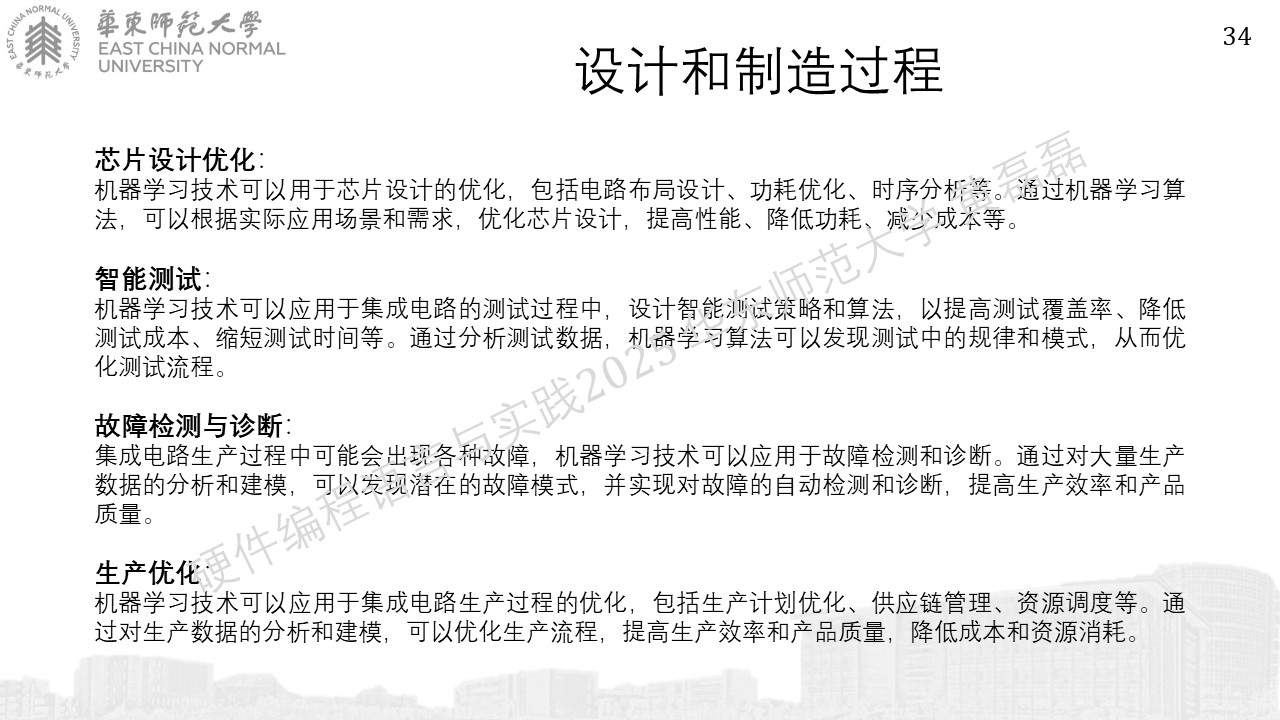

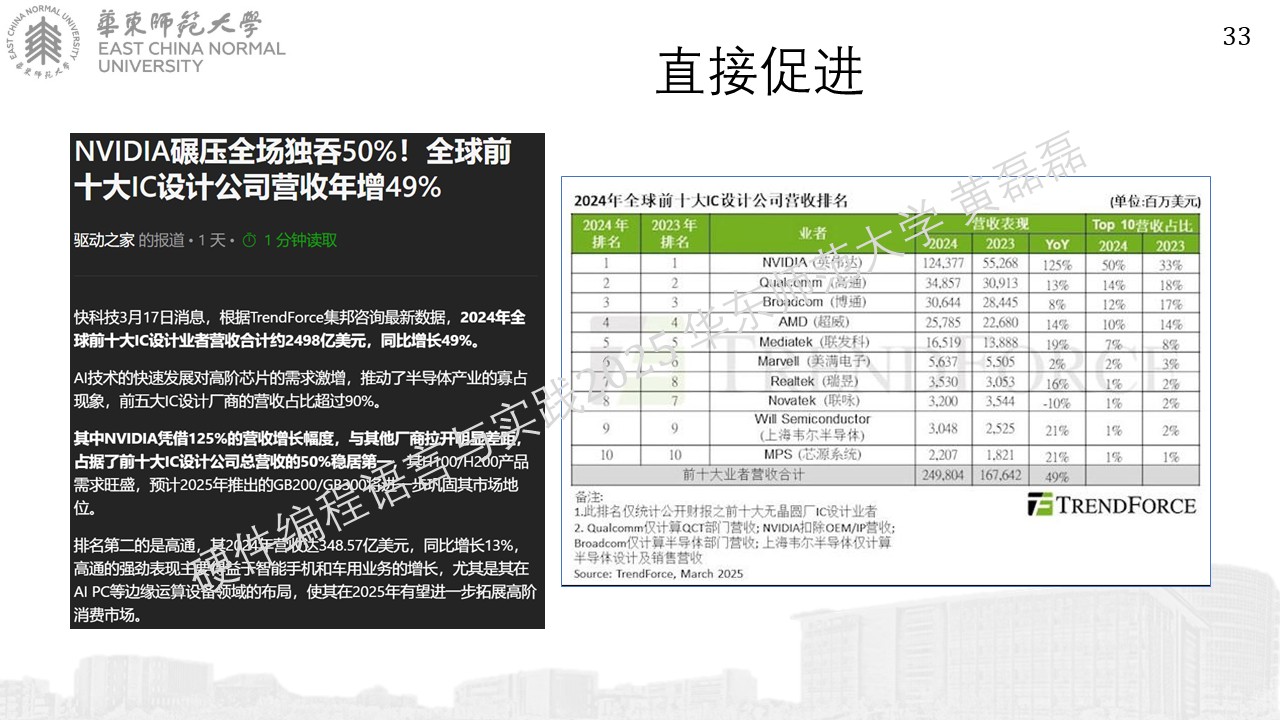

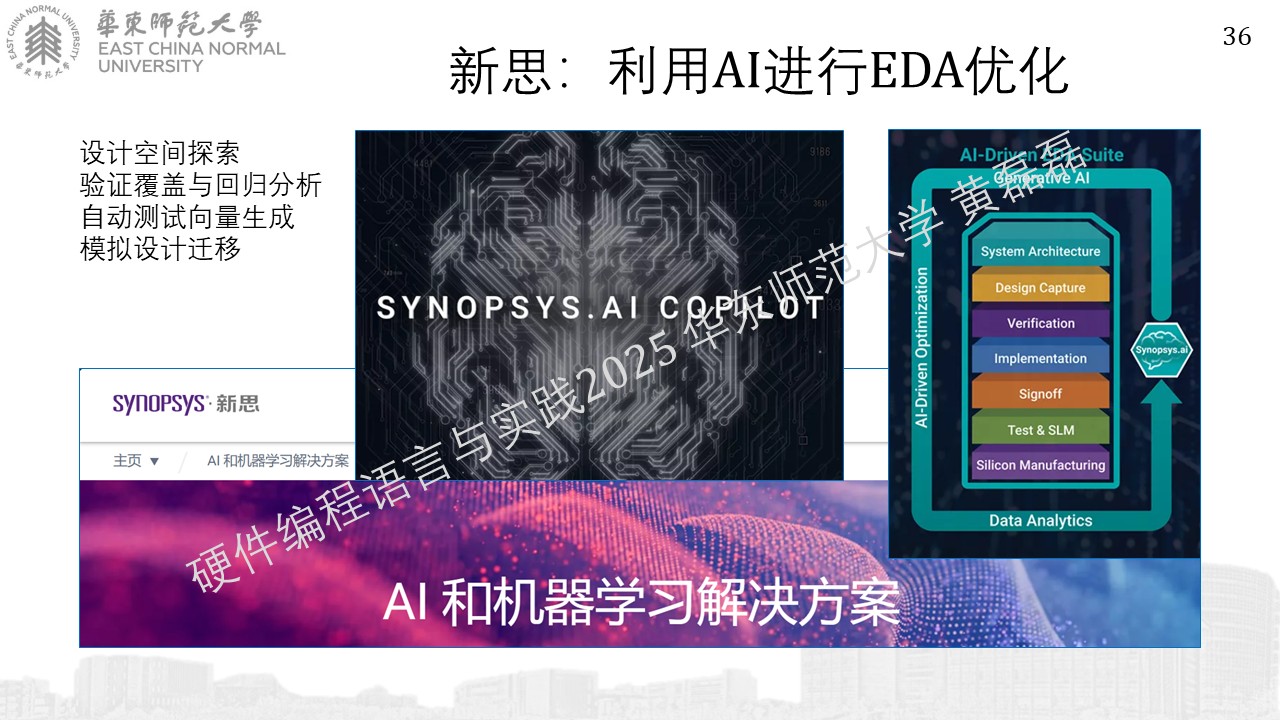

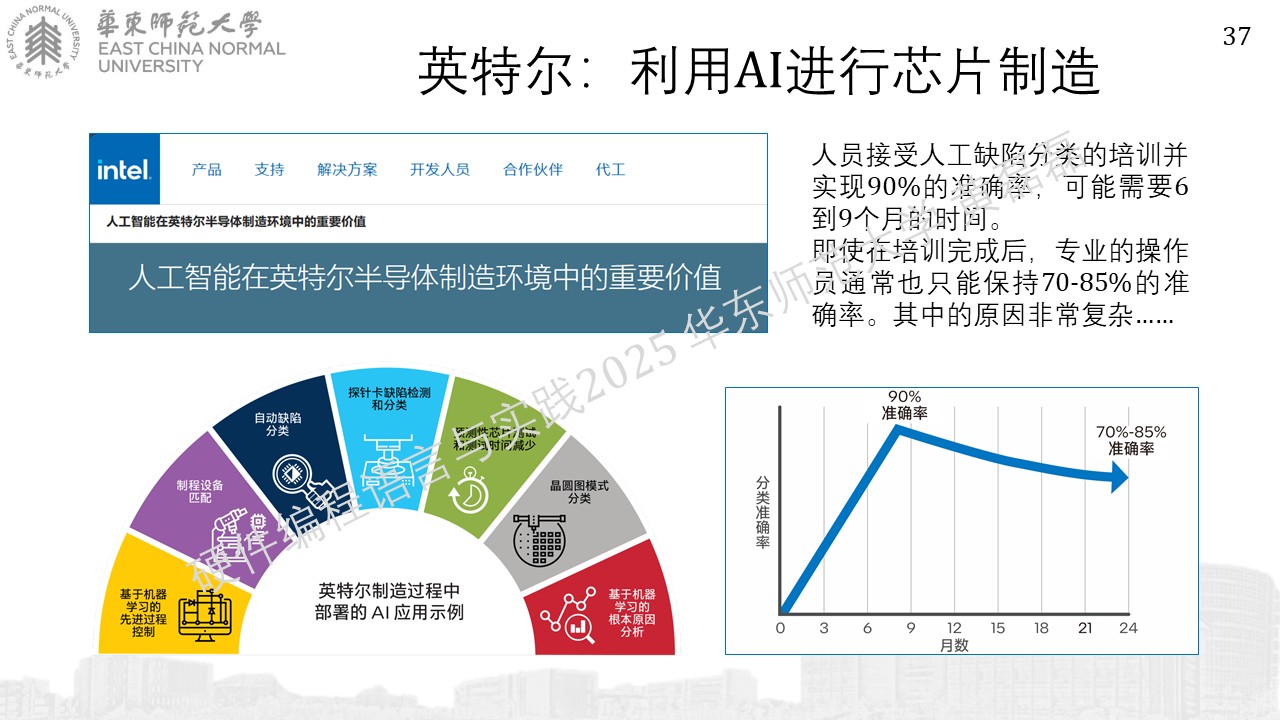

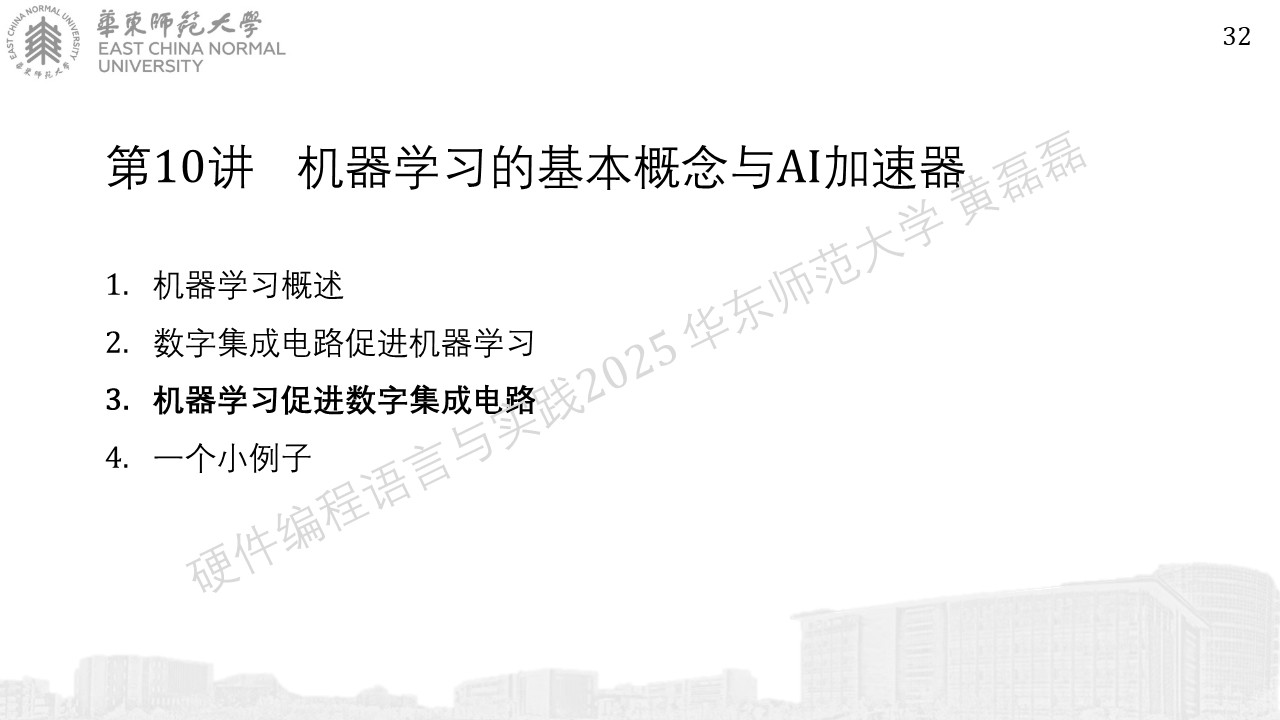

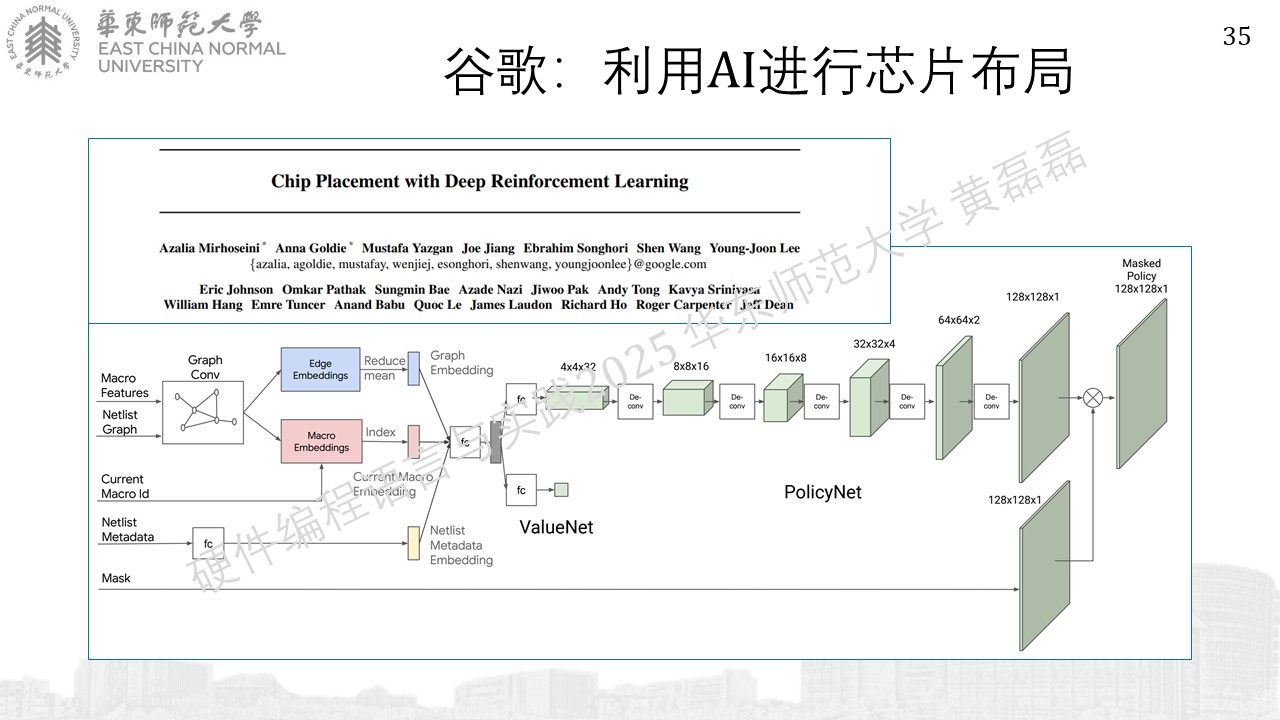

机器学习数字促进集成电路

../../_images/%E5%B9%BB%E7%81%AF%E7%89%873213.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%873310.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87347.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87356.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87366.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87376.JPG

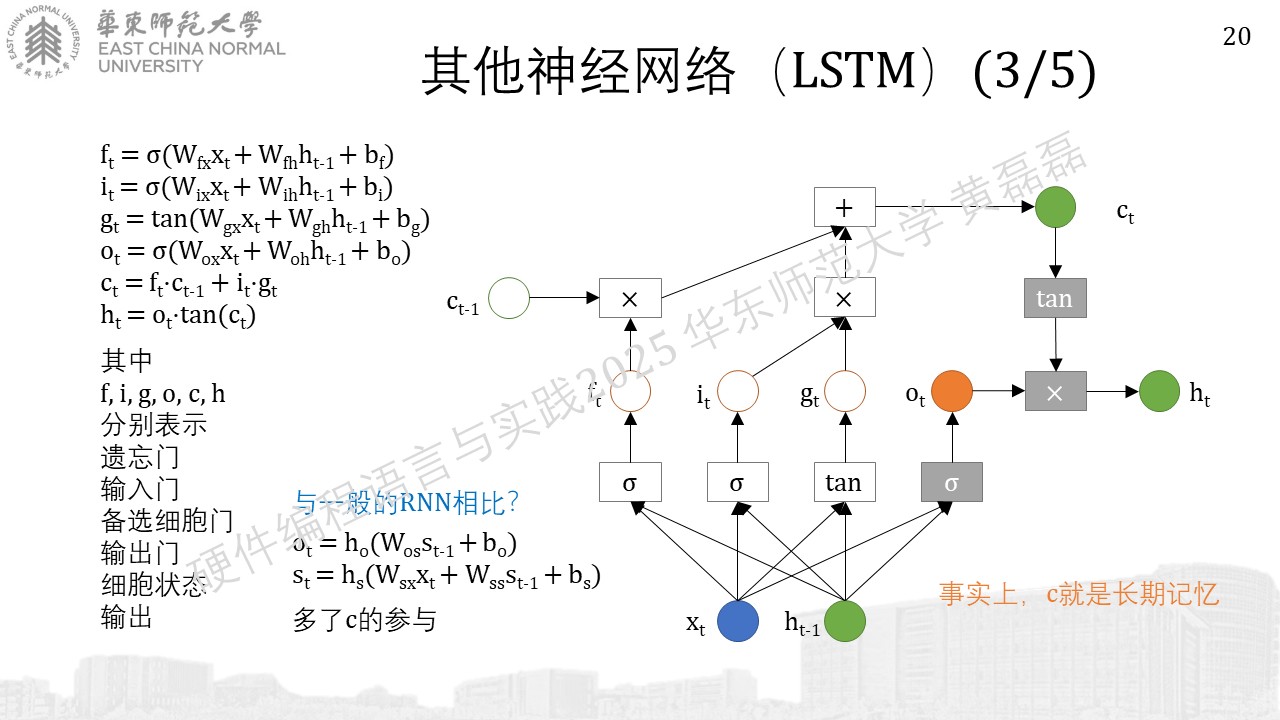

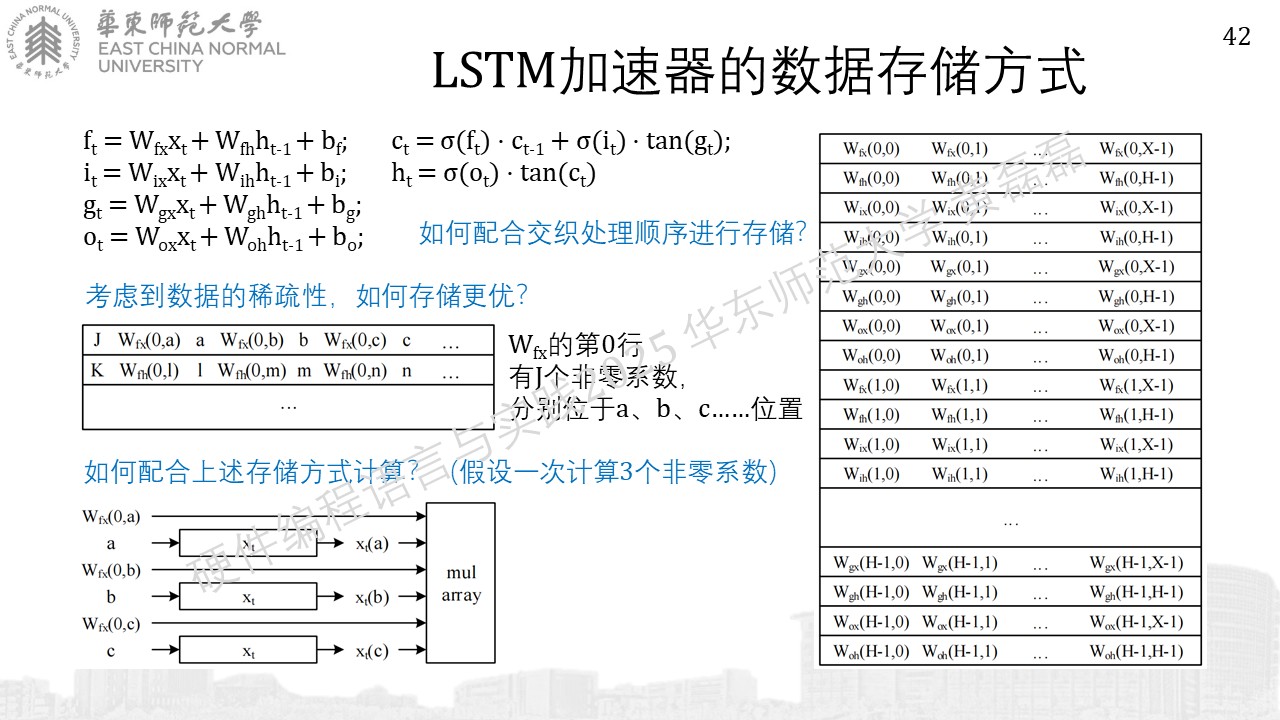

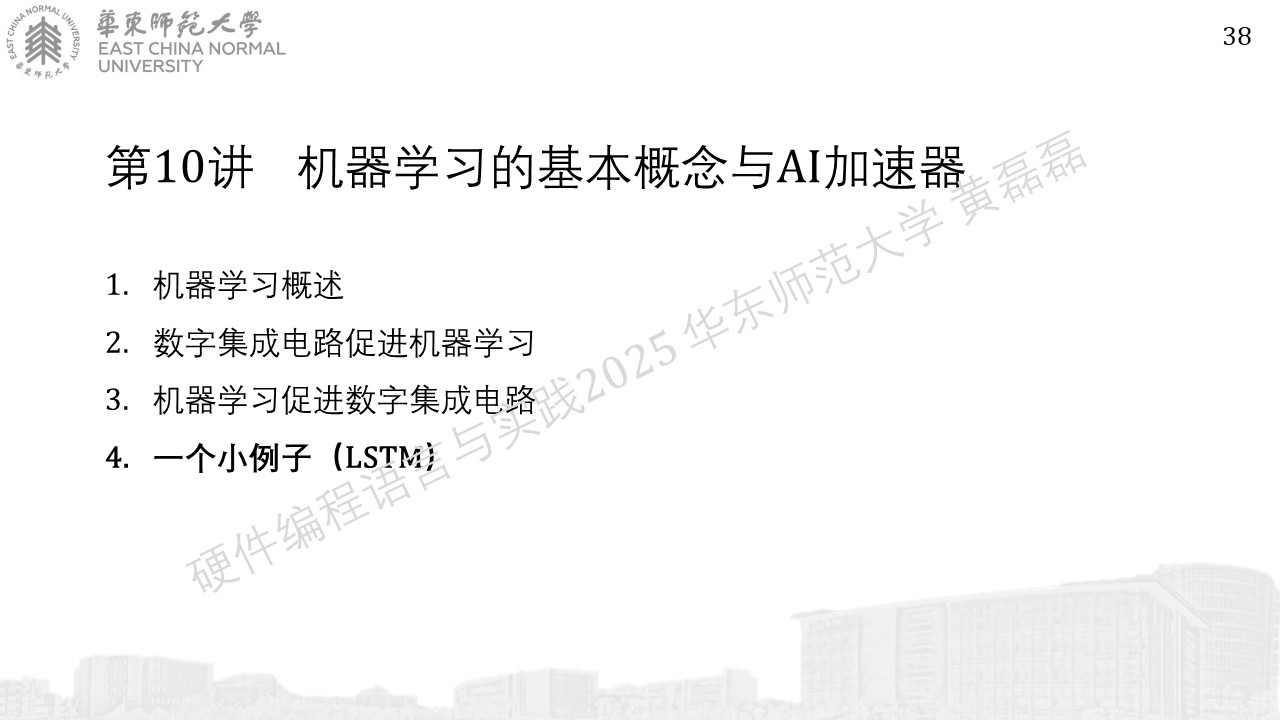

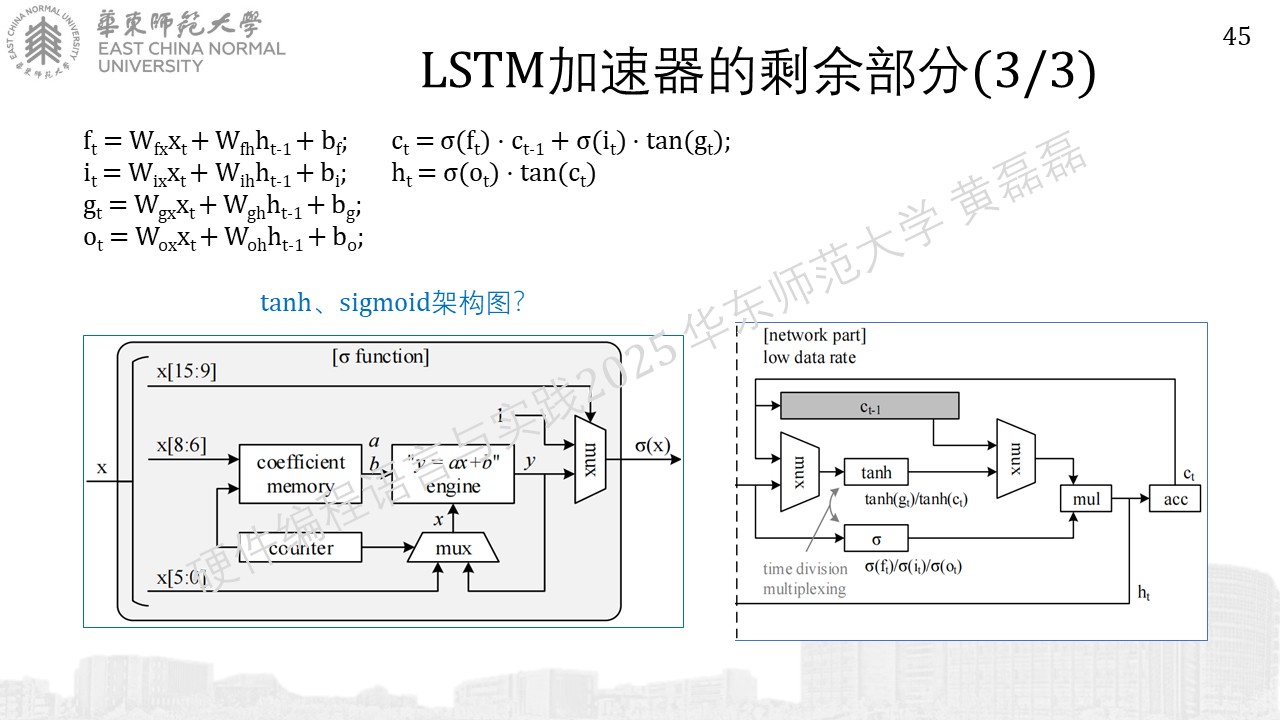

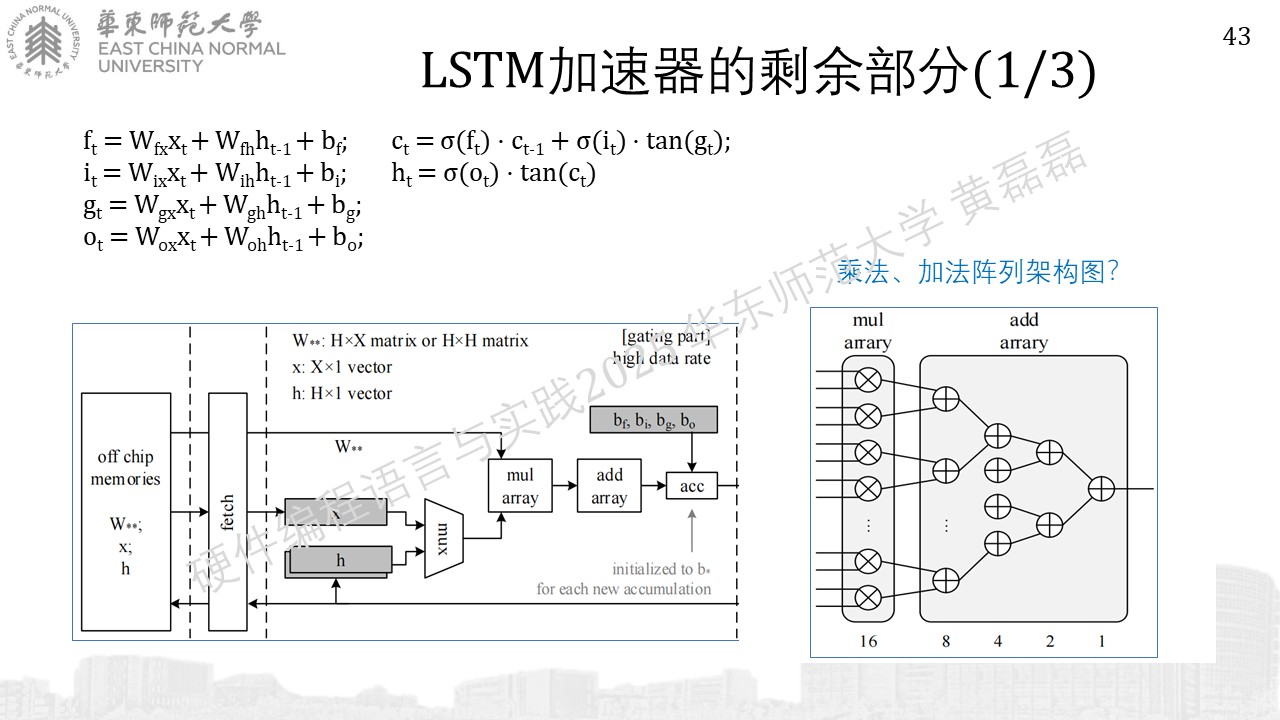

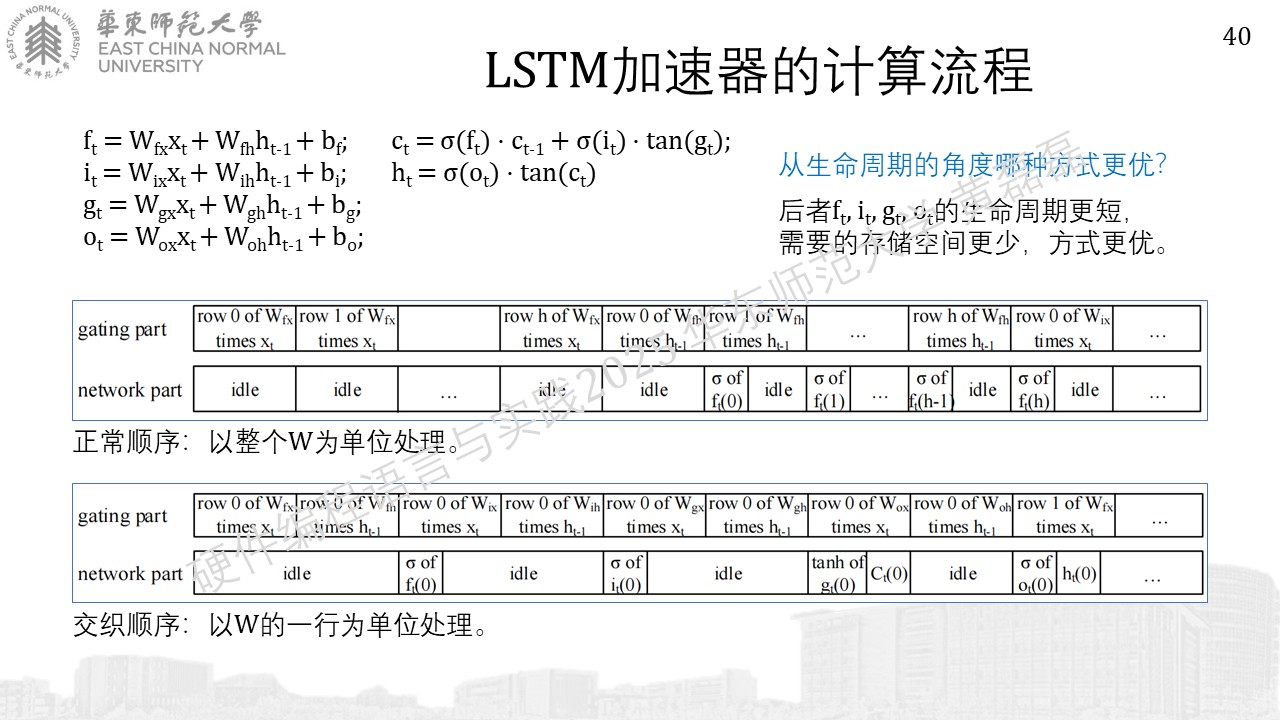

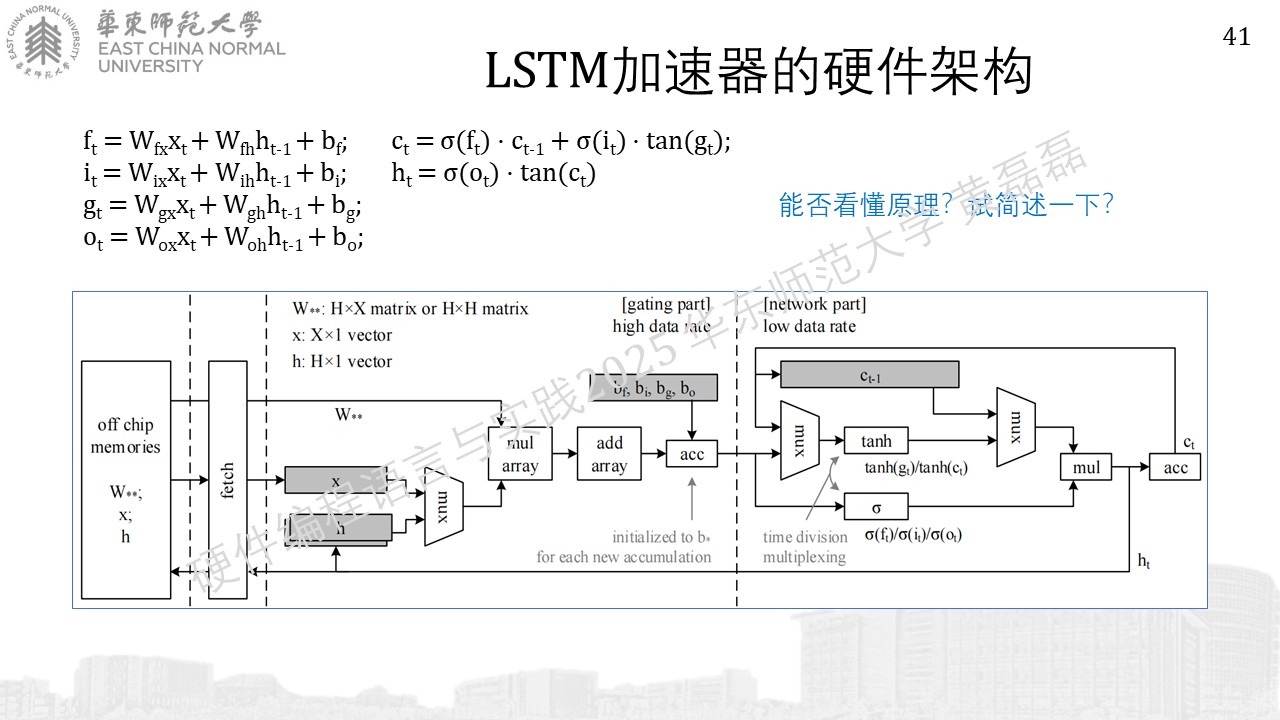

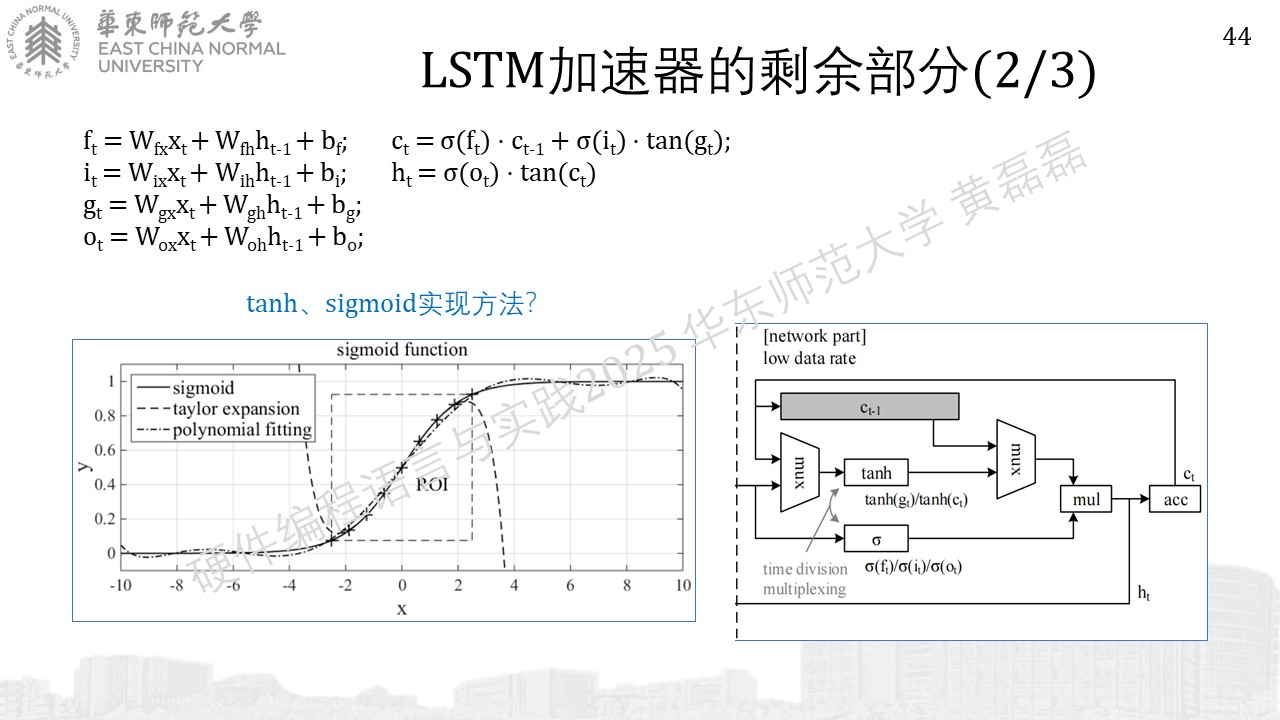

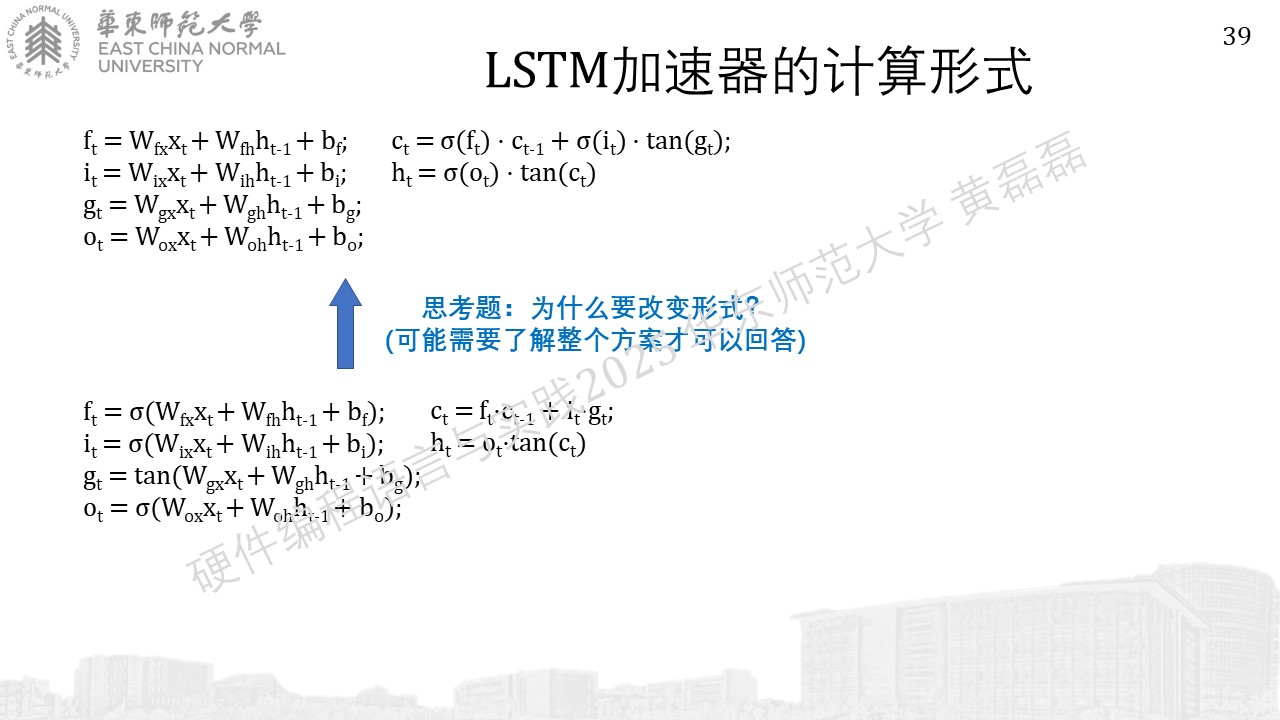

一个小例子（LSTM）

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87386.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87396.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87406.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%874114.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%874210.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87437.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87446.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87456.JPG

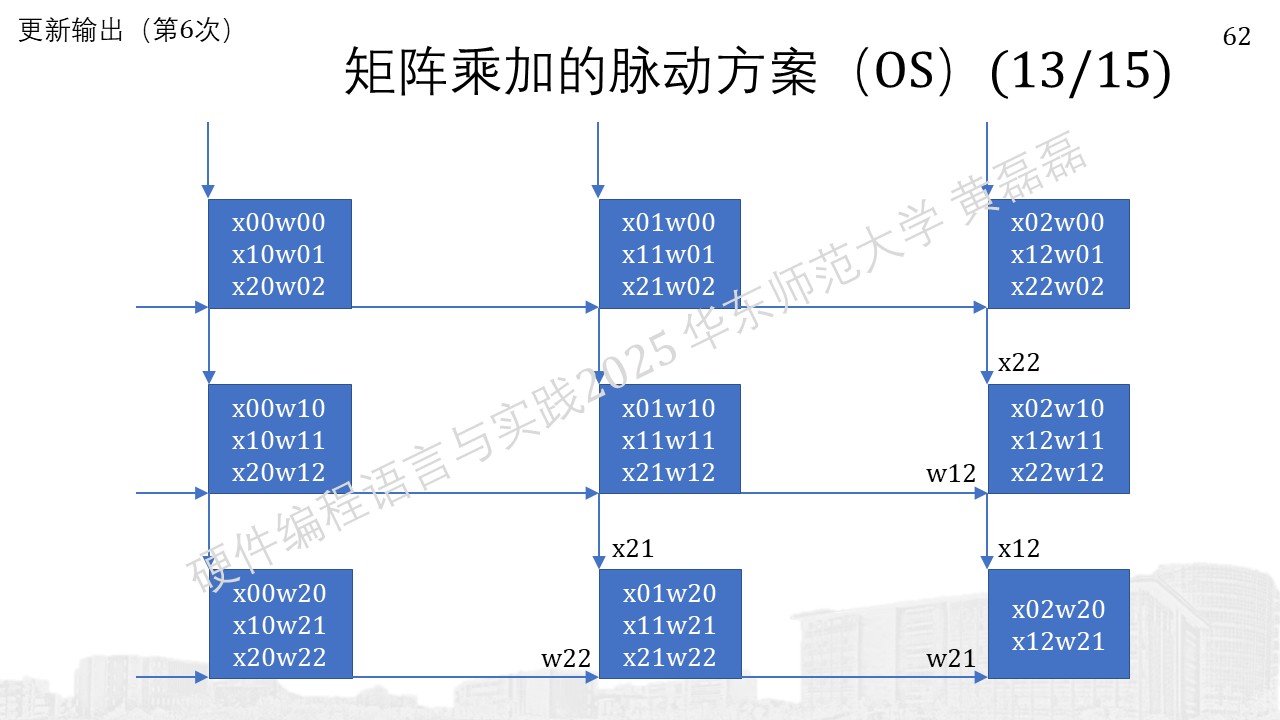

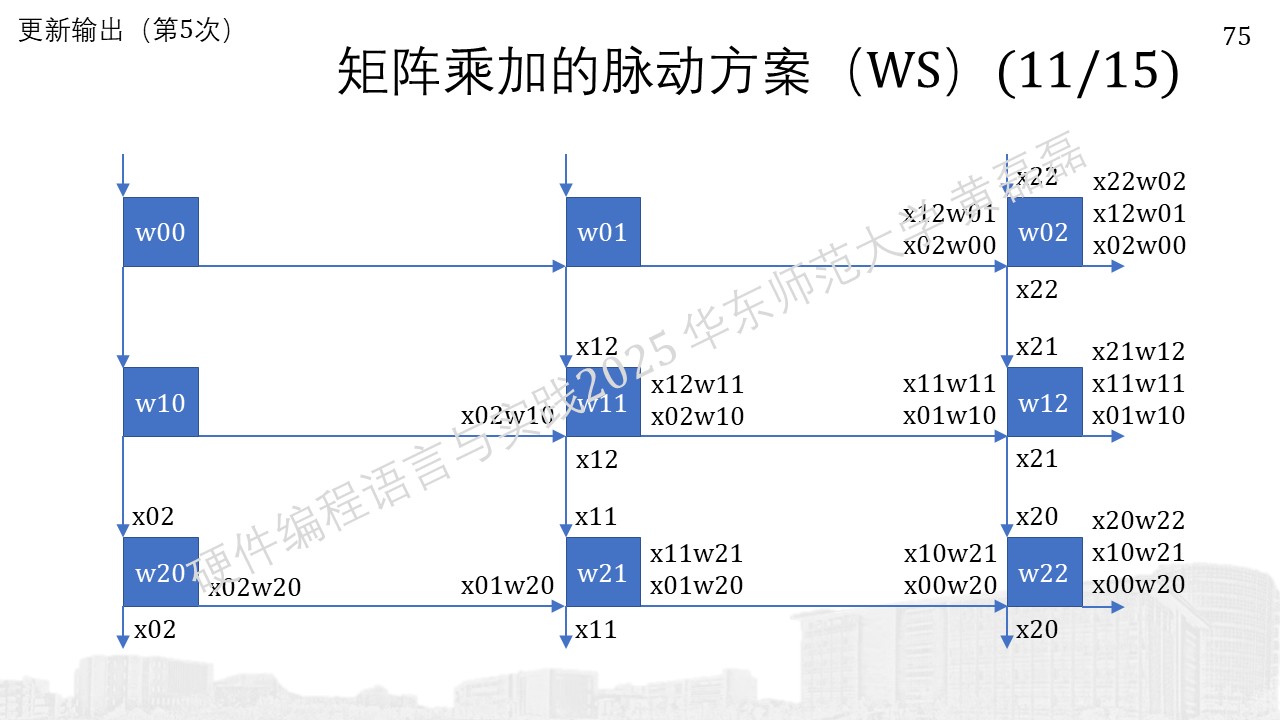

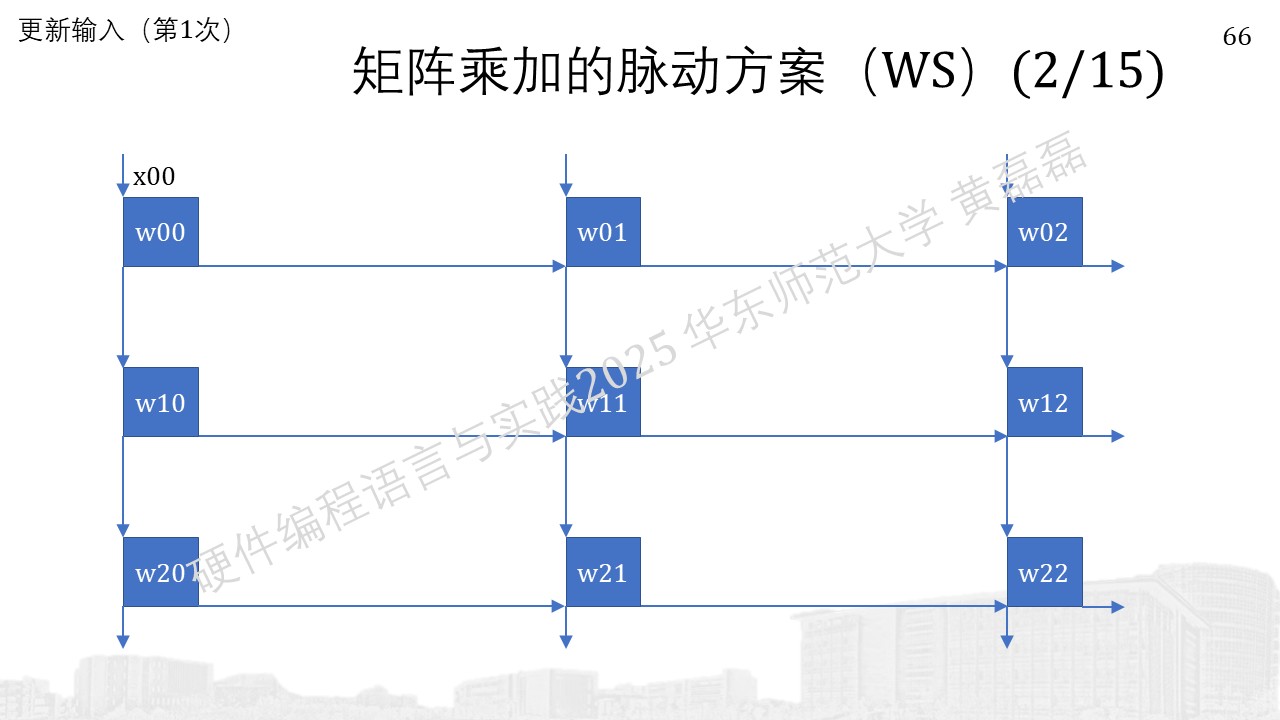

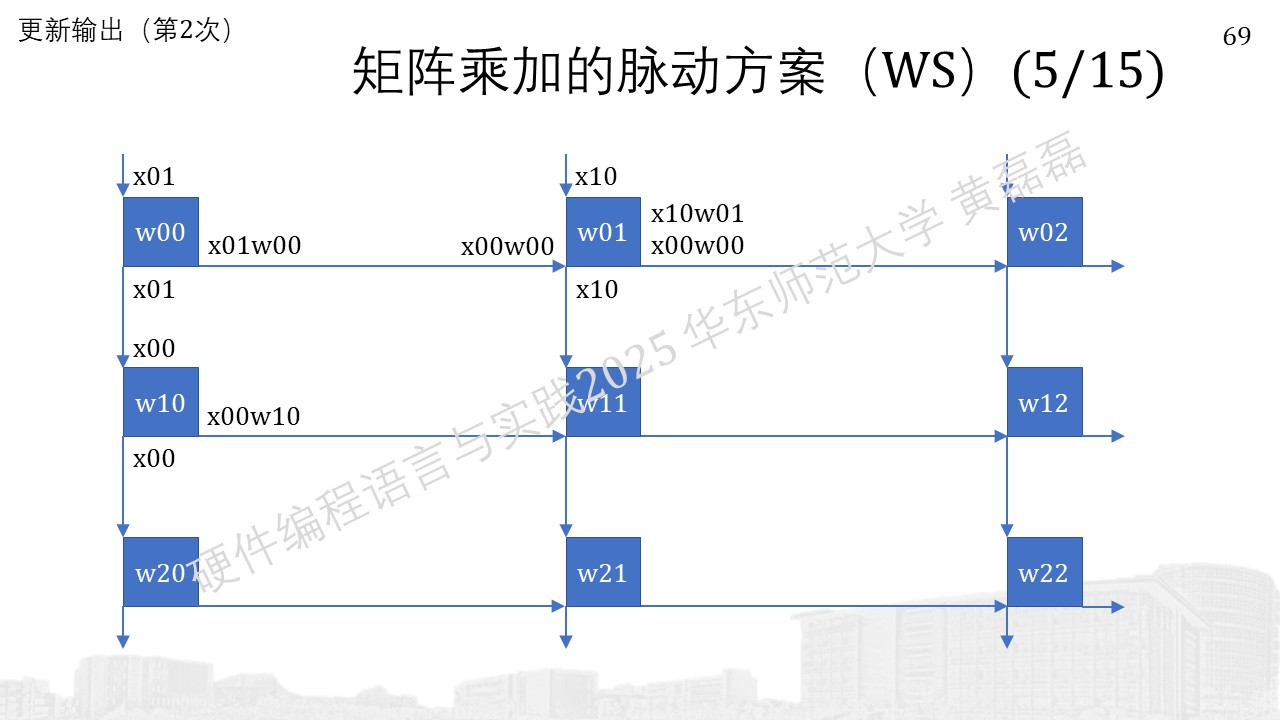

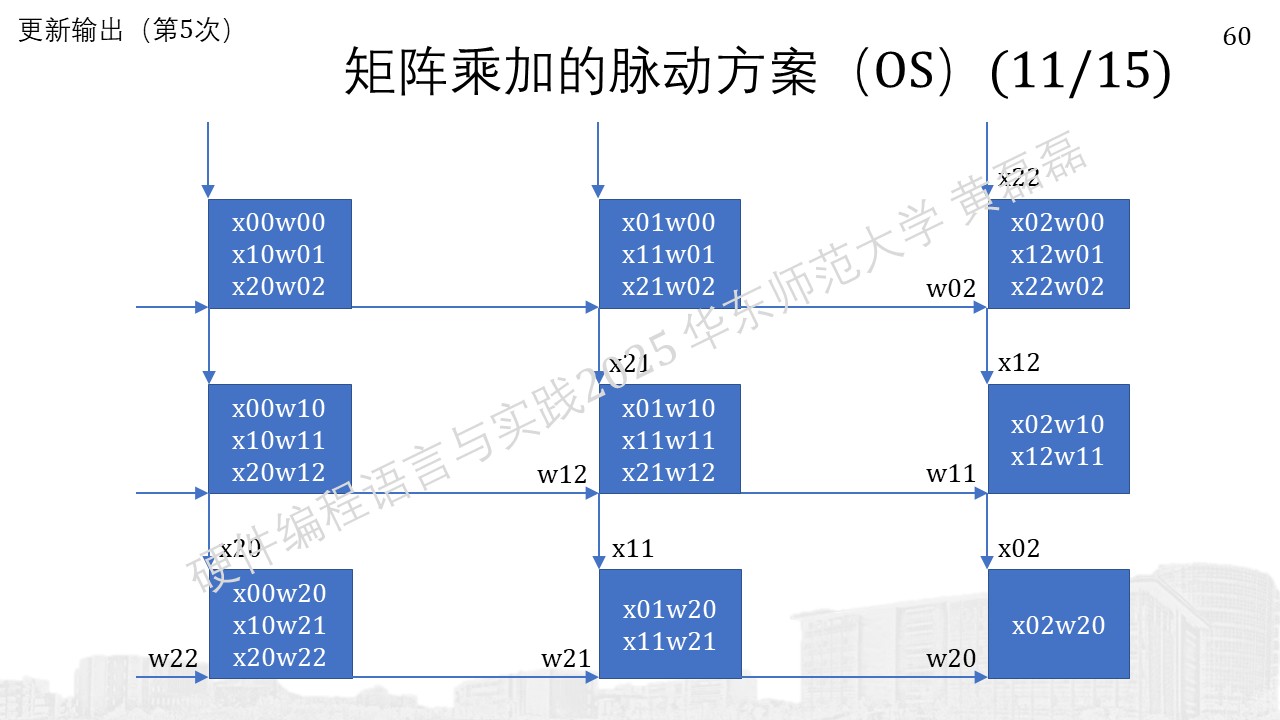

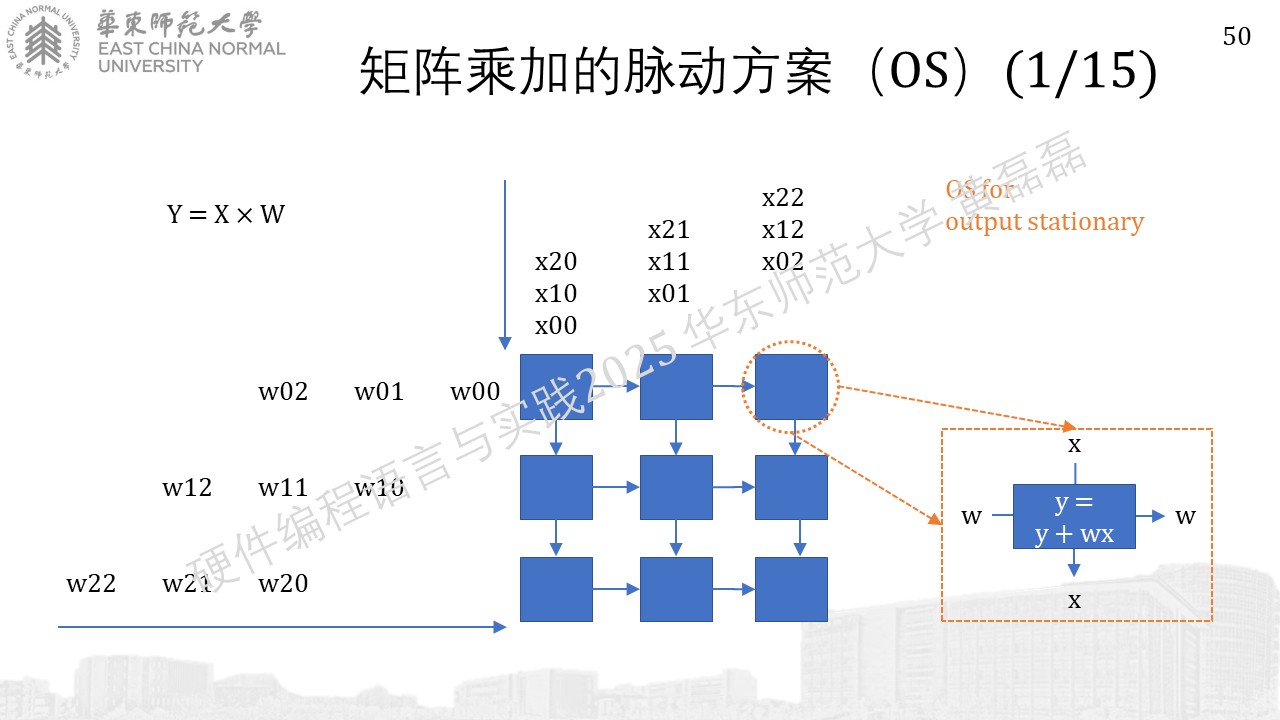

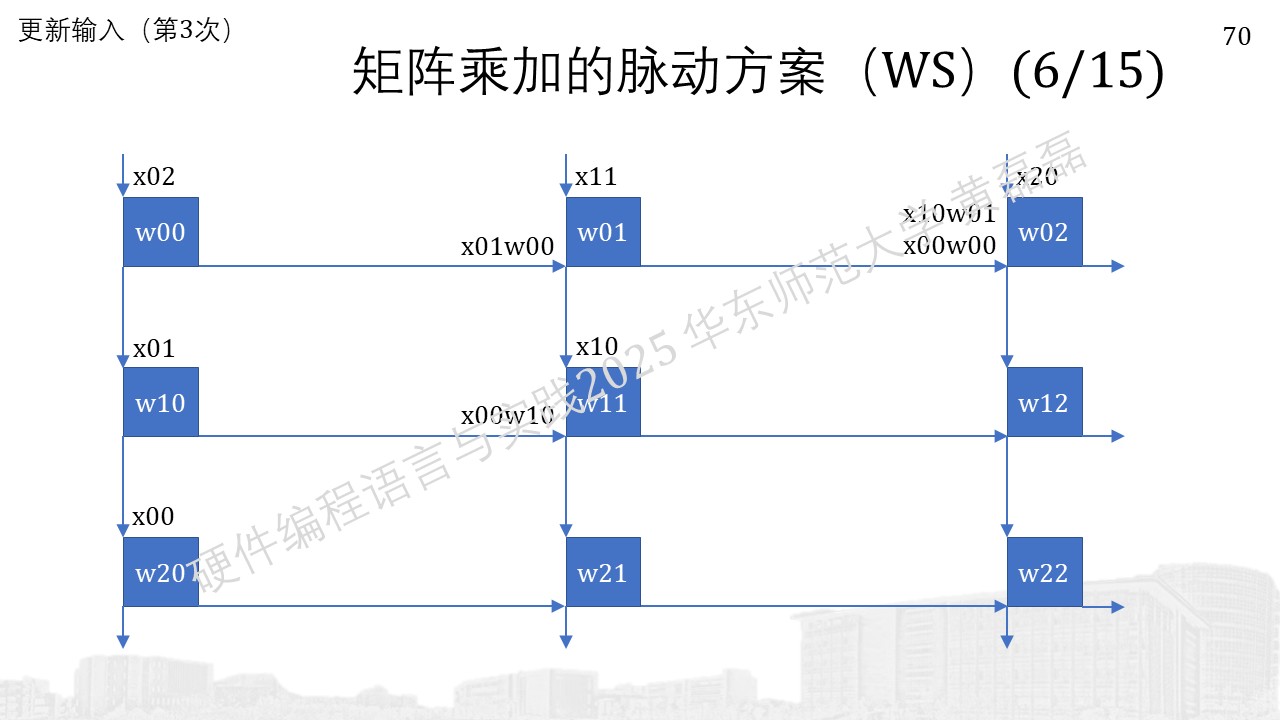

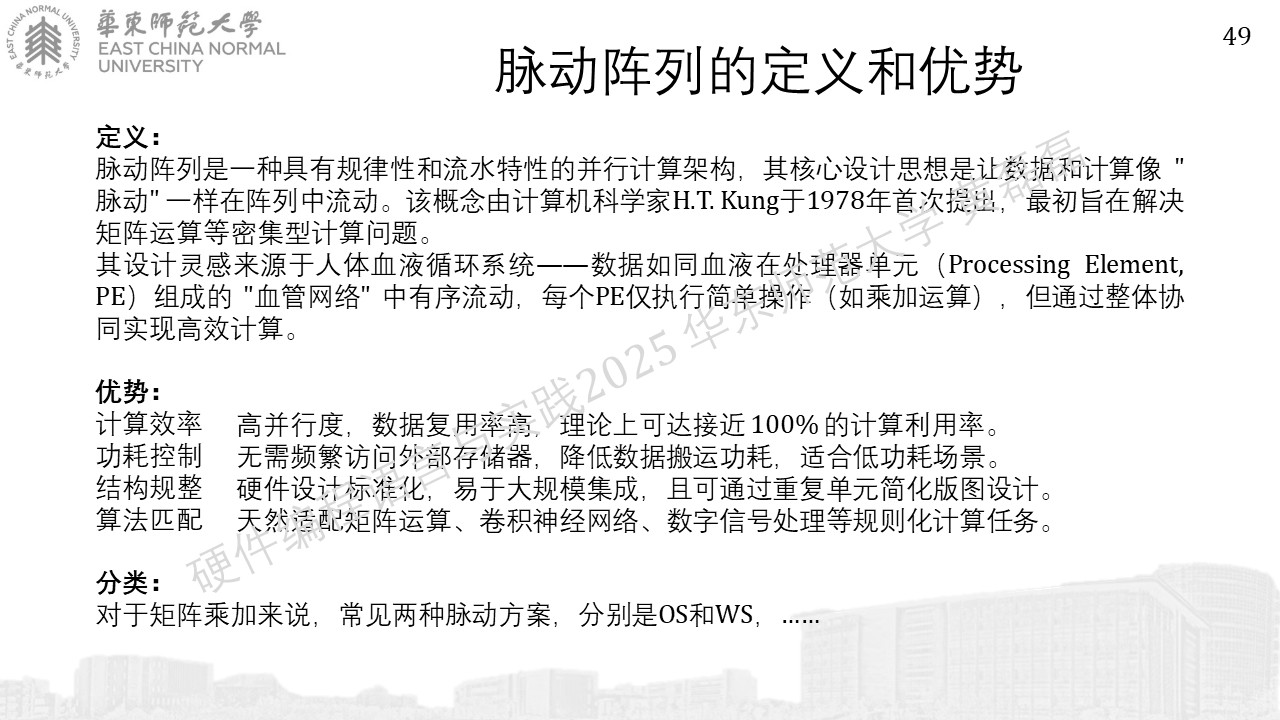

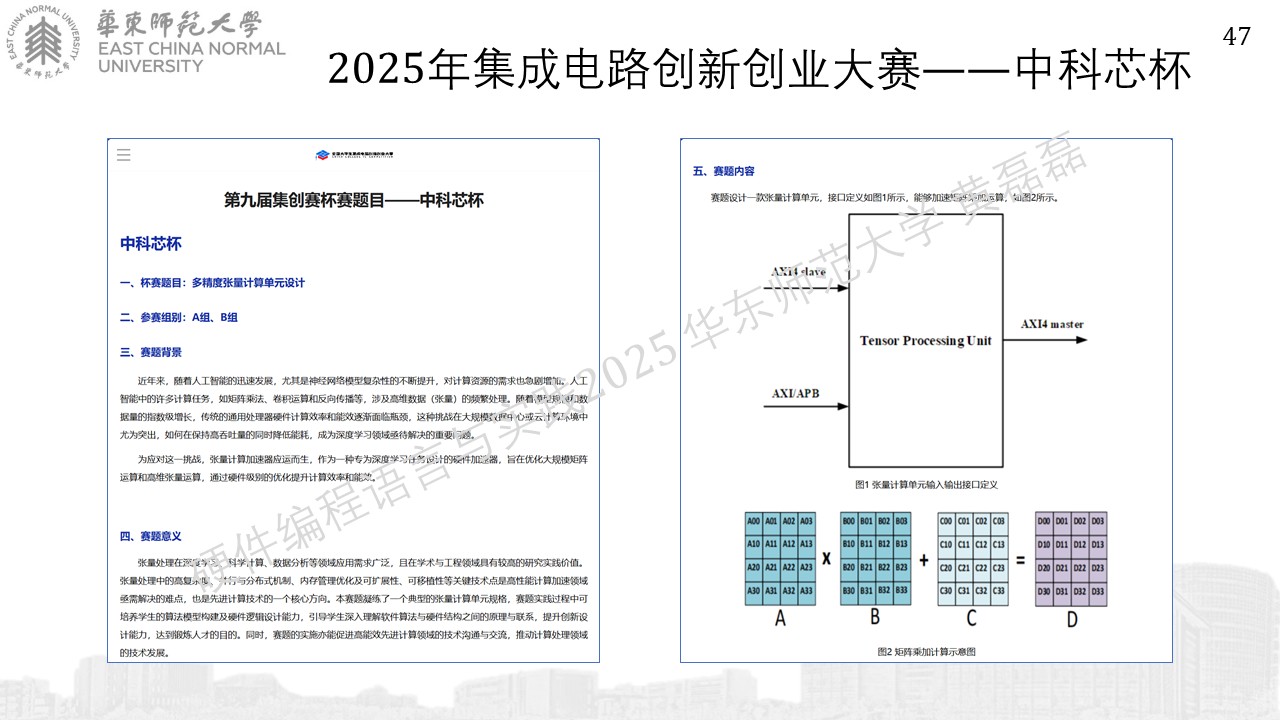

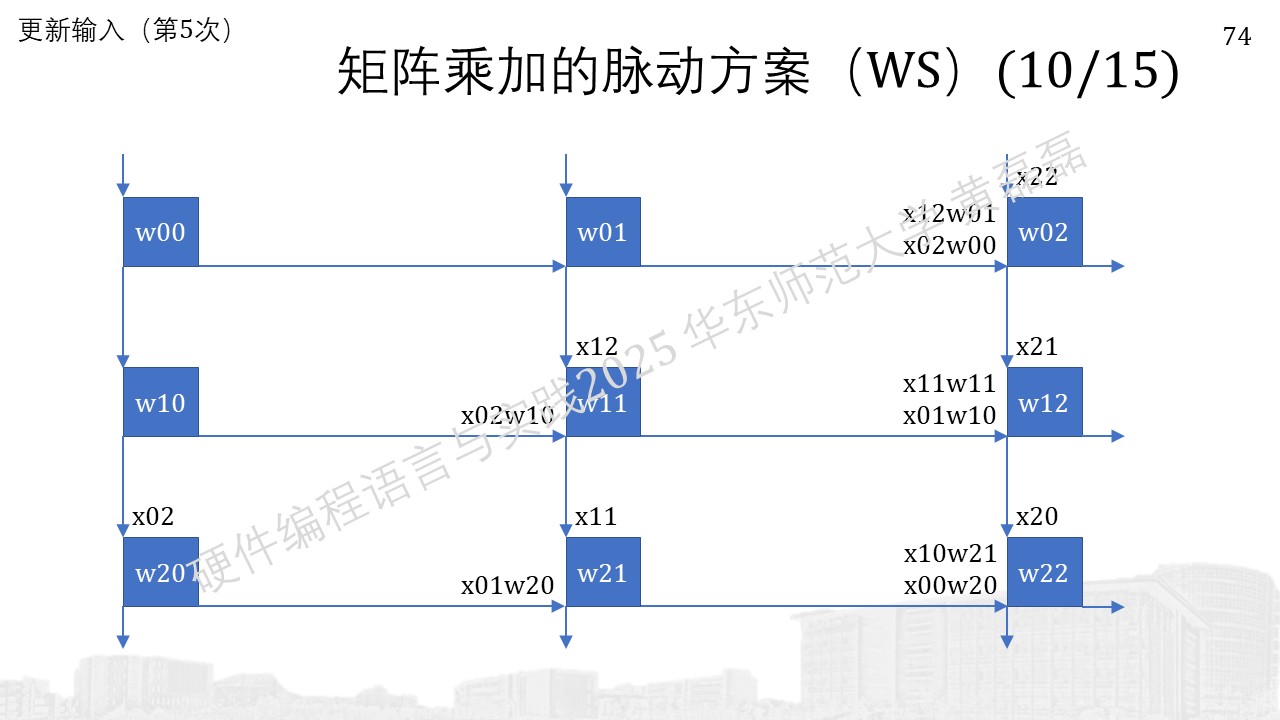

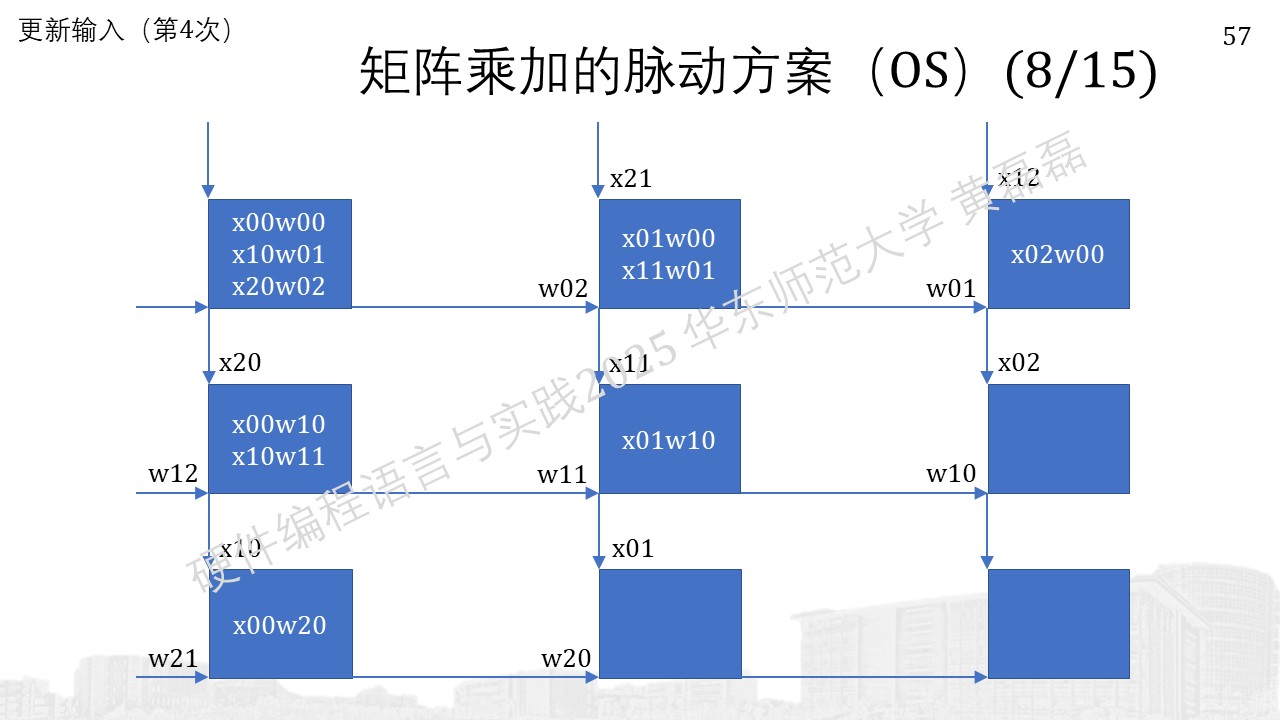

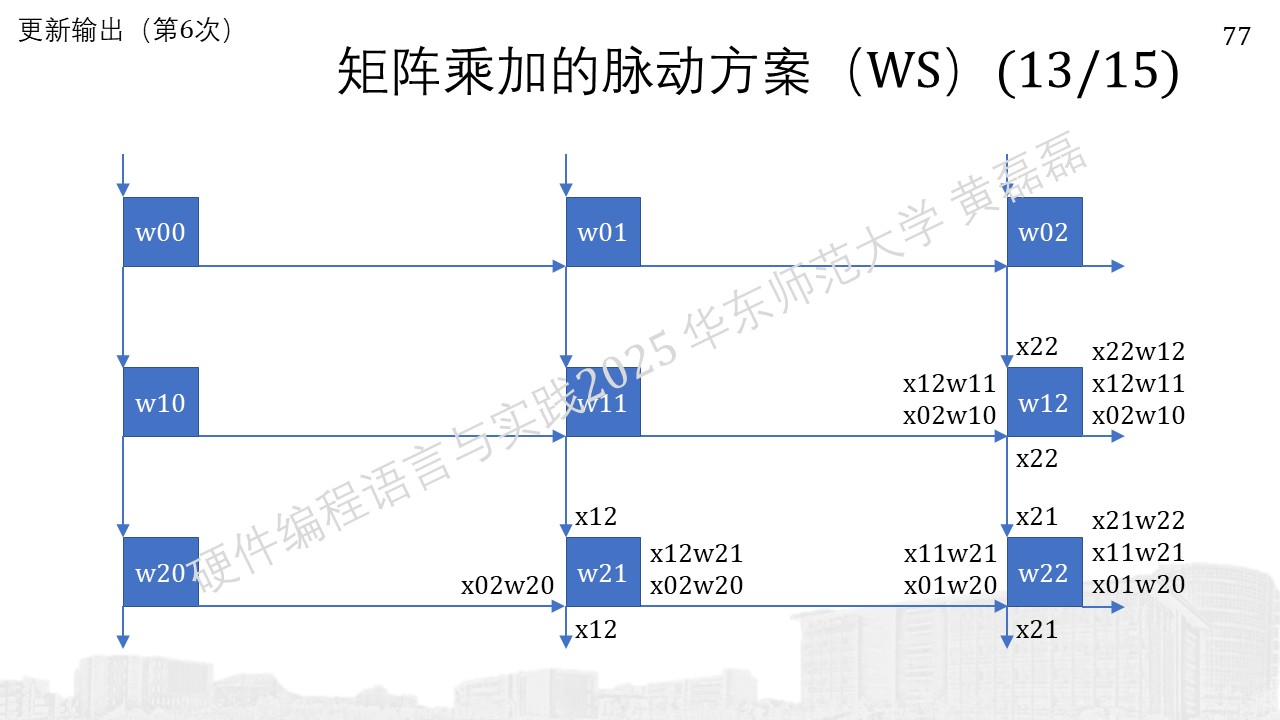

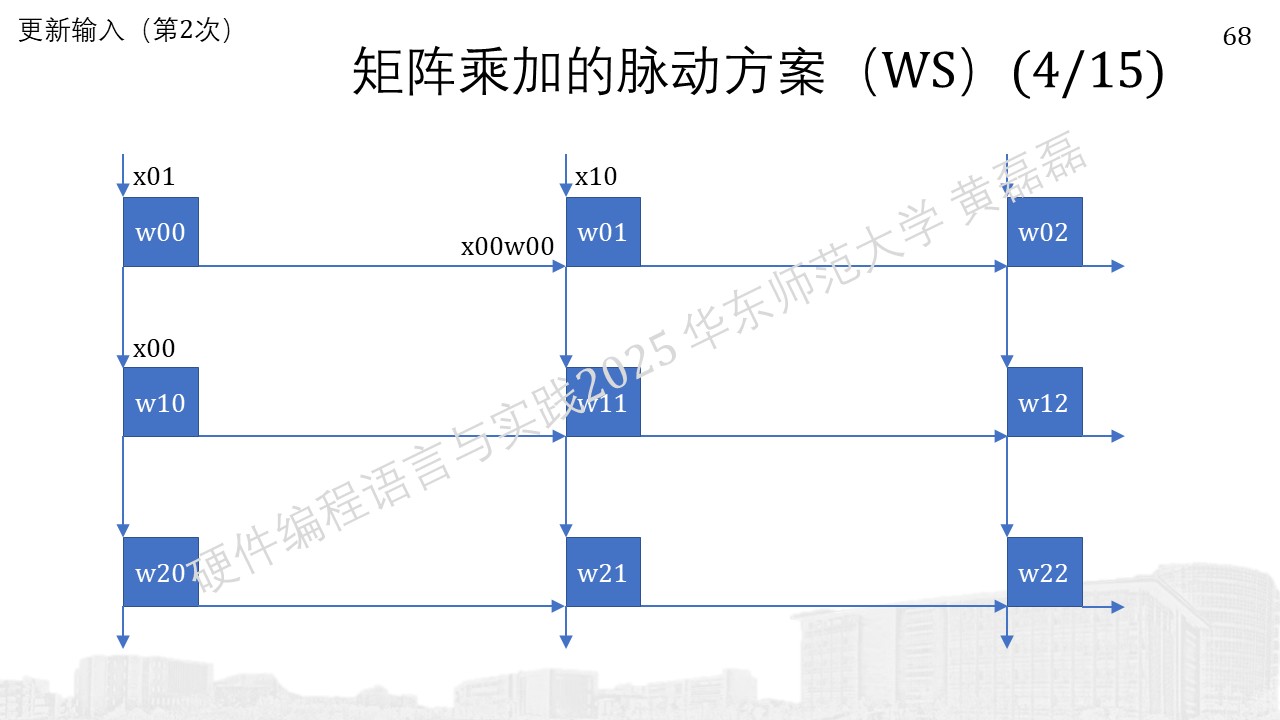

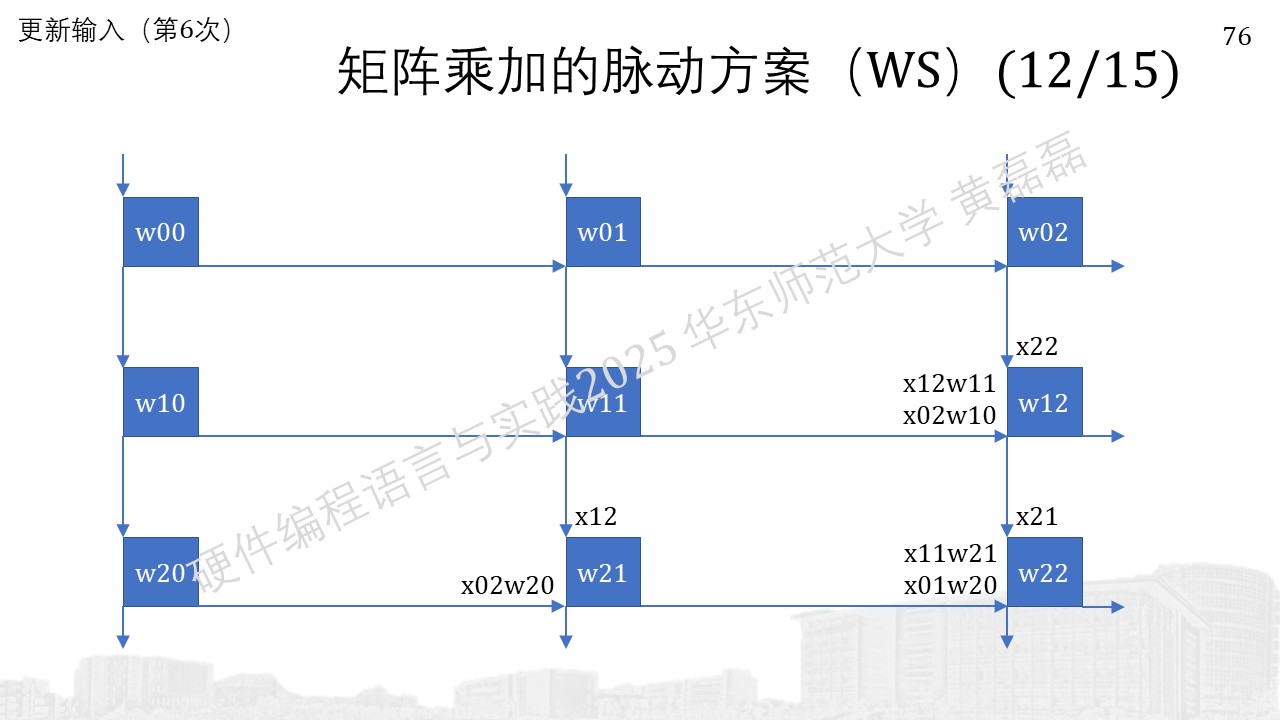

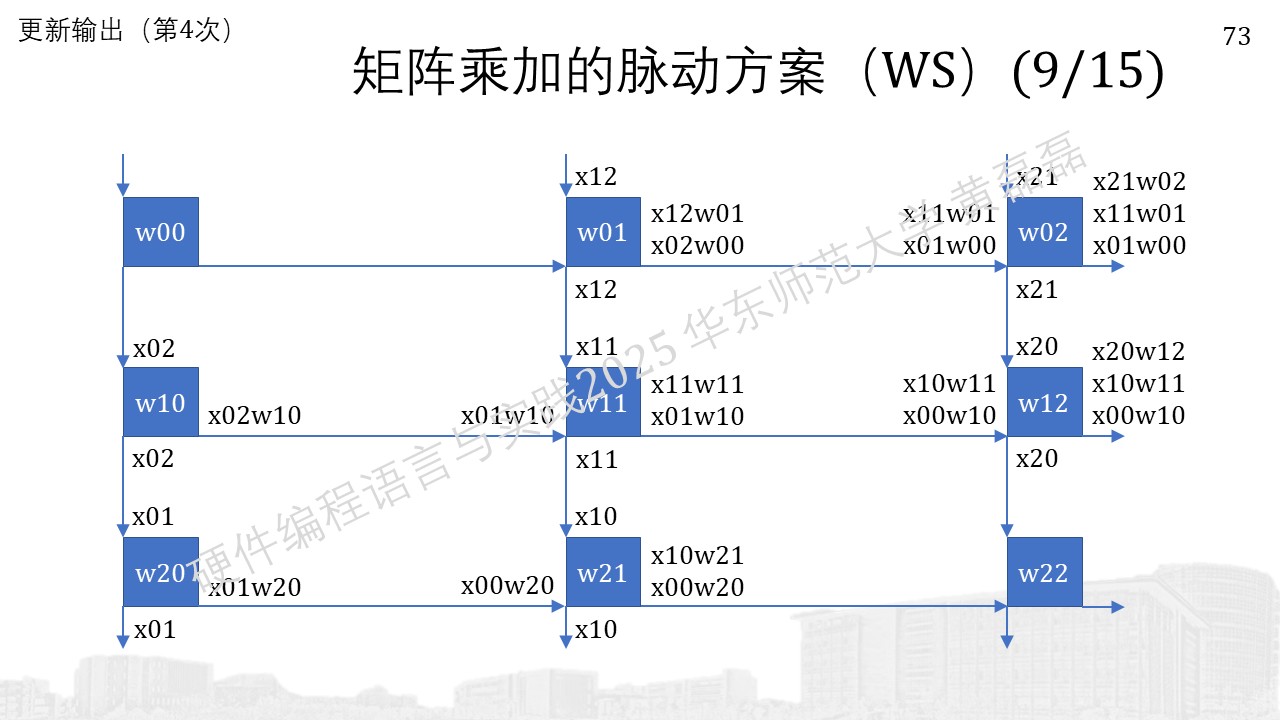

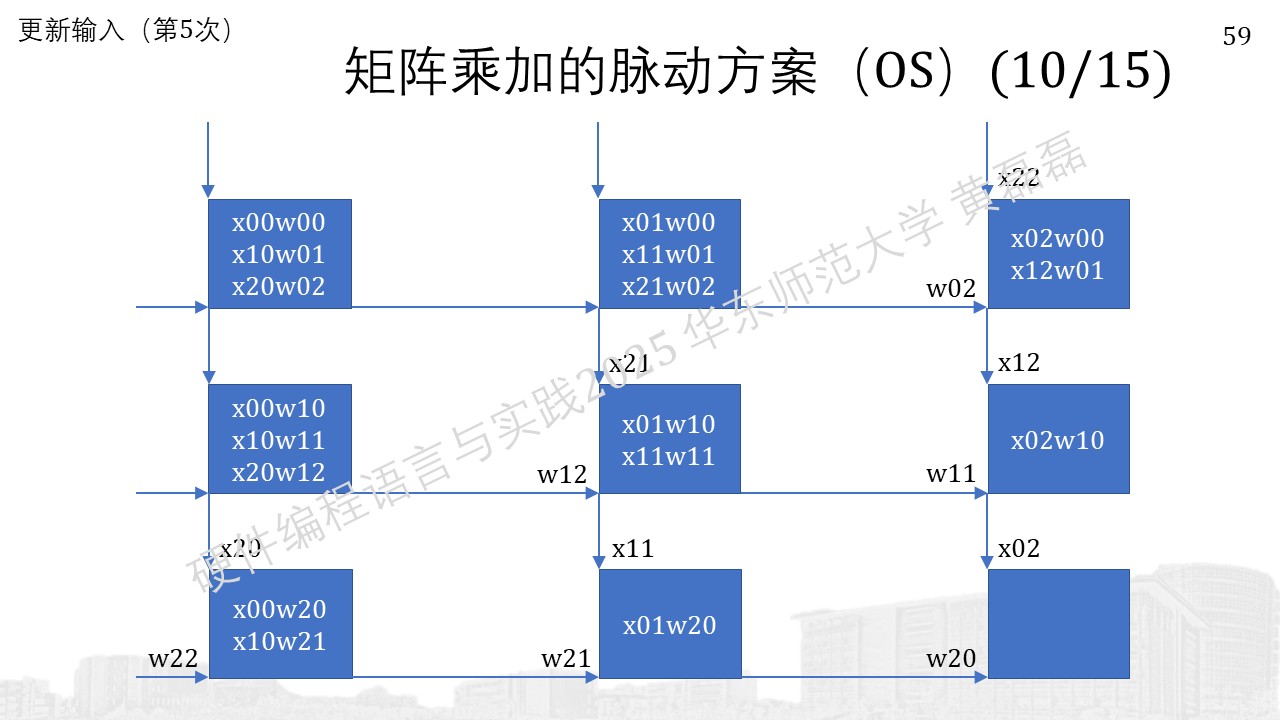

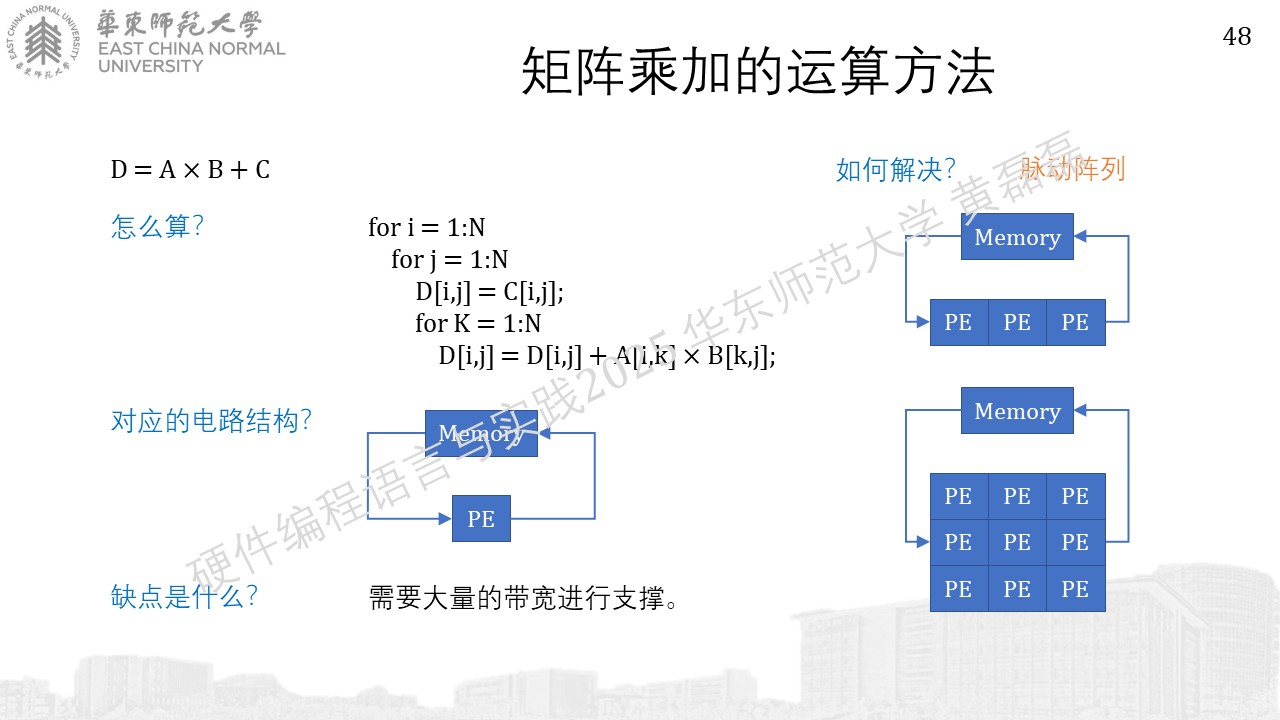

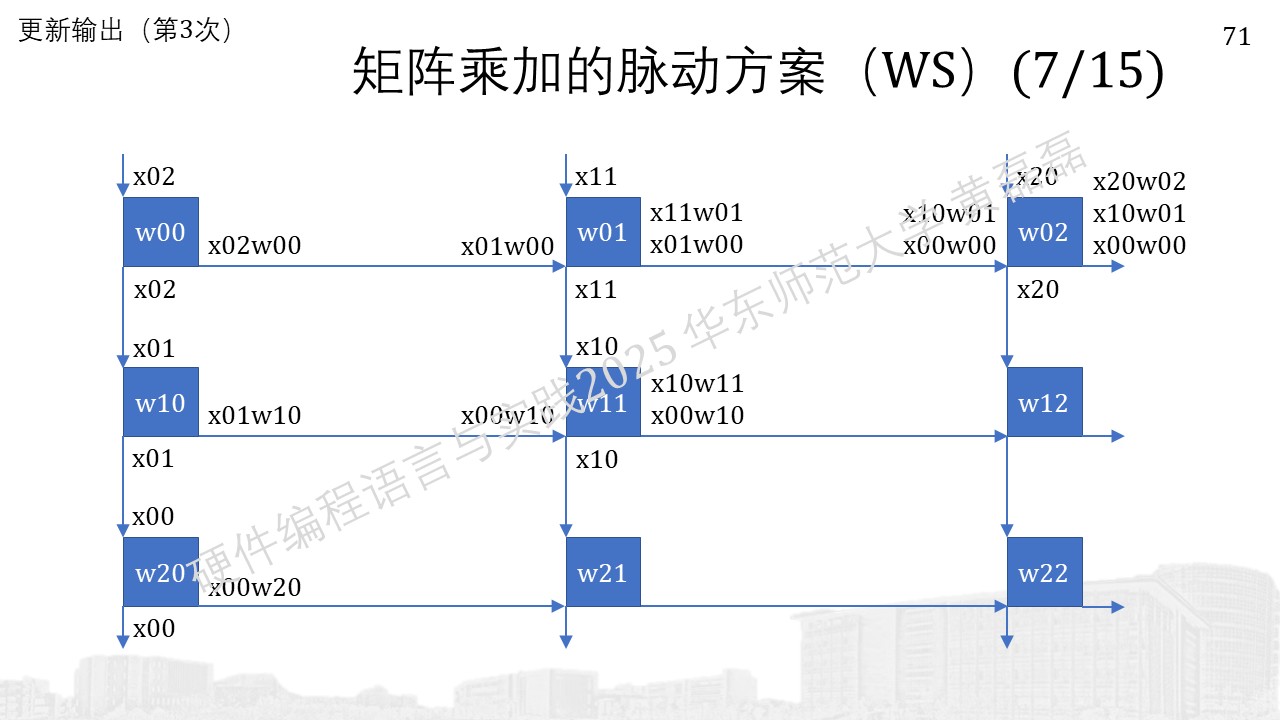

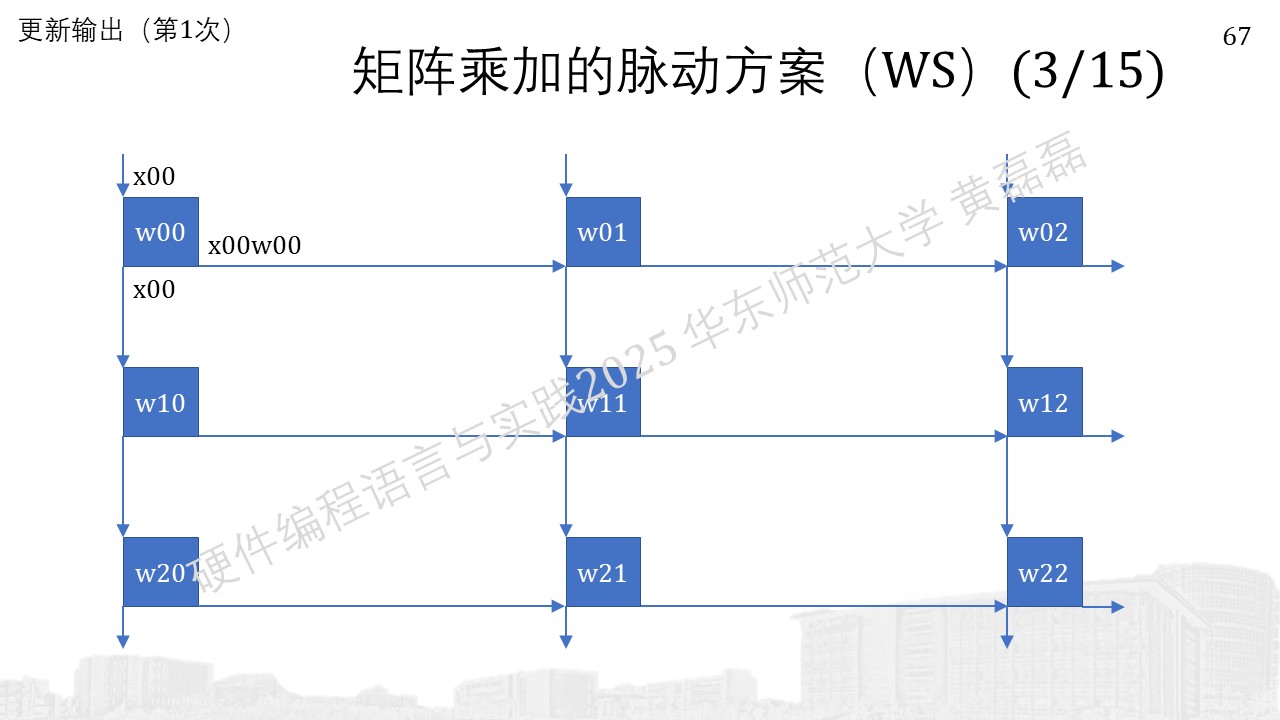

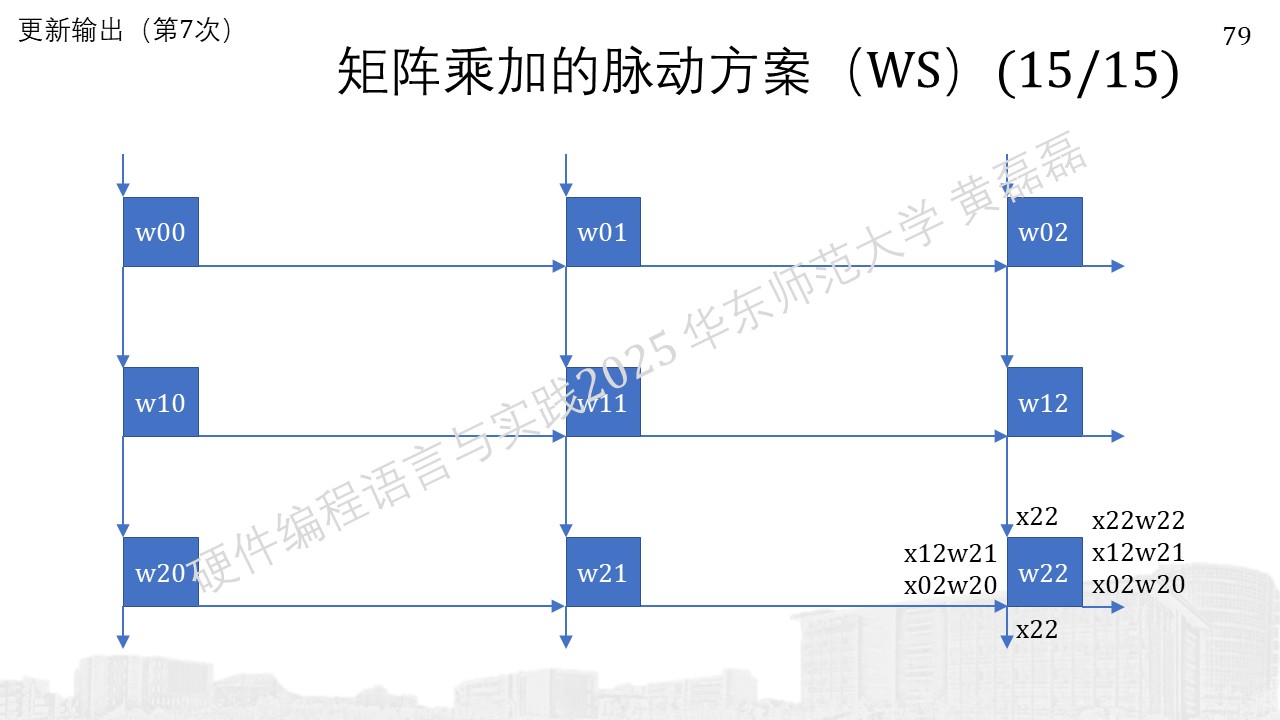

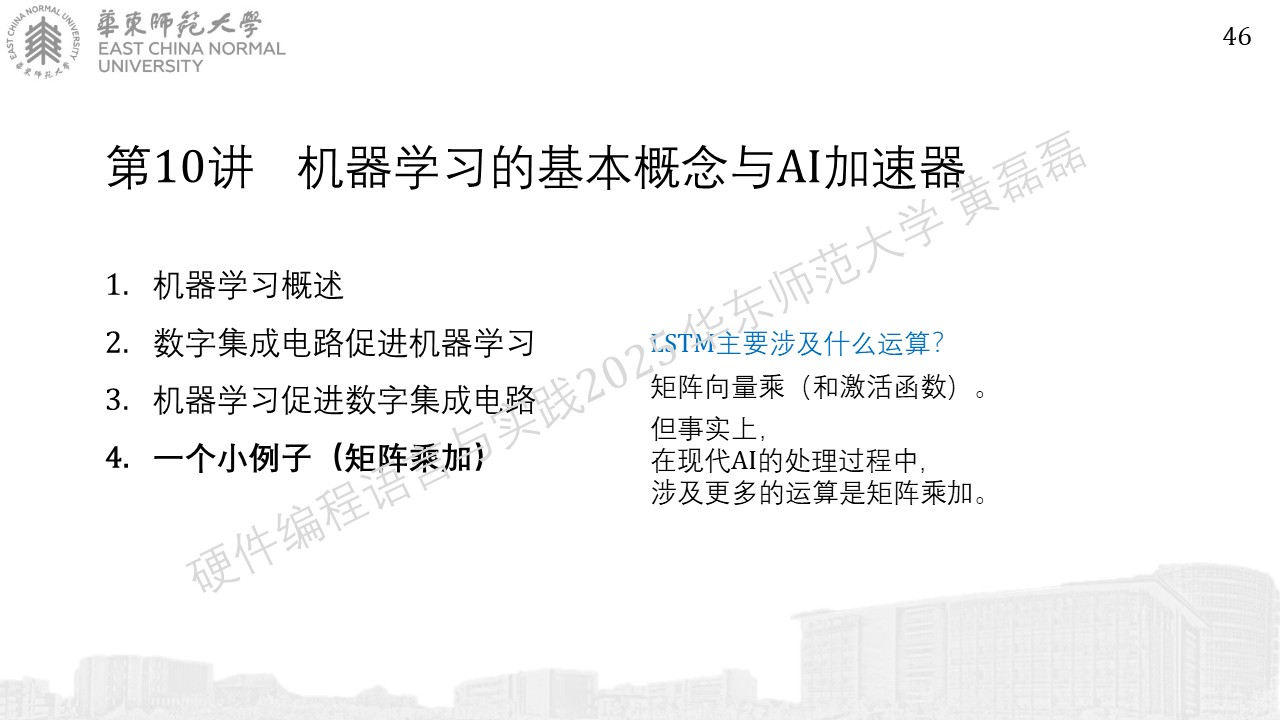

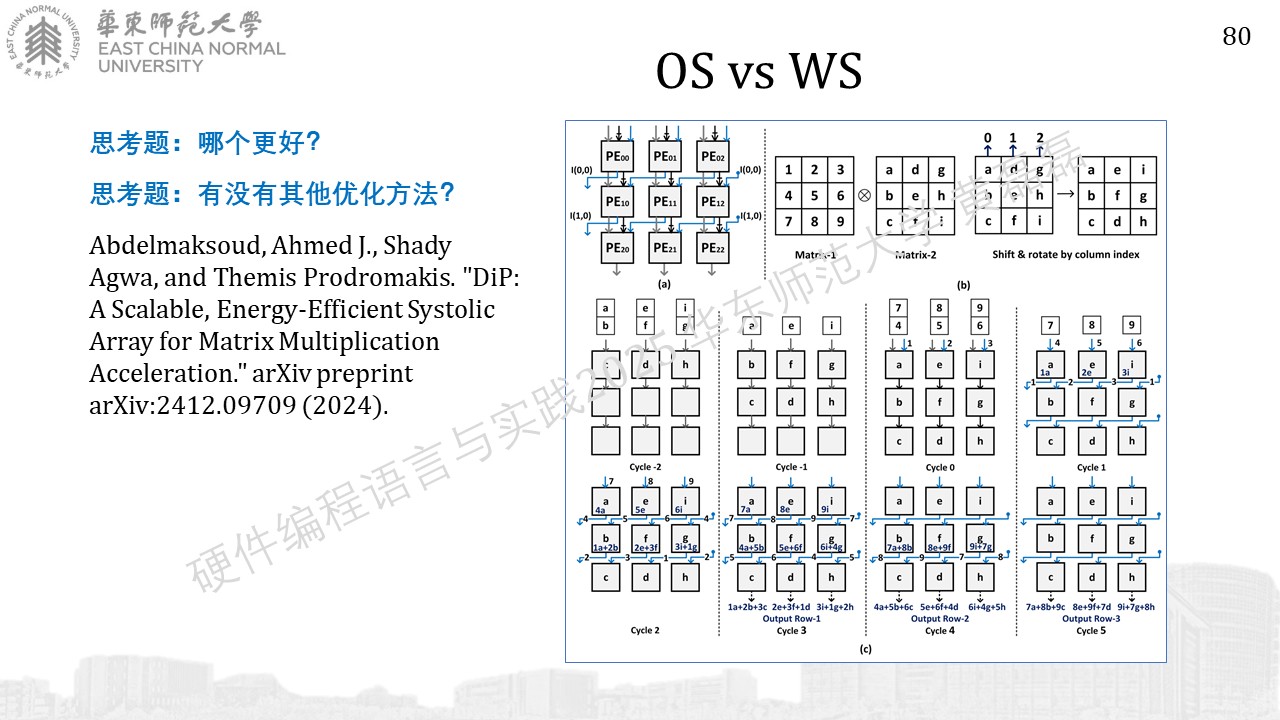

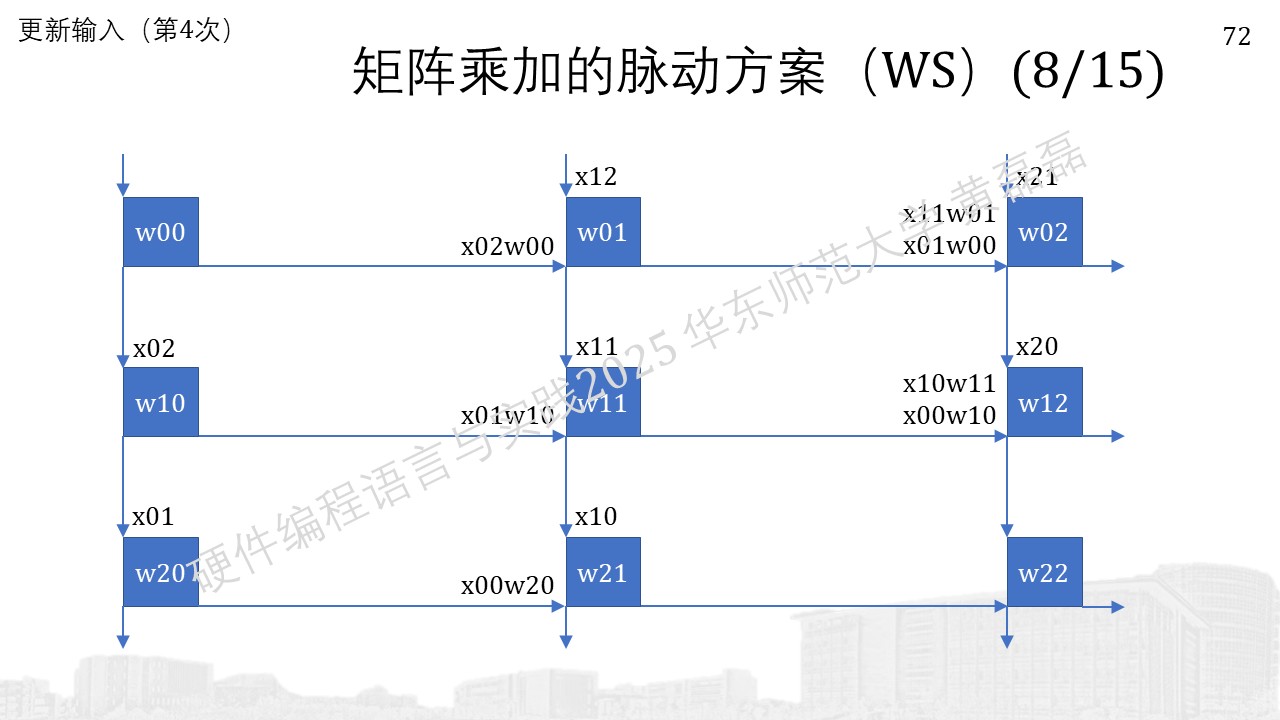

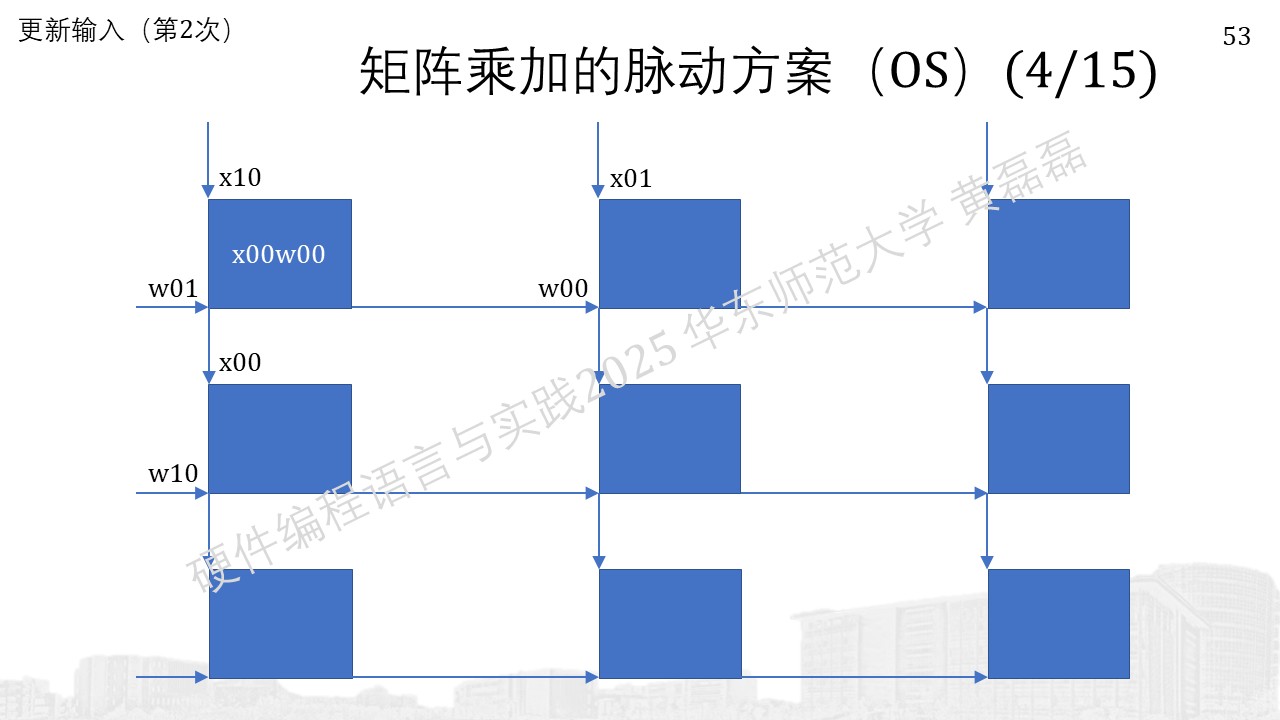

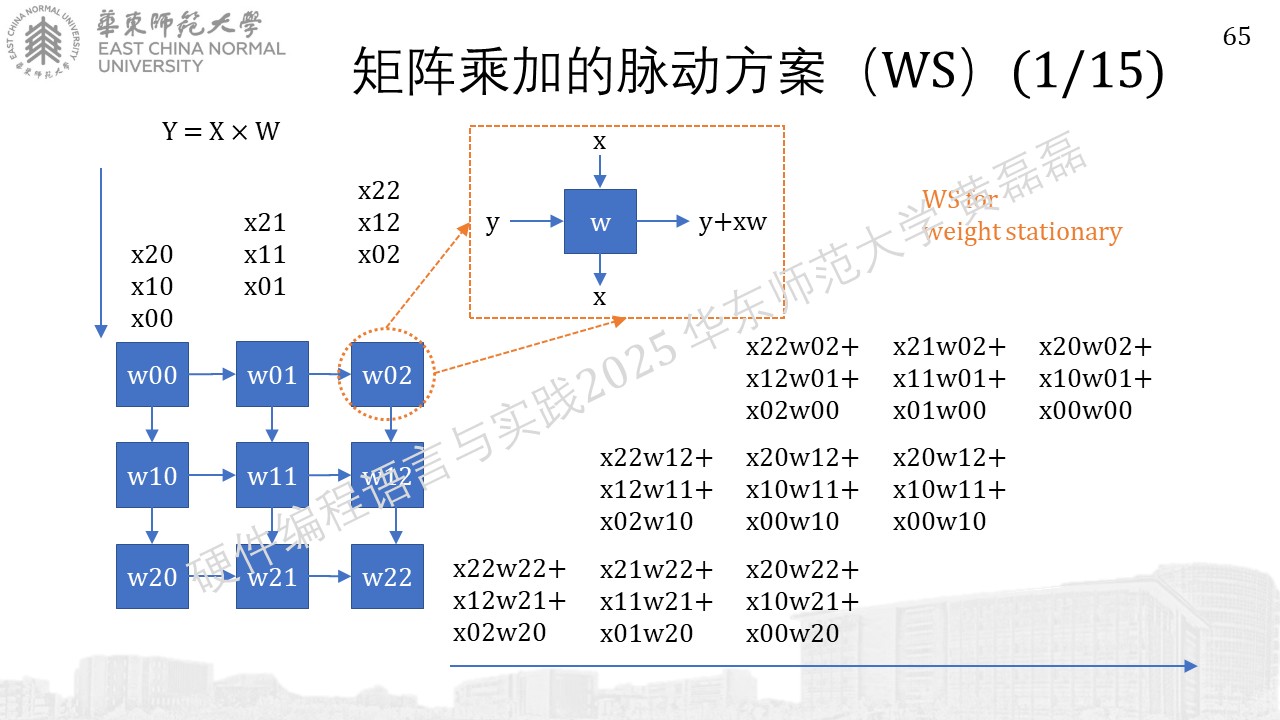

一个小例子（矩阵乘加）

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87466.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87476.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87486.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87496.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87505.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%875111.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87527.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87535.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87545.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87555.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87565.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87575.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87585.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87595.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87604.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%876110.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87624.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87634.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87644.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87654.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87664.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87674.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87684.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87693.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87703.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%877110.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87724.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87734.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87744.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87754.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87764.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87774.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87783.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87793.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87803.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%878110.JPG
