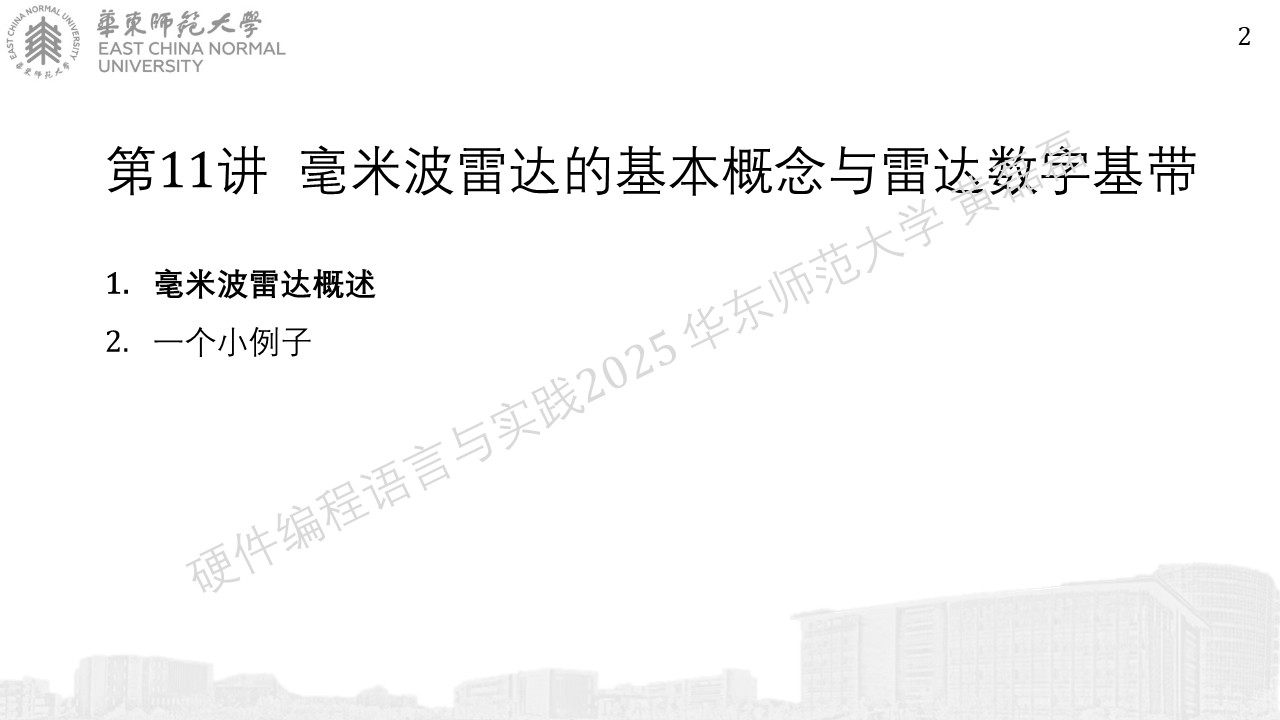

第11讲 - 毫米波雷达的基本概念与雷达数字基带

../../_images/%E5%B9%BB%E7%81%AF%E7%89%871102.JPG

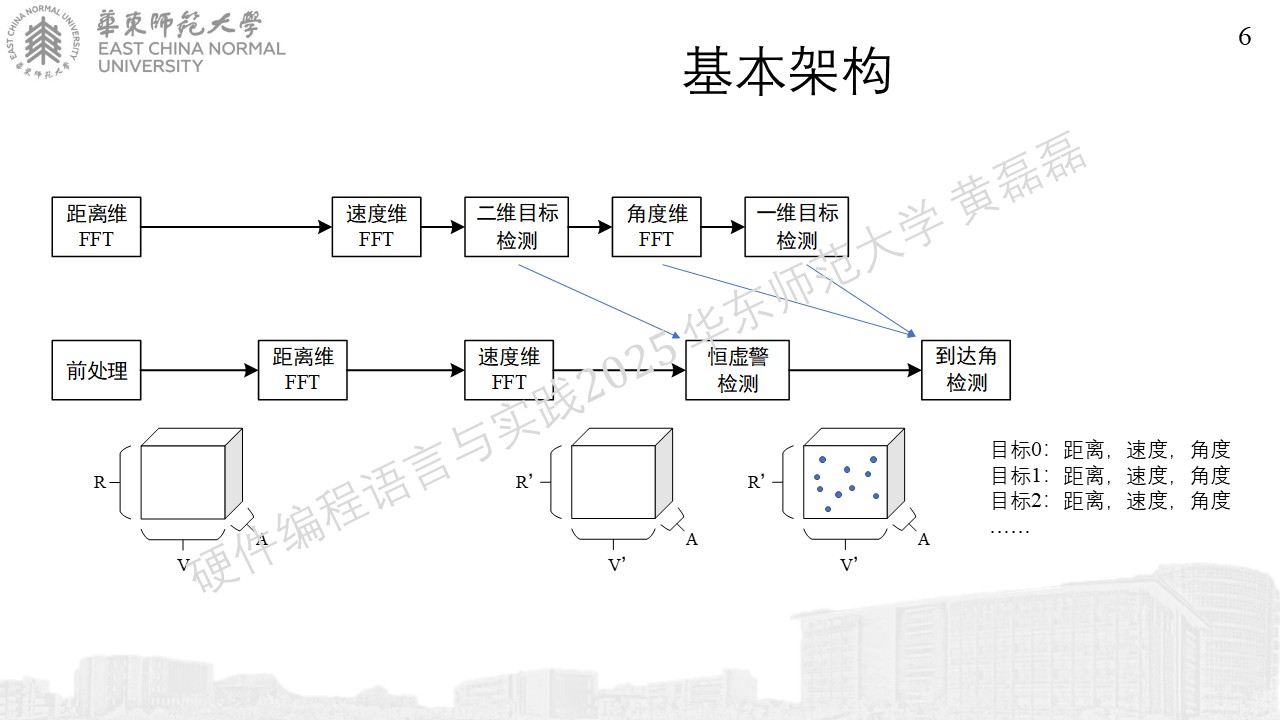

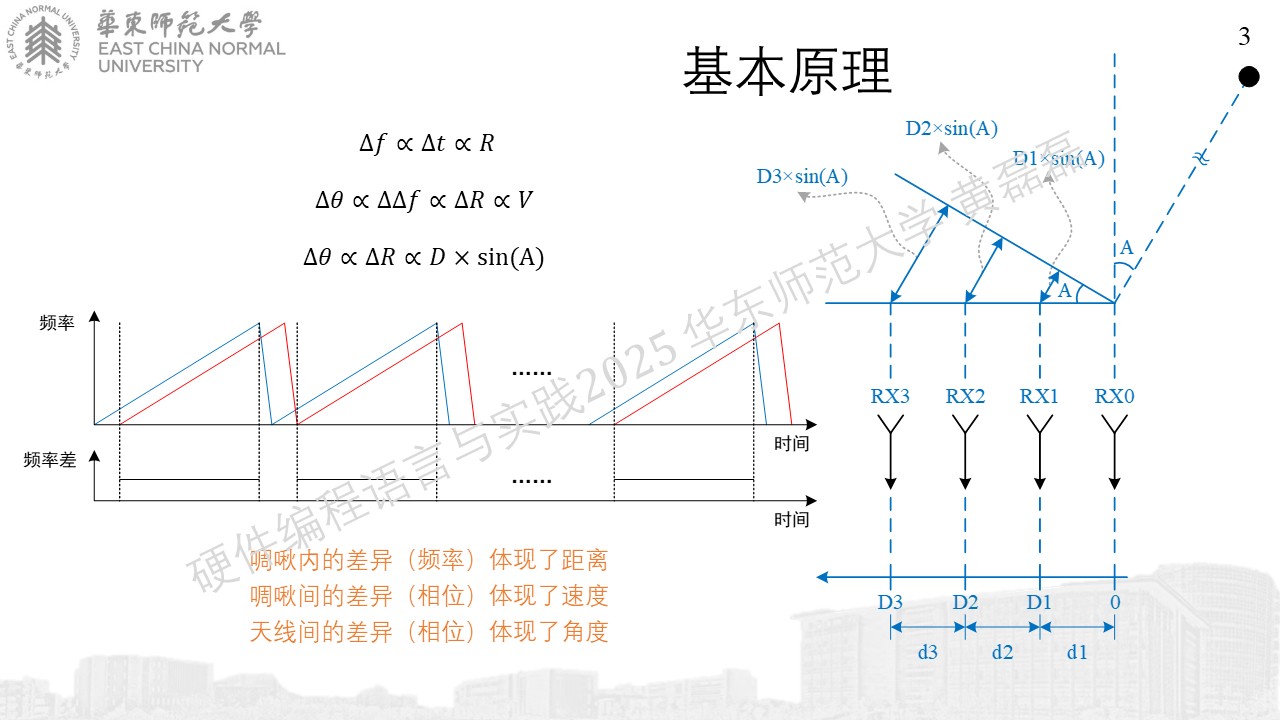

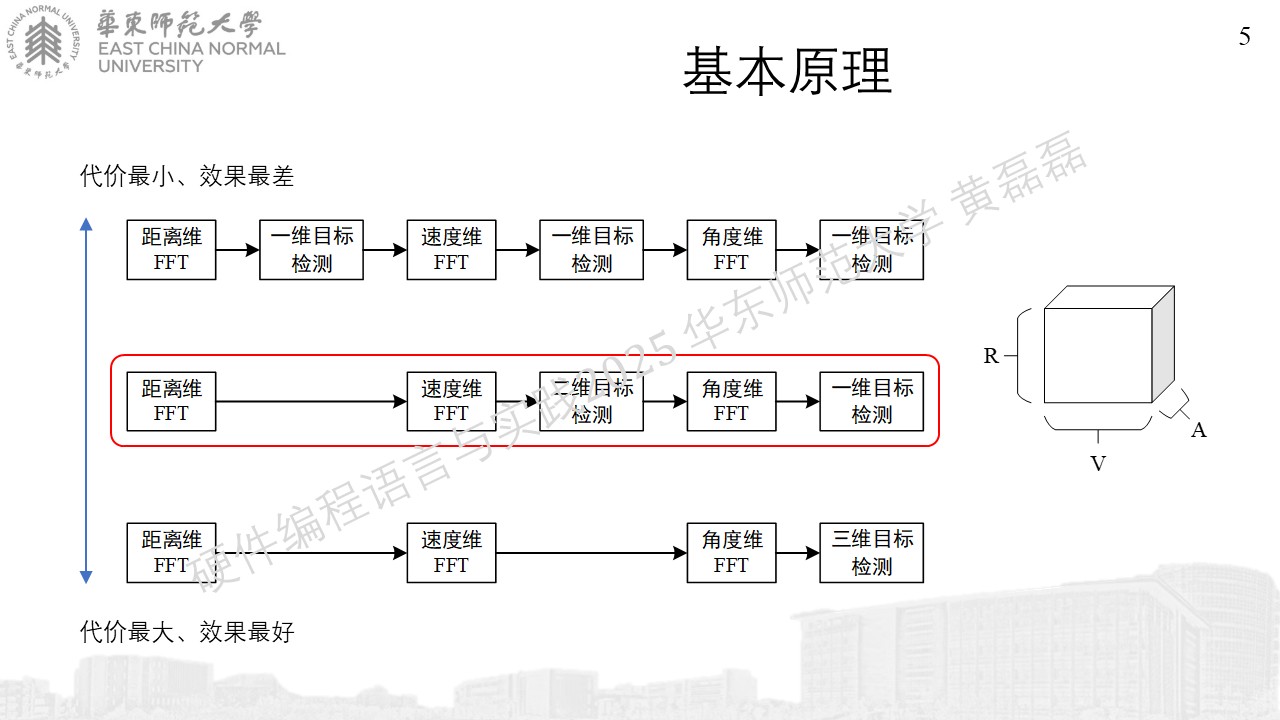

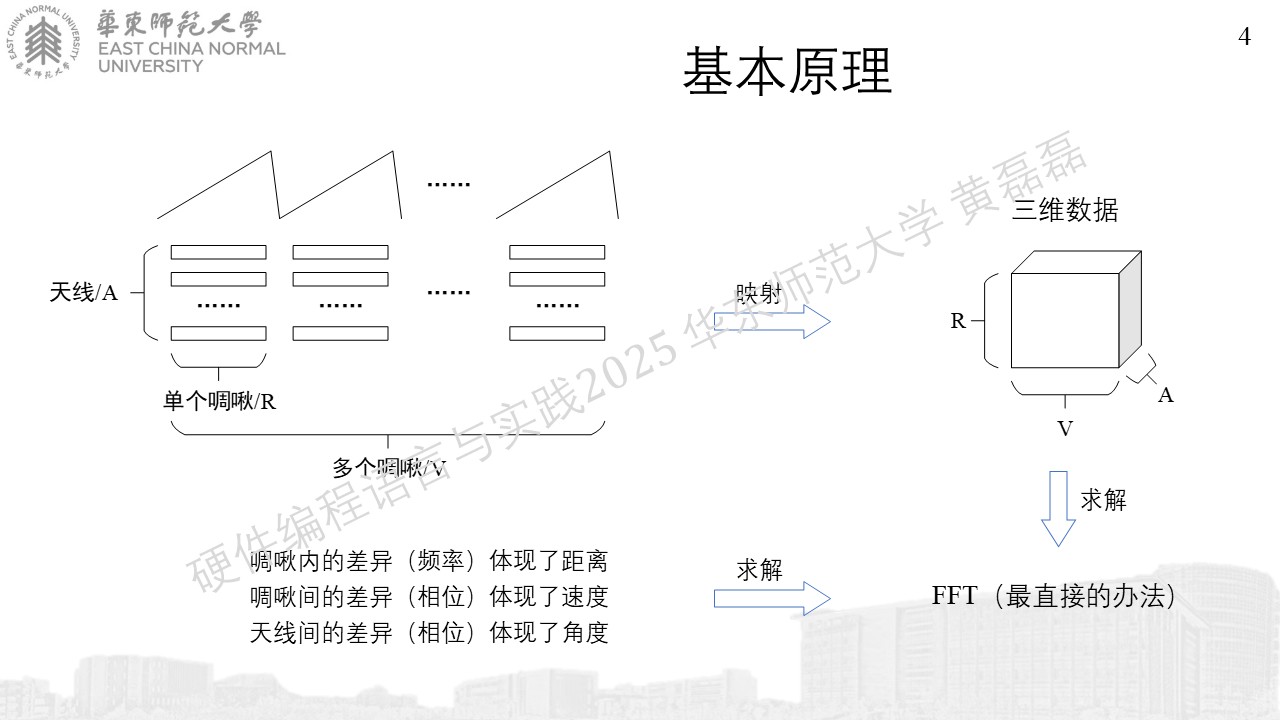

毫米波雷达概述

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87260.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87348.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87438.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87528.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87625.JPG

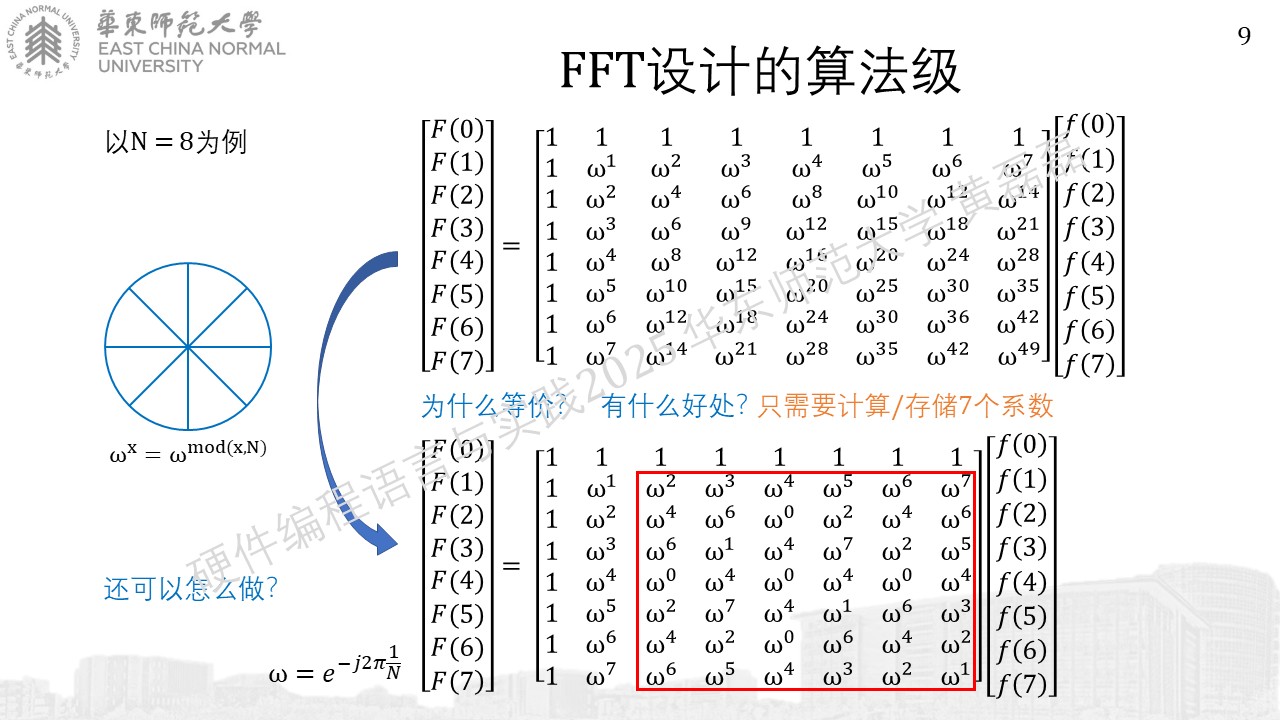

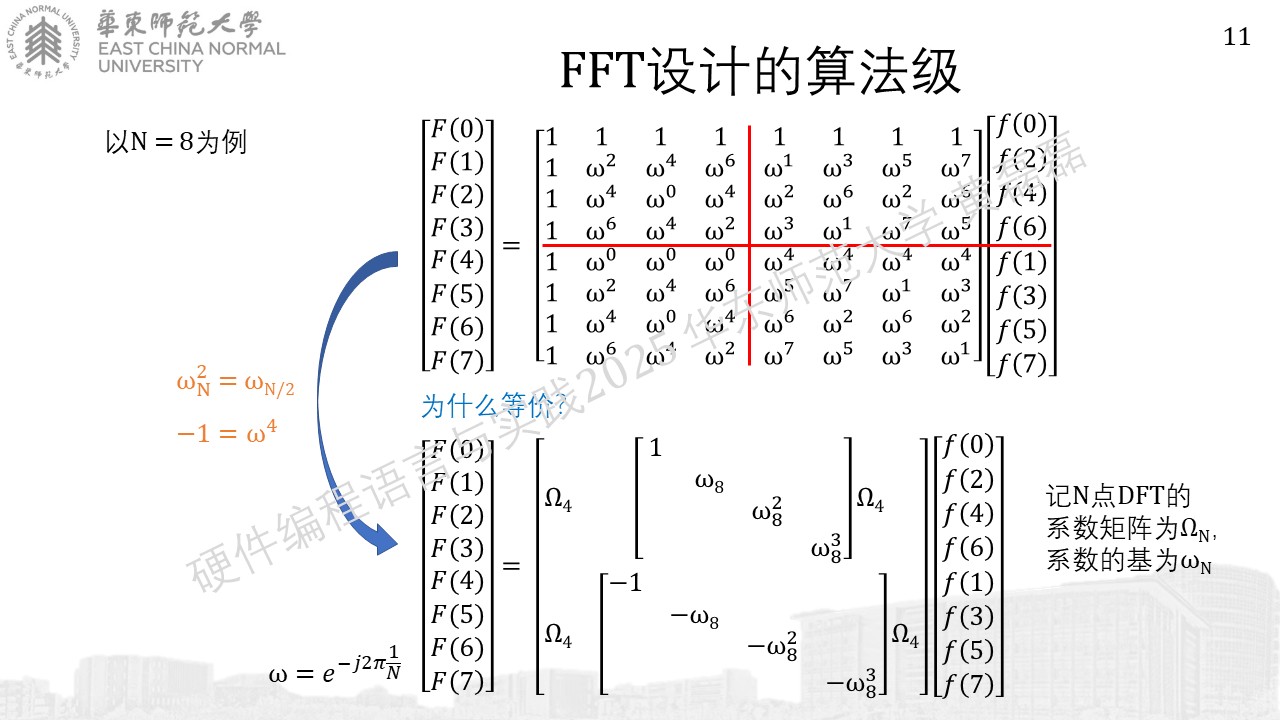

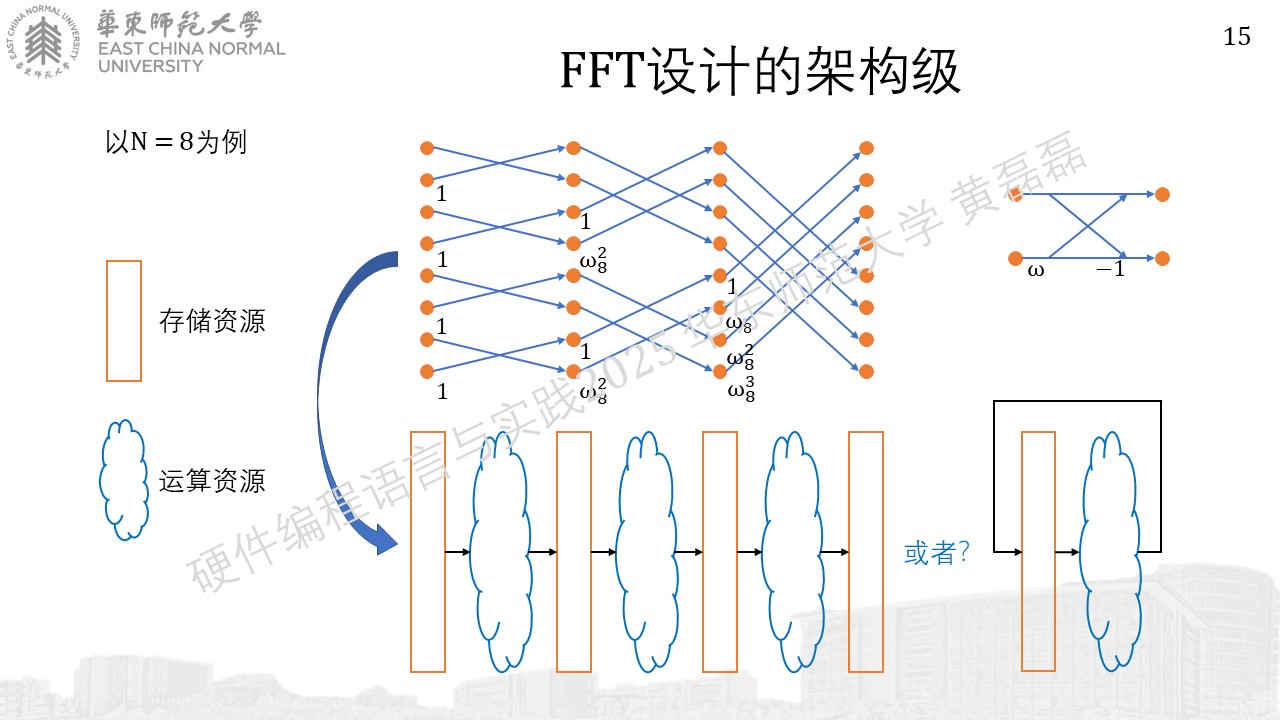

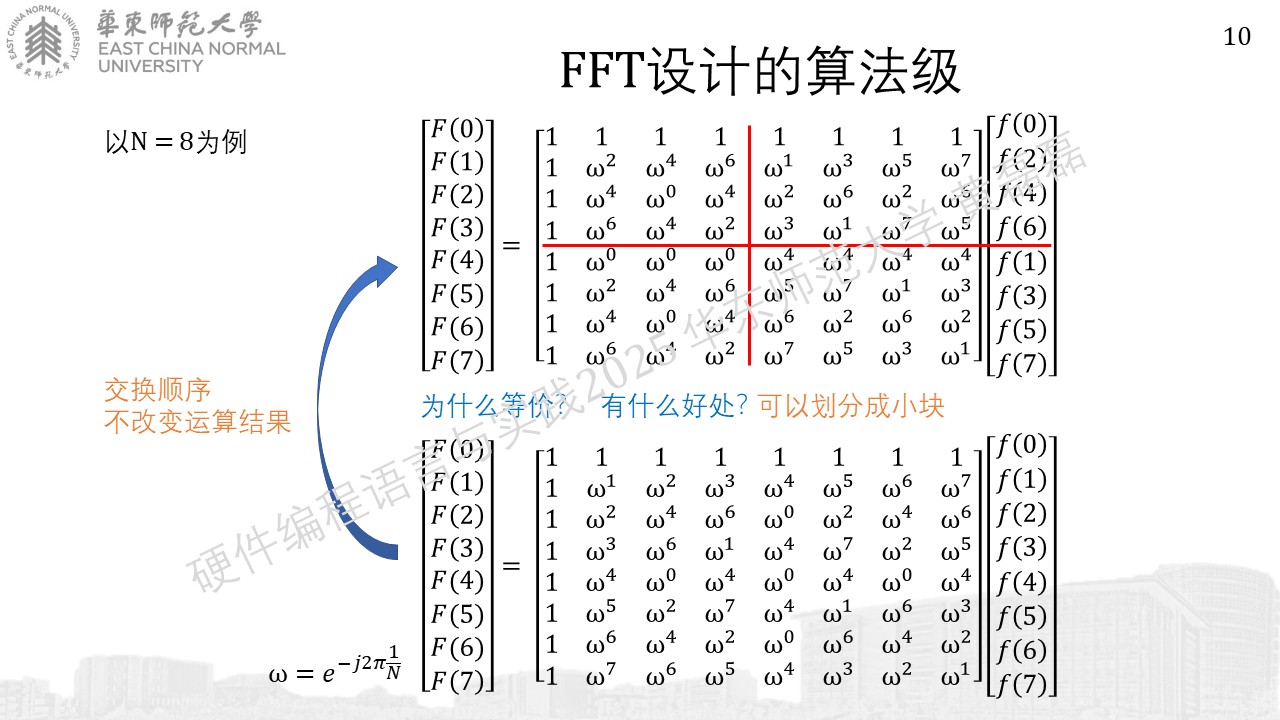

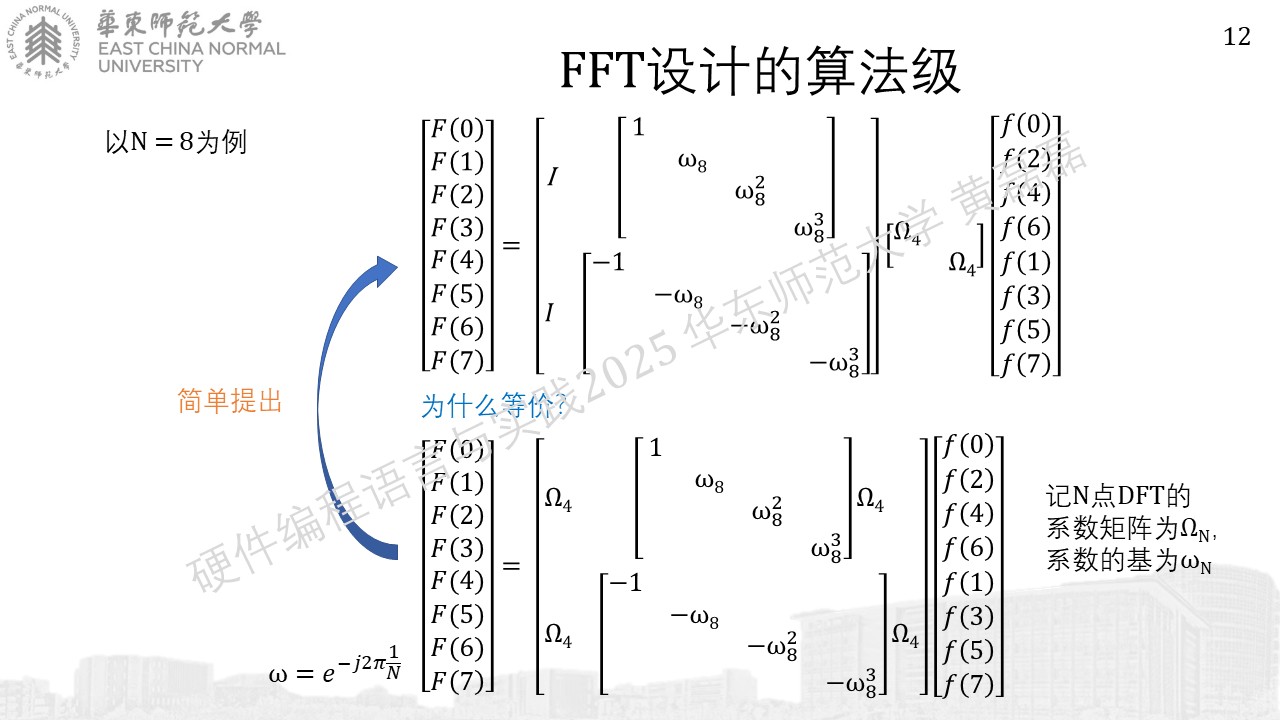

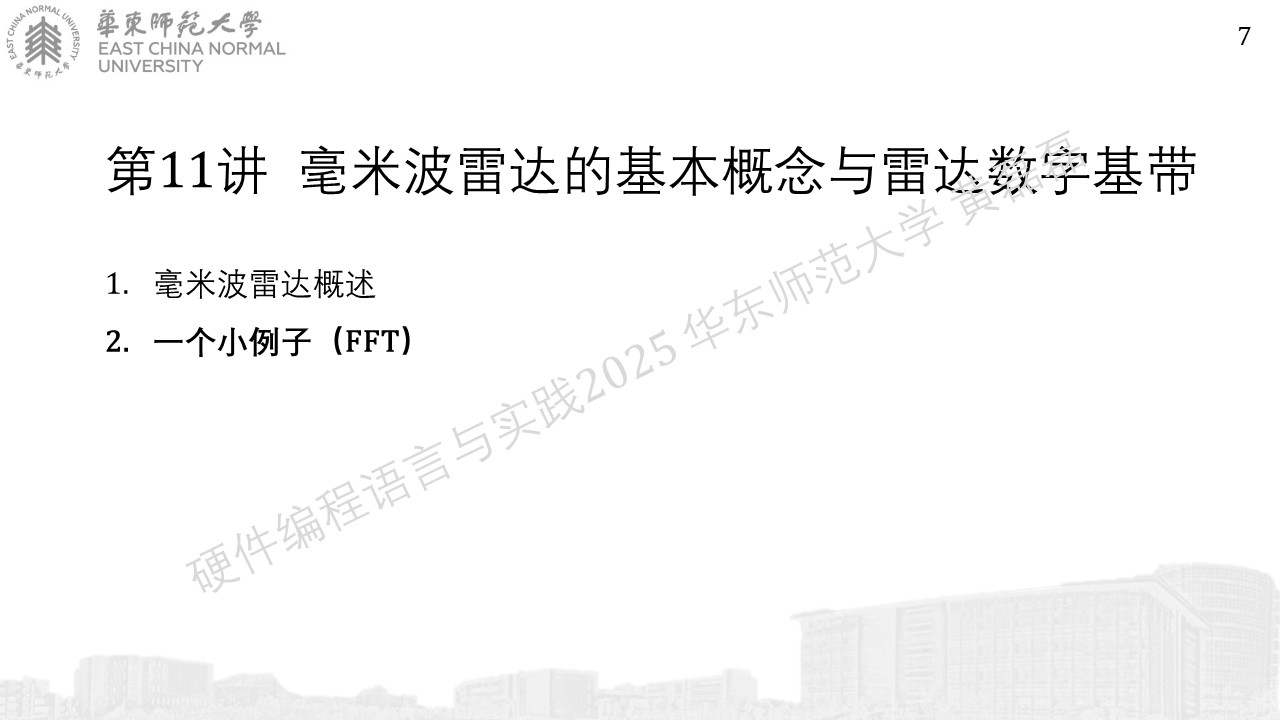

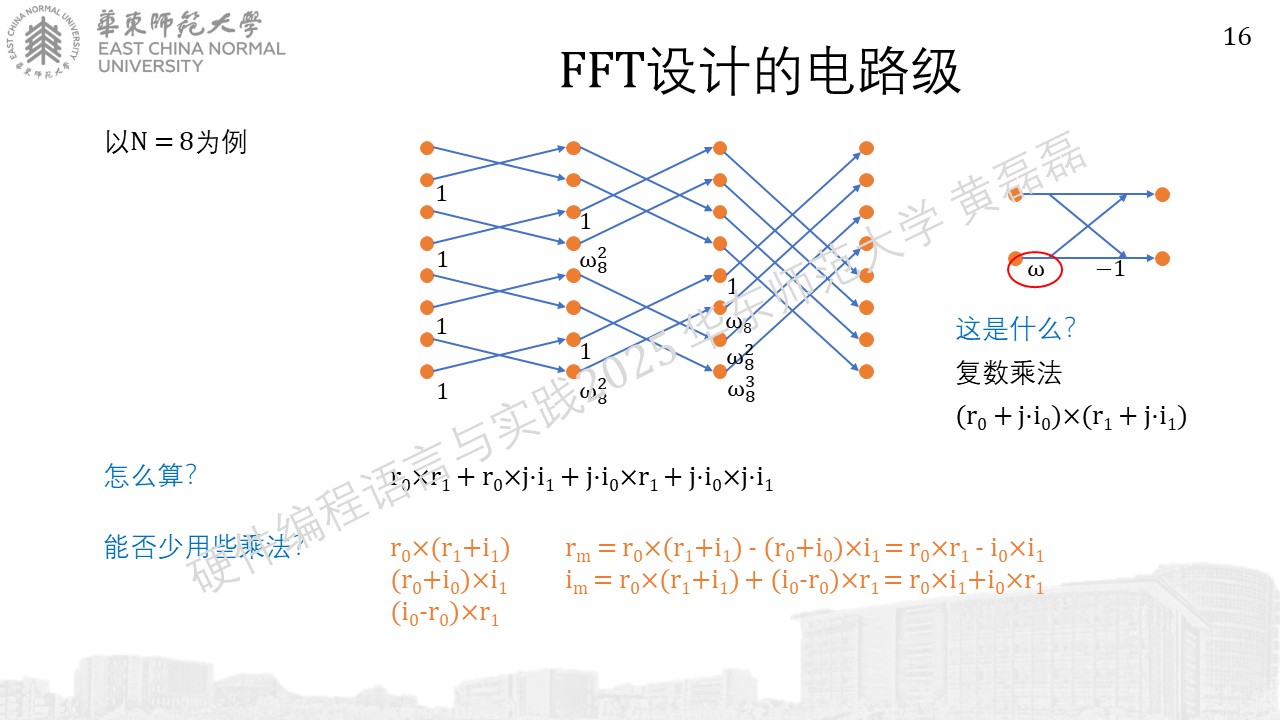

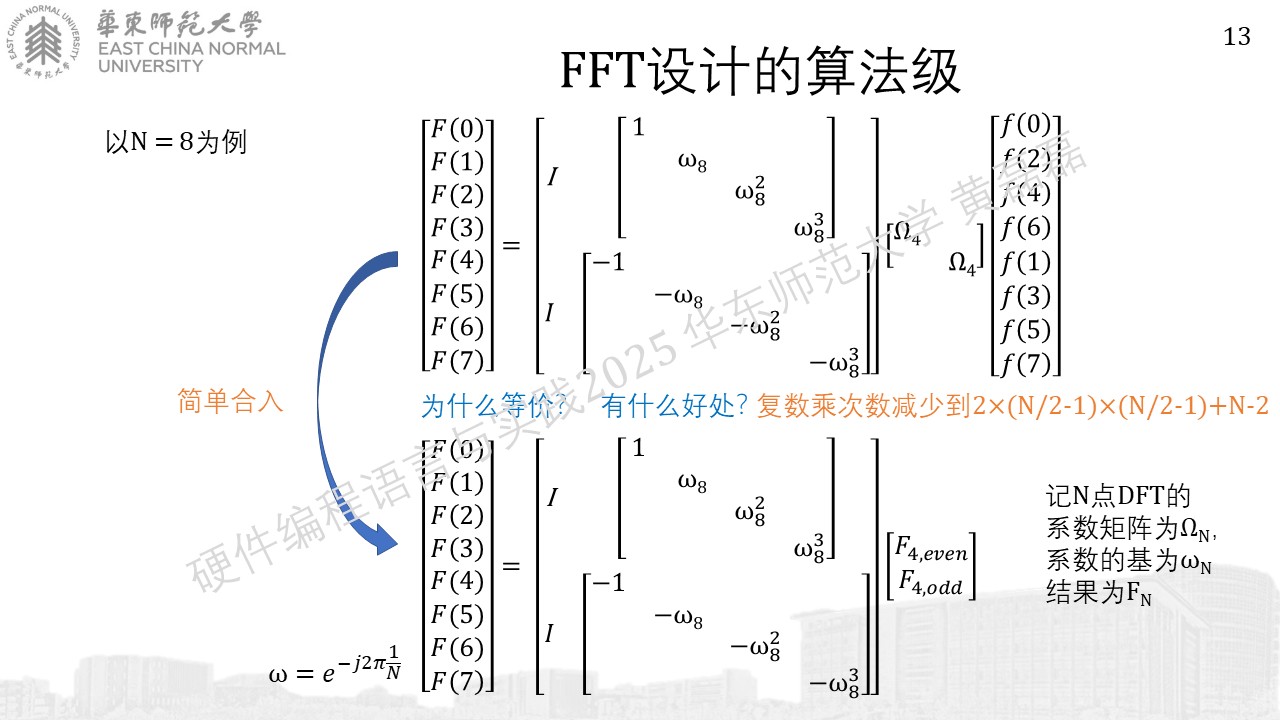

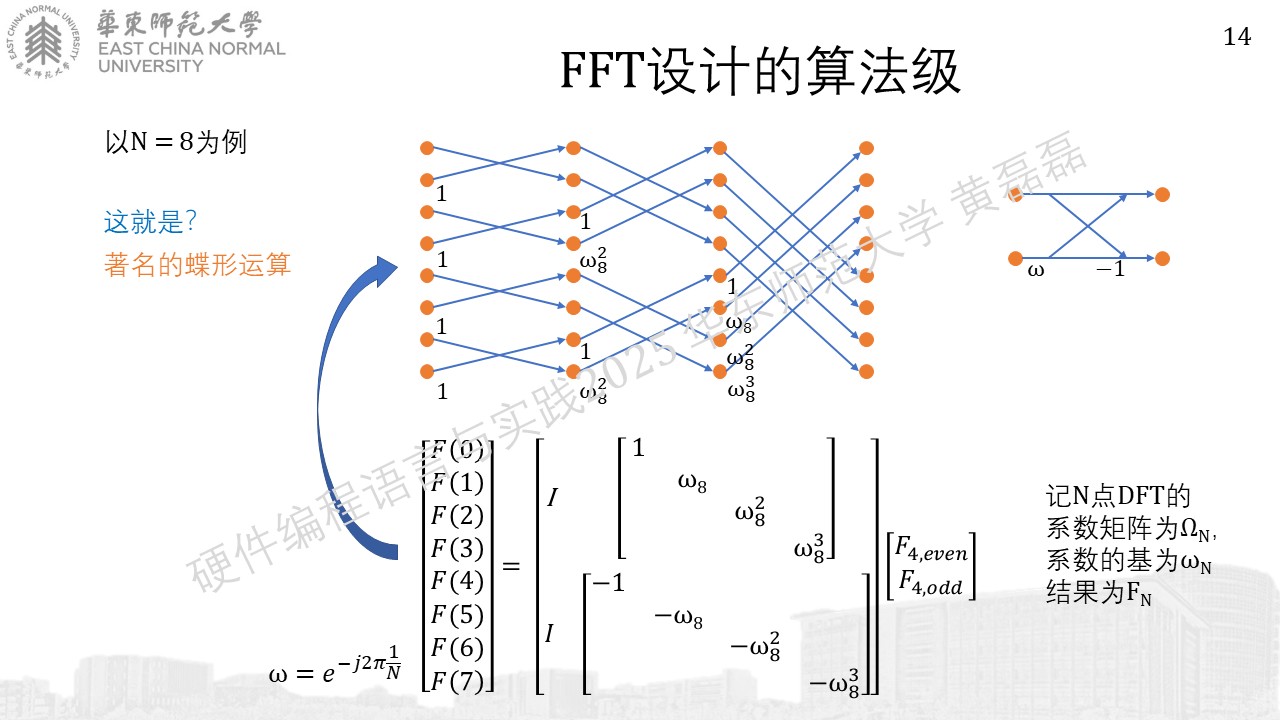

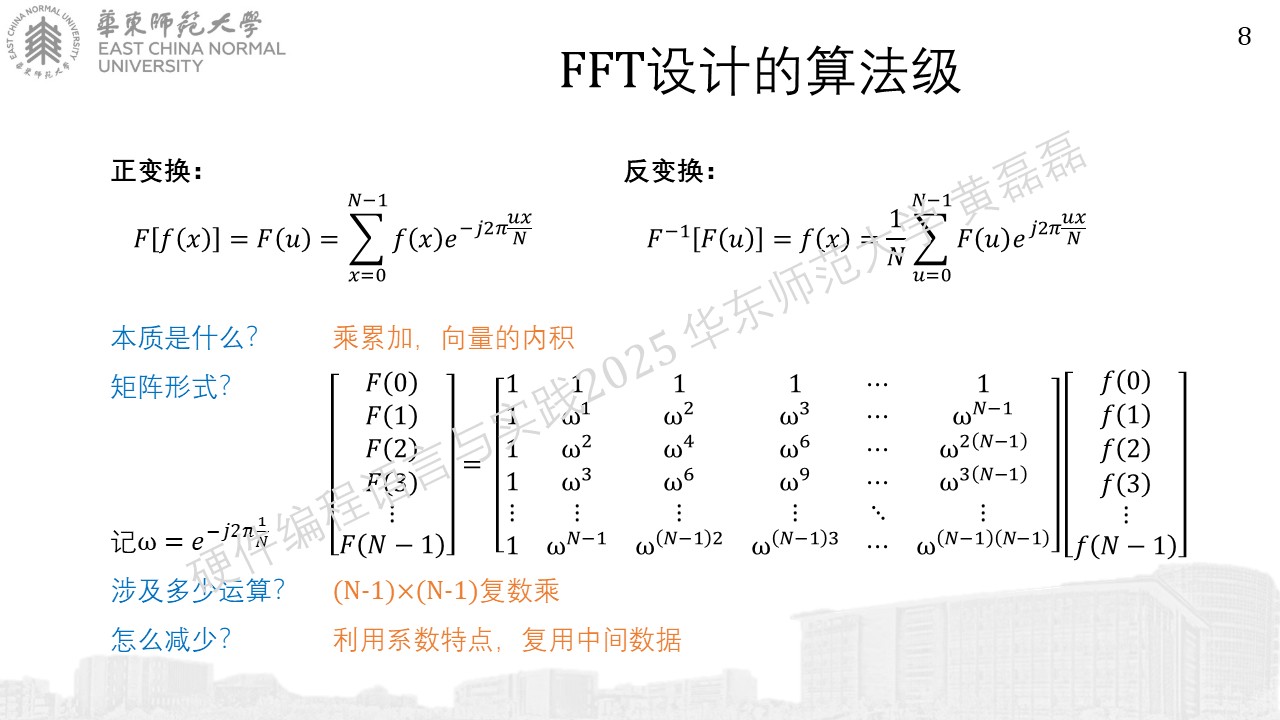

一个小例子（FFT）

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87725.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87824.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87918.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%871017.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%871120.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%871218.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%871316.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%871415.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%871515.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%871615.JPG

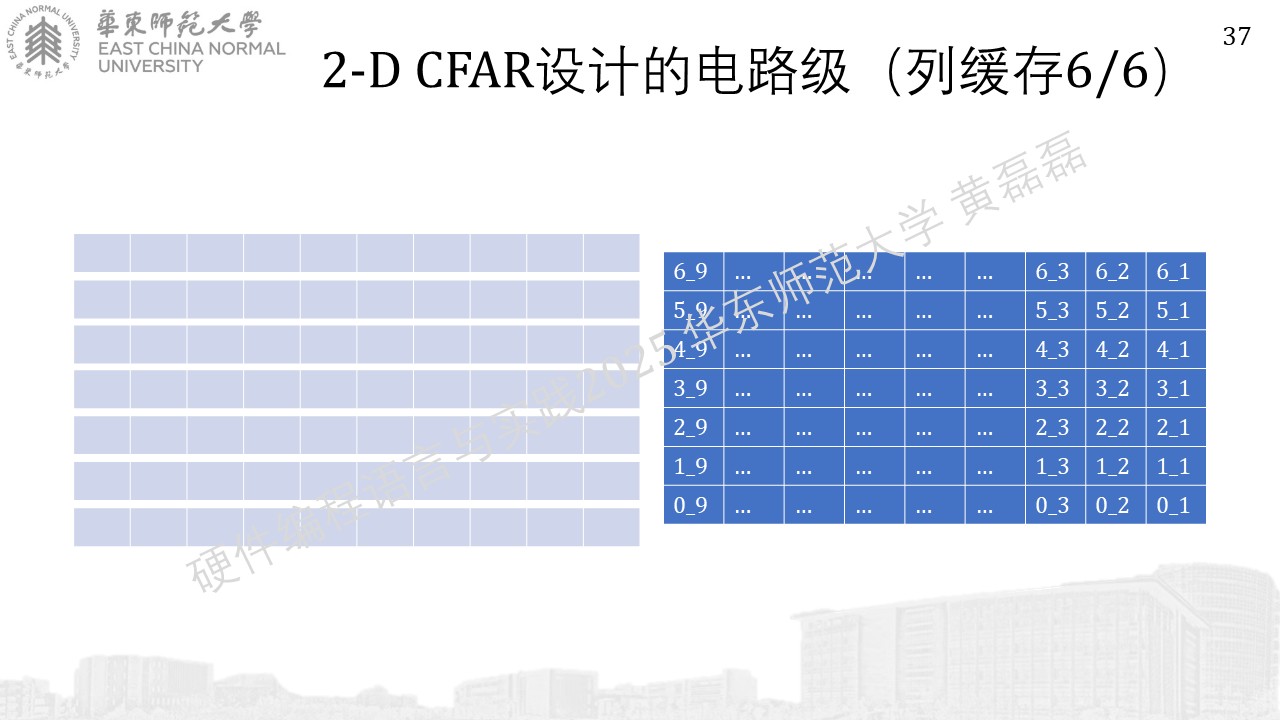

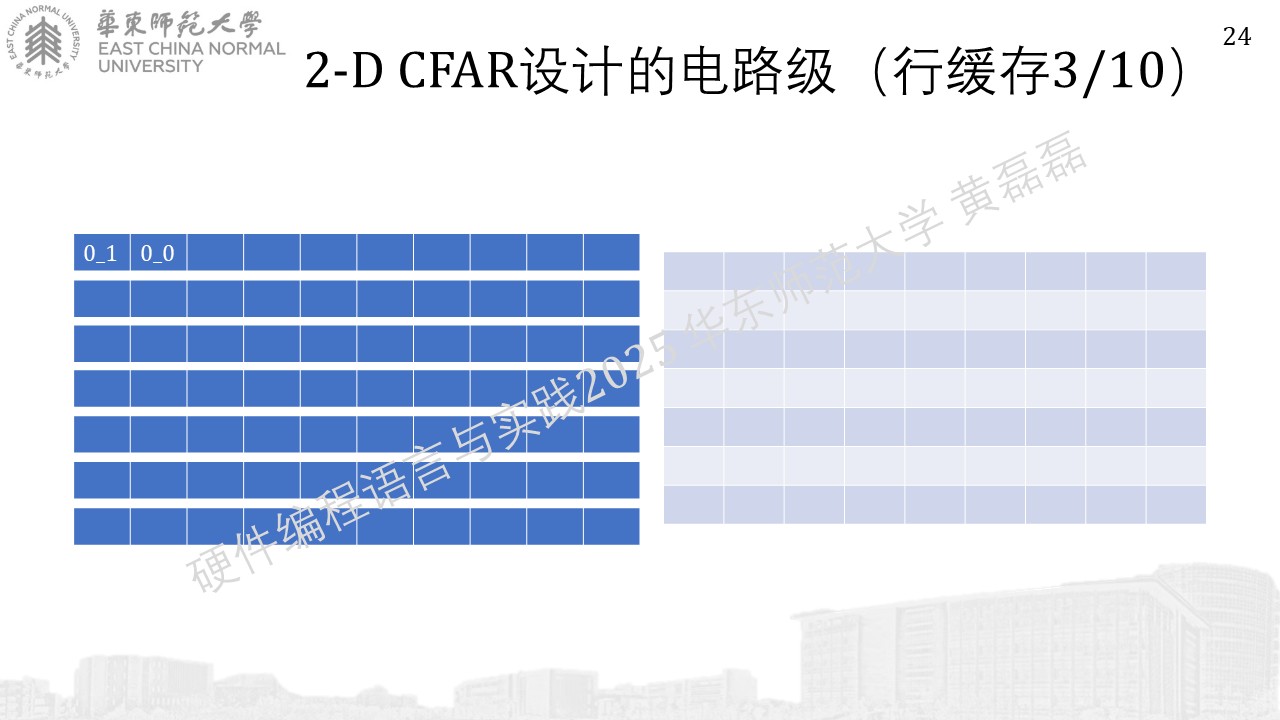

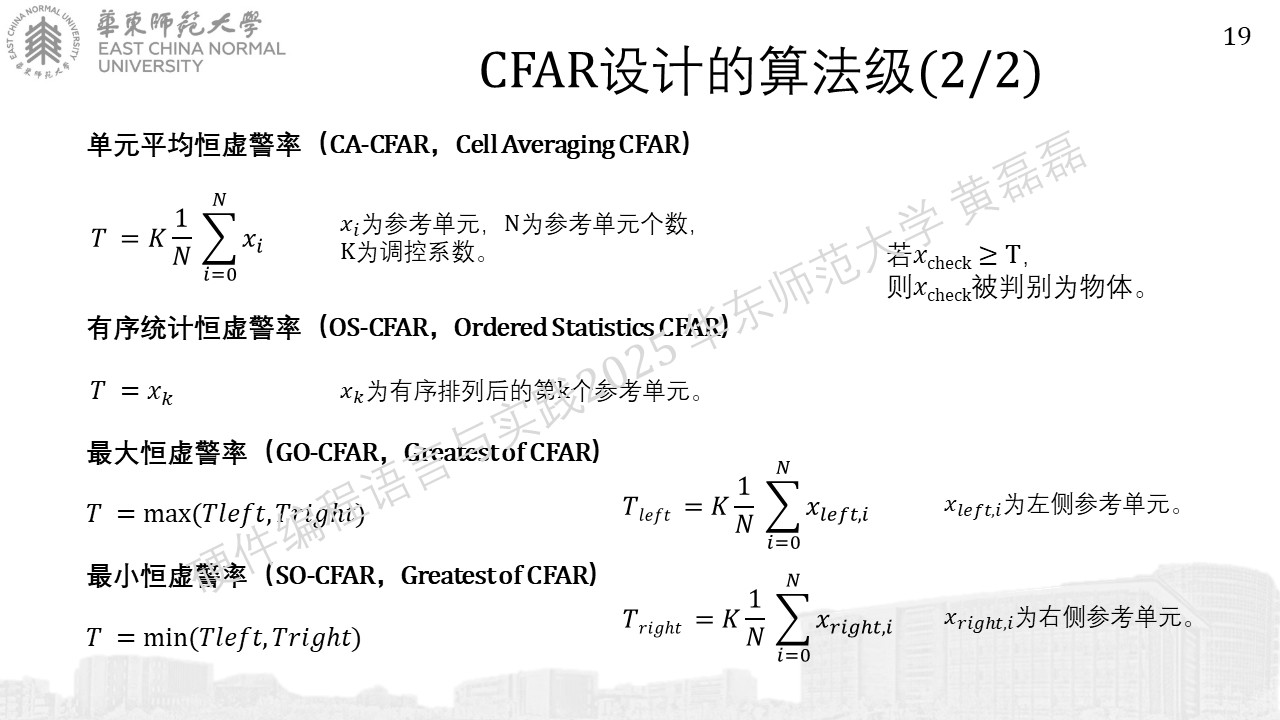

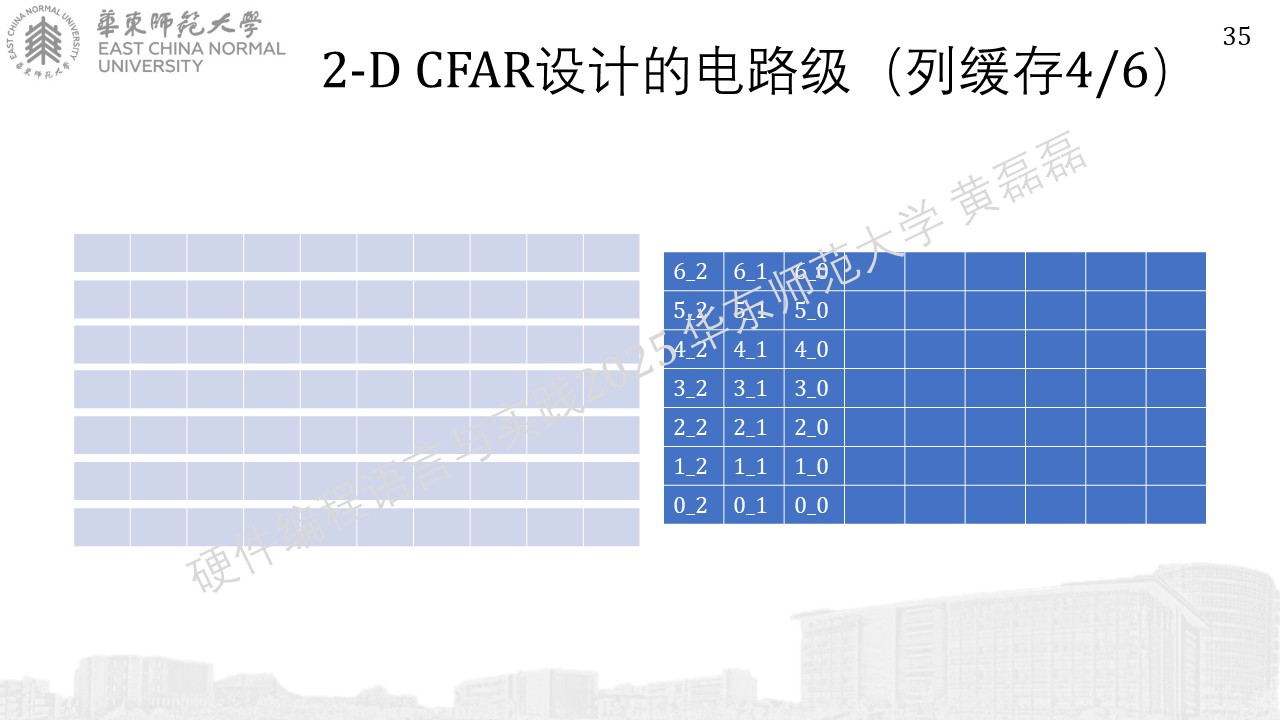

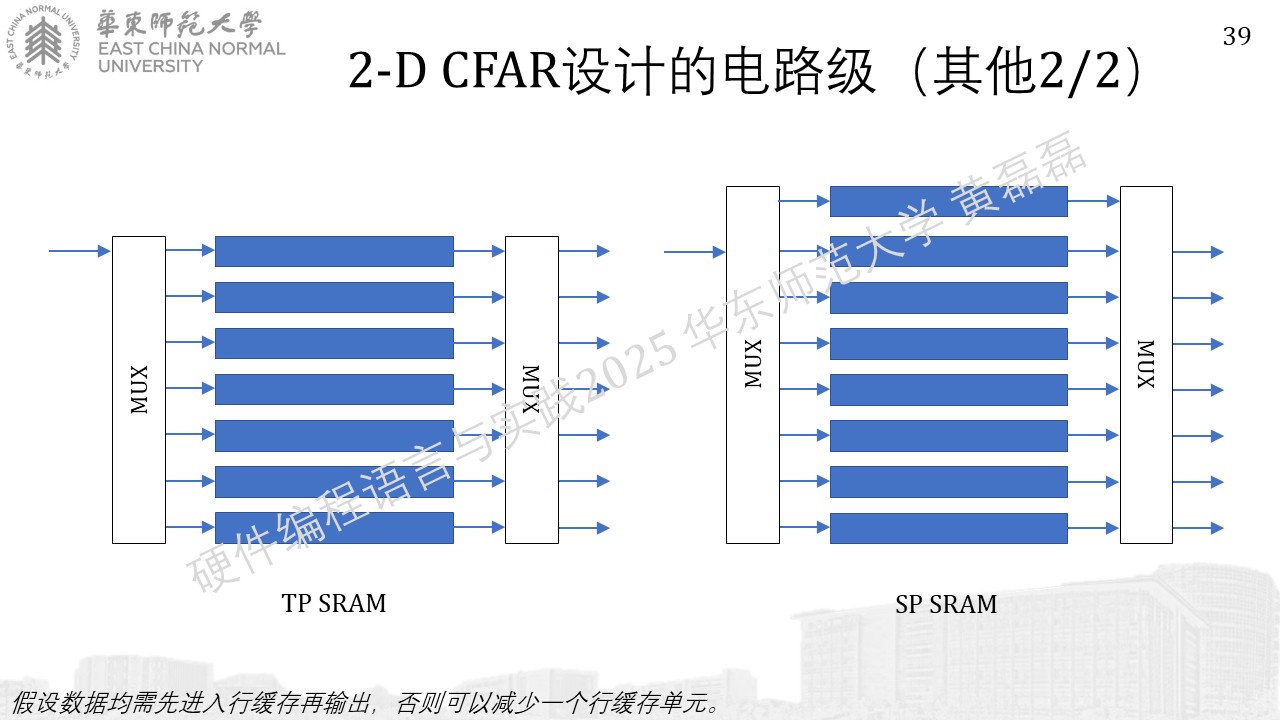

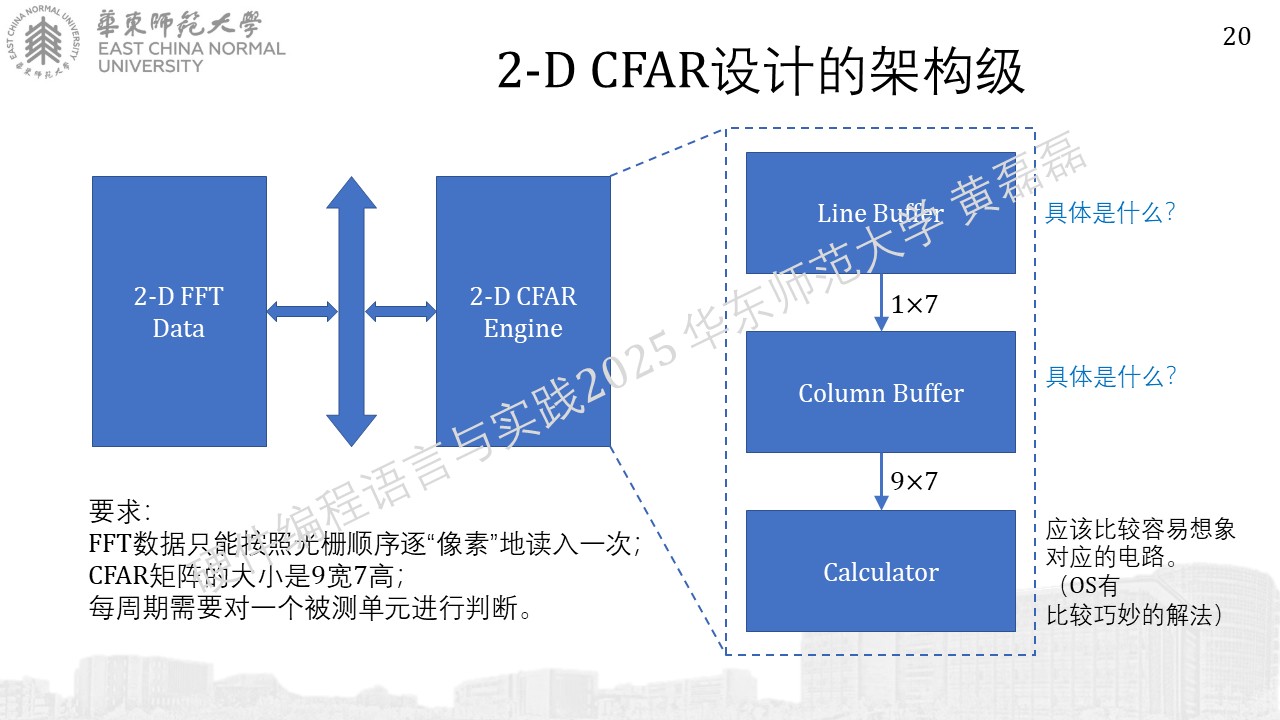

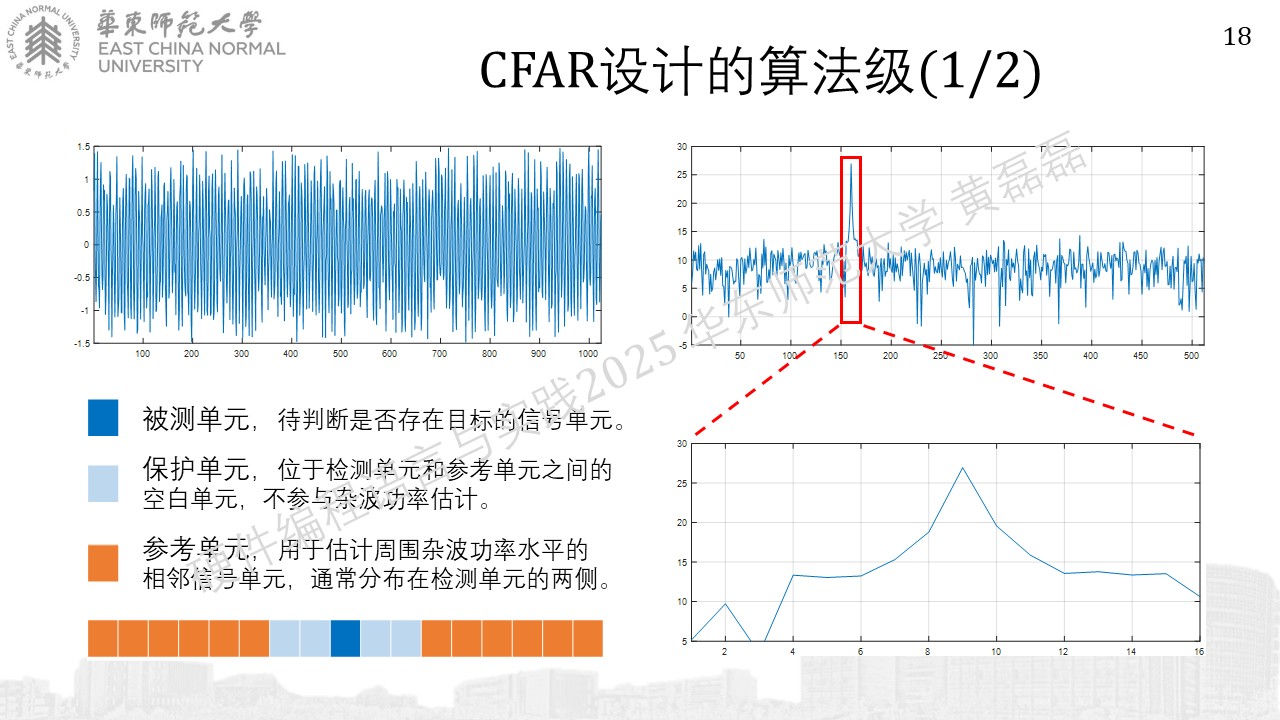

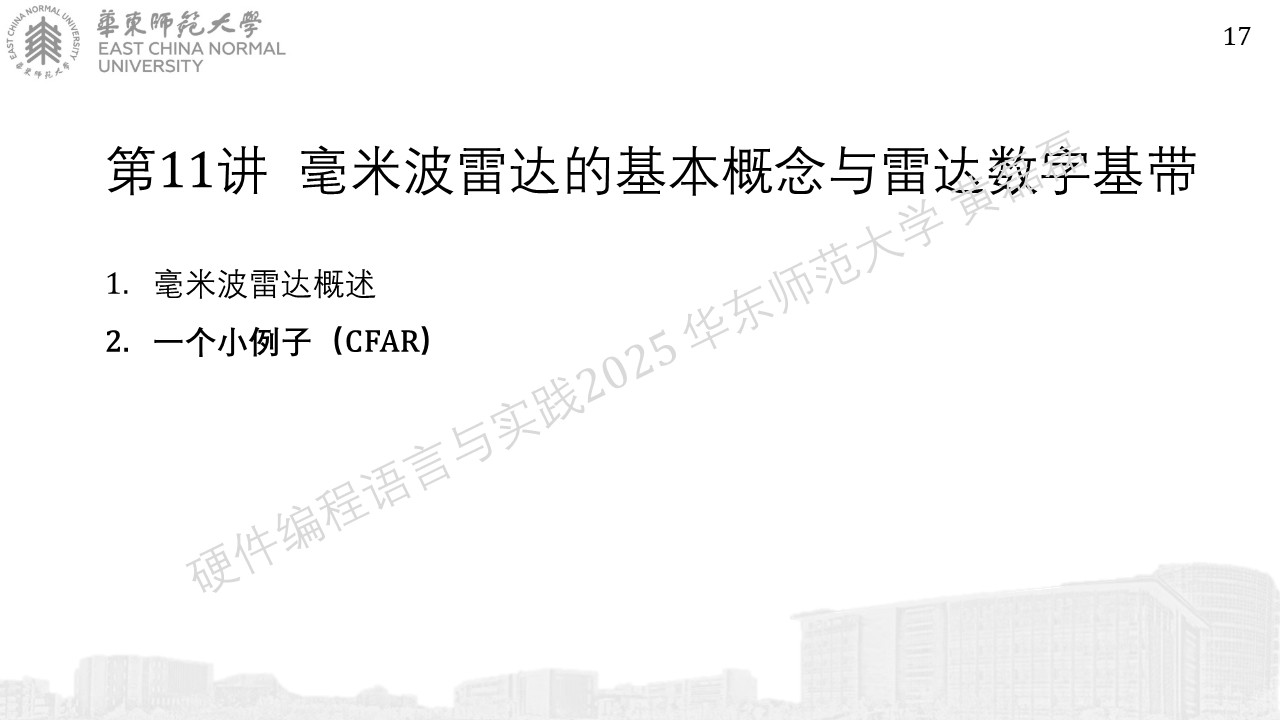

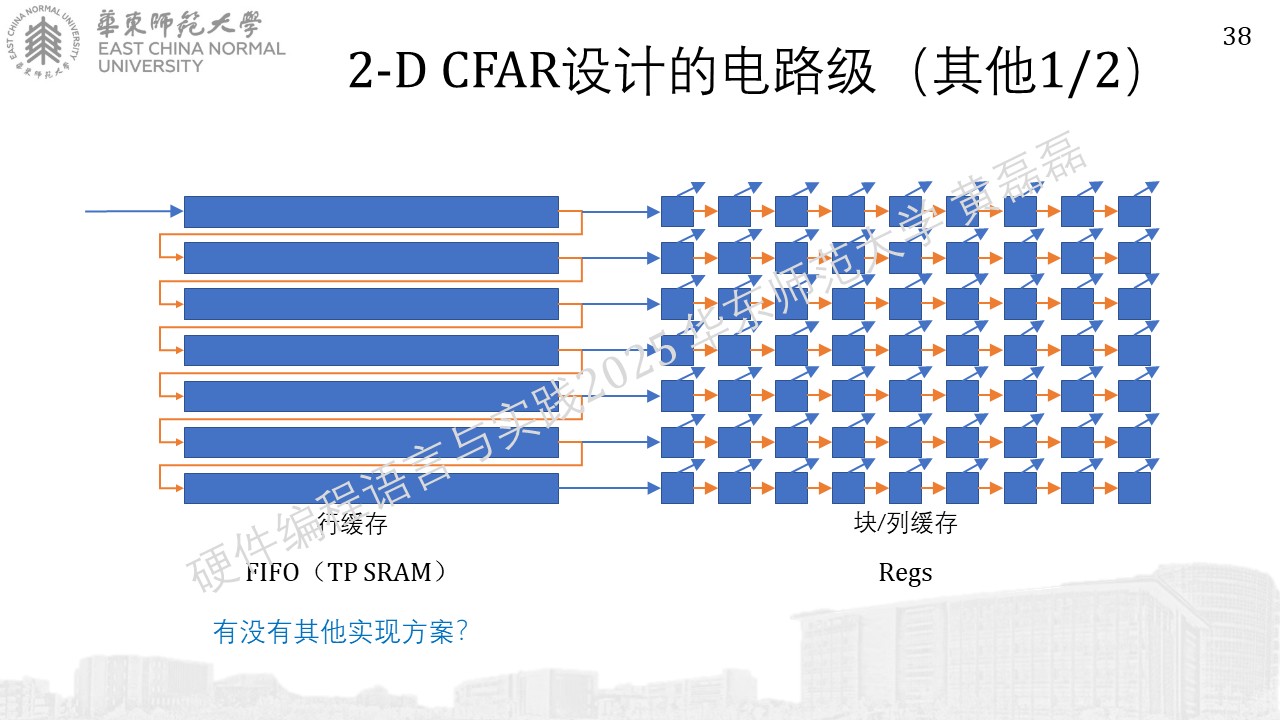

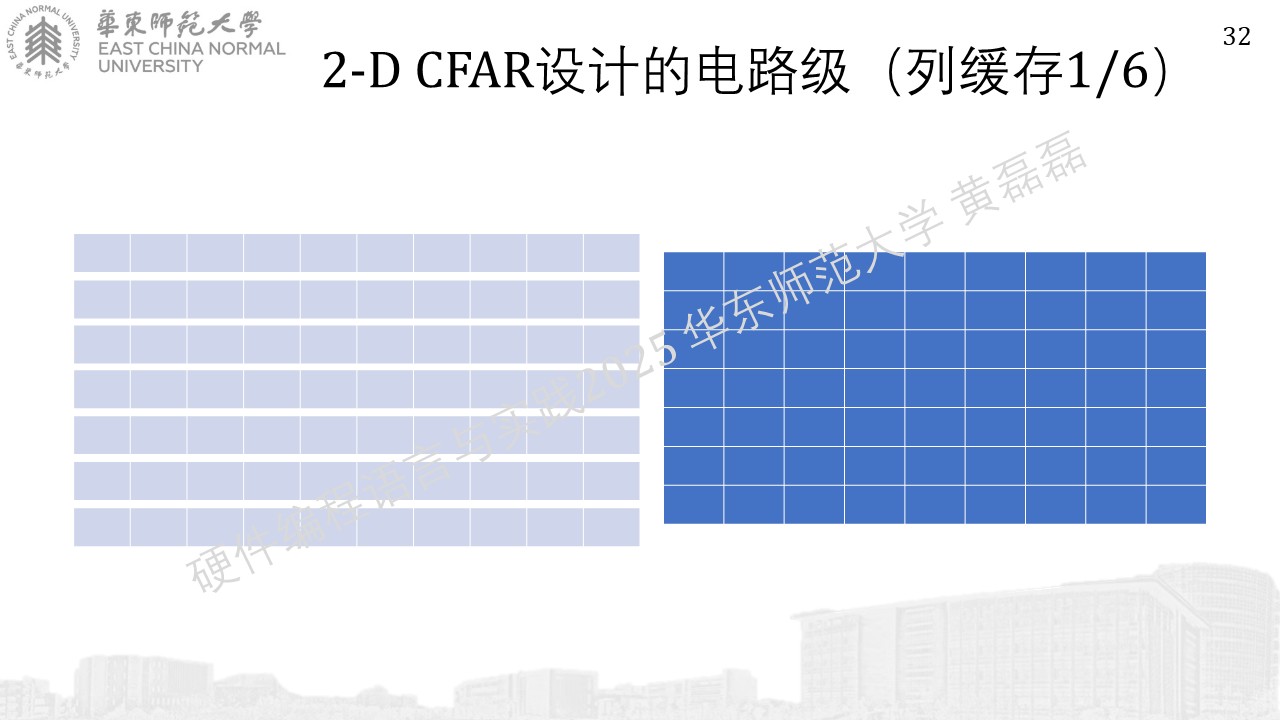

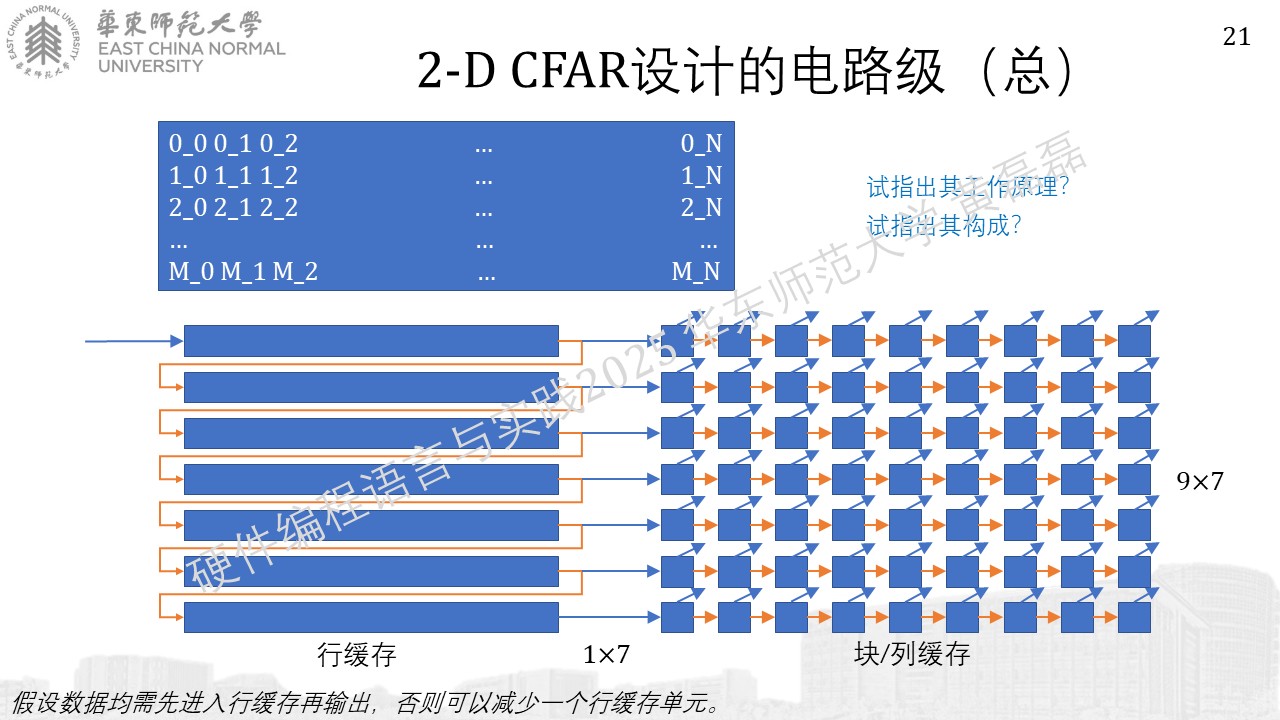

一个小例子（CFAR）

../../_images/%E5%B9%BB%E7%81%AF%E7%89%871715.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%871815.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%871914.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%872013.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%872119.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%872215.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%872314.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%872412.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%872511.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%872610.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%872710.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%872810.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87299.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87309.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%873116.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%873214.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%873311.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87349.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87357.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87367.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87377.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87387.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87397.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87407.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%874115.JPG
